Set of 2: Momentary Push Button for Auto/Moto 12V/24V – Surface Mount, No Latching

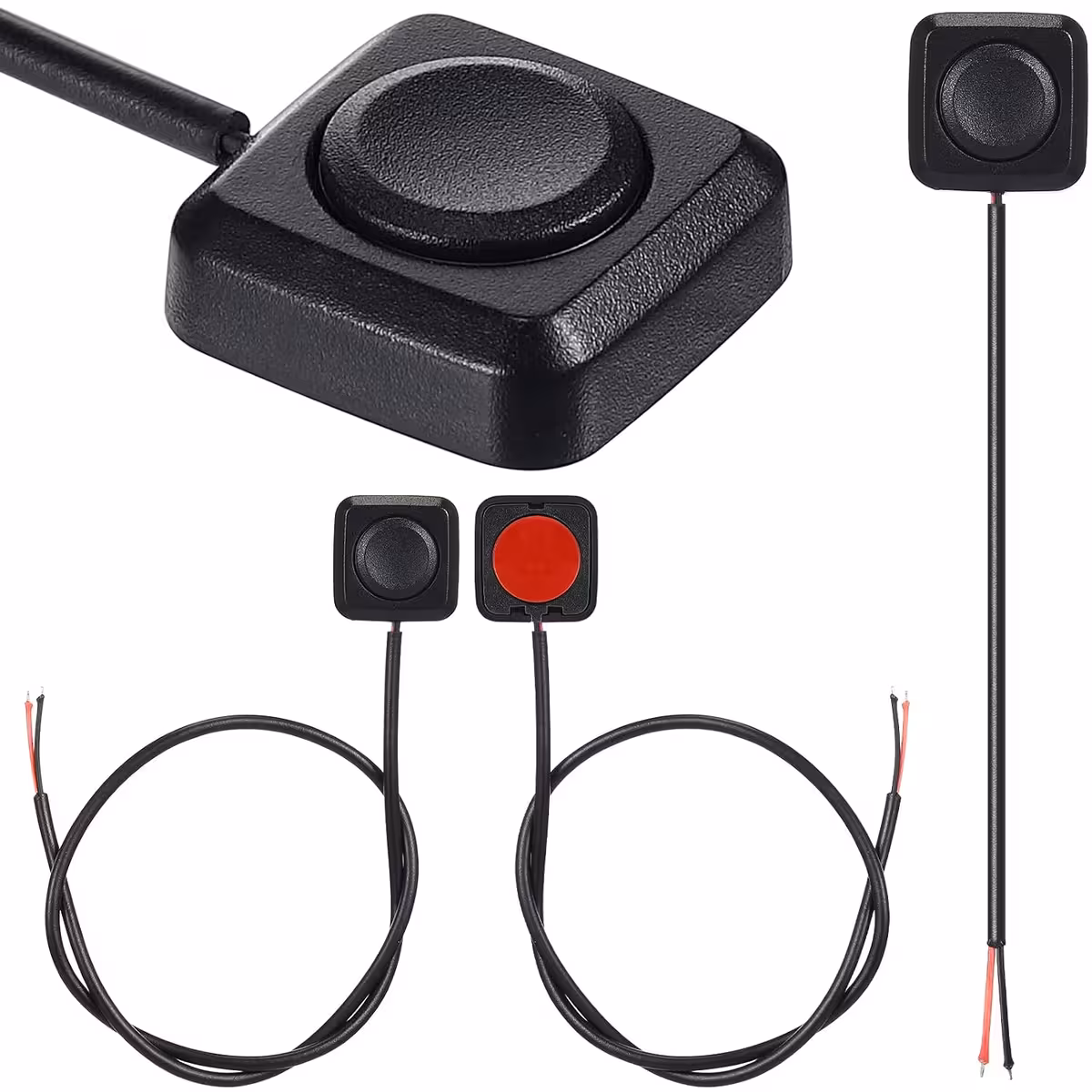

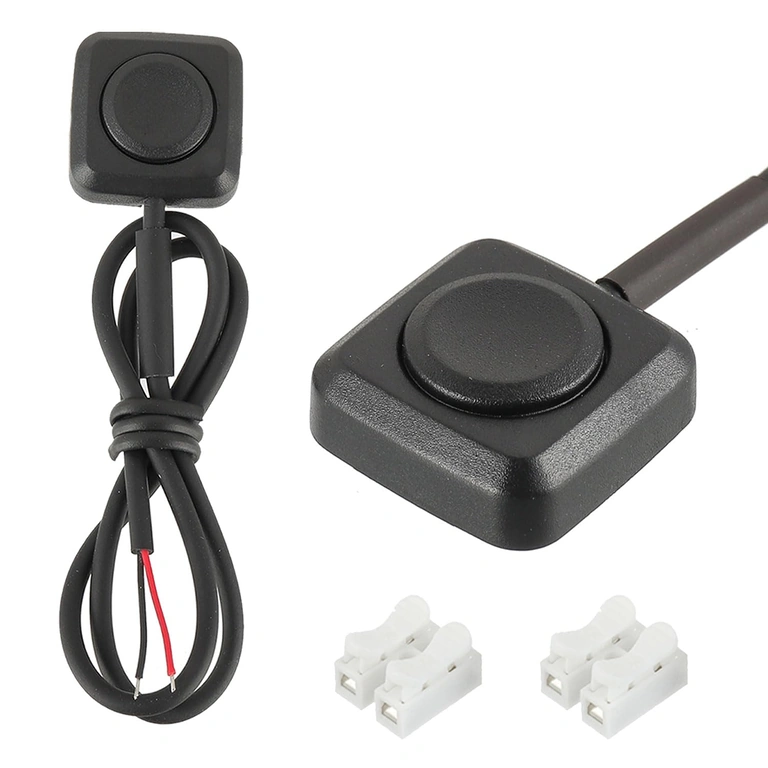

Set of 2 mini push buttons for 12V / 24V, designed for surface mounting in automotive, motorcycle, marine, industrial equipment, and electronic projects. The buttons come pre-wired (2 pins: red = “+”, black = “–”). The momentary function makes them active only while pressed, making them ideal for low-power control and quick signaling.

Main Features

• Set: 2 mini push buttons
• Operating Voltage: 12V / 24V DC

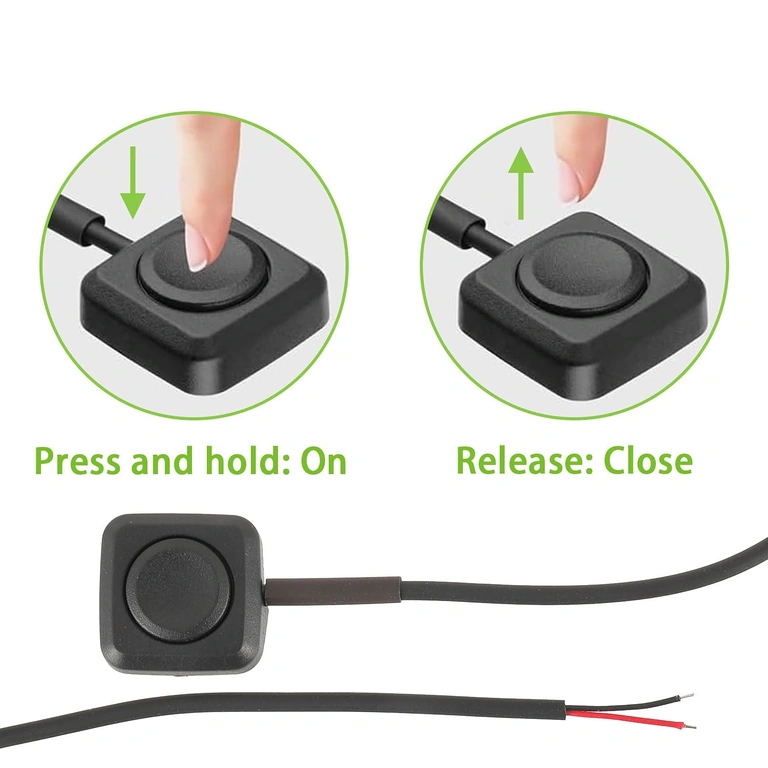

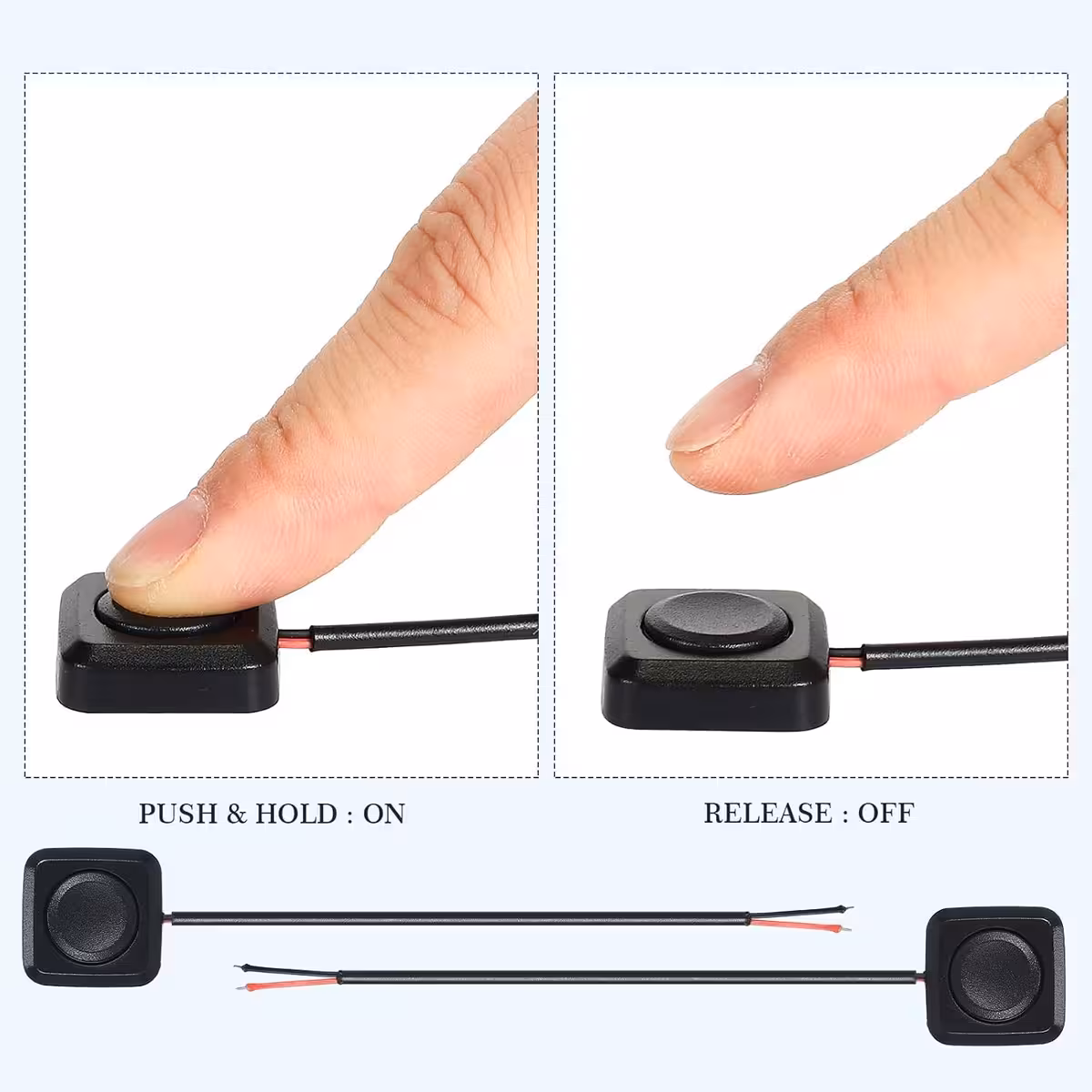

• Contact Type: Momentary (active only while pressed)
• Pre-Wired: red and black wires for quick, error-free connection
• Installation: surface mount with double-sided tape, no drilling required
• Rated Current: 0.5A — suitable for low-power circuits

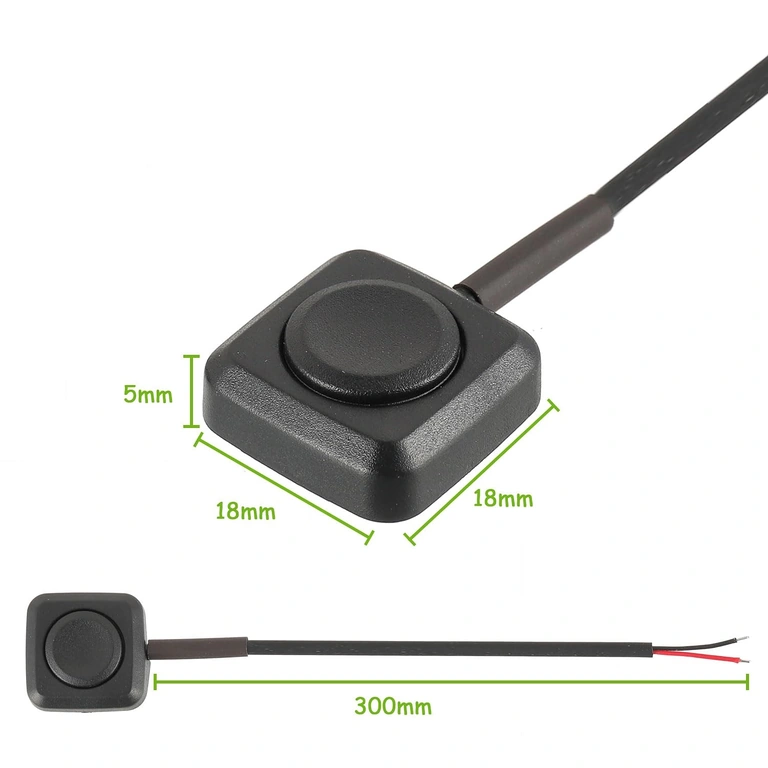

• Cable Length: ~30 cm, allowing hidden and flexible installation
• Applications: automotive, motorcycle, marine, industrial equipment, DIY projects, electronic experiments

Key Advantages

• Quick Installation: double-sided tape eliminates the need for drilling or special tools
• Safe Connection: pre-wired leads reduce the risk of installation errors
• Precise Control: momentary function provides instant response for temporary commands (horn, signaling, testing)
• Versatility: suitable for discreet installations, control panels, or retrofits on vehicles and equipment

Technical Specifications

Installation Instructions

1. Clean the surface where the button will be mounted.
2. Remove the backing from the double-sided tape and fix the button in the desired location.

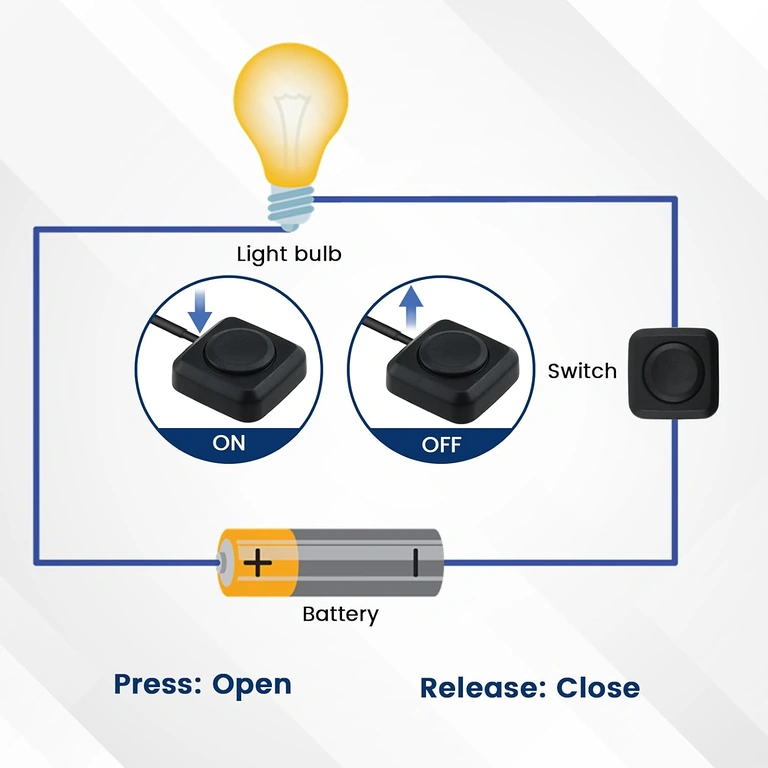

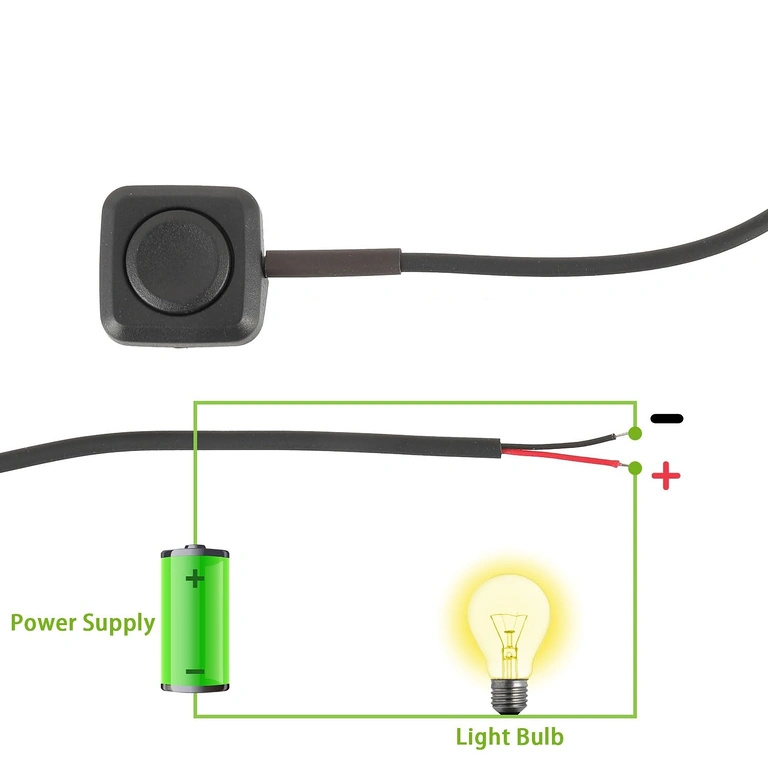

3. Connect the red wire to + and the black wire to –.
4. Test the momentary function by pressing the button — it should switch only while pressed.
5. If necessary, insulate the connections with electrical tape or heat-shrink tubing.

Common Applications

• Activating a horn or temporary signaling
• Start/stop button for low-power circuits
• Prototypes and electronic experiments
• Control panels for small industrial equipment
• Quick installations in vehicles, boats, or RVs

Tips & Recommendations

For higher-power loads, it is recommended to use a relay or a button with a higher rating; this set is optimal for signaling, low-power inputs, and temporary commands.

Package Contents

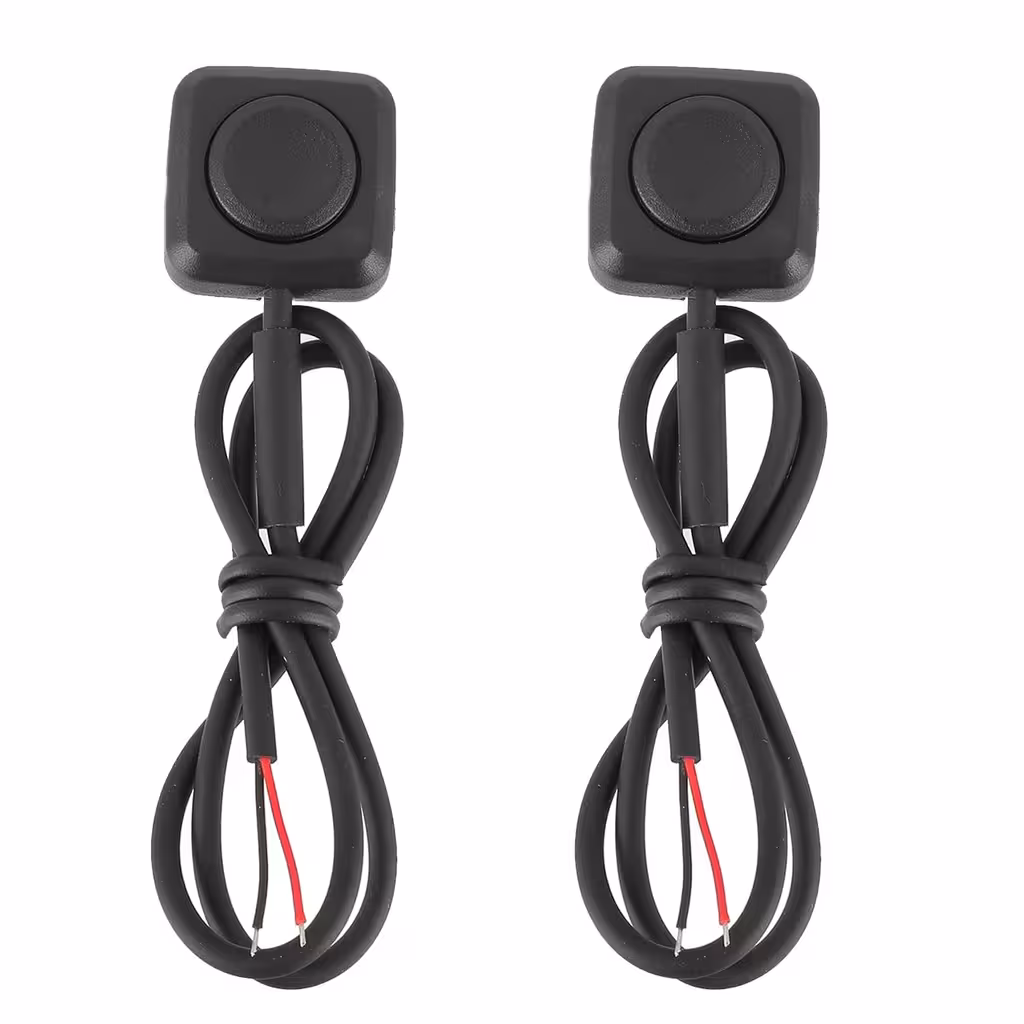

• 2 × pre-wired mini push buttons
