Solar DC Meter 0–200V 100A/300A – Voltmeter Ammeter for Photovoltaic Panels
The multifunctional solar meter is a professional tool for measuring and monitoring photovoltaic systems, car batteries, wind turbines, RV vehicles, or industrial DC lines.

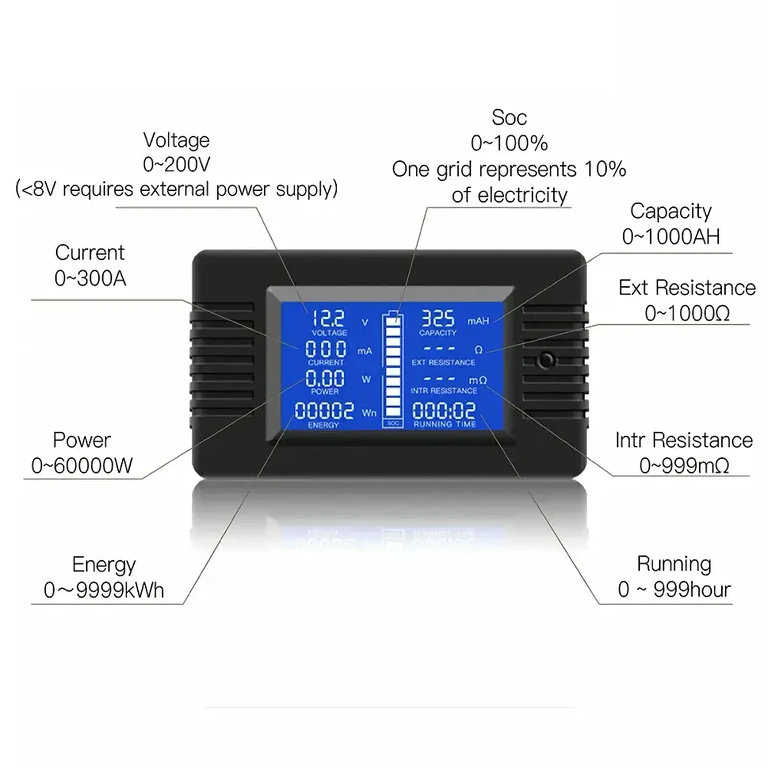

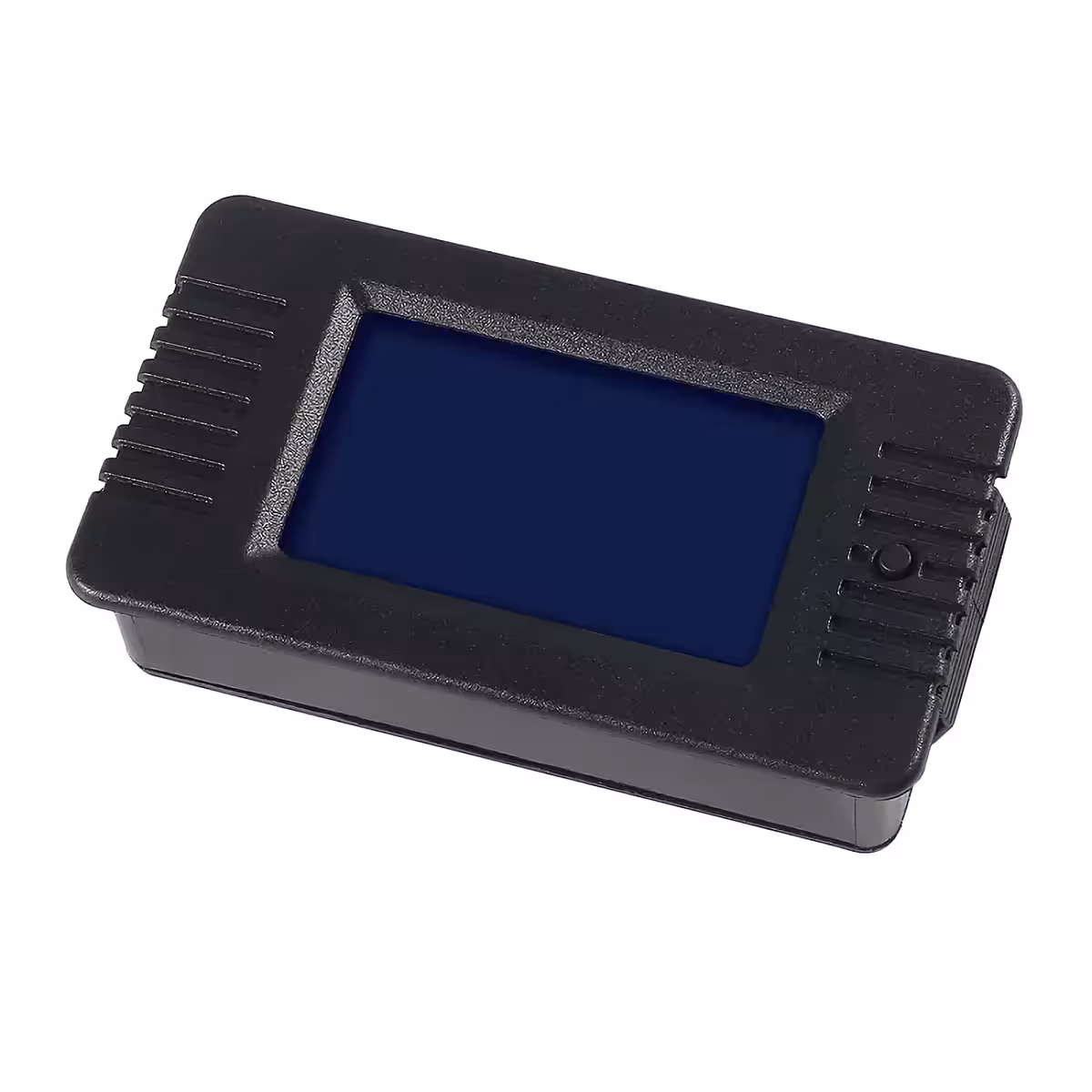

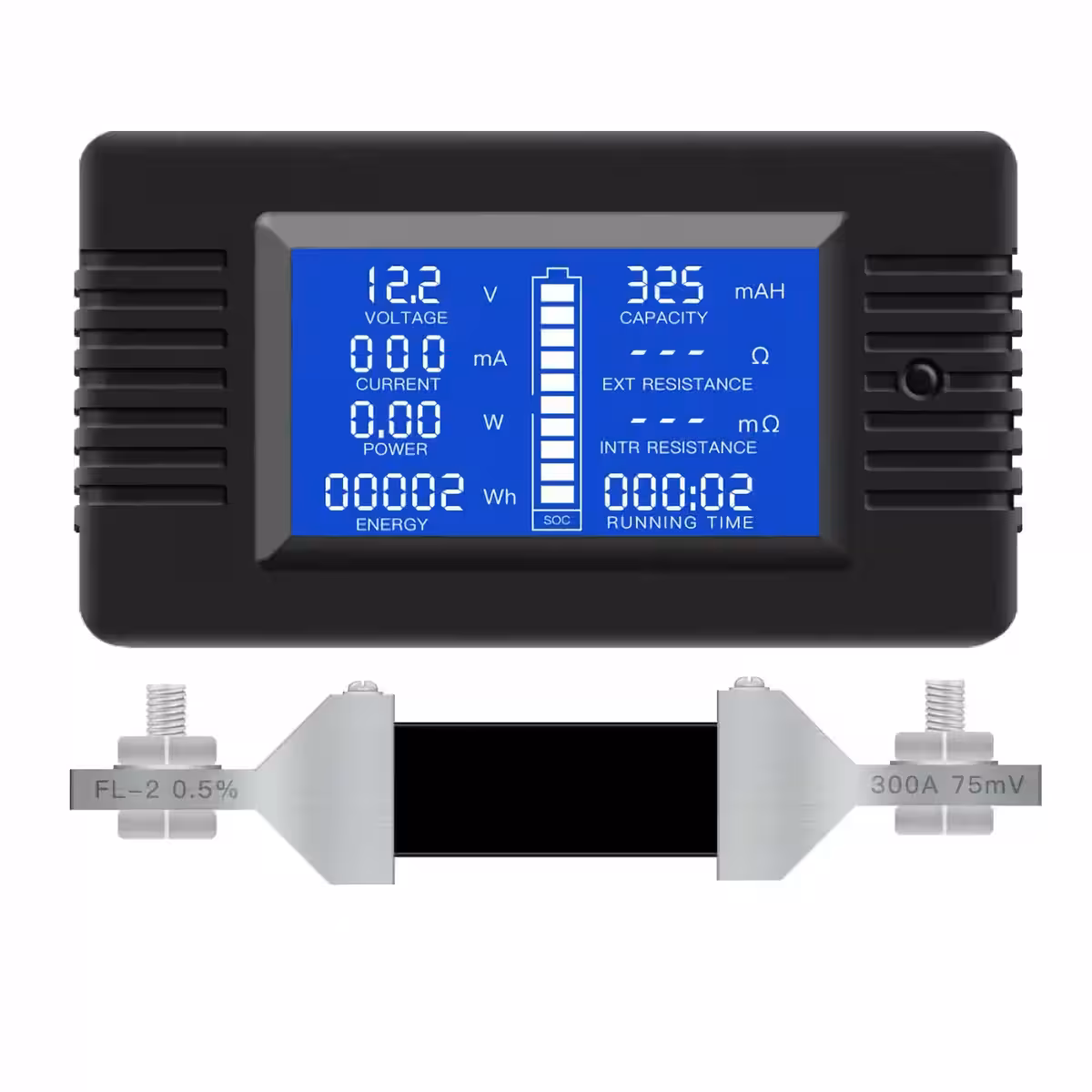

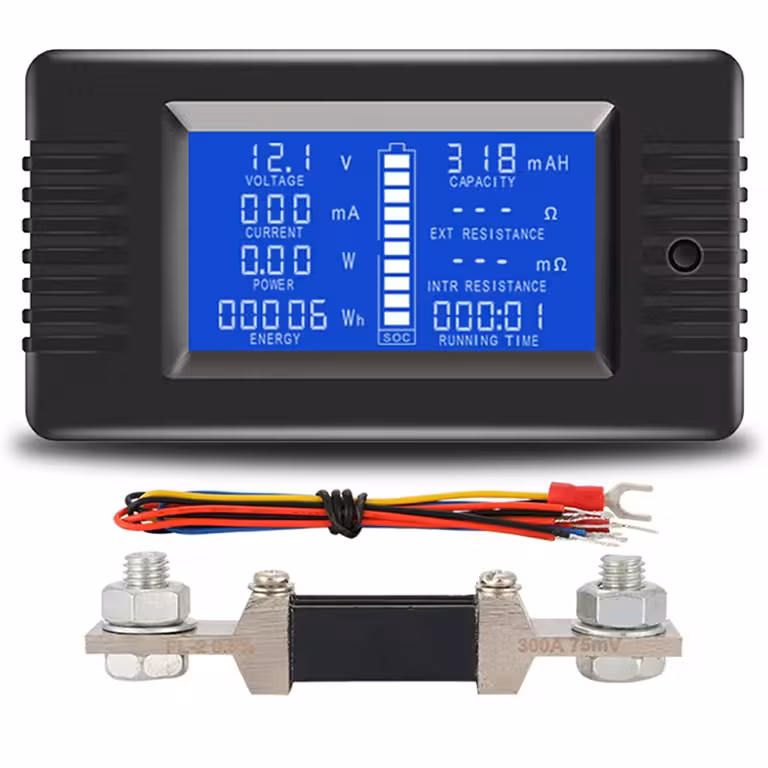

Equipped with a large LCD screen with backlight, this panel tester can simultaneously display up to 9 important parameters, providing a clear overview of the performance and efficiency of the electrical system.
Technical Specifications
| Voltage | 0–200V DC (<8V requires external power) |
| Current | 0–100A or 0–300A (starts from 20mA) |
| Power | 0–60,000W (detection from 0.2W) |
| Internal Resistance | 0–999mΩ |
| Impedance | 0–1000Ω |
| Battery Capacity | 0–1000Ah |
| Accumulated Consumption | 0–9999kWh (1Wh = 0.001kWh) |
| Discharge Energy | 10-step graphic bar (10% each) |
| Operating Time | 0–999 hours (records only under load) |
Recommended Applications
- Monitoring photovoltaic solar panels and off-grid systems
- Testing car batteries, 12V/24V/48V accumulators
- Wind turbine installations and renewable energy sources
- Consumption control for DC devices in industry or hobby projects
Usage Recommendations

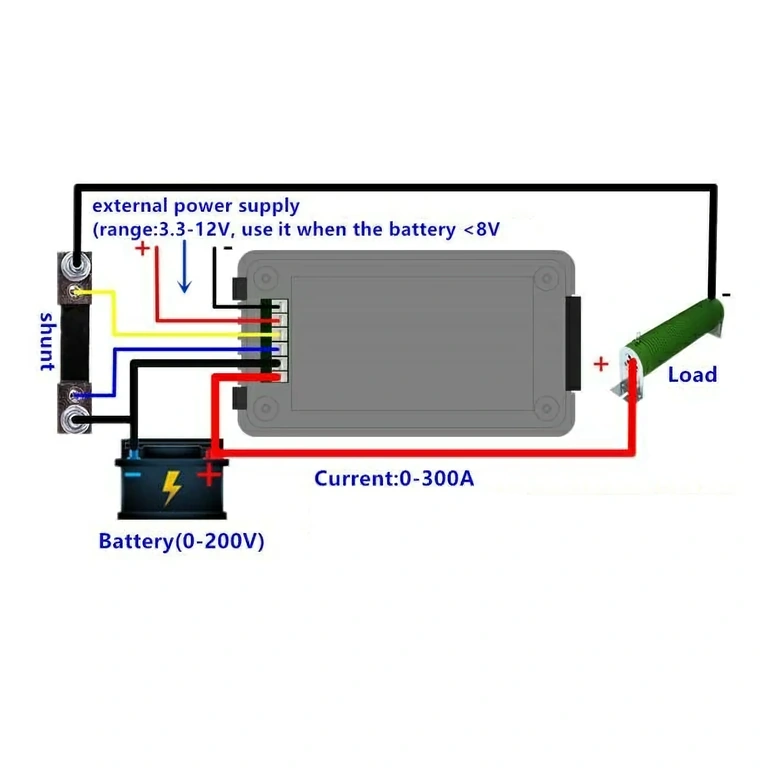

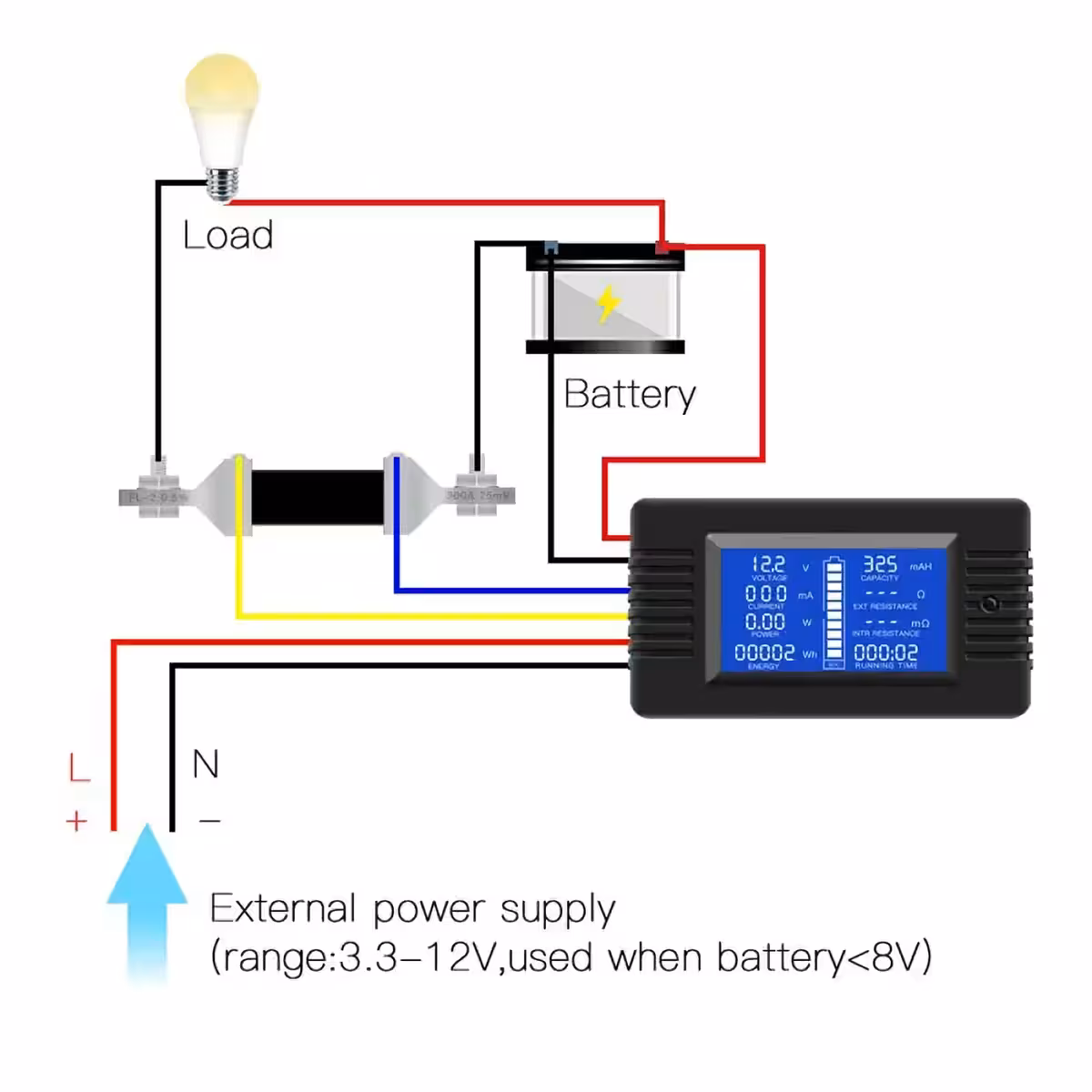

- Follow the correct order of electrical connections.
- Do not exceed the rated power specified in the technical sheet.
- The module is intended for indoor use only.

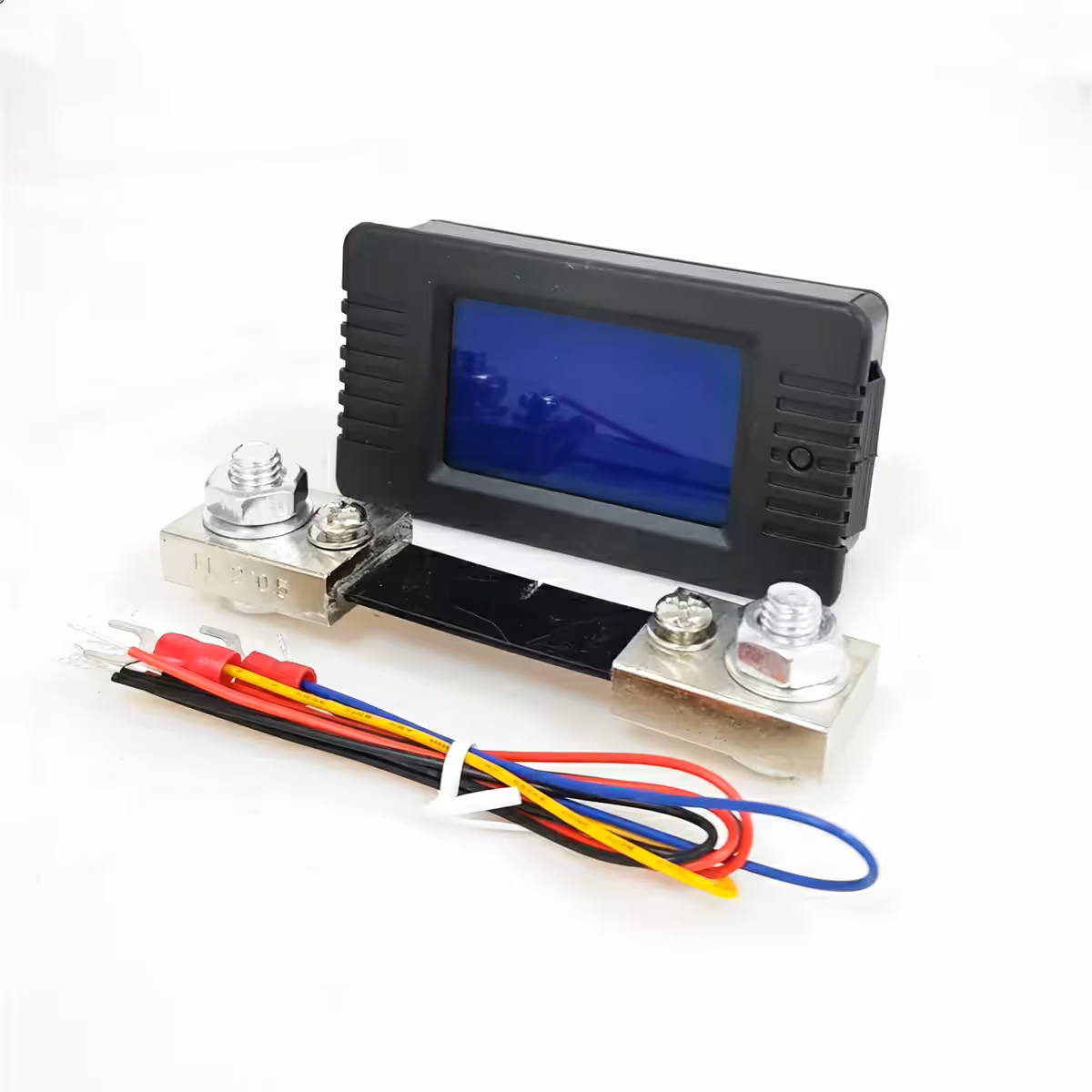

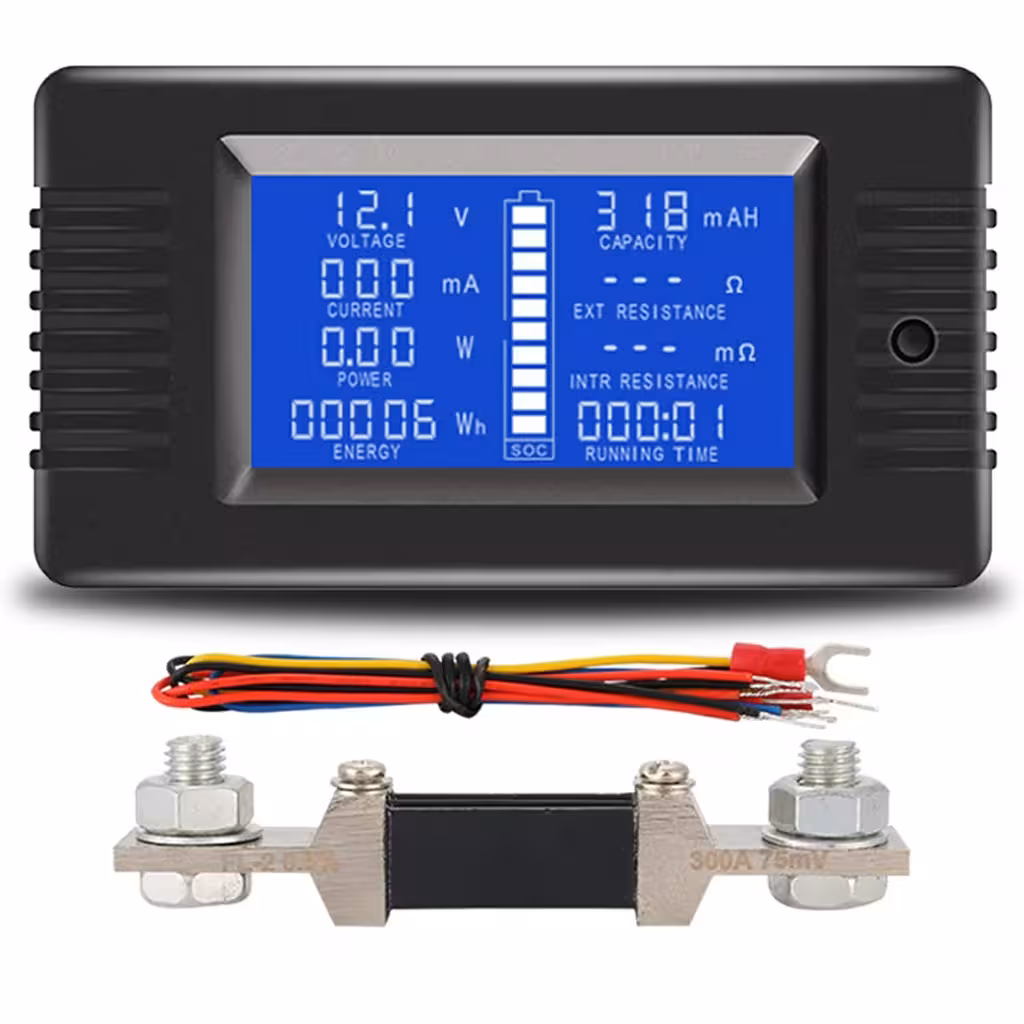

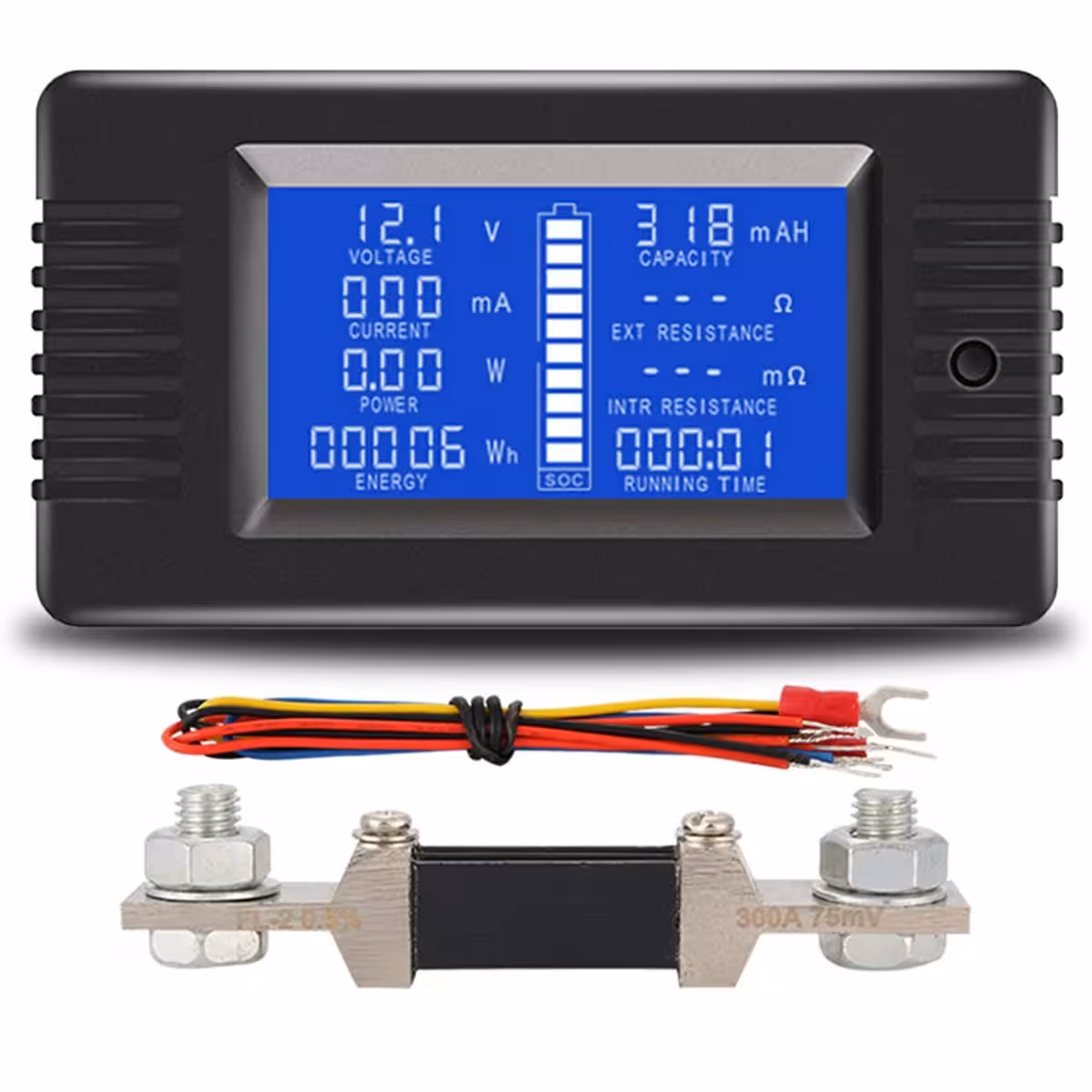

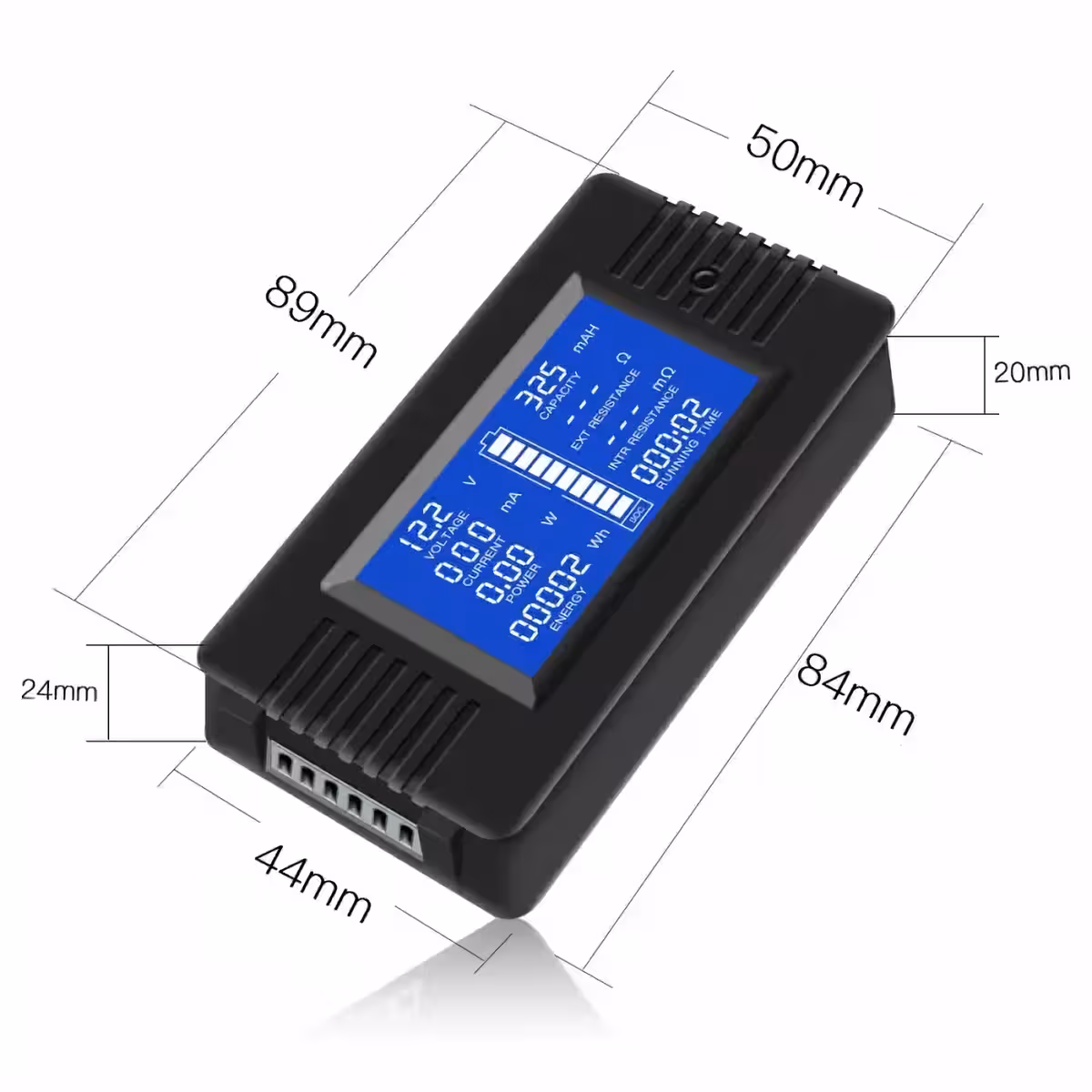

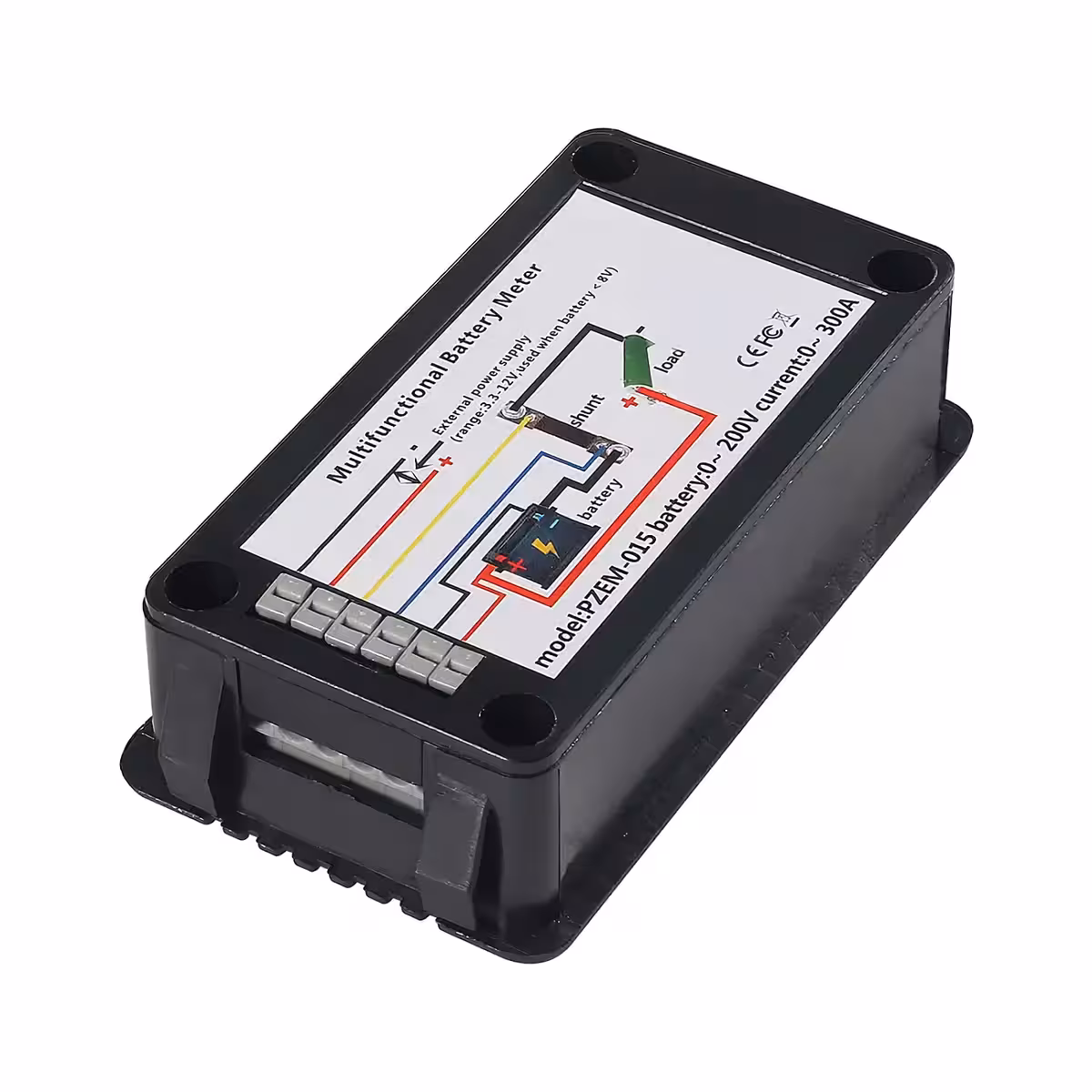

Photo Gallery
