Single-Phase DIN Rail Electric Meter with Digital Display
Next-generation single-phase meter, mounted on a 35 mm DIN rail, with an LCD digital display that accurately and reliably measures electric energy consumption (kWh). Ideal for residential or industrial use, for monitoring consumption, voltage, current, and electric power.
Main Features
- Mounted on 35 mm DIN rail, compliant with DIN EN50022 standards
- Width 17.5 mm per pole, compliant with DIN43880 standards
- Digital LCD display, no reset button, preventing data tampering

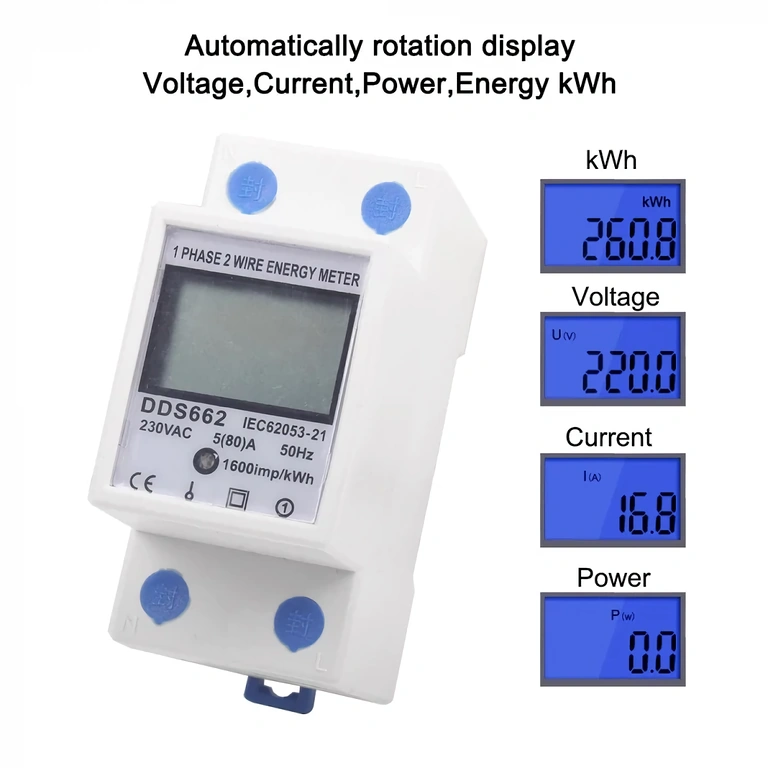

- Displays electricity (kWh), voltage (V), current (A), frequency (Hz), and power (W)

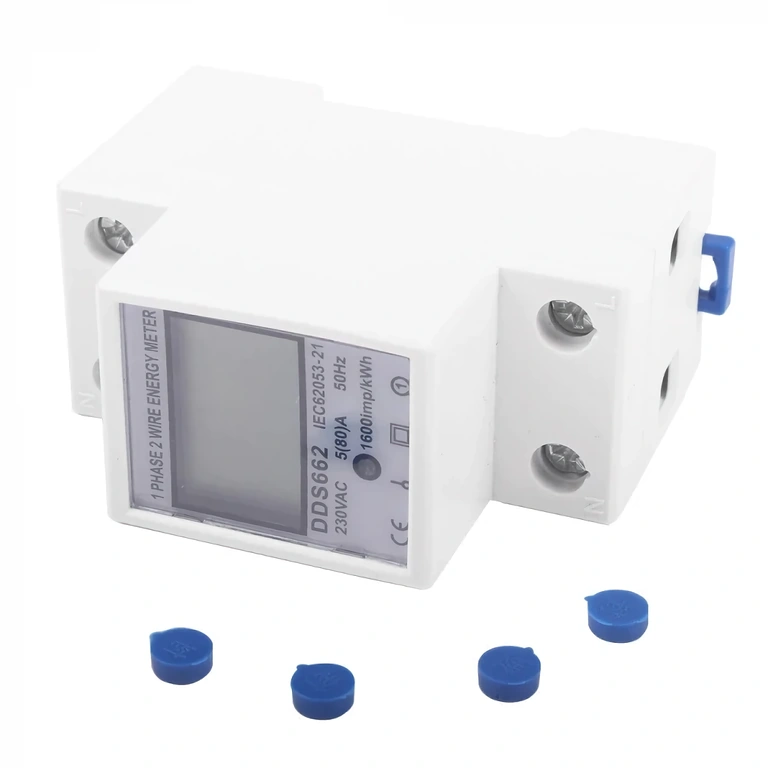

- Red LED pulse signal
- Built-in end cap for power supply security
- Compact dimensions, lightweight, elegant design, and easy installation

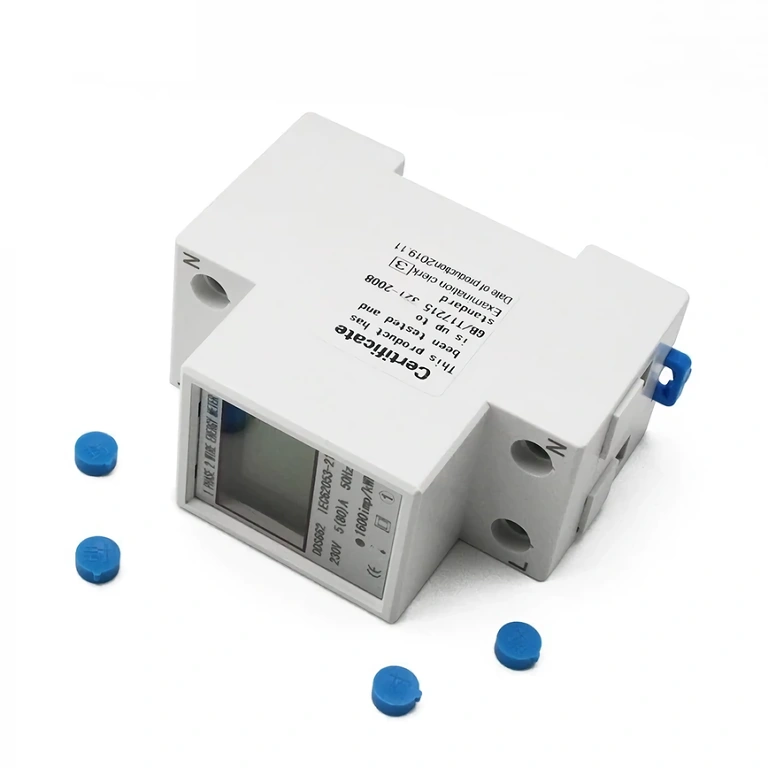

- Accurate and reliable digital electronic technology
- Integrated circuits and SMT technology for stable performance and resistance to electromagnetic interference
Technical Specifications
| Property | Value |
|---|---|
| Material | Plastic |
| Accuracy | Class I |
| Reference Voltage | 220V / 230V, 50/60Hz |
| Reference Current | 5 (80) A |
| Insulation Property | 1 min 4KV AC voltage, 1.2/50µs 6KV impulse voltage |

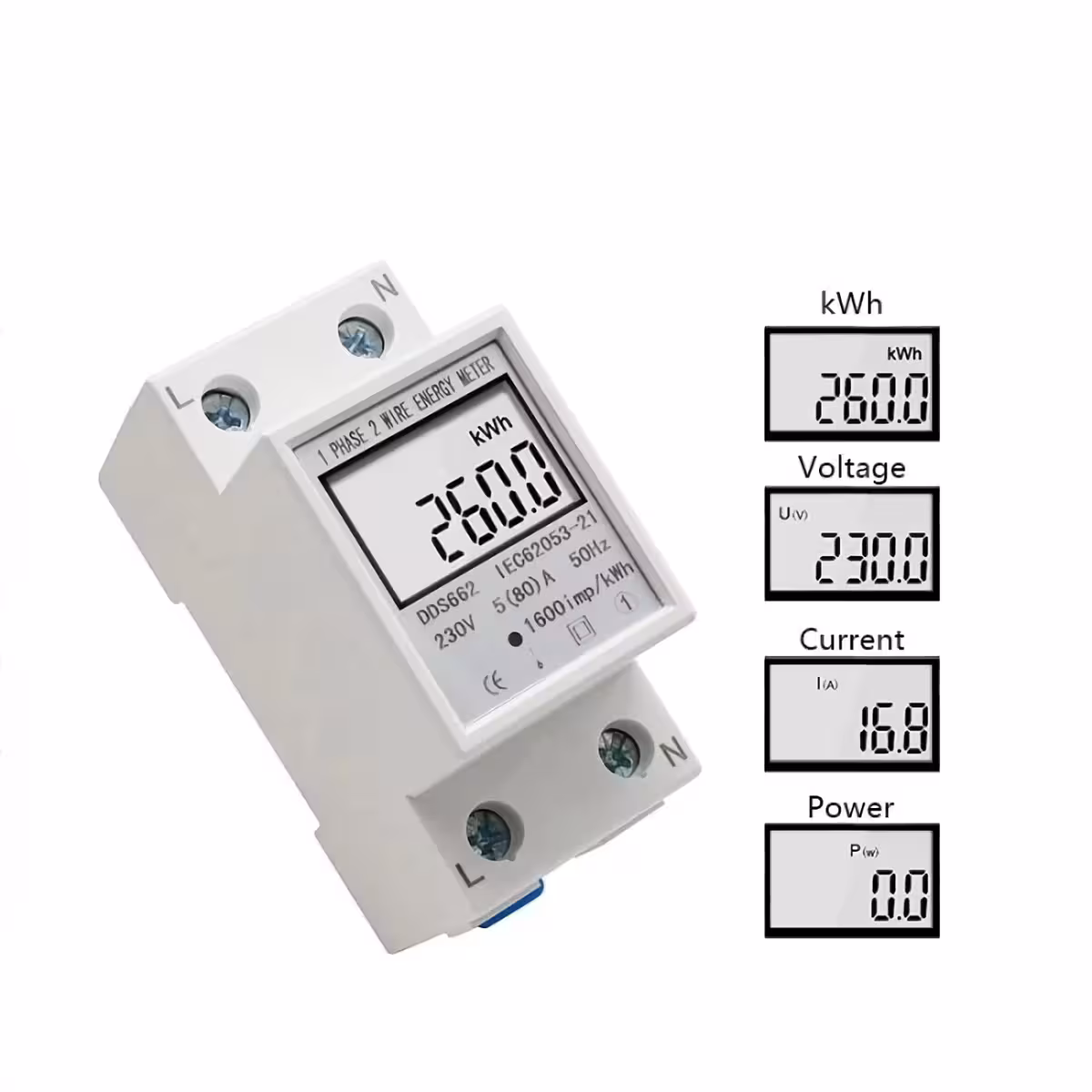

| Display | Digital LCD display |
| Installation | 35 mm DIN rail |

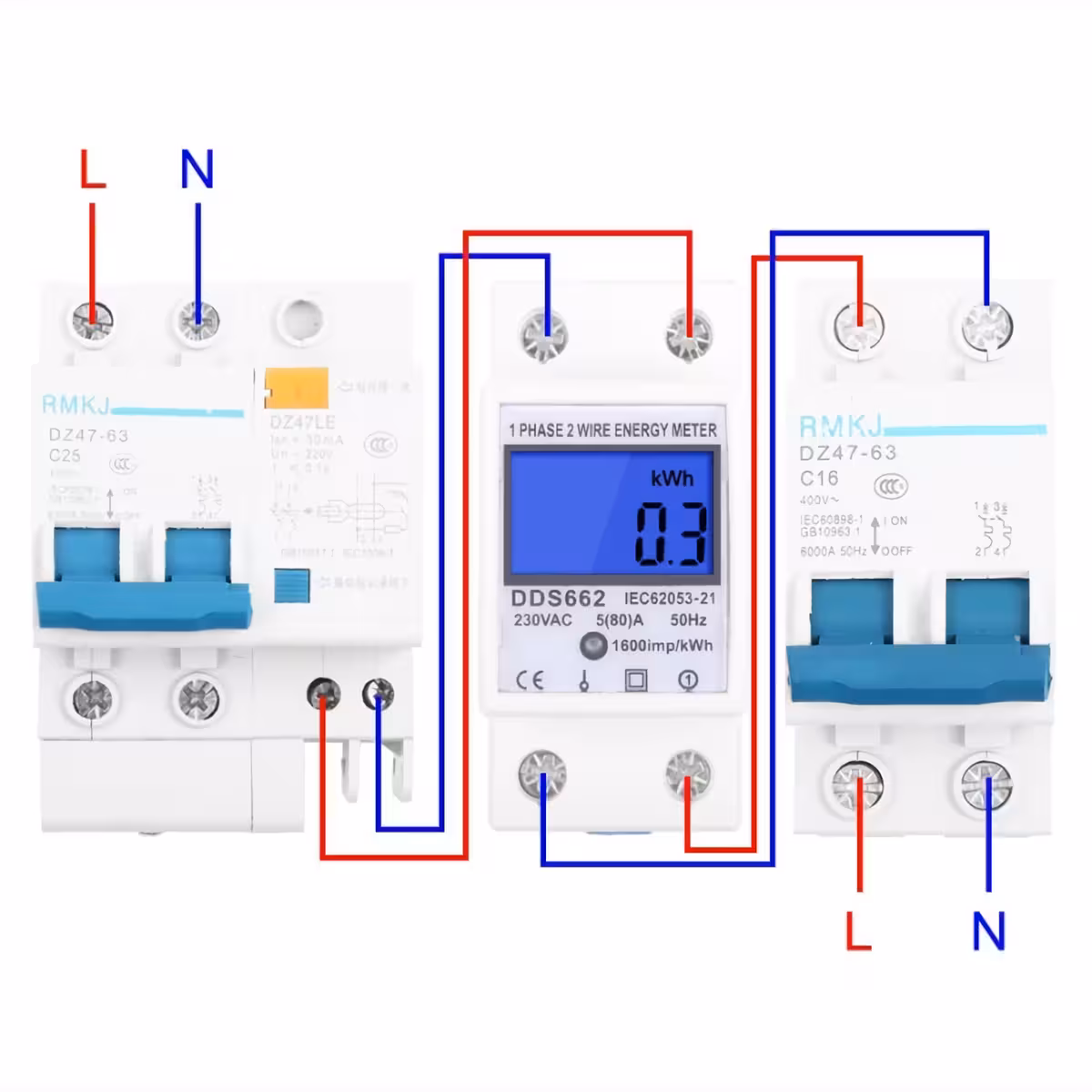

| Wiring Method | INPUT top & OUTPUT bottom / INPUT bottom & OUTPUT top |
| Maximum Power | 17000W |
| Operating Temperature | -20°C ~ +50°C |
| Functions | Displays electricity, voltage, current, frequency, power factors |

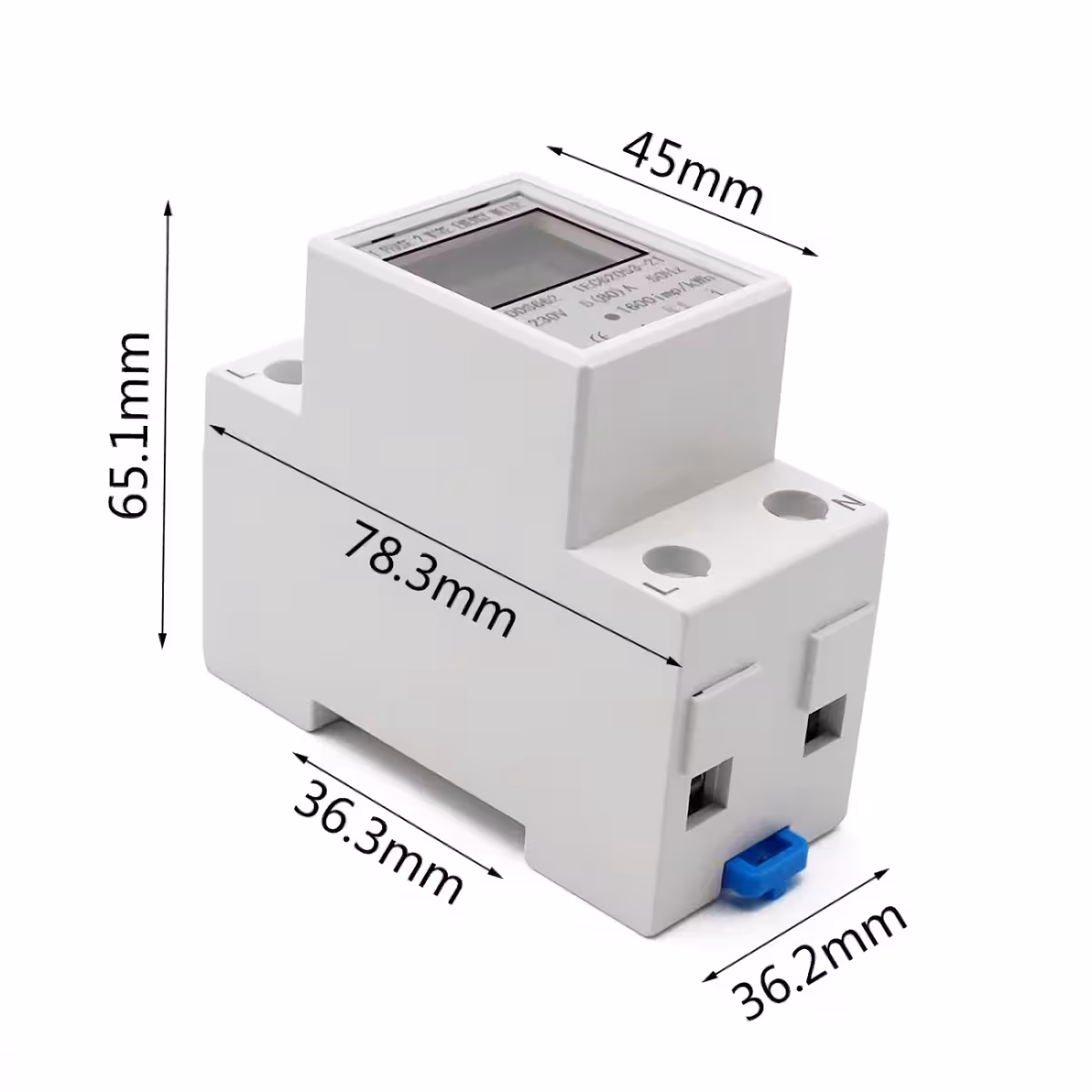

| Dimensions | 78.3mm x 65.1mm x 36.2mm |
| Weight | 127.8g |
Memory and Security
The meter has an internal memory block where consumed energy values are stored, with no reset option. The memory capacity ensures data safety and long-term measurement reliability.
Benefits and Advantages
- Precise and reliable measurements thanks to digital technology
- Quick and secure installation on standard DIN rail
- Comprehensive monitoring: consumption, voltage, current, frequency, and power
- Compact and elegant design with lightweight construction
- Protection against tampering due to absence of reset button
