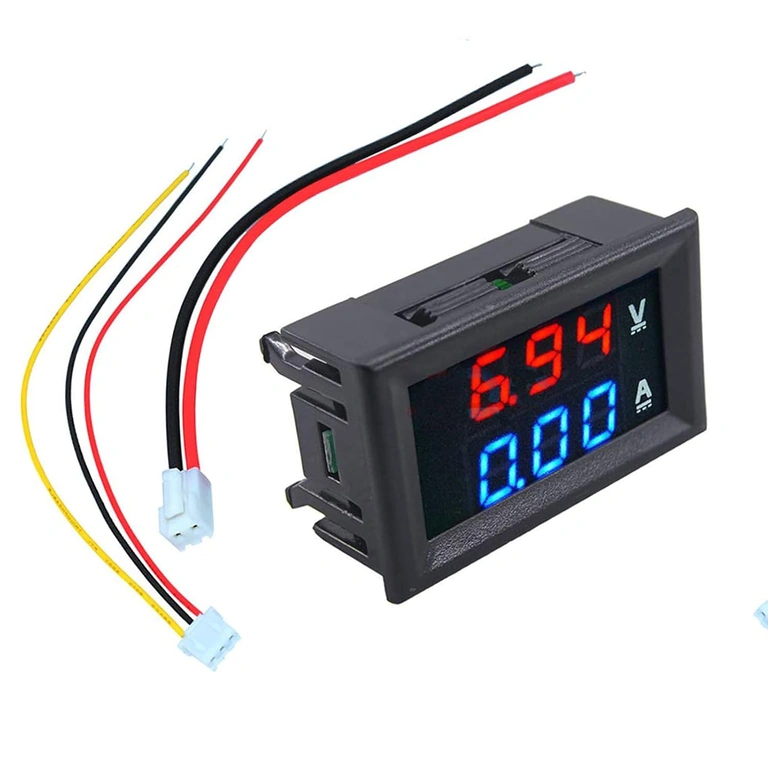

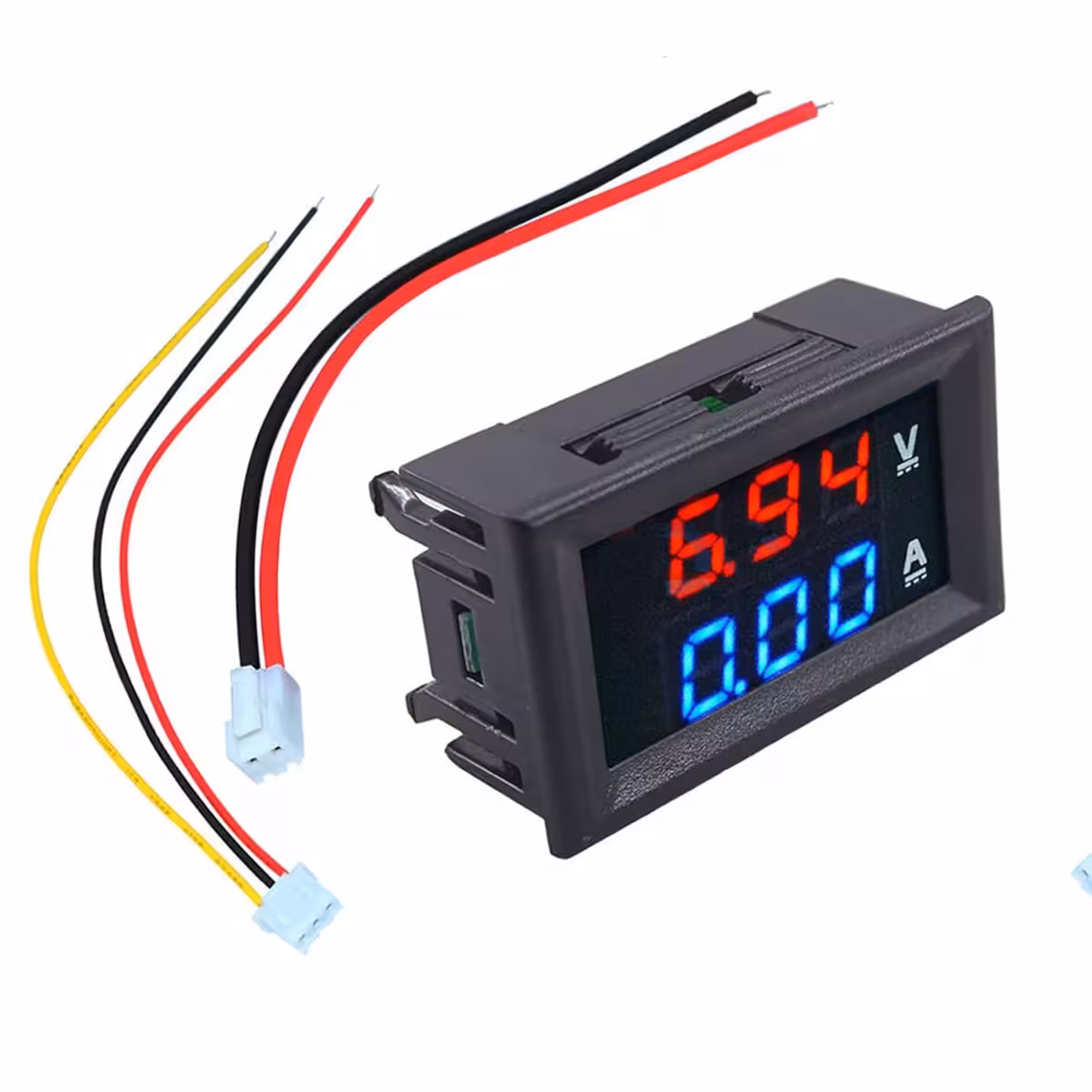

Digital Panel Voltmeter and Ammeter – 0–100V, 0–10A, Red-Blue LED
This digital voltmeter and ammeter is ideal for panel mounting, designed for measuring voltage and current in various applications, including power supplies, DIY electronics projects, solar systems, and other setups. The dual LED display provides excellent visibility even in low light.
General Specifications
- Dual LED display: red (voltage) and blue (current), 0.28”
- Measurable voltage: DC 0–100V
- Measurable current: DC 0–10A
- Supply voltage: DC 4–30V (max)
- Power consumption: ≤ 20 mA
- Accuracy: ±1% (±1 digit)
- Refresh rate: 300 ms
- Operating temperature: –10°C to +65°C
Dimensions and Mounting
| Module dimensions | 48 × 29 × 26 mm |
|---|---|
| Panel cutout size | 46 × 27 mm |
| Cable length | 15 cm |
Usage and Applications
The product is highly useful for monitoring voltage and current consumption of electronic equipment. It is perfect for building a variable voltage power supply or integrating into power systems where real-time electrical parameter monitoring is required.

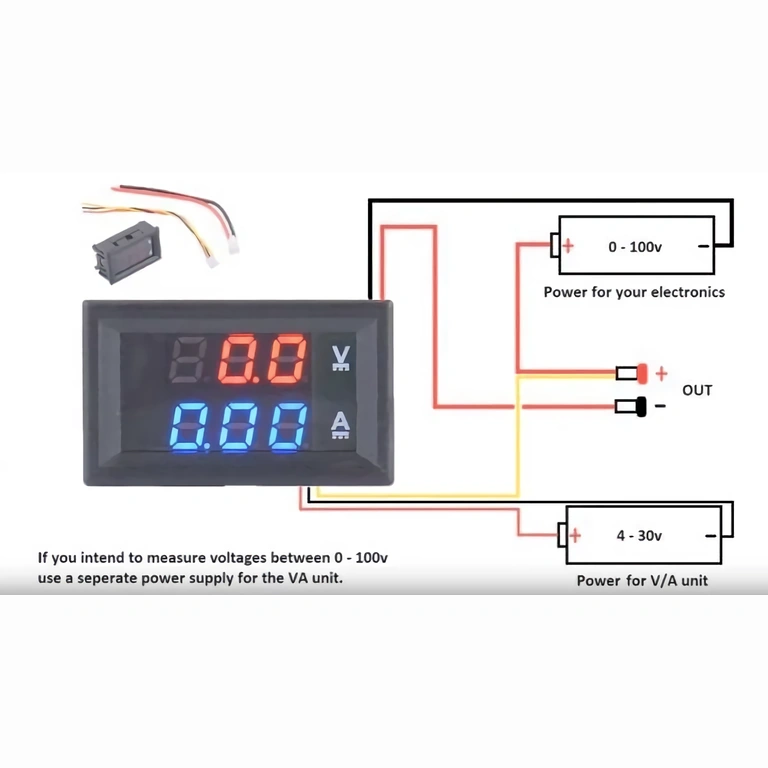

The device allows two types of connections:
- Scheme 1 – common supply: the same 4–30V source powers both the voltmeter and the load
- Scheme 2 – separate supply: the voltmeter has a 4–30V supply, and the load can be powered separately (0–100V)
Advantages
- Easy to integrate into panels or project enclosures
- Clear display with good contrast even in low light
- High resolution: 0.1V for voltage and 0.01A for current
- Ideal for DIY projects, laboratories, and electronics workshops
Photo Gallery – Digital Panel Voltmeter and Ammeter
