M3050/M3056 Current Detection Module – Reliable Electronic Relay
This electronic current detection sensor acts as a contactless switch (electronic relay). It detects if a current higher than the set threshold passes through the cable inserted in its Ø10 mm opening and, depending on the model (NO/NC), closes or opens a circuit.
Main Functions
Detects AC current through a magnetic induction sensor
Electronic switching without mechanical wear, with adjustable threshold 0.2–30A
Complete isolation between the measured circuit and output for safety
Key Advantages
Fine adjustable threshold 0.2–30A
Fast response: lag <1%
Unlimited switching, no mechanical wear
Self-powered from the conductor’s magnetic field
Fire-resistant PC housing, easy and safe installation
Recommended Applications

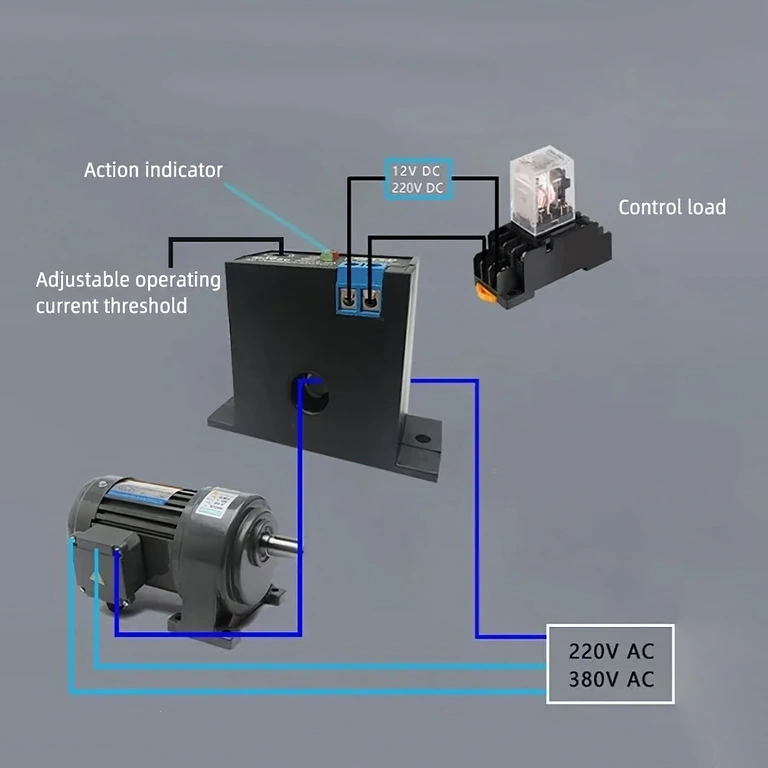

Monitoring motor, pump, or compressor start/stop
Overload or motor jam alarm systems
Automation for starting/stopping auxiliary circuits
Consumption monitoring in electrical panels, UPS, inverters, photovoltaic systems
Models and Contact Behavior
Model
Contact Type
Current Range
Behavior

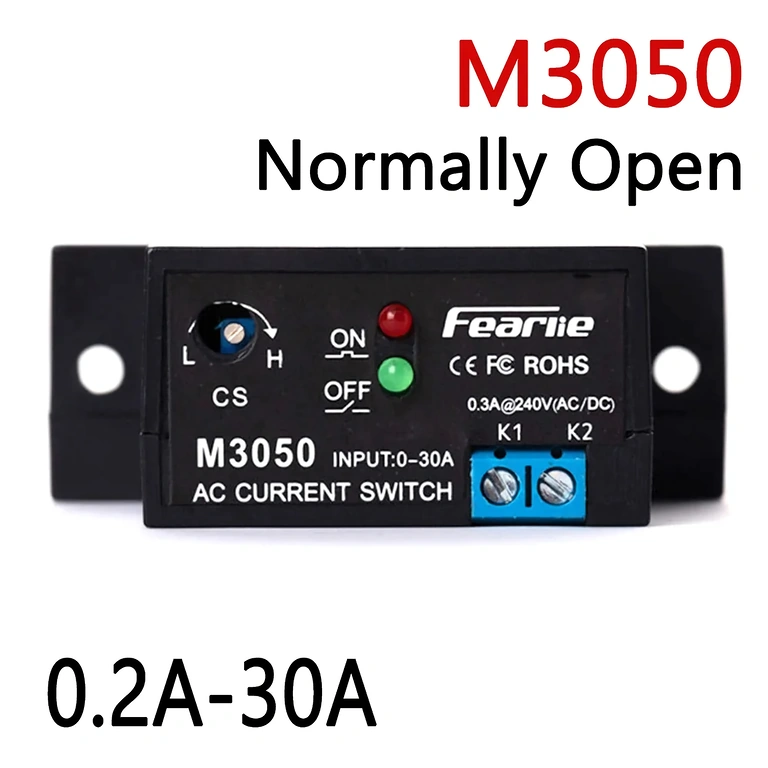

M3050
NO
0.2–30A
Closes when current exceeds the threshold

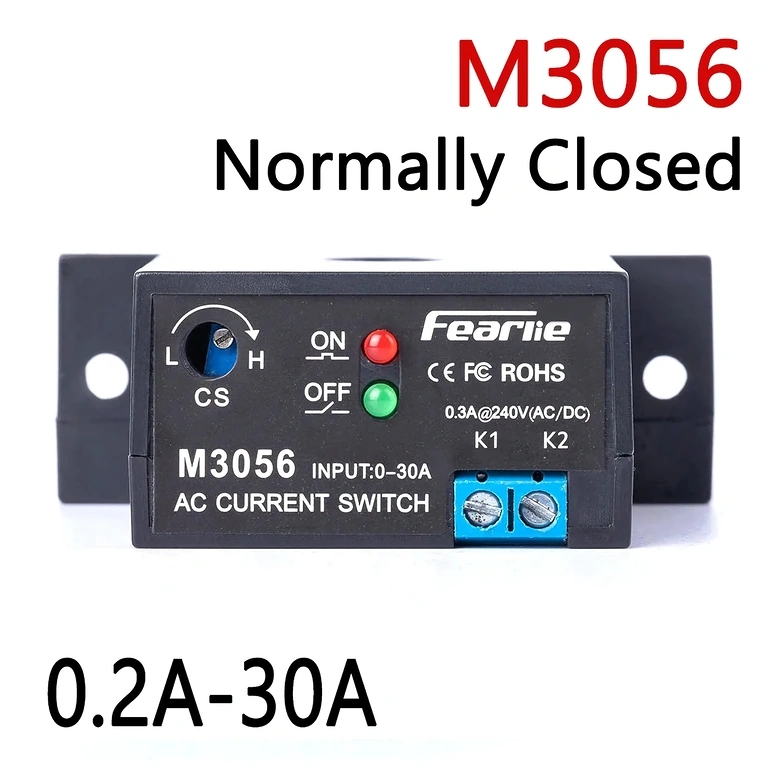

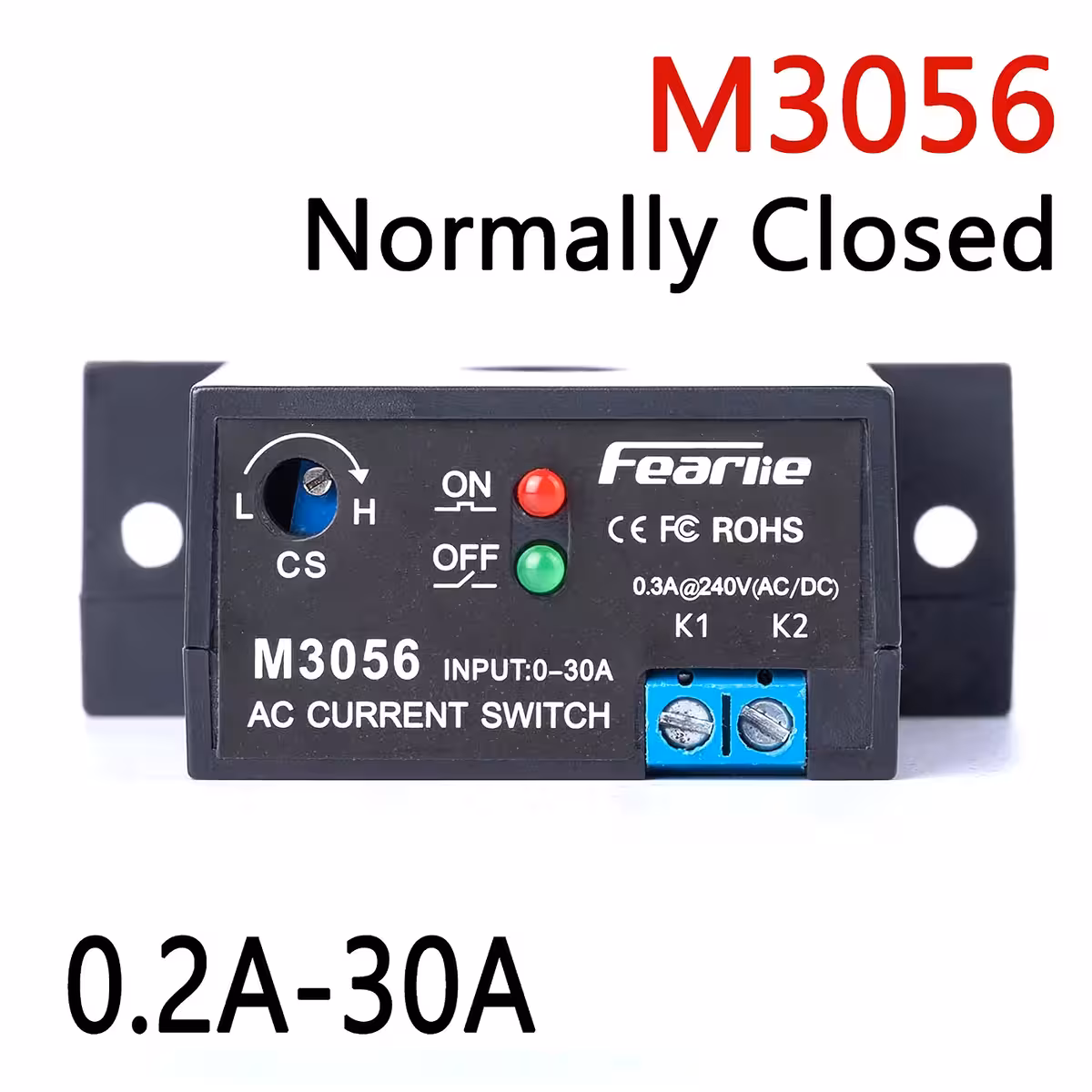

M3056
NC
0.2–30A
Opens when current exceeds the threshold
Quick Specifications
Output: AC/DC 0.3A up to 240V (control signal)
Conductor hole diameter: 10 mm
Lag <1%, overload capacity 100%
Operating temperature: -20°C … +55°C
Fire-resistant PC housing
Package Contents
1 x M3050 or M3056 Module (according to chosen variant)
