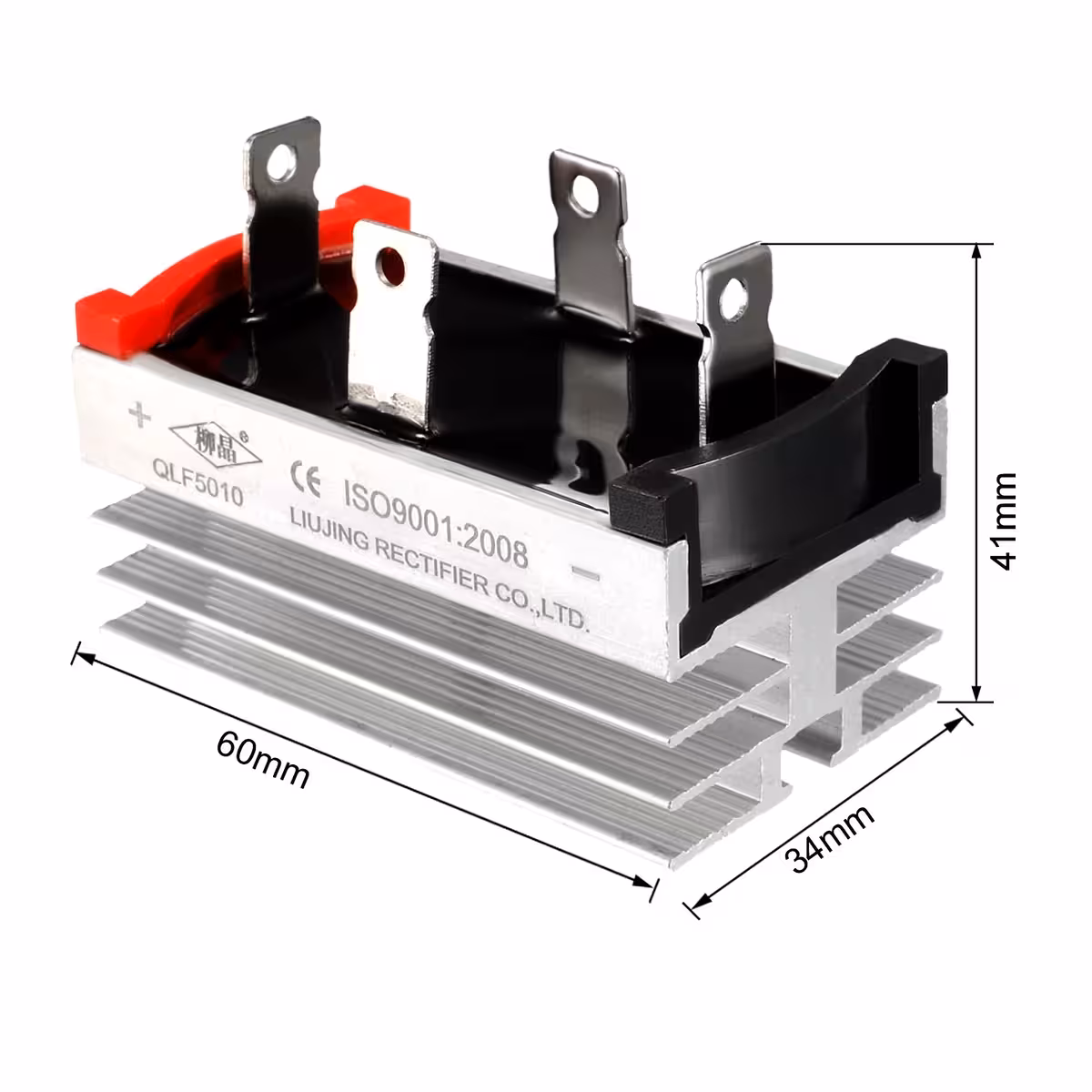

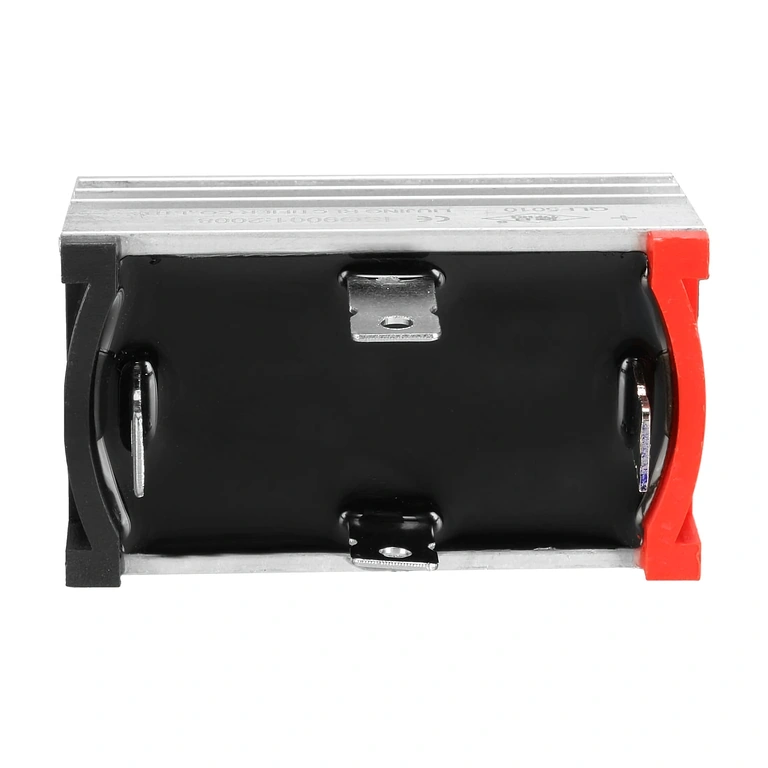

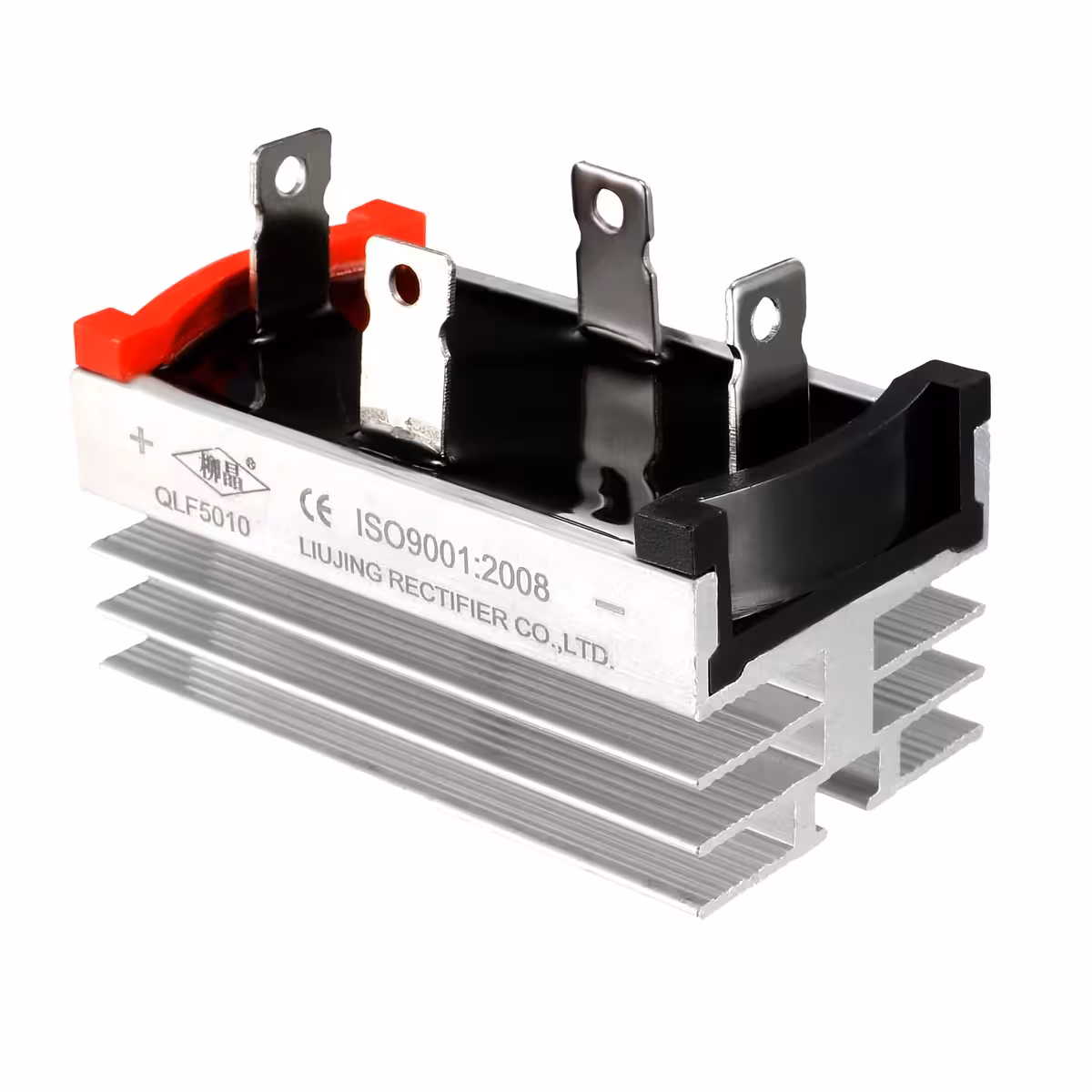

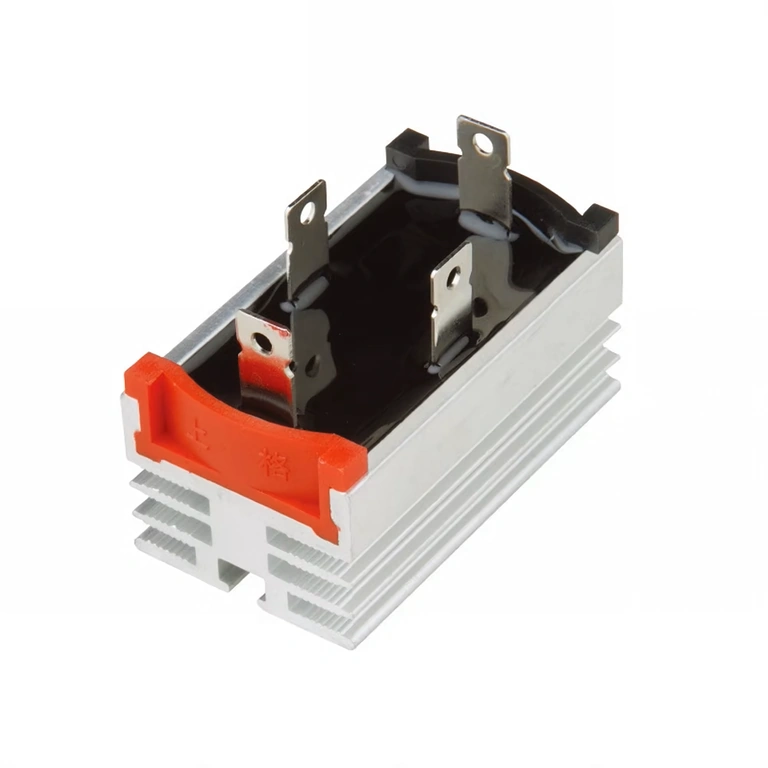

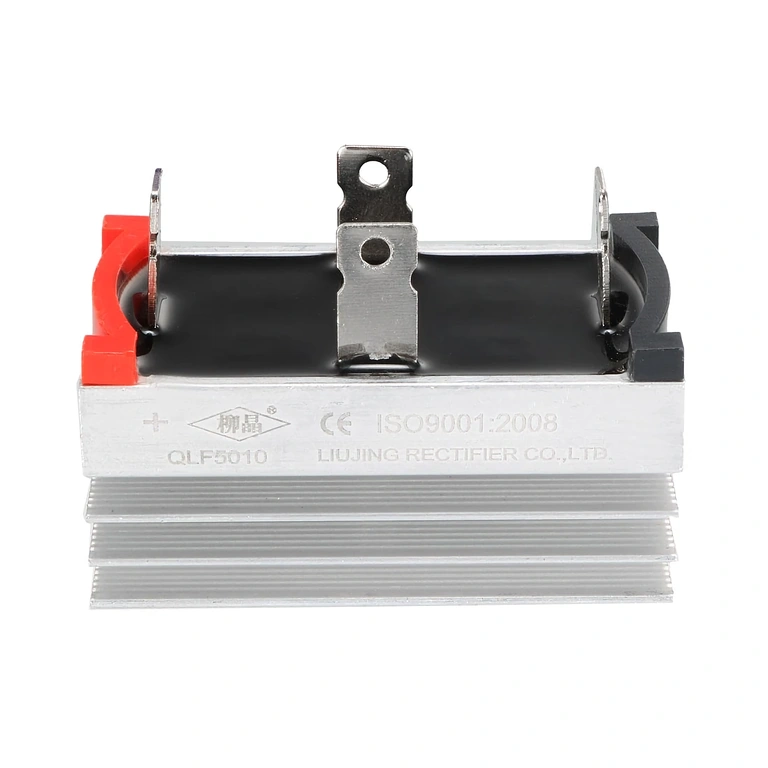

Single-Phase 50A 1200V Bridge Rectifier with Heat Sink
efficient conversion of alternating current (AC) to direct current (DC),
constructed as a 4-diode bridge.

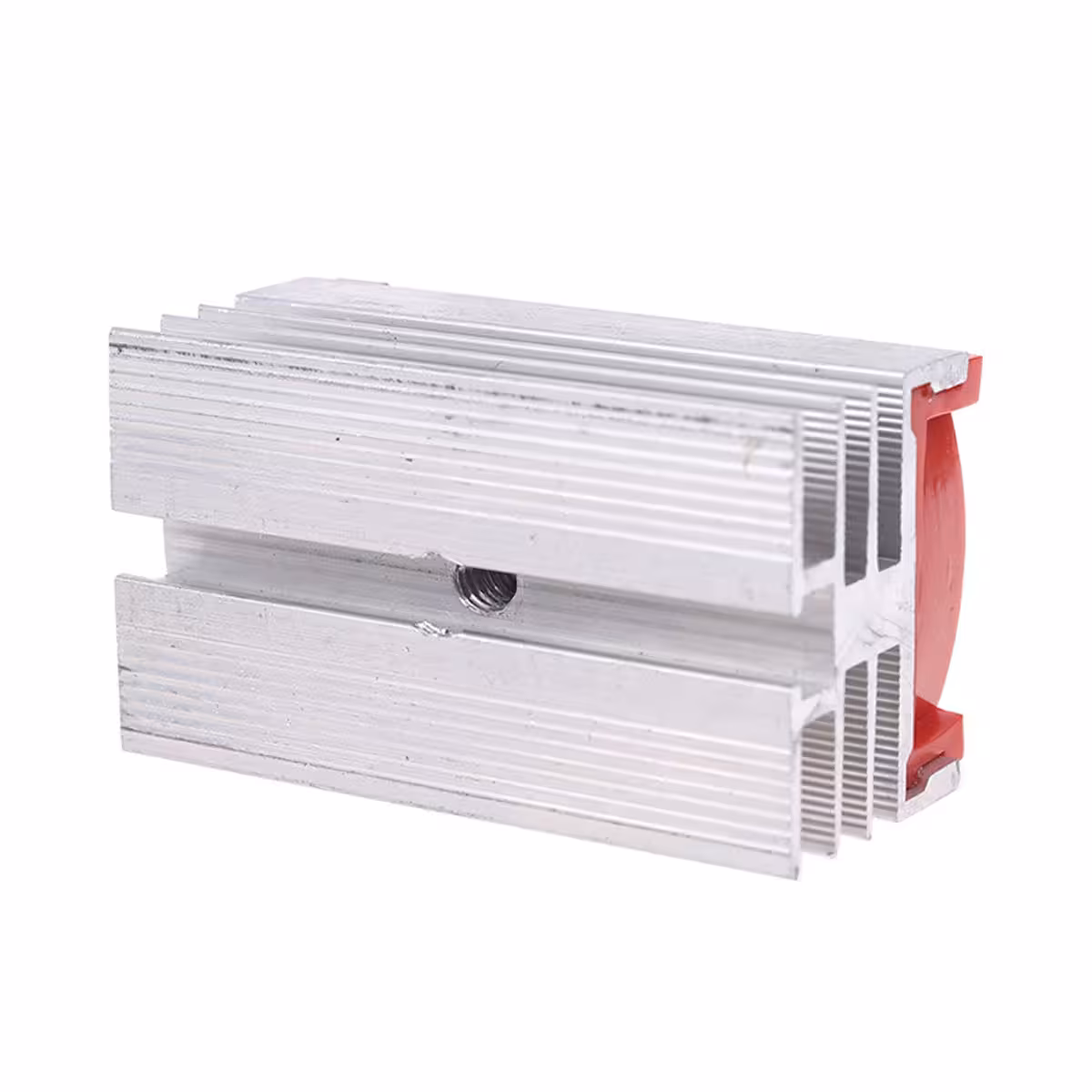

Thanks to the integrated heat sink, the component ensures effective
heat dissipation and stable operation under high currents.
Main Advantages
- Rated current 50A, suitable for power applications
- Maximum voltage 1200V for safety and stability
- 4 diodes for full single-phase rectification
- Integrated heat sink for efficient thermal dissipation
- High reliability in continuous operation
Applications
- AC–DC power supplies
- High-power electrical and electronic equipment
- Industrial chargers, converters, and rectifiers
- High-current applications with continuous operation
Technical Specifications
| Product Type | Bridge Rectifier / Diode Bridge |
| Configuration | Single-phase, 4 diodes |
| Rated Current | 50A |
| Maximum Voltage | 1200V |
| Cooling | Integrated heat sink |
| Function | Conversion of AC current to DC current |
