DC 5.5×2.1mm Power Jacks – The universal connector for reliable power
Dealing with a loose cable, a camera that keeps cutting out, or an LED strip that flickers? More often than not, the culprit is a faulty connector. These DC 5.5×2.1mm power jacks provide a quick, professional fix without the need for soldering or hiring an electrician.
Note: These are female-type connectors (fixed socket). Please verify that your device requires a 2.1mm inner pin rather than a 2.5mm pin before purchasing.
Why choose this set? (Key Benefits):
- Universal 5.5×2.1mm Standard — Compatible with over 90% of 12V power adapters, CCTV cameras, and LED strips on the market.
- 10A High-Current Capacity — Designed to prevent overheating, even in high-draw setups like multi-camera security systems.
- 5000 Mechanical Cycles — Built for durability, allowing you to connect and disconnect daily for years without contact wear.
- Wide Temperature Range (-20°C to +70°C) — Reliable performance in everything from cold storage units to hot, unventilated attics.
- Pack of 5 — Always have spares on hand for new installations or urgent repairs.
Performance and Specifications
The 5.5mm outer / 2.1mm inner format is the industry standard for consumer electronics and surveillance systems. If you aren’t sure which connector you need, this is almost certainly the one. With a rated voltage of 30V DC, you have a comfortable margin above standard 12V requirements. The 3N insertion force ensures a firm, secure connection that won’t pull out accidentally, while the corrosion-resistant contacts prevent oxidation over time.
| Parameter | Value / Detail |
|---|---|

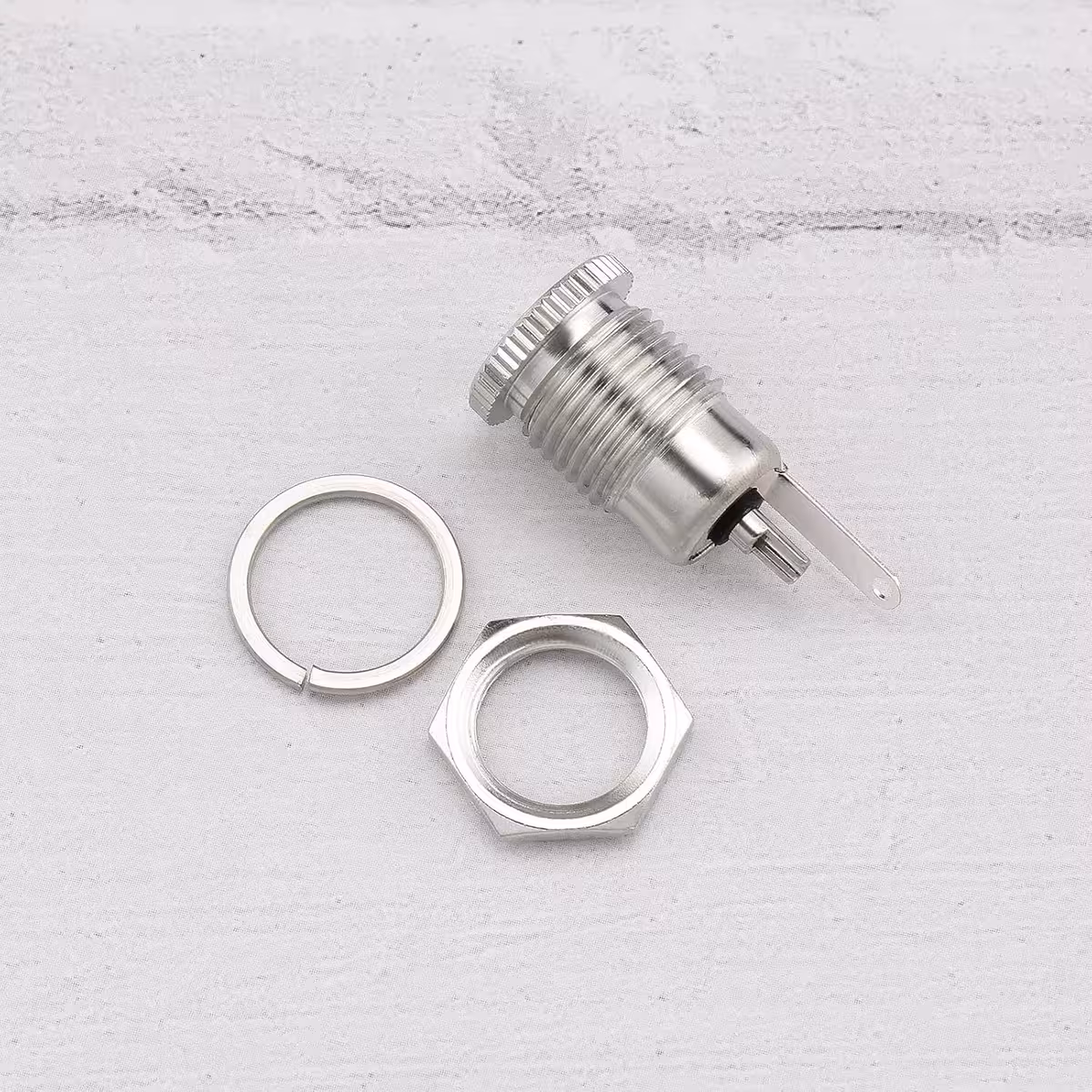

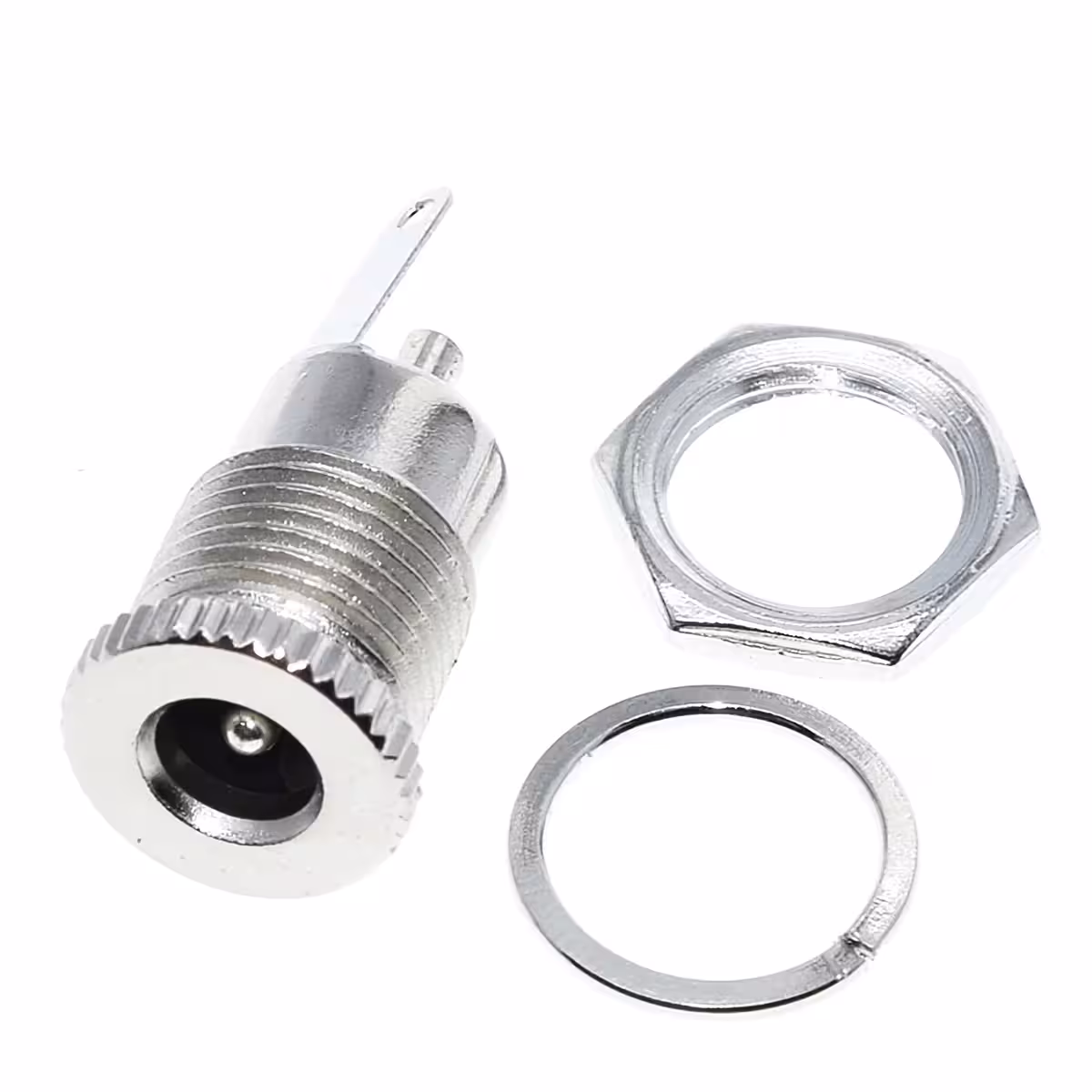

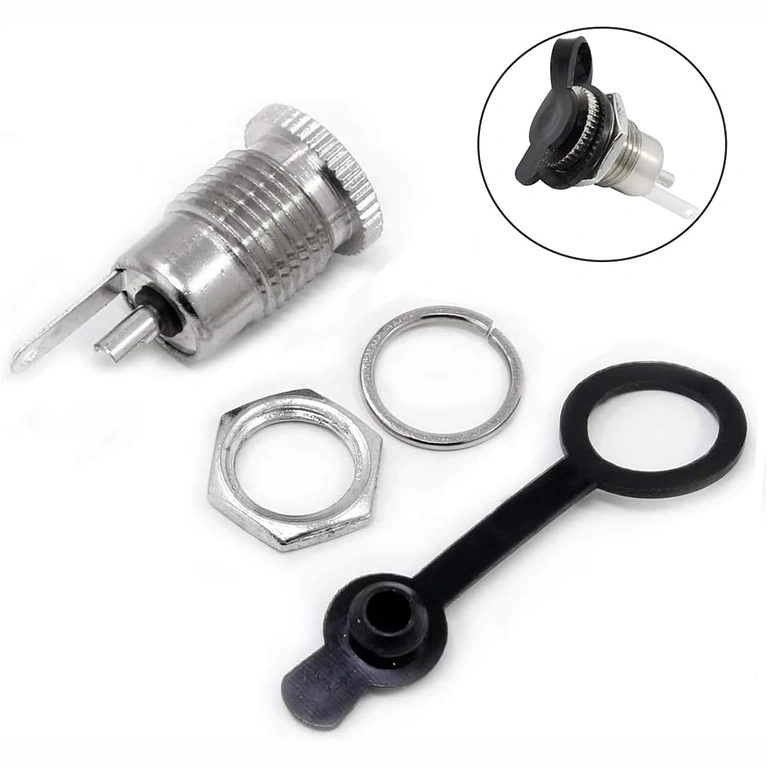

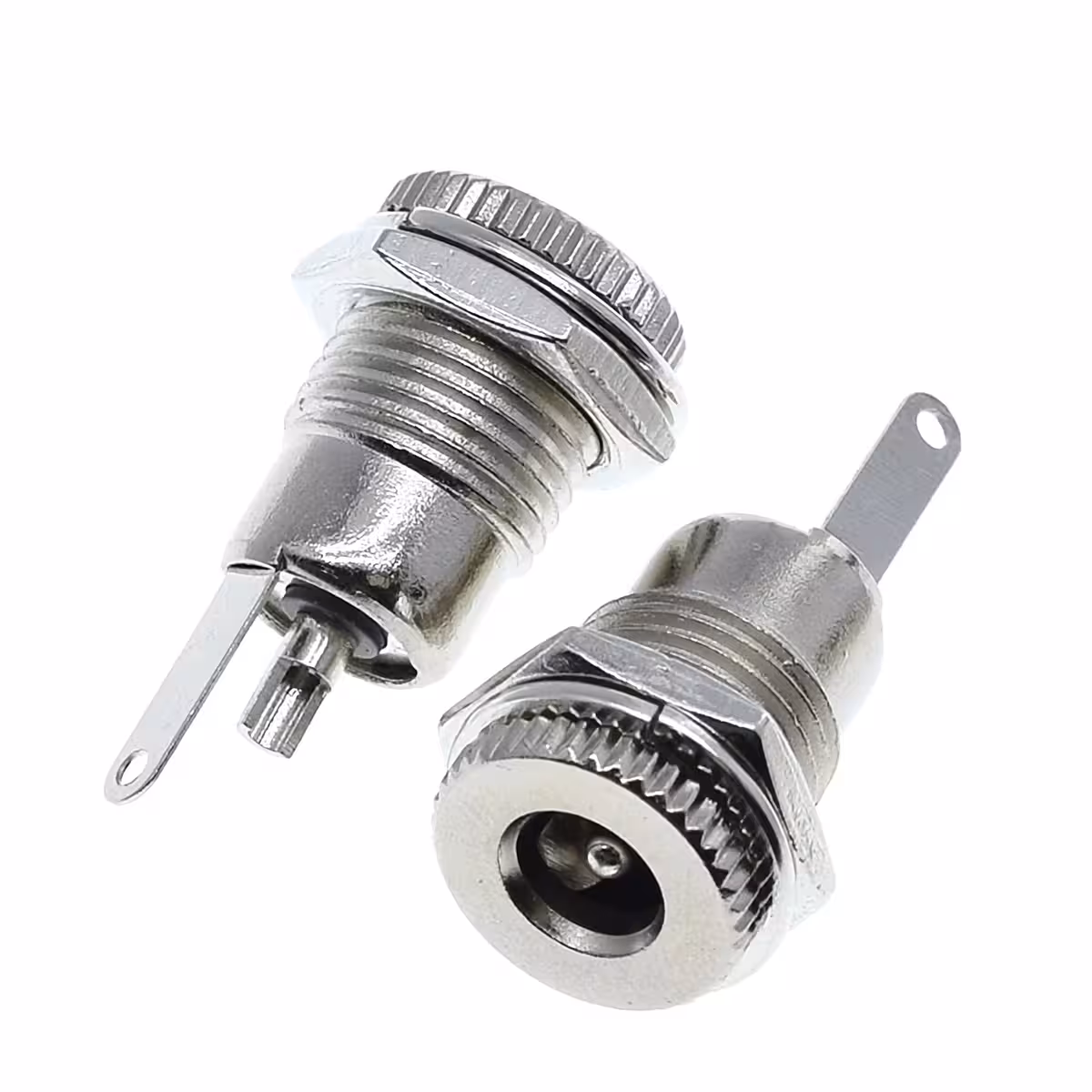

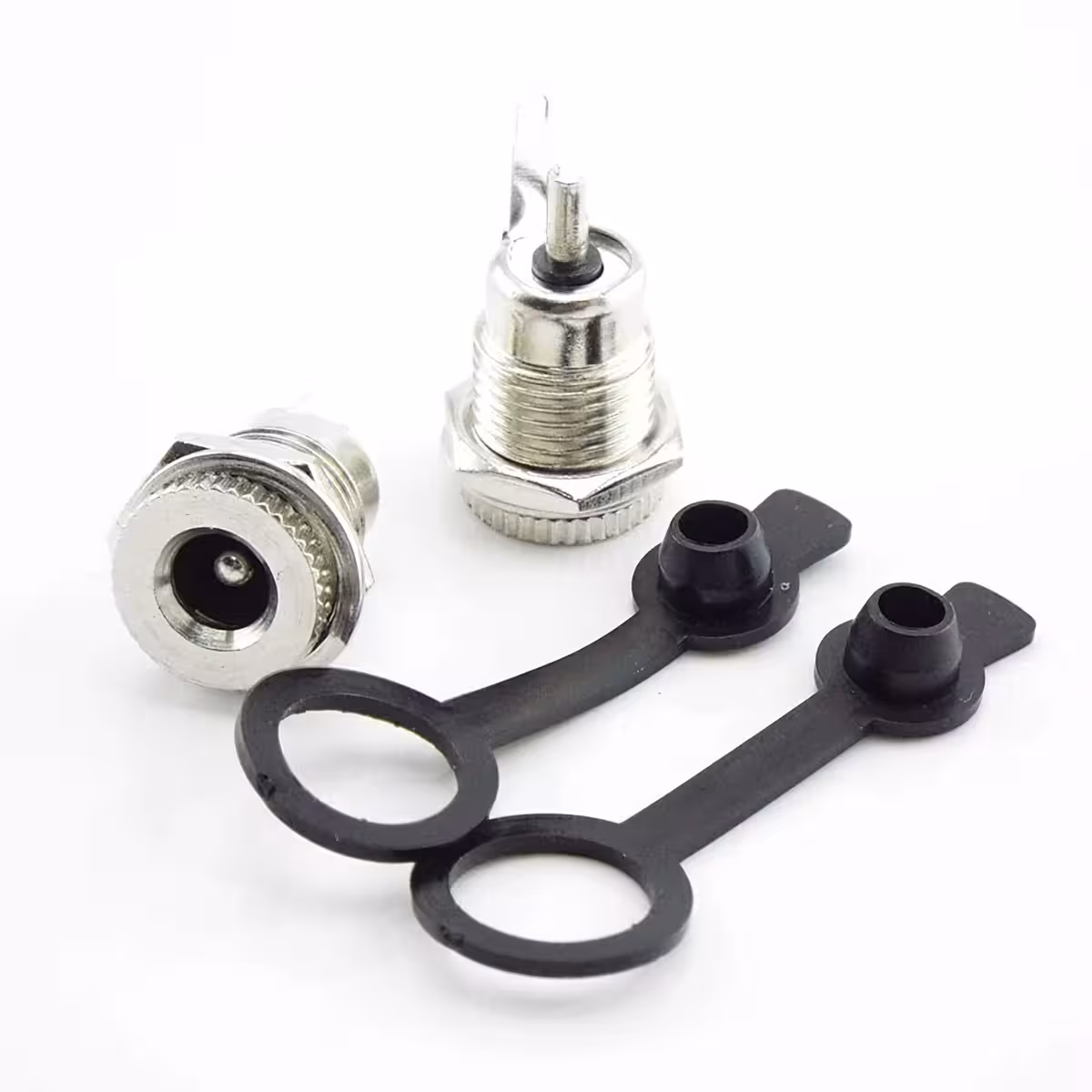

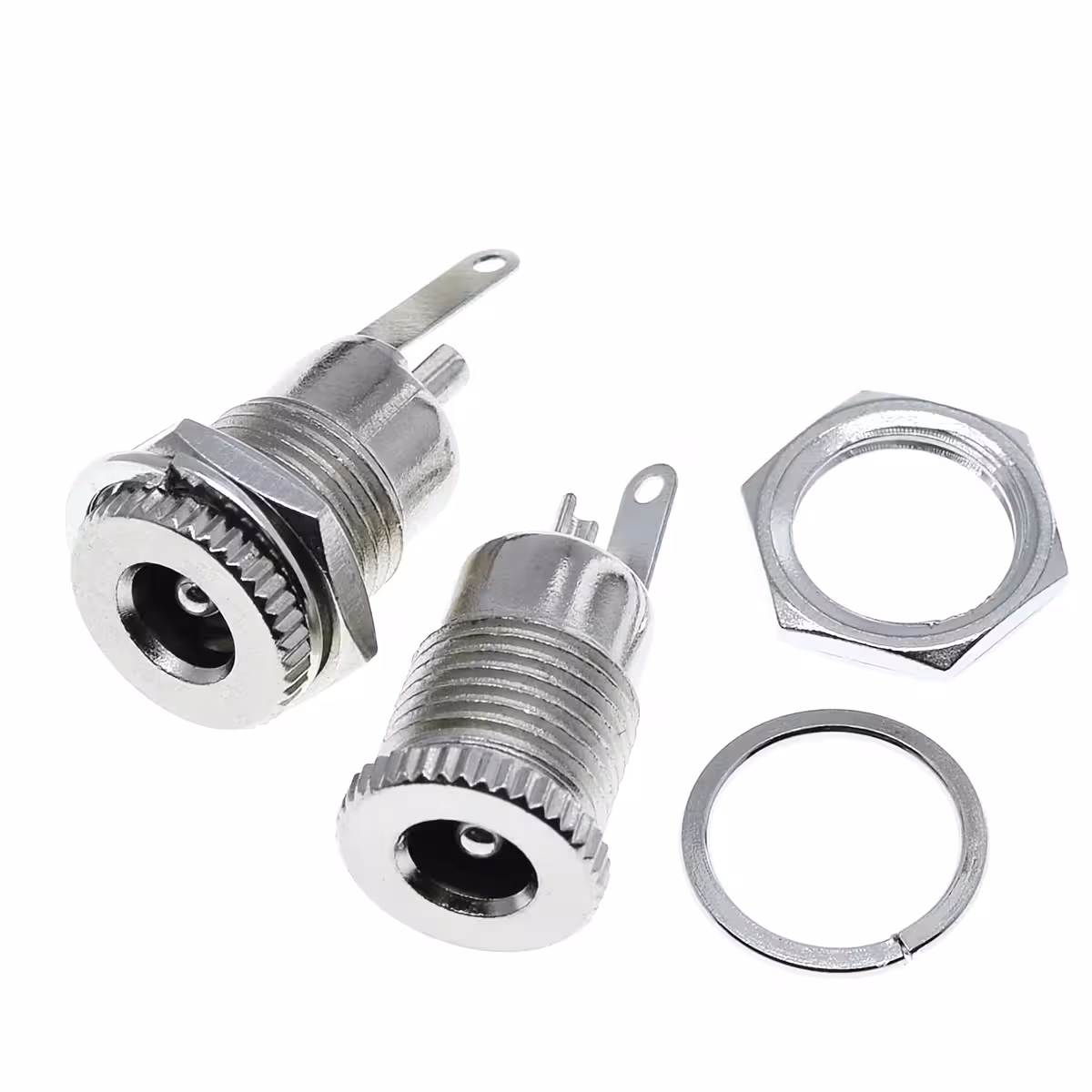

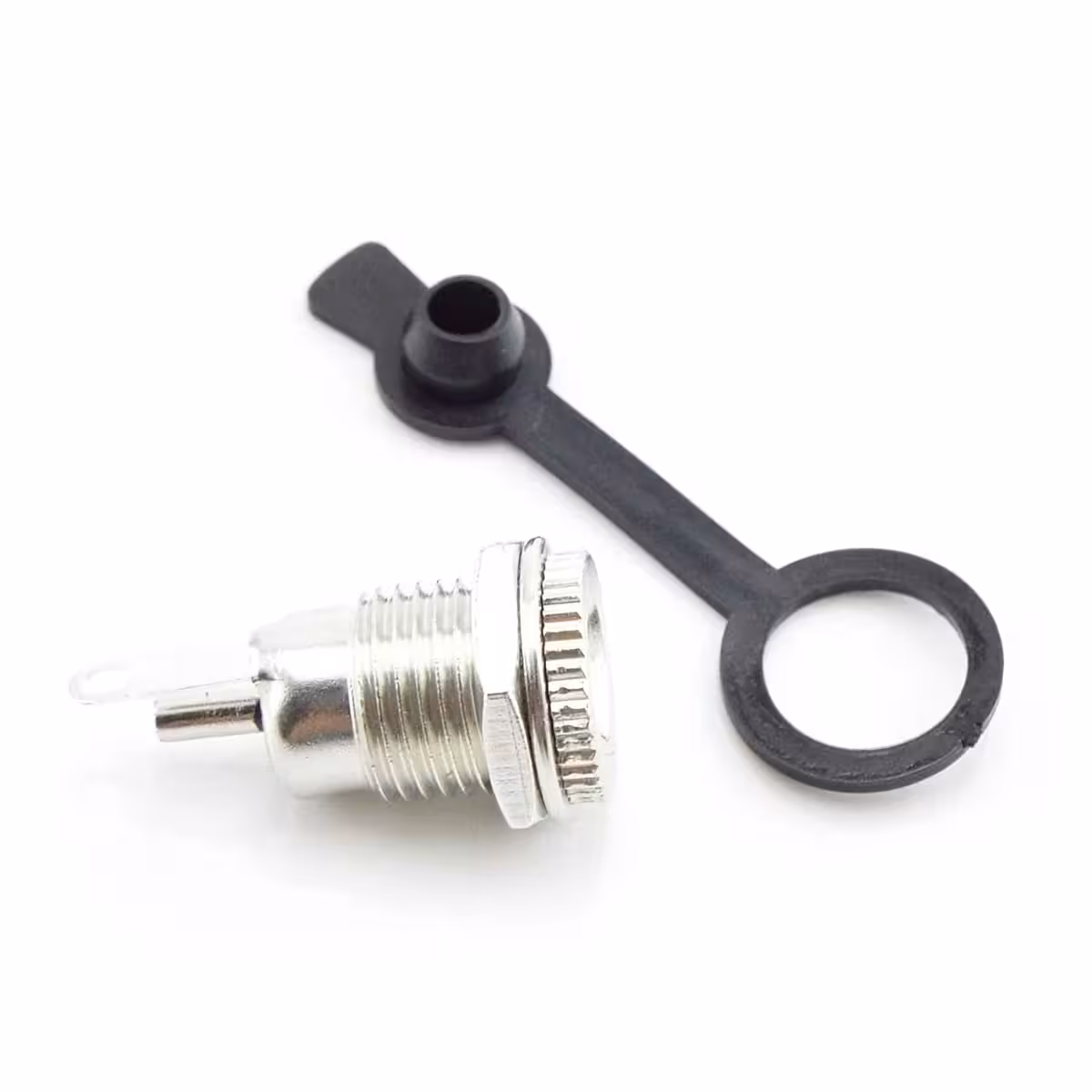

| Connector Type | DC Female Jack (Fixed Socket) |

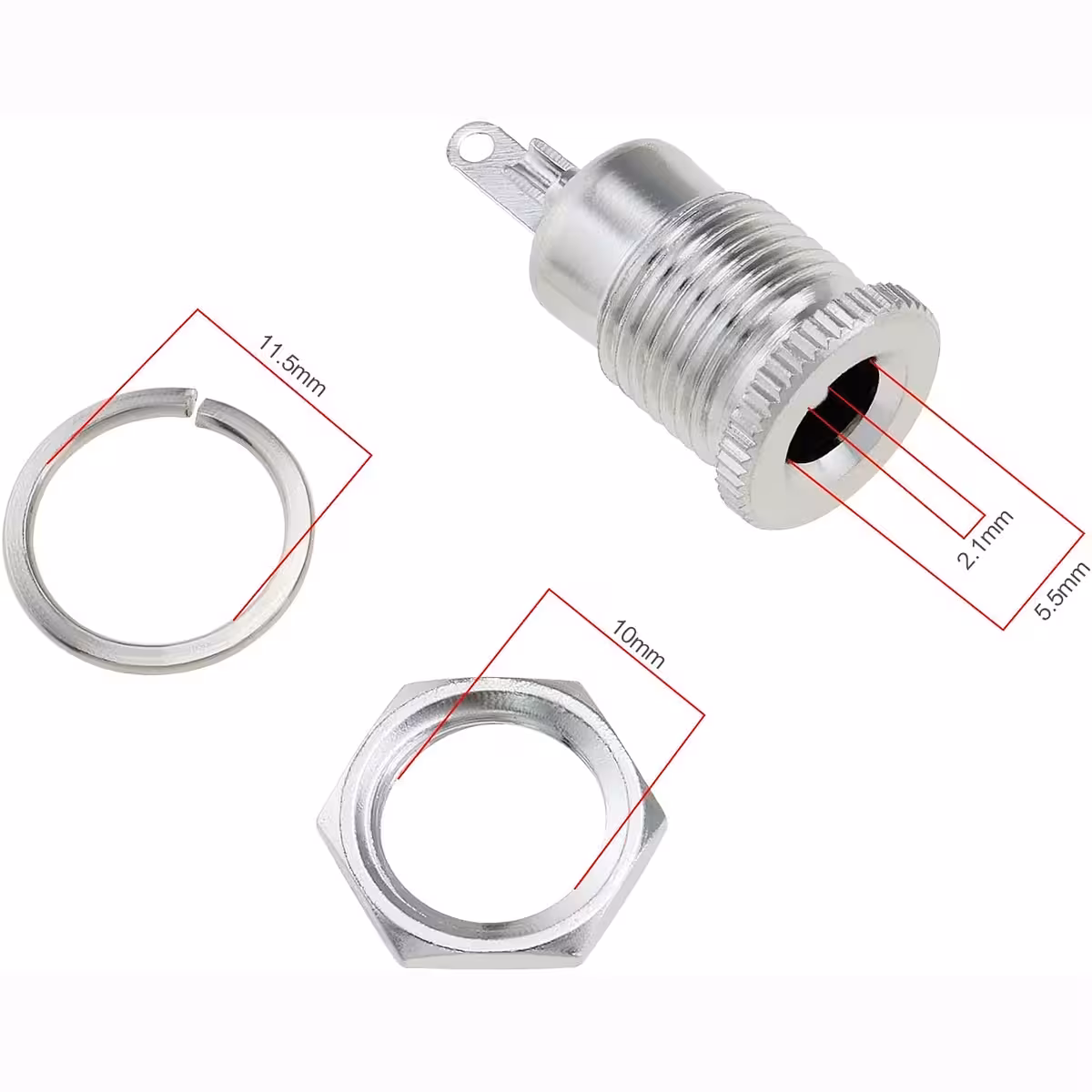

| Connector Dimensions | 5.5mm (Outer) x 2.1mm (Inner) |
| Rated Voltage | 30V DC |
| Rated Current | 10A |
| Insertion/Extraction Force | 3N |
| Mechanical Lifespan | 5000 cycles |
| Operating Temperature Range | -20°C ~ +70°C |
| Quantity per Set | 5 pieces |
Package Contents

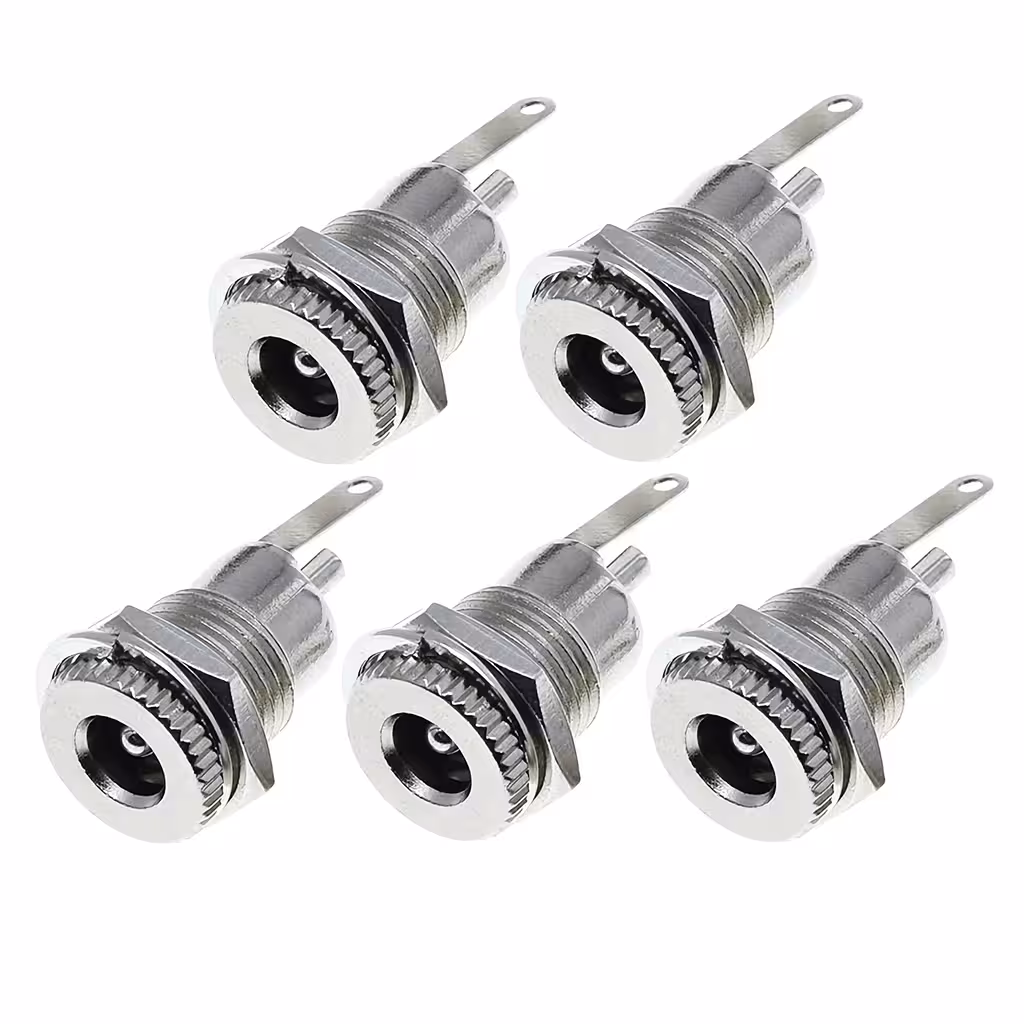

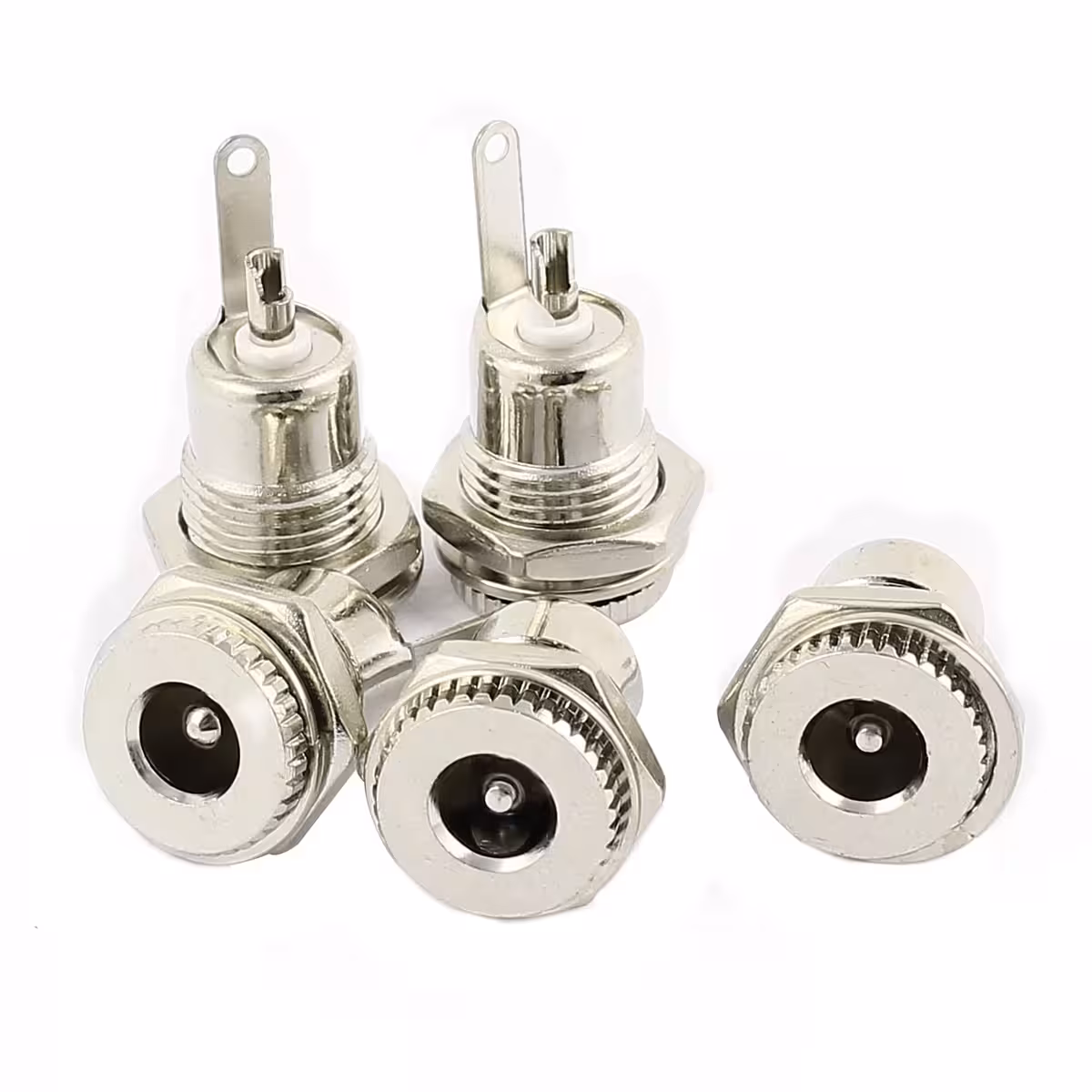

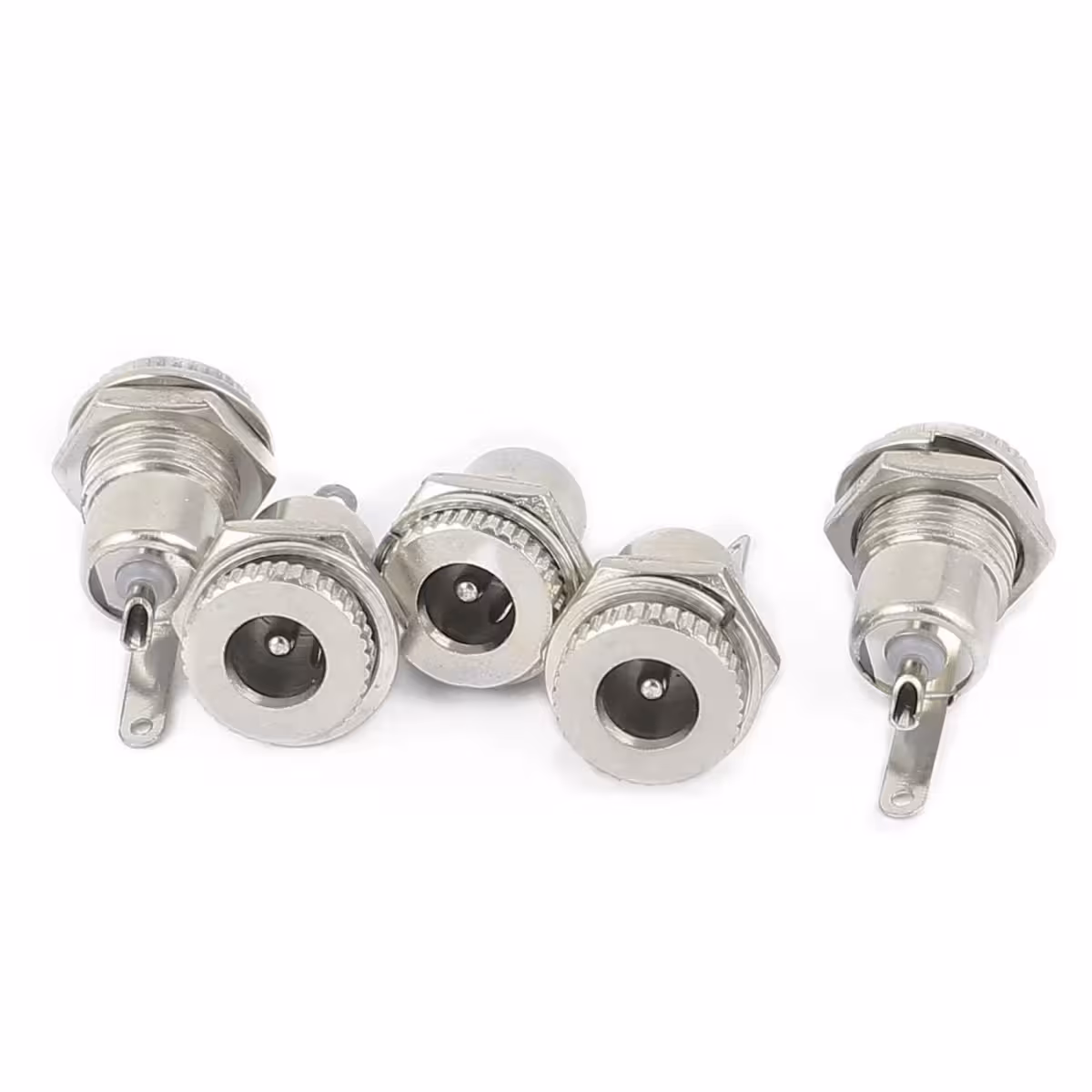

- 5 x DC Female Power Jack 5.5mm x 2.1mm
Frequently Asked Questions
What is the difference between a 5.5×2.1mm and a 5.5×2.5mm connector?
It is a subtle 0.4mm difference, but it is critical. The inner pin is 2.1mm versus 2.5mm, and they are not interchangeable. Please check your adapter or camera specifications before ordering.
Can I use these for 19V or 24V, or only 12V?
Yes. These are rated for up to 30V DC, so they work perfectly with 12V, 19V, or 24V systems, provided the current does not exceed 10A.
Do I need a soldering iron to install these?
No soldering is required. These female jacks feature screw terminals; simply insert the wire, tighten the screw, and you are done. Installation takes less than 2 minutes with a small screwdriver.
Are these compatible with standard security cameras?
Yes. The 5.5×2.1mm size is the most common connector used in CCTV systems and 12V IP cameras. This 5-piece set is ideal for new installations or replacing damaged connectors on existing equipment.
