Mini UPS Module – 5V/3A or 12V/1.2A Output, Uninterrupted Power Supply for Electronics Projects
The Mini UPS Module is a compact uninterruptible power supply available in two options: 5V/3A or 12V/1.2A. It supports 1–2 Li-Ion 18650 batteries in parallel and provides seamless switching between external power and battery without interruption.
It is suitable for routers, IP cameras, development boards, IoT systems, sensors, mini-PCs, or any device requiring stable 5V or 12V power. During operation, the module can power the device while charging the battery simultaneously. On power loss, the transition to battery is instant, without resetting the equipment.
Available Versions
Mini UPS 5V/3A – ideal for Raspberry Pi, ESP32, Arduino, IoT modules.
Mini UPS 12V/1.2A – for routers, IP cameras, controllers, and 12V equipment.
Main Features
Instant UPS switching (zero delay) – uninterrupted power supply.

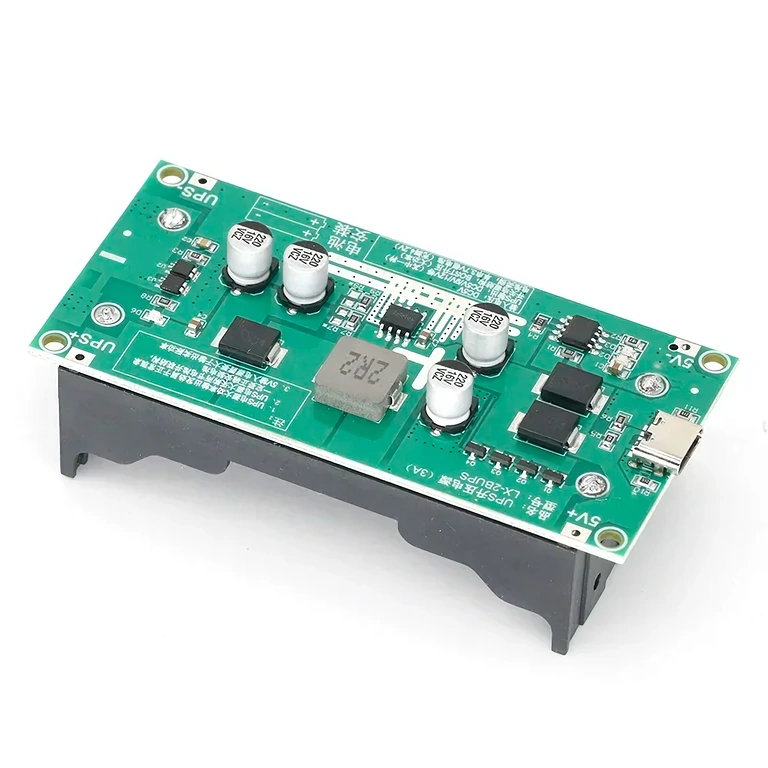

Supports 1–2 18650 batteries (in parallel).

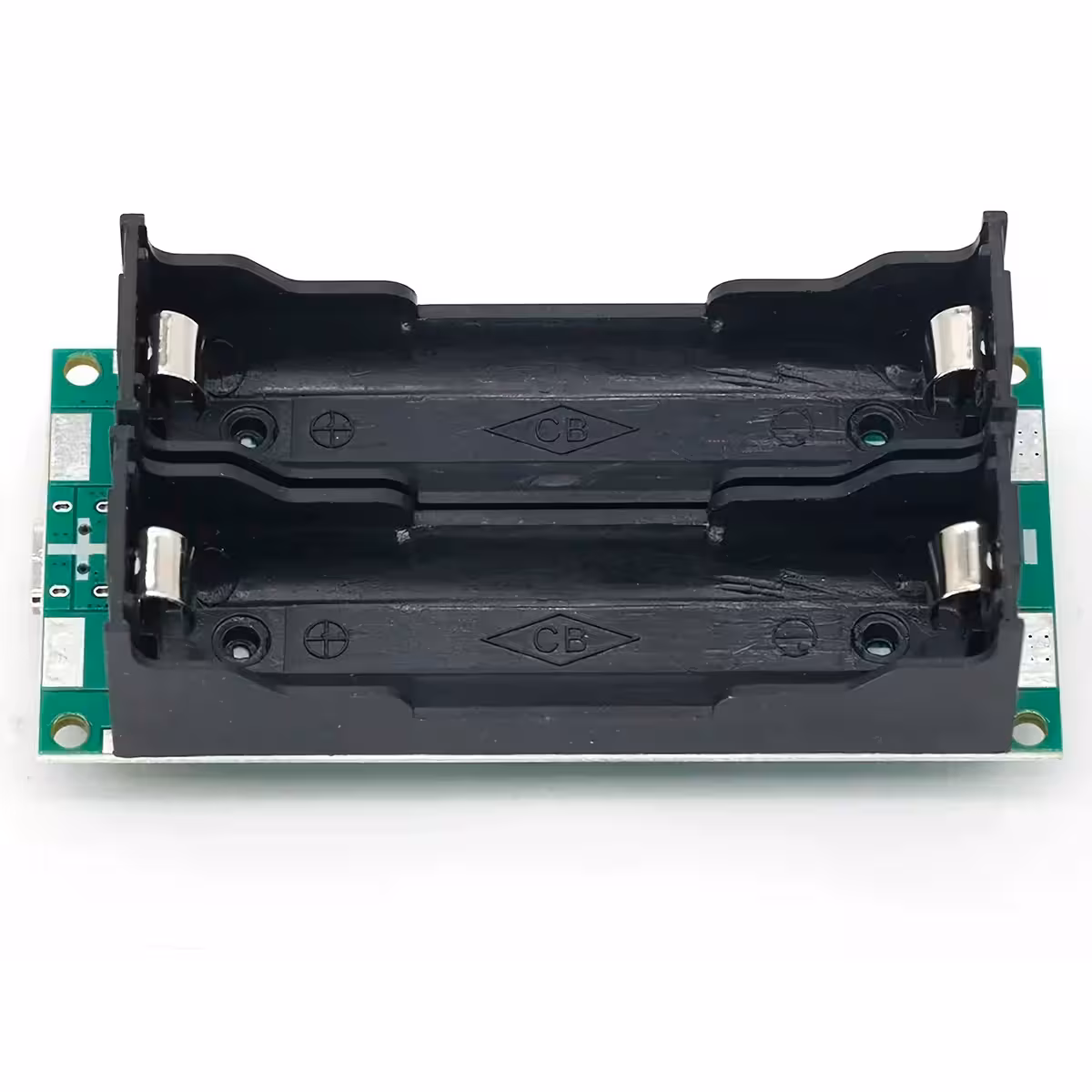

Power input via Type-C – up to 3A (higher current than MicroUSB).
Efficient booster: up to 96%, 20W peak / 15W nominal.
Complete Li-Ion protection: over-discharge, overcharge, short circuit, temperature.

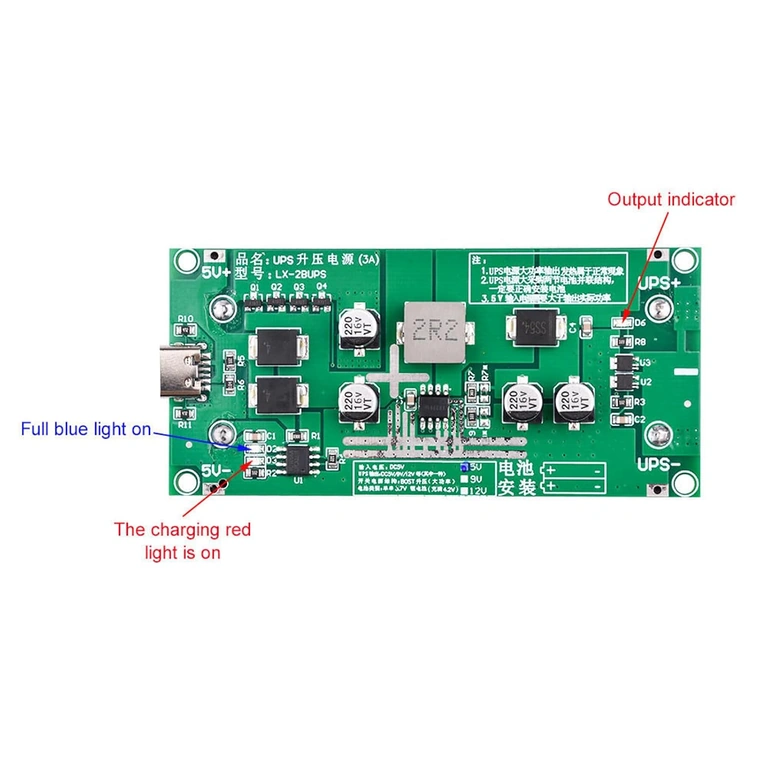

Dual LED indicator: red = charging, green = fully charged.

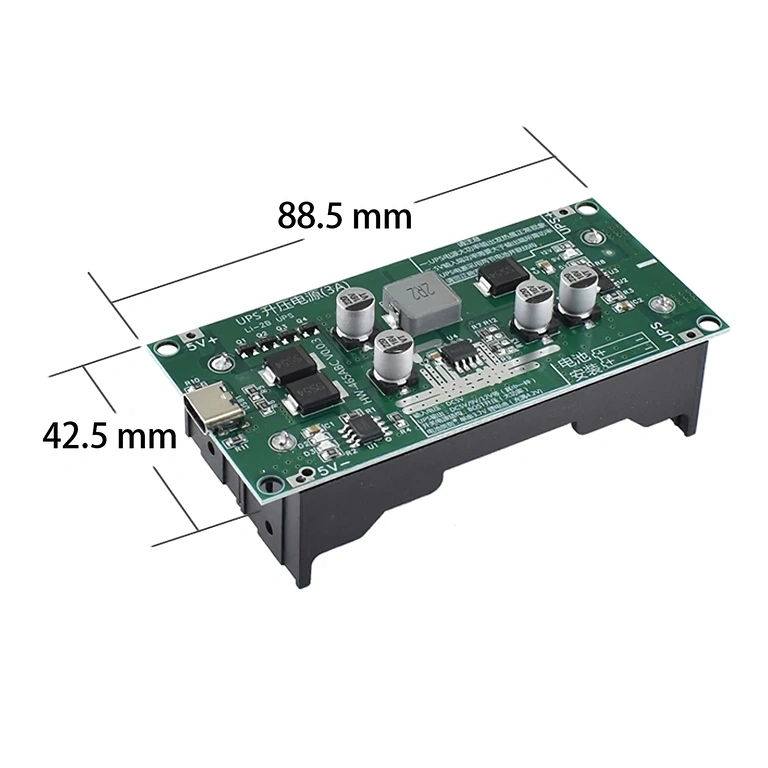

Compact dimensions: 88 × 41 × 22 mm.
Technical Specifications
Specification
Mini UPS 5V
Mini UPS 12V
Output Voltage
5V DC
12V DC
Maximum Current
3A
1.2A
Power
15W nominal
15W nominal / 18–20W peak
Input
Type-C / pads 5V+ 5V-
Compatible Batteries
Li-Ion 18650 – 1 or 2 in parallel
Charging Voltage
4.2V
Protections
short circuit, over-discharge, overcharge, temperature
No-load Current
≈ 25mA
Note: If the module operates at high power, some heating is normal (ventilation recommended). Do not connect the battery in reverse – risk of damage. Use a 5V power supply with sufficient current (minimum 2A).
Package Includes
1x UPS / DC-DC Module (customer-selected version)
