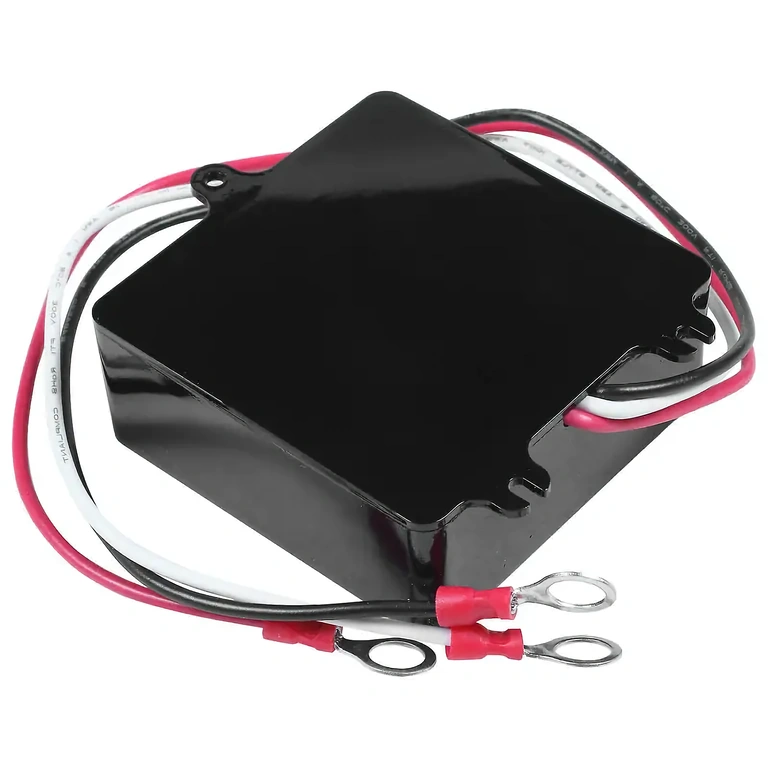

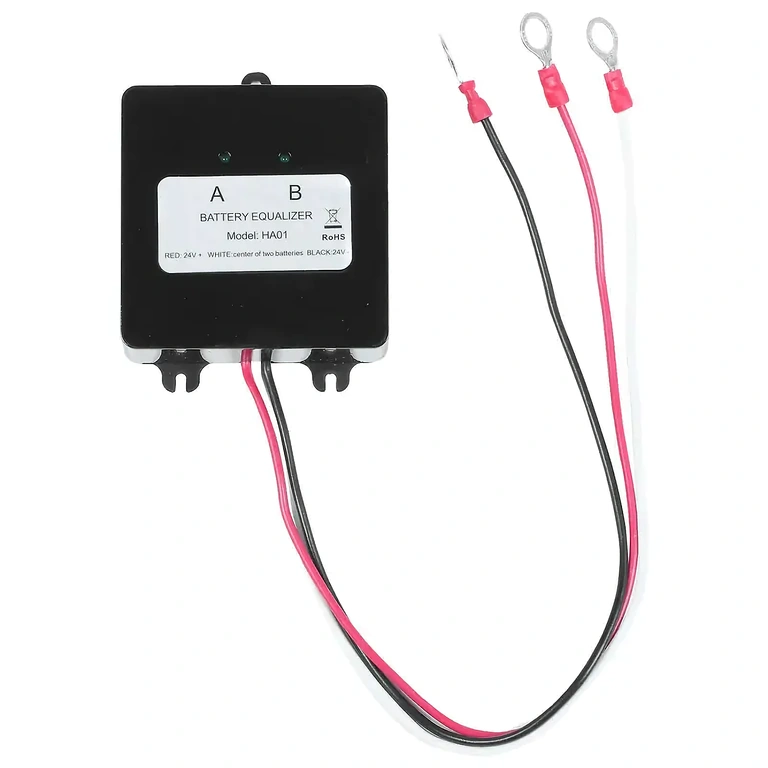

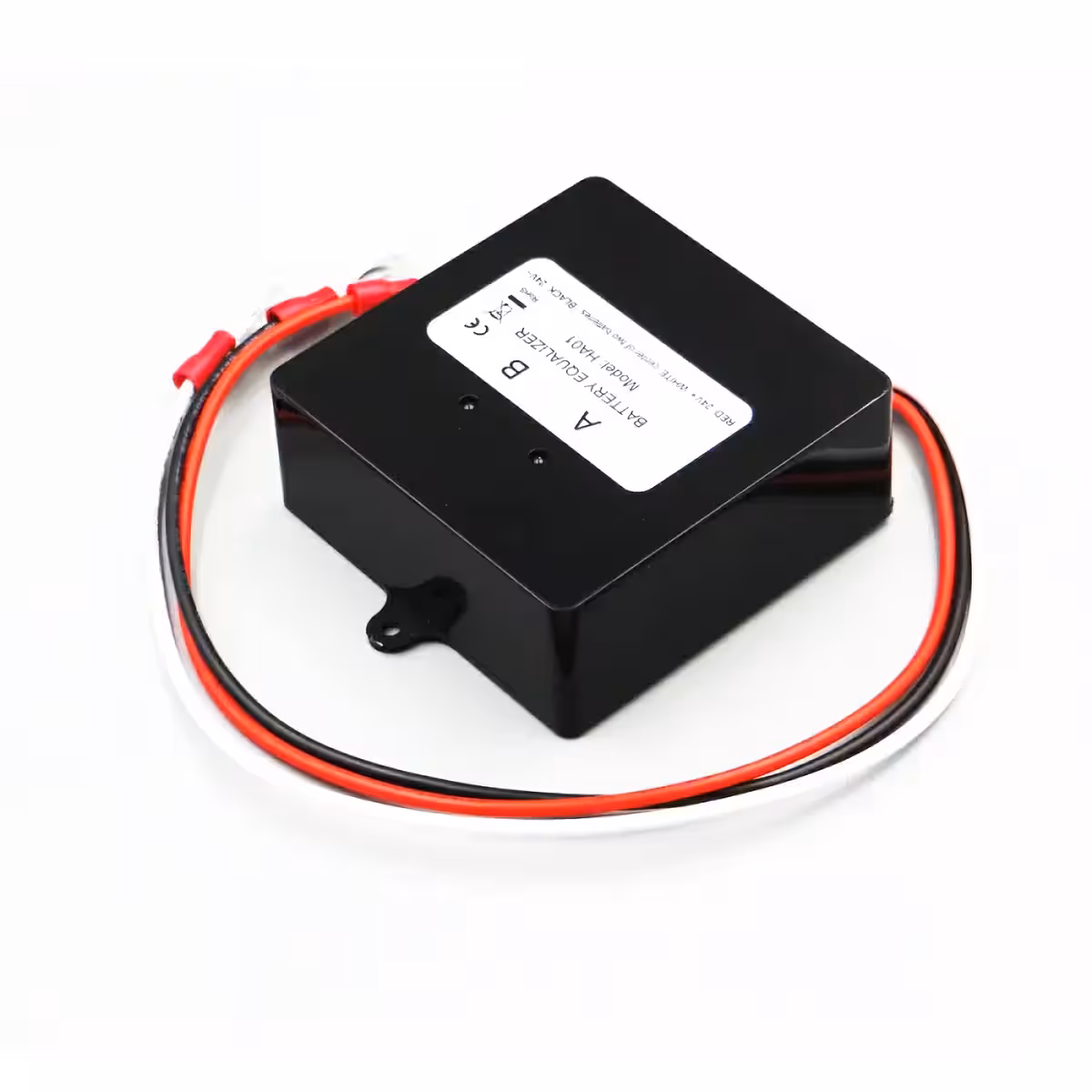

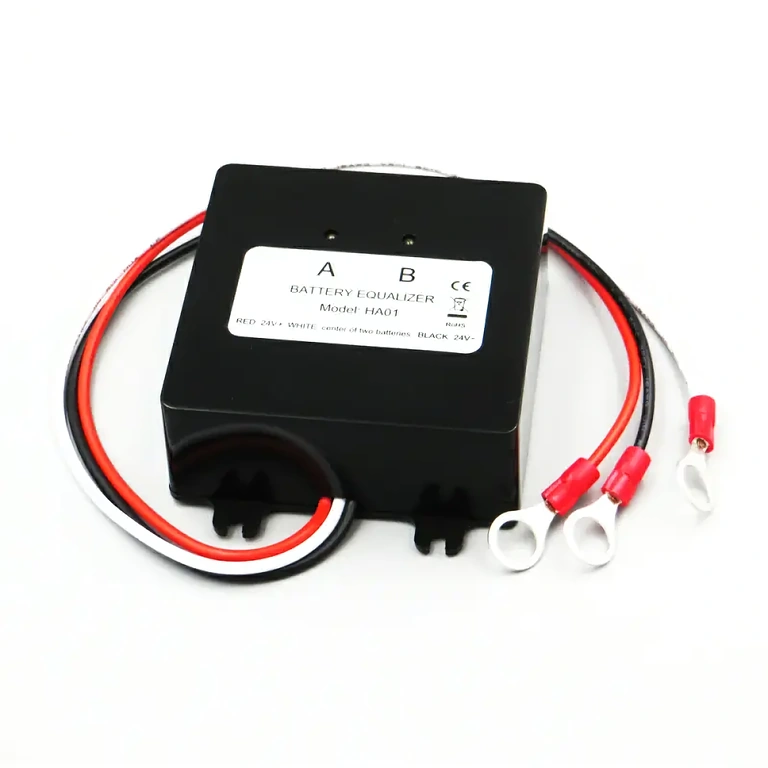

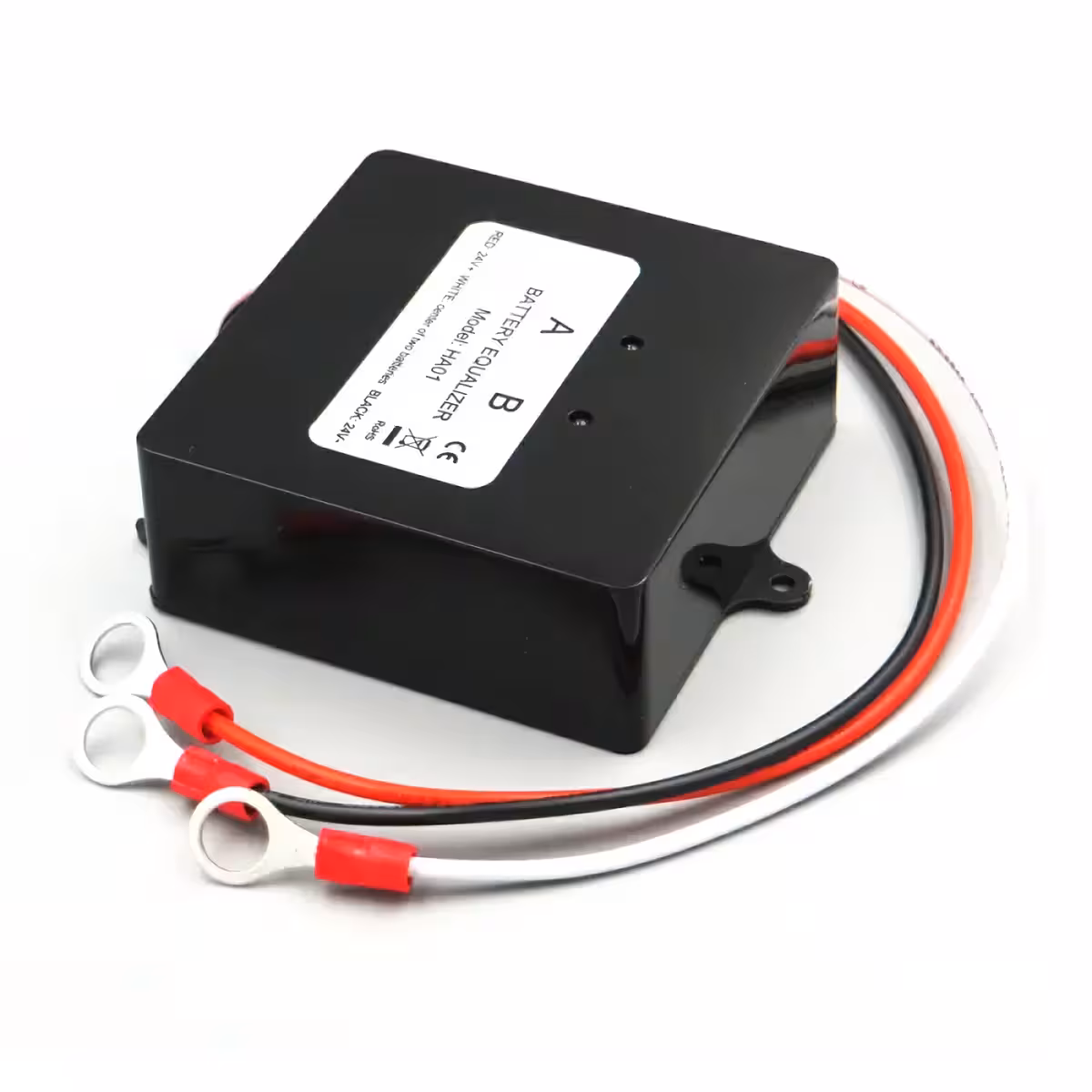

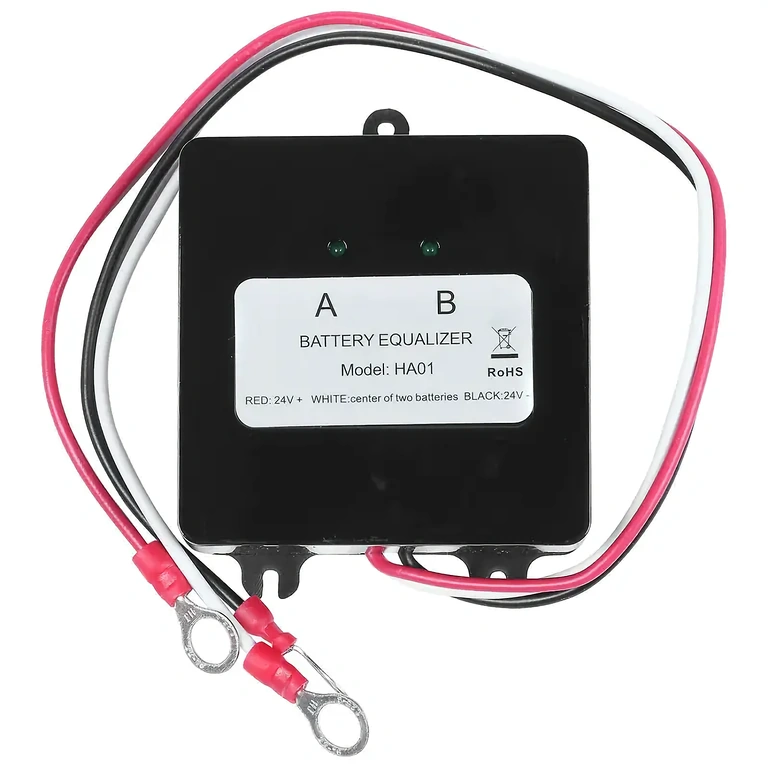

Battery Charging Equalizer 12V – Compatible with 24V / 36V / 48V Systems, Gel, AGM, Lead-Acid

The battery equalizer is an essential device for maintaining the health of 12V battery systems connected in series. Used in 24V, 36V, or 48V applications, this module ensures voltage balancing between batteries, preventing premature degradation and maximizing battery lifespan.

Over time, voltage differences that occur during charge/discharge cycles affect battery performance. Some batteries become overcharged while others remain undercharged. The equalizer detects differences greater than 20mV and automatically transfers current from the higher-voltage battery to the lower-voltage one, balancing the system without manual intervention.

Ideal for: solar systems, electric vehicles, UPS systems, or any configuration with batteries in series.

• Rated Voltage: 12V per battery
• Compatibility: 24V / 36V / 48V (via 2, 3, or 4 x 12V batteries in series)
• Balancing Current: 0–5A
• Own Consumption: <3mA
• Reverse Polarity Protection: Yes
• Low Voltage Disconnect: 10V

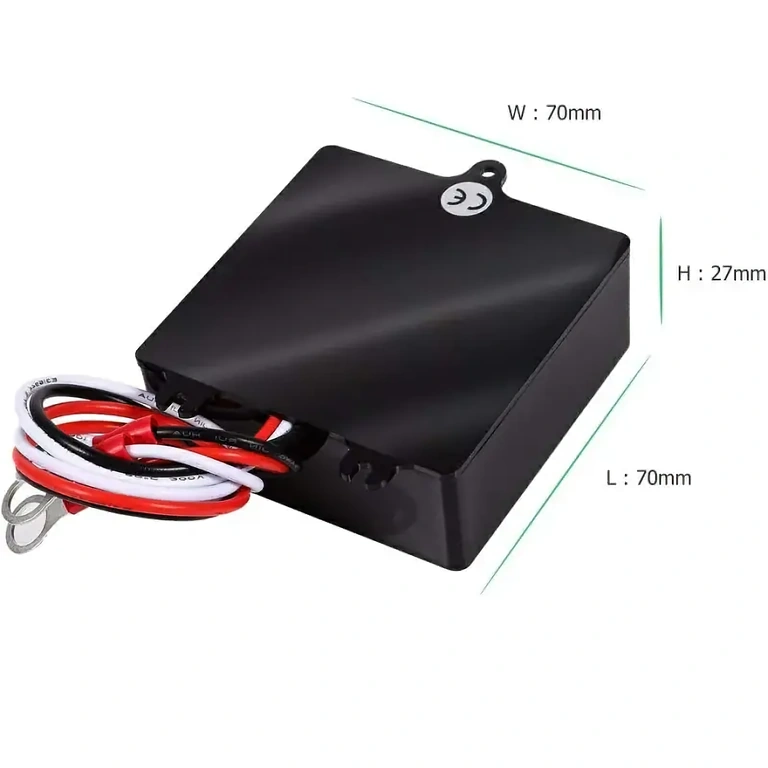

• Dimensions: 70 x 70 x 27 mm

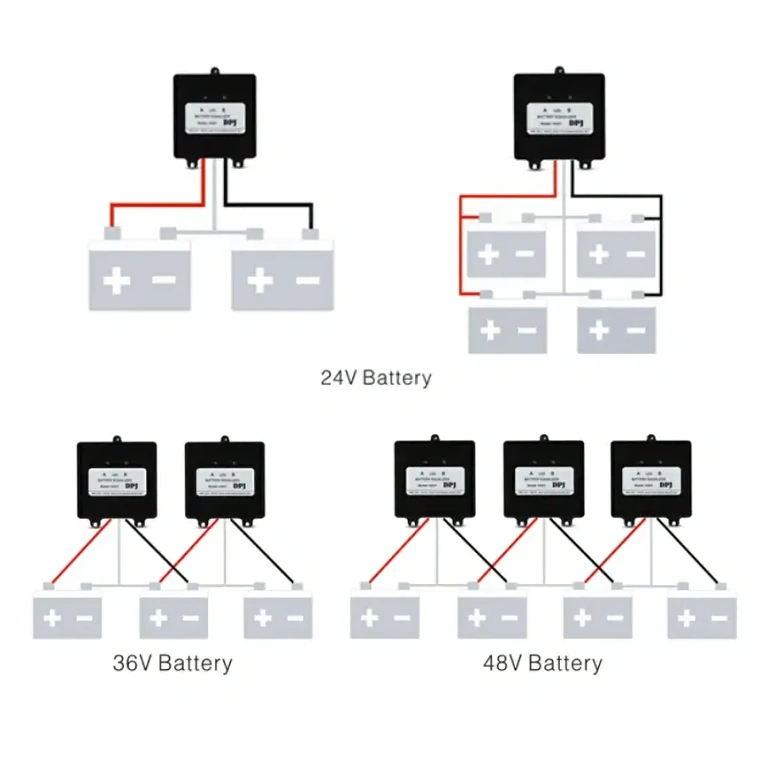

• 1 equalizer for 2 x 12V batteries in series = 24V
• 2 equalizers for 3 x 12V batteries in series = 36V
• 3 equalizers for 4 x 12V batteries in series = 48V

Connection diagram is included in the photo gallery.

Compatible with all types of 12V batteries: gel, AGM, and lead-acid. Ideal for storage batteries in photovoltaic or backup systems.

Prevent battery imbalance and efficiently extend the lifespan of your entire battery pack with this automatic voltage equalizer.
