12V 4-Pin 40A Automotive Relay with Socket – Overview
Product Description
The 12V 4-pin 40A automotive relay with socket is a compact and reliable relay, suitable for controlling automotive loads such as headlights, pumps, fans, or other electrical accessories. It provides fast response time, Ag Alloy contacts, and high durability both electrically and mechanically.
Main Advantages
Supports 40A at 12VDC, ideal for automotive applications.
Ag Alloy contacts for excellent conductivity.
Electrical lifespan: 100,000 switching cycles.
Operating time: ≤15ms, release time: ≤10ms.
Operates between -55°C and +70°C and 35–80% humidity.
Technical Specifications
Switching Current
40A / 12VDC
Contact Material
Ag Alloy
Contact Resistance
≤100MΩ
Electrical Lifespan
100,000 cycles
Mechanical Lifespan
10,000,000 cycles
Coil Power
1.8W
Operating Time
≤15ms
Release Time
≤10ms
Contact-to-Contact Isolation
1000VAC/1min
Contact-to-Coil Isolation
1500VAC/1min
Insulation
100MΩ at 500VDC
Temperature
-55°C ~ +70°C
Humidity
35–80%
Usage

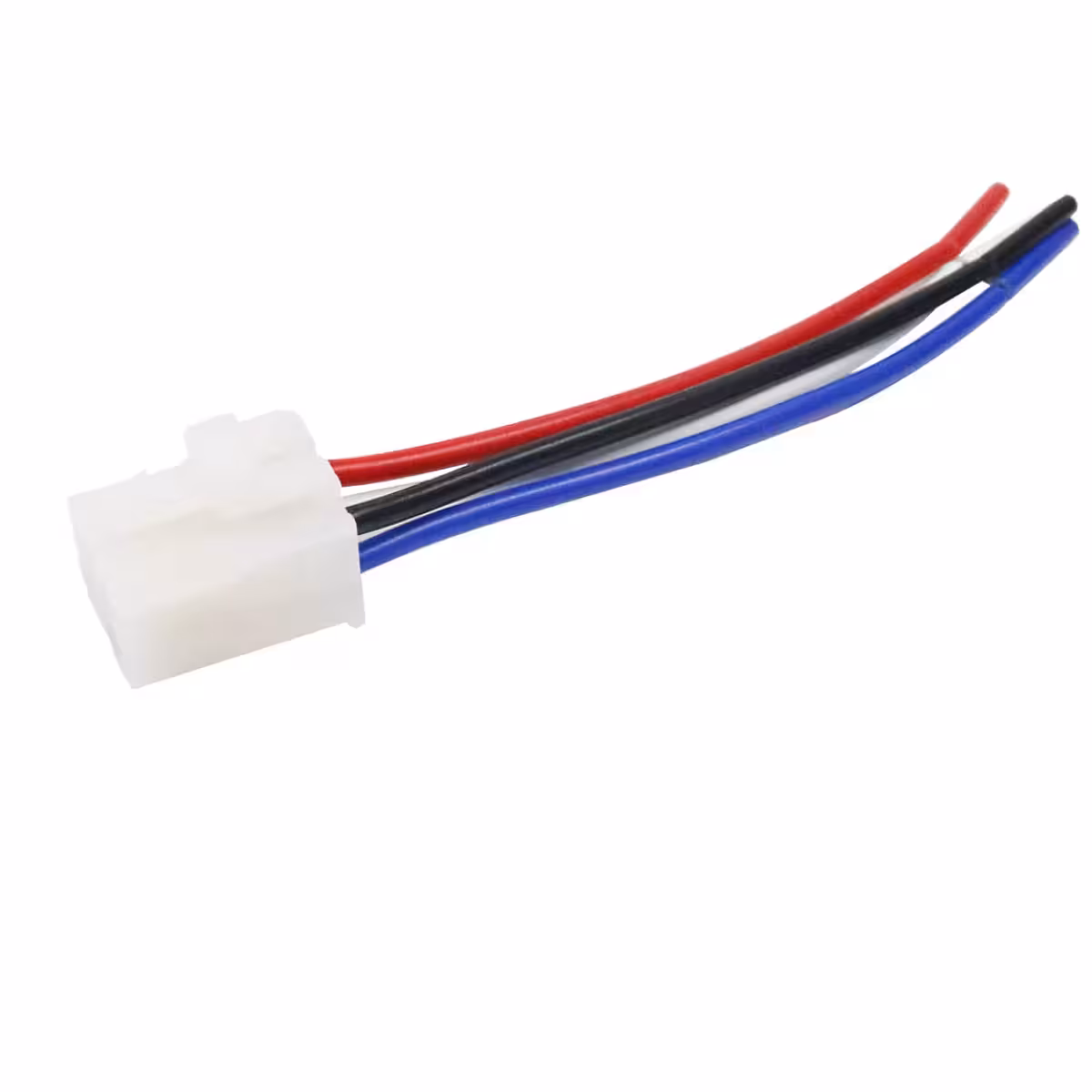

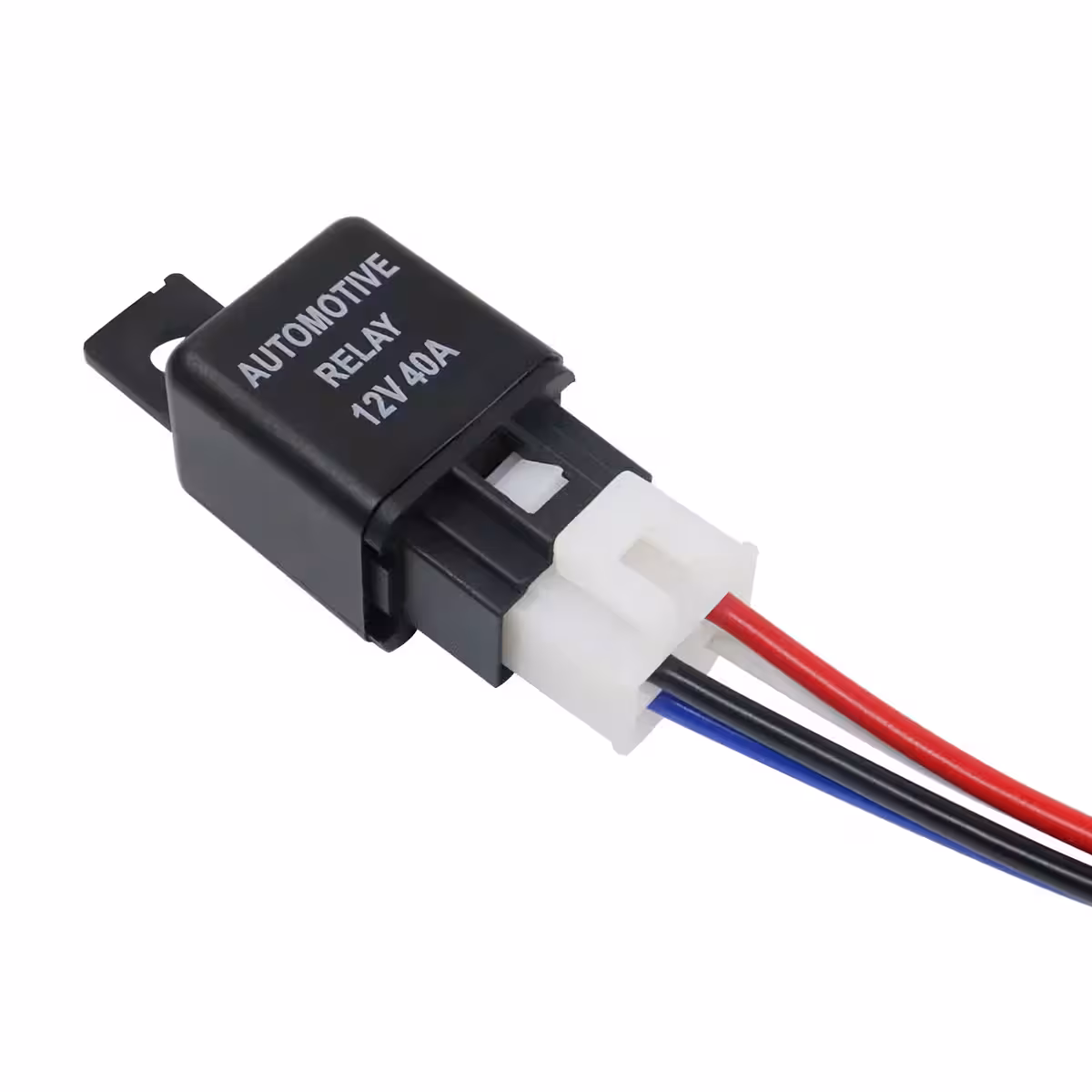

Easily mounted in the included socket, it is compatible with 12V automotive electrical systems. Recommended for circuits where safe and fast switching is required.
