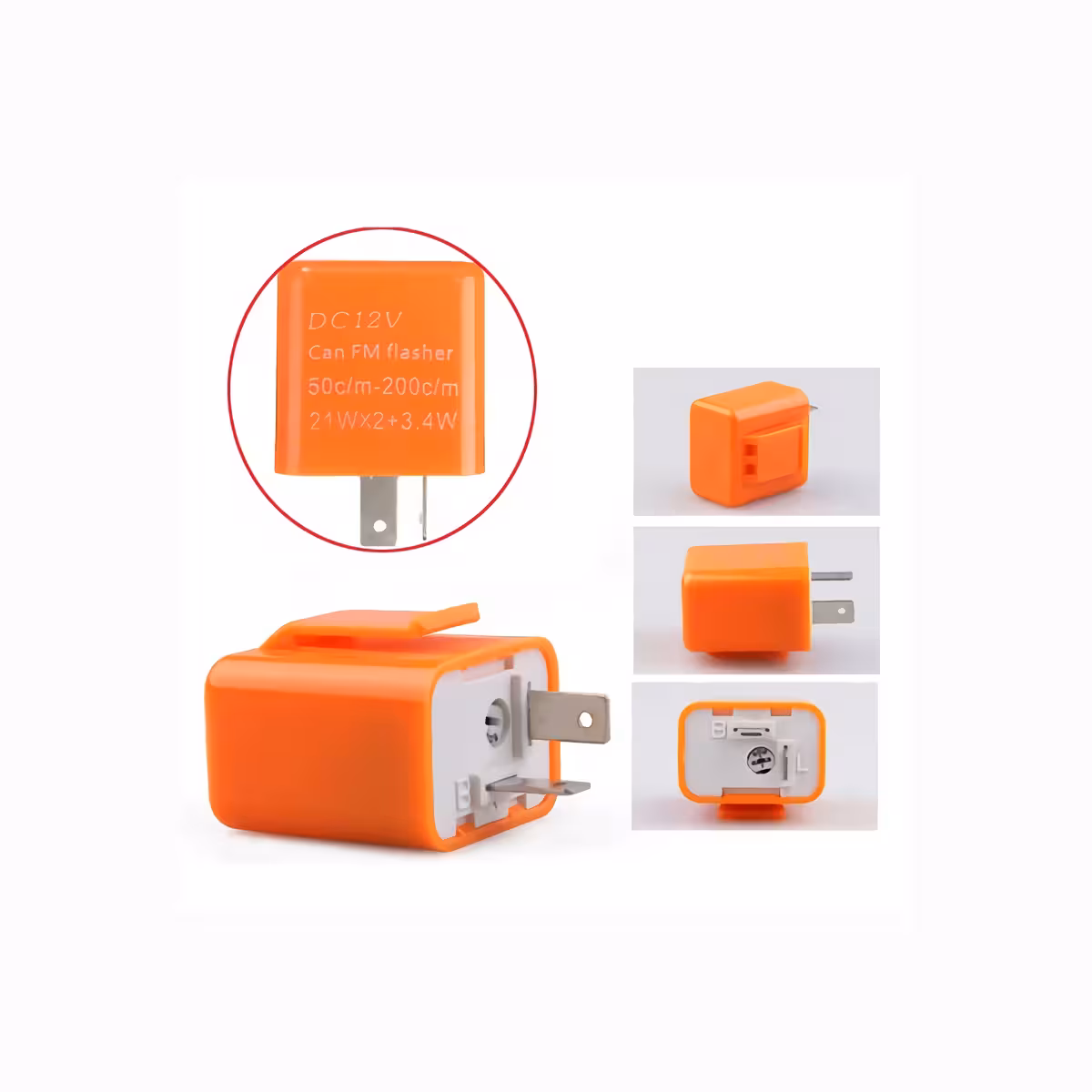

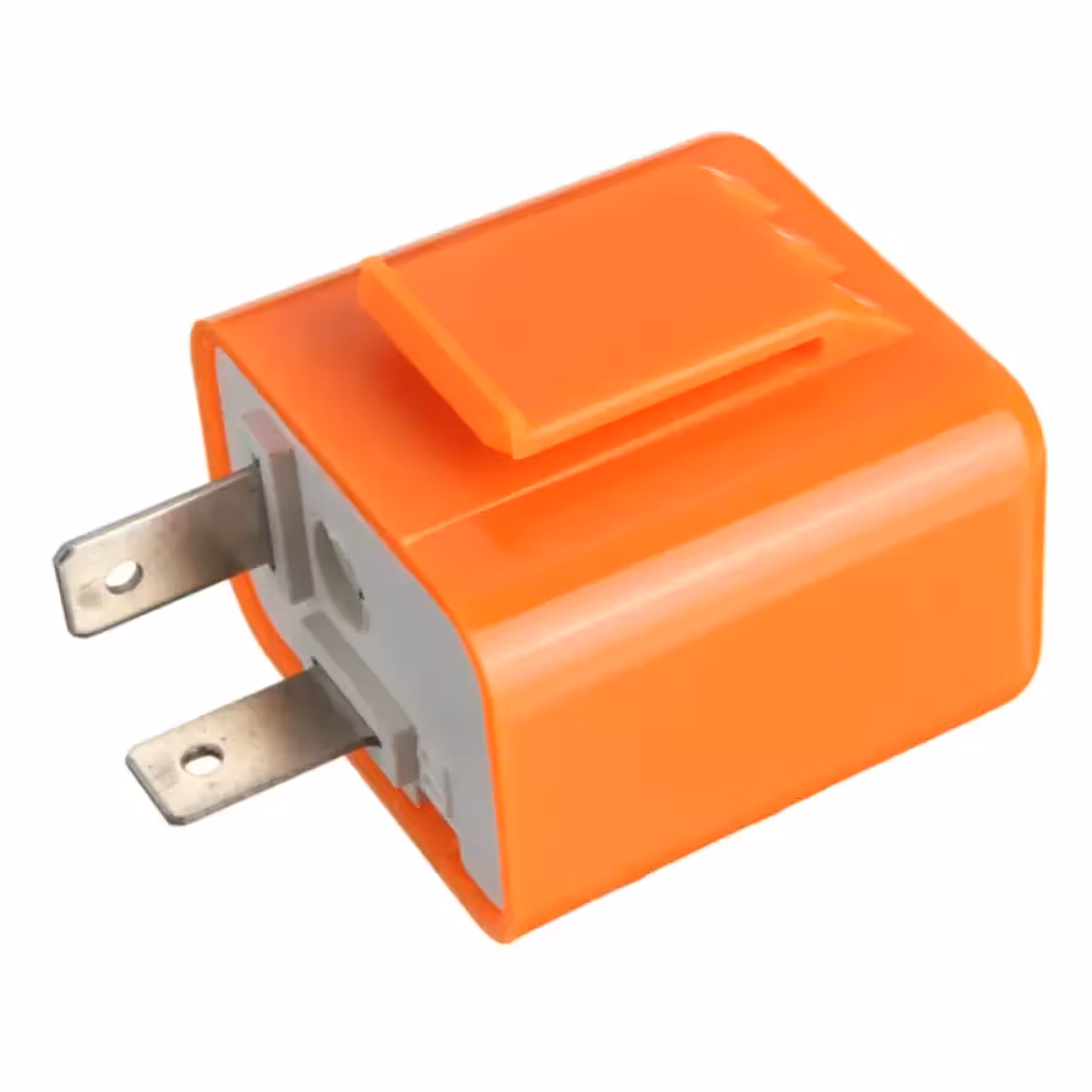

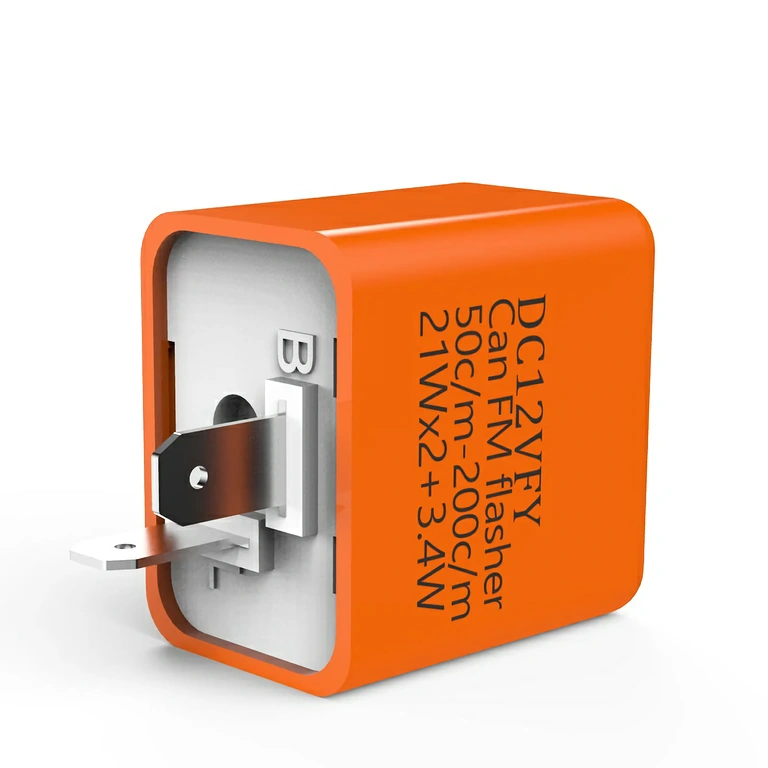

12V LED Turn Signal Relay for Motorcycle, Scooter, ATV, Electric Bike
Electronic turn signal relay, compatible with LED and traditional bulbs, 2 pins, 12V, adjustable.
Easy to install, plug & play, on any 12V motorcycle, scooter, ATV, or electric bike. It is ideal for LED signaling systems, eliminating the need for additional resistors. It also works with conventional bulbs (2 x 21W + dashboard indicator bulb 3.4W).

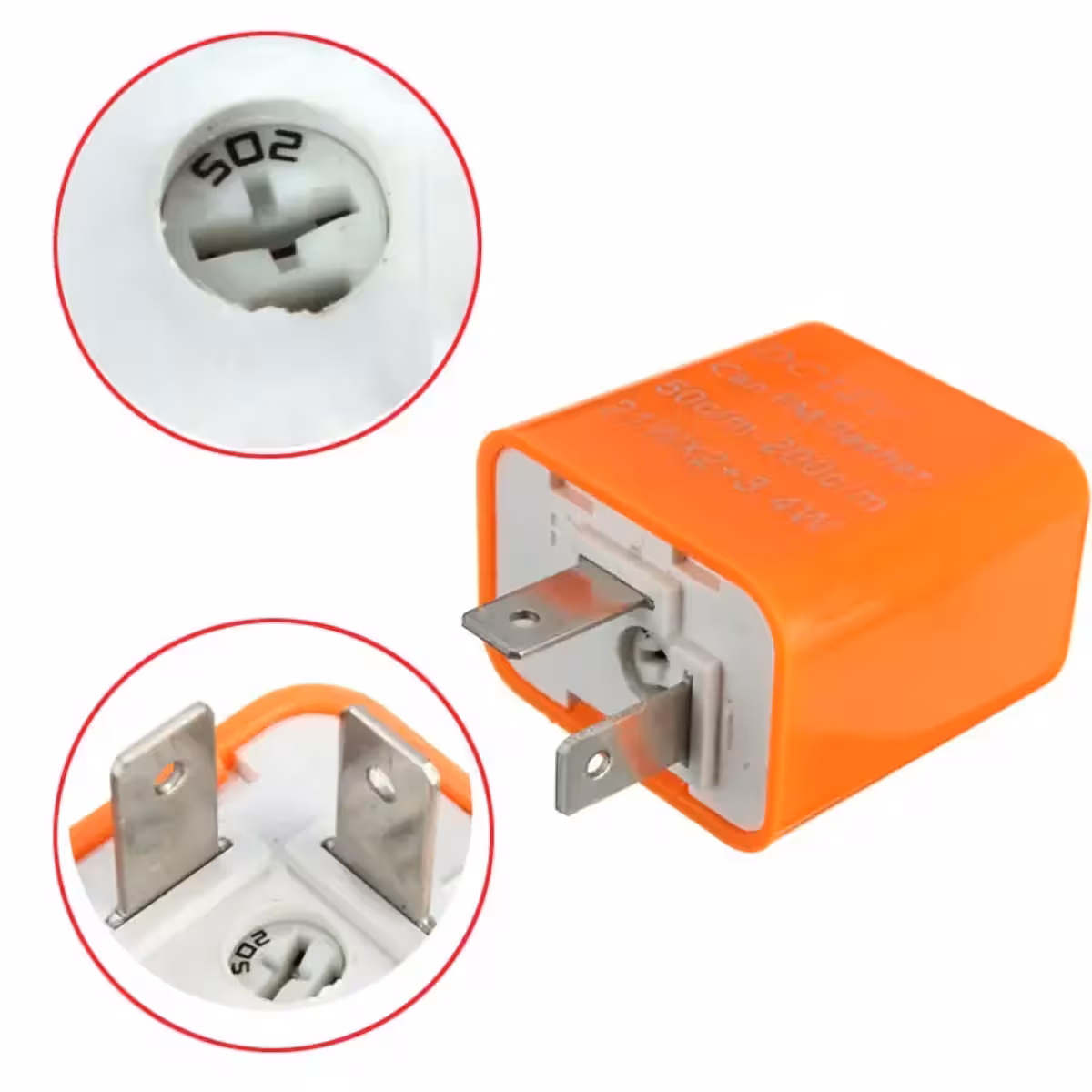

The signaling frequency can be adjusted between 50 and 200 switches per minute using an adjustment screw. The product is equipped with cutting-edge SMD technology and features automatic protection against short circuits, overcurrent, and reverse polarity.
Technical Specifications
- Operating voltage: 11V – 15V
- Minimum switching current: 0.02A
- Minimum power: 0.6W
- Maximum supported power: 2 x 21W + 3.4W
- Operating temperature: -40°C to +80°C
- Waterproof and durable conditions protection
- Housing material: Durable ABS
- Weight: 20g

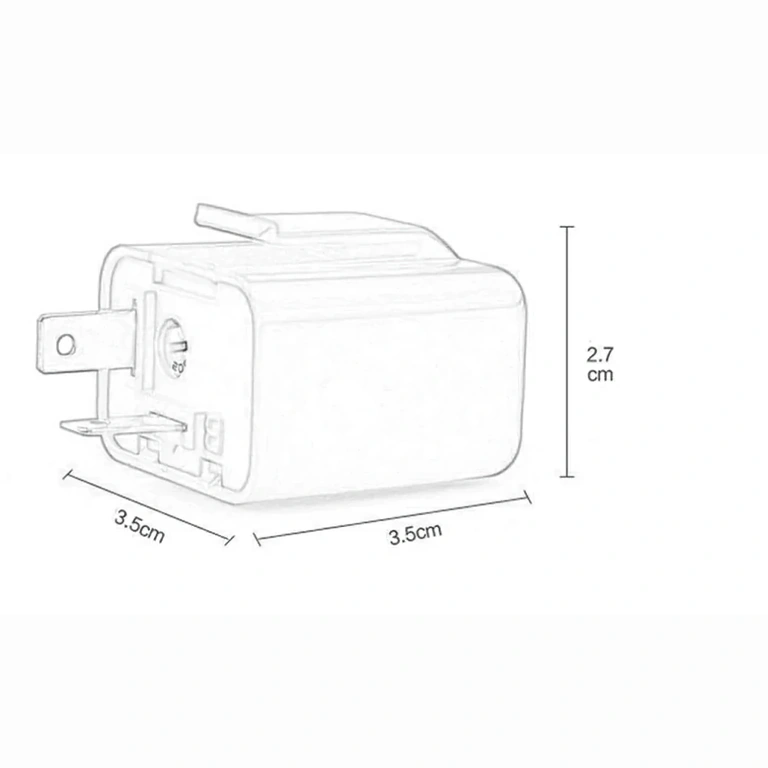

- Dimensions: 3.5 x 3.5 x 2.7 cm

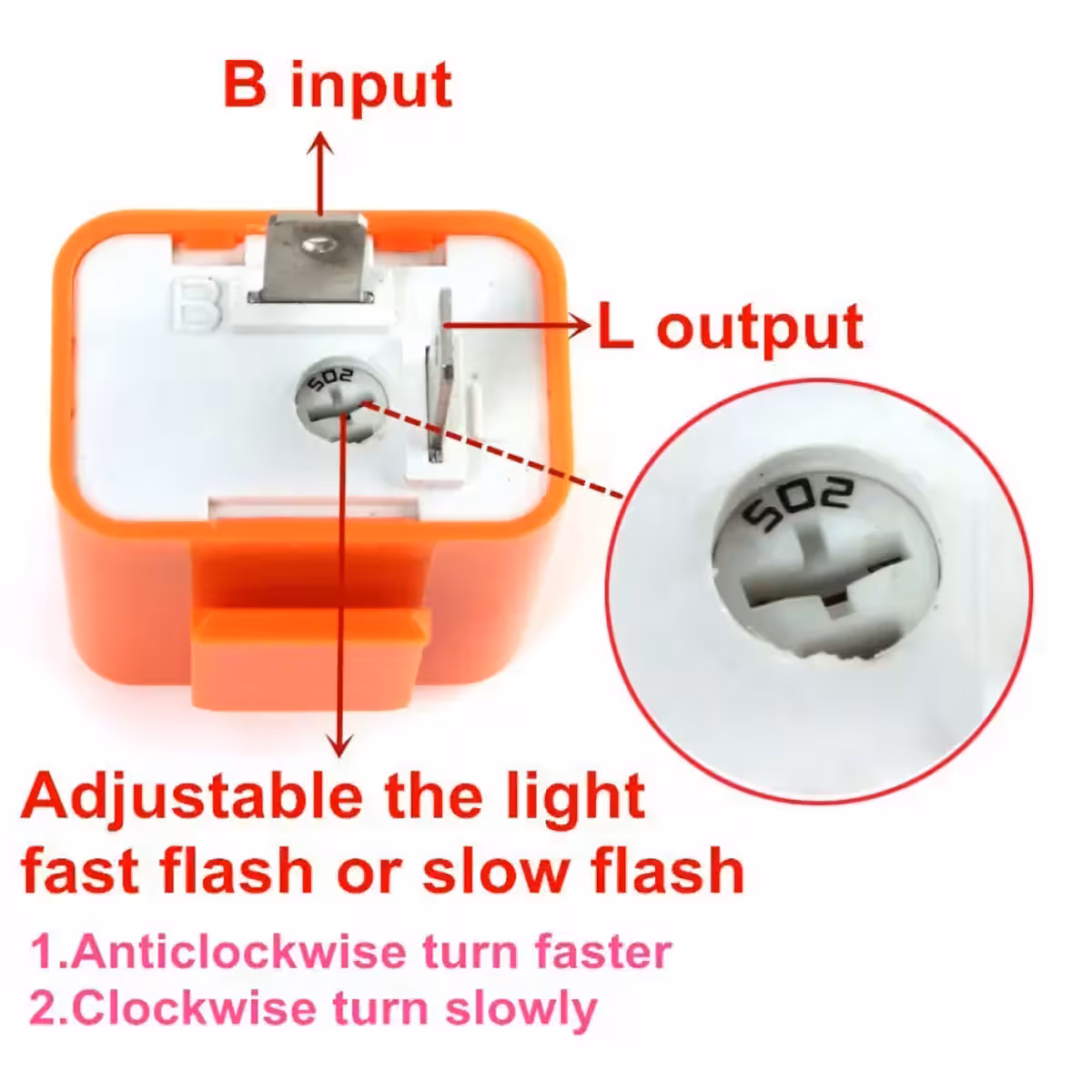

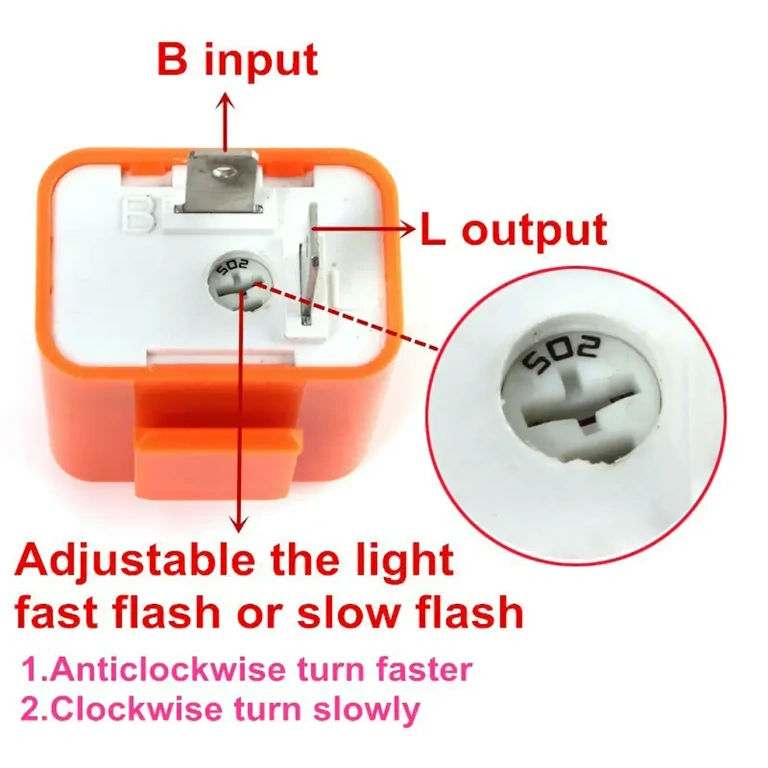

Connections:
- Pin B – Input
- Pin L – Output
Compatibility
Suitable for motorcycles, scooters, electric scooters, ATVs, electric bikes, and other vehicles with a 12V electrical system and LED or bulb turn signals.
