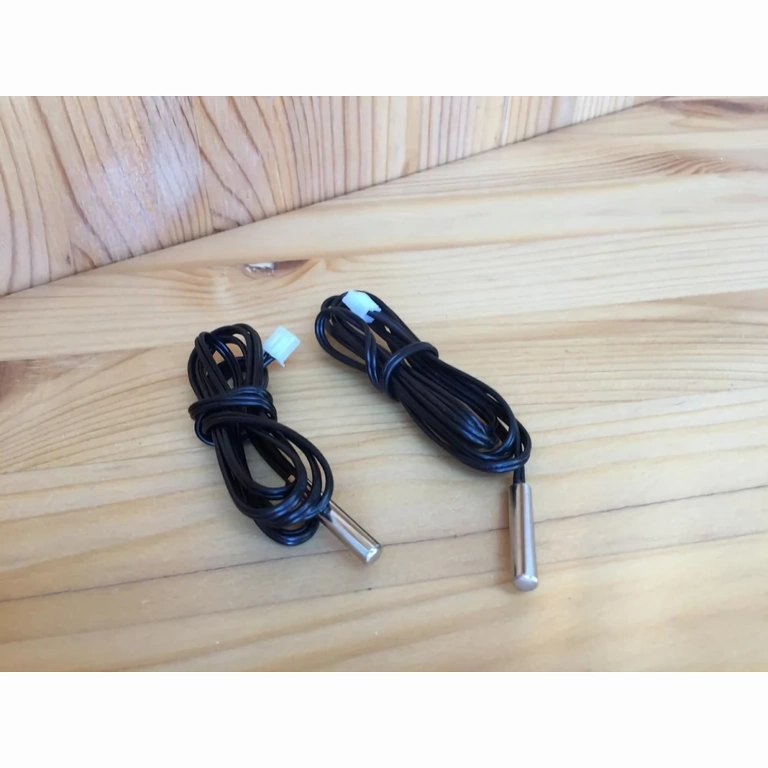

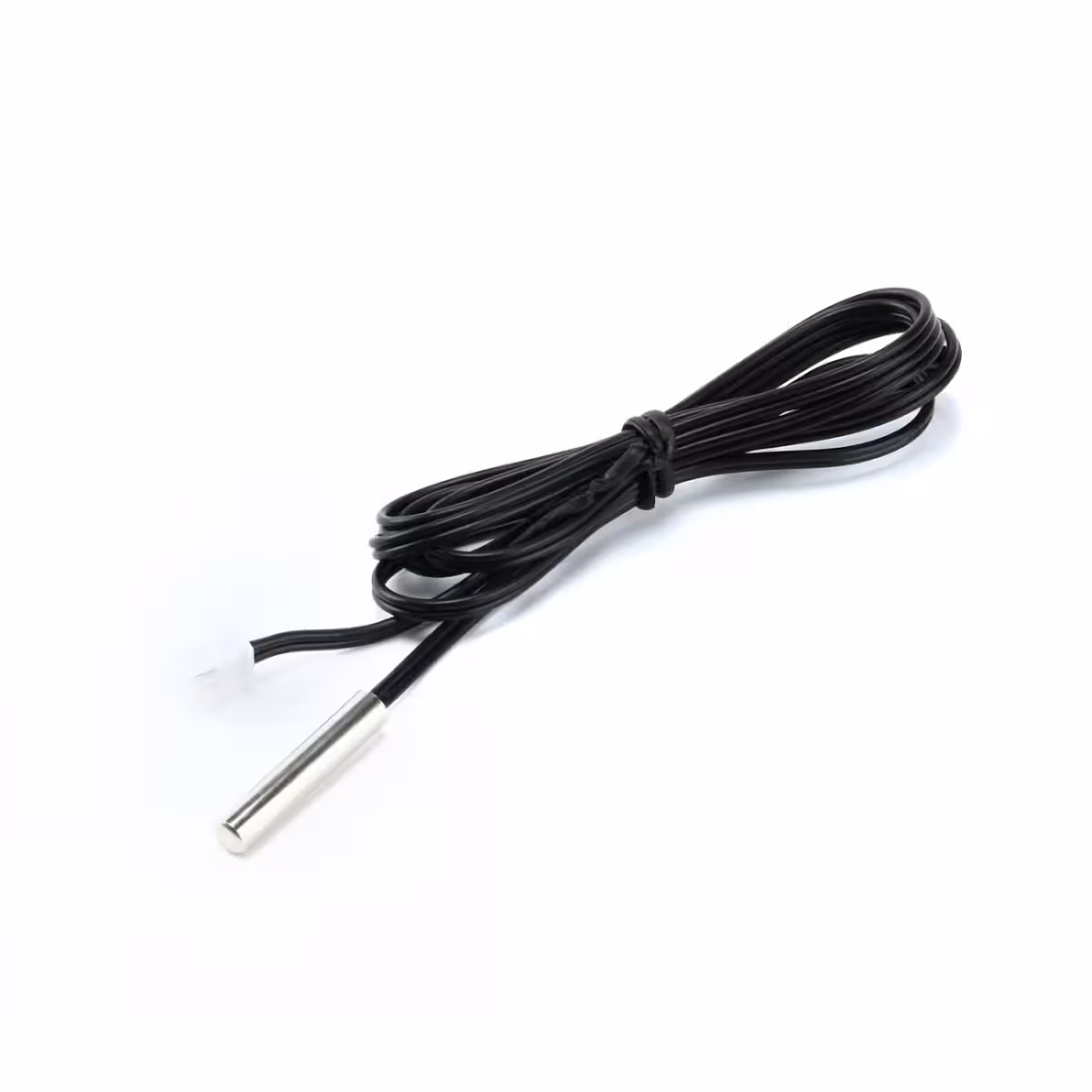

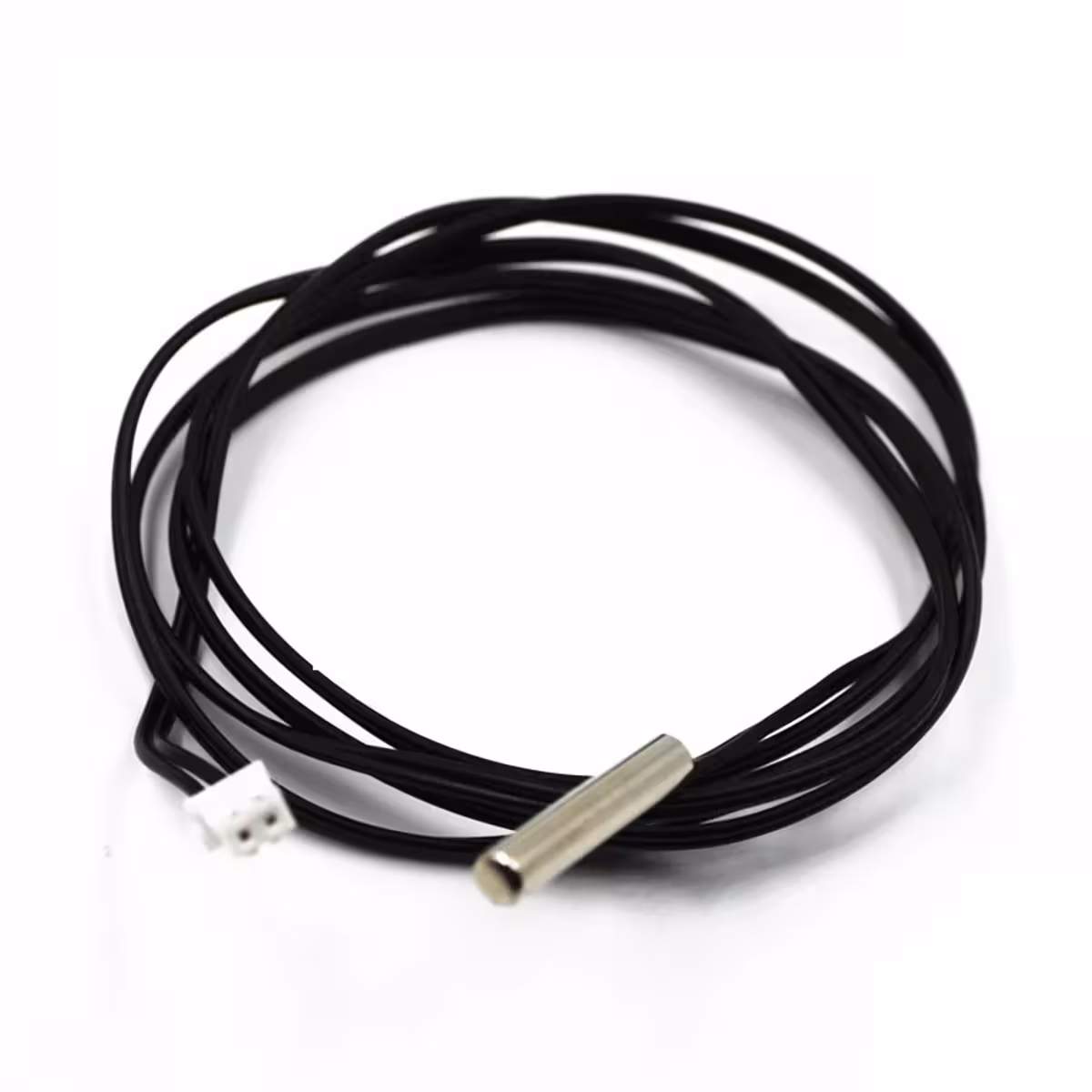

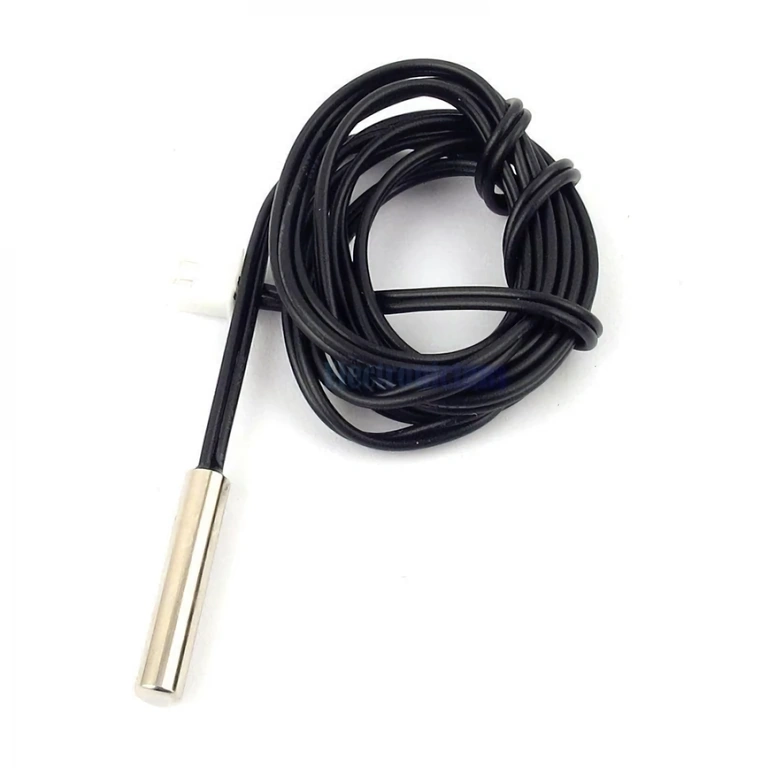

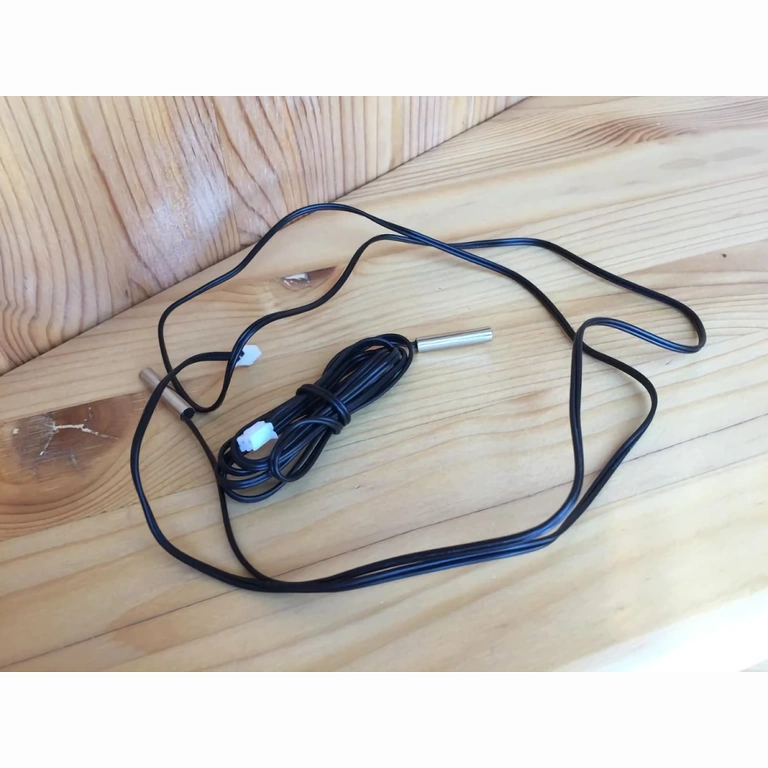

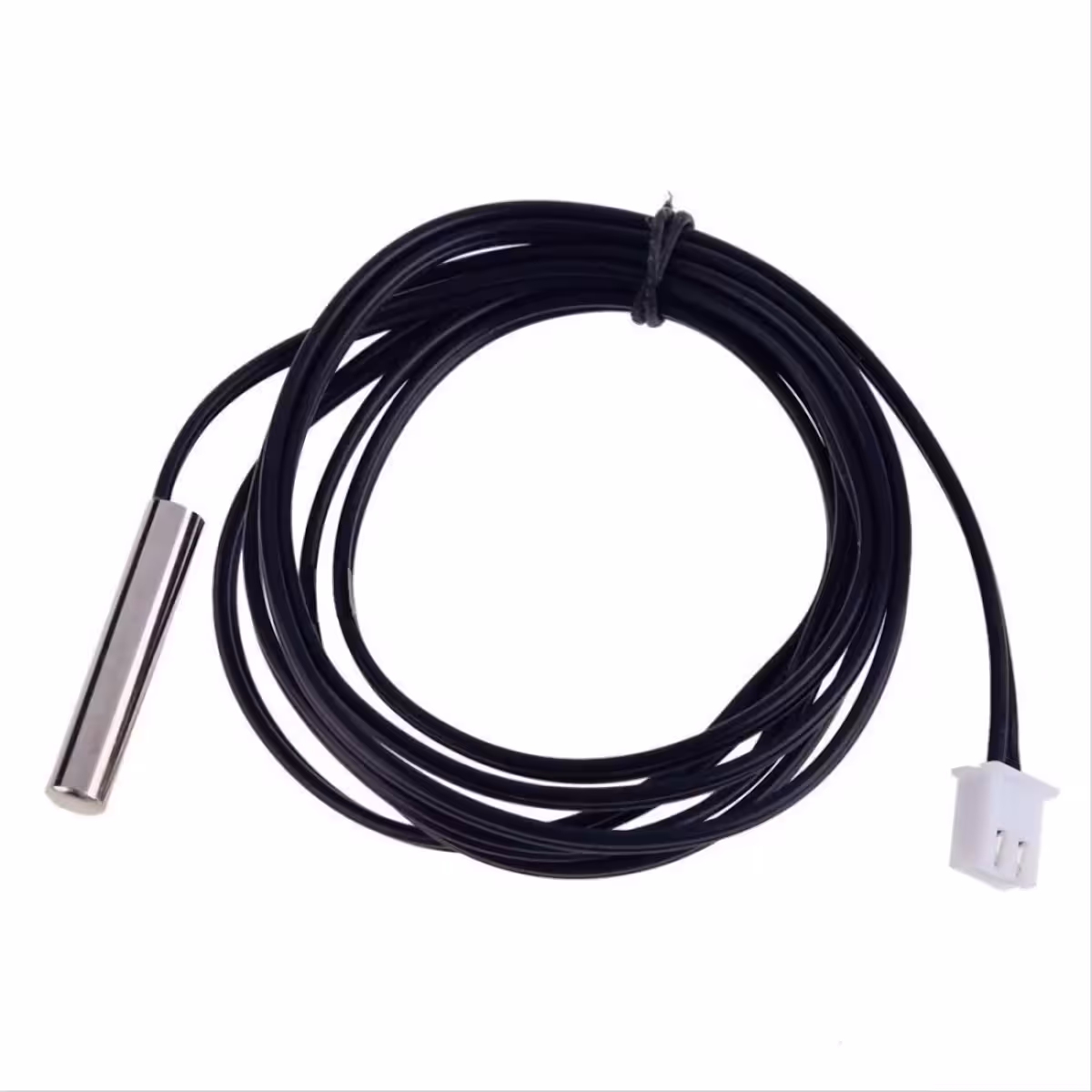

NTC 10K Water Temperature Sensor Probe – 1 Meter, for Heating System or Thermostat
This NTC 10K temperature sensor is ideal for applications such as heating systems, thermostats, boilers, or other equipment requiring accurate water temperature monitoring. It provides stable and reliable operation, made from high-quality materials.

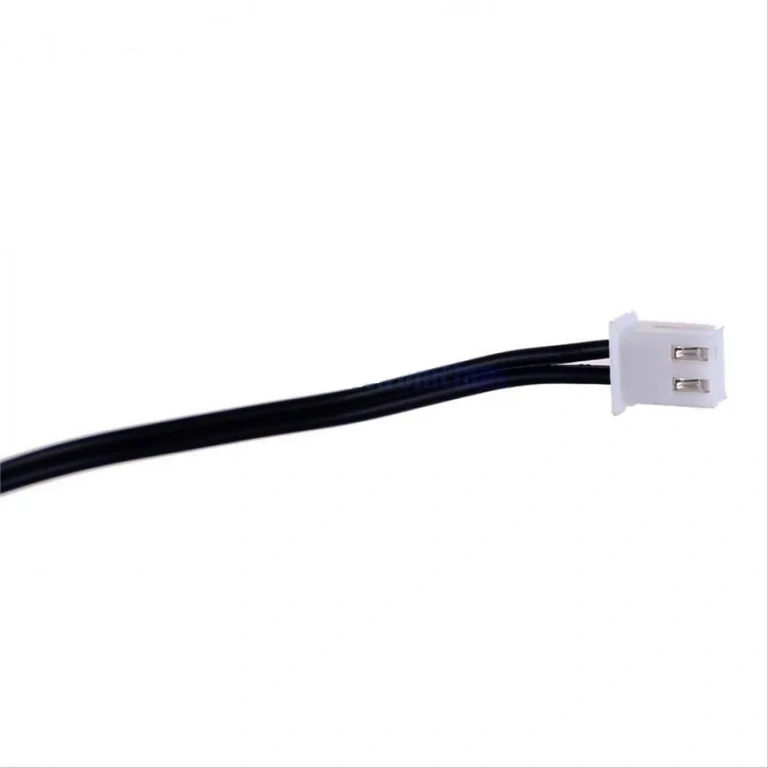

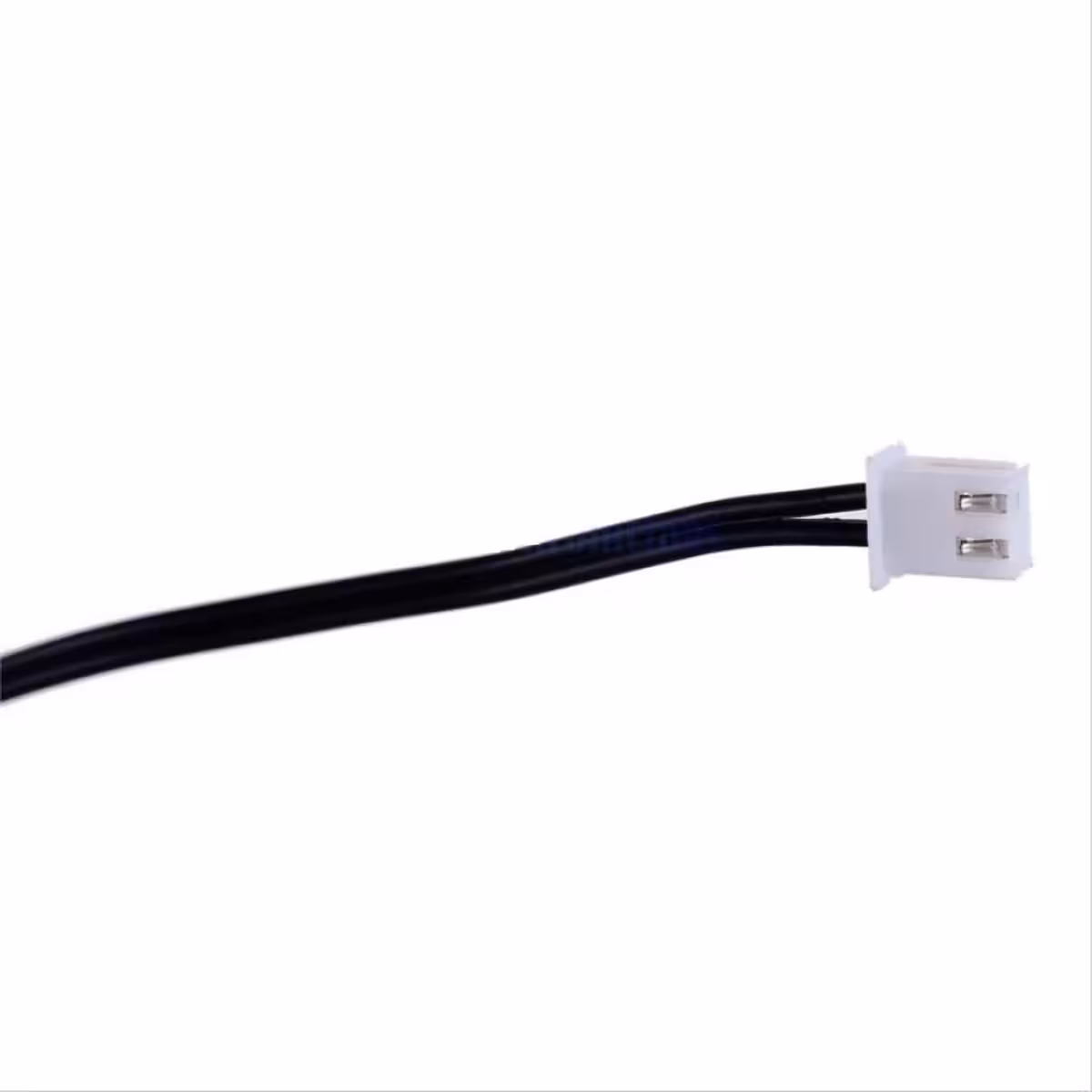

The temperature probe comes with a 1-meter long cable, which can be adjusted by cutting to the desired size, making it easy to integrate into any installation.
Technical Specifications:
| Measurement Range | -20°C to +105°C |
|---|---|
| Cable Length | 1 meter (adjustable by cutting) |
| Probe Size | 5 x 30 mm |
| Sensor Type | NTC 10K ± 1% (B3950) |
| Dissipation Constant | 5 mW/°C |
| Electrical Insulation | >100 MΩ insulation resistance |
| Voltage Test | AC 1800V 1mA for 2 seconds |
The probe is compatible with most heating control systems, making it an excellent choice for replacements or new thermal automation projects.
