Digital Hygrostat Thermostat Controller STC-3028 220V with Humidity Sensor

Digital Temperature and Humidity Controller STC-3028 – Thermostat + Hygrostat 220V

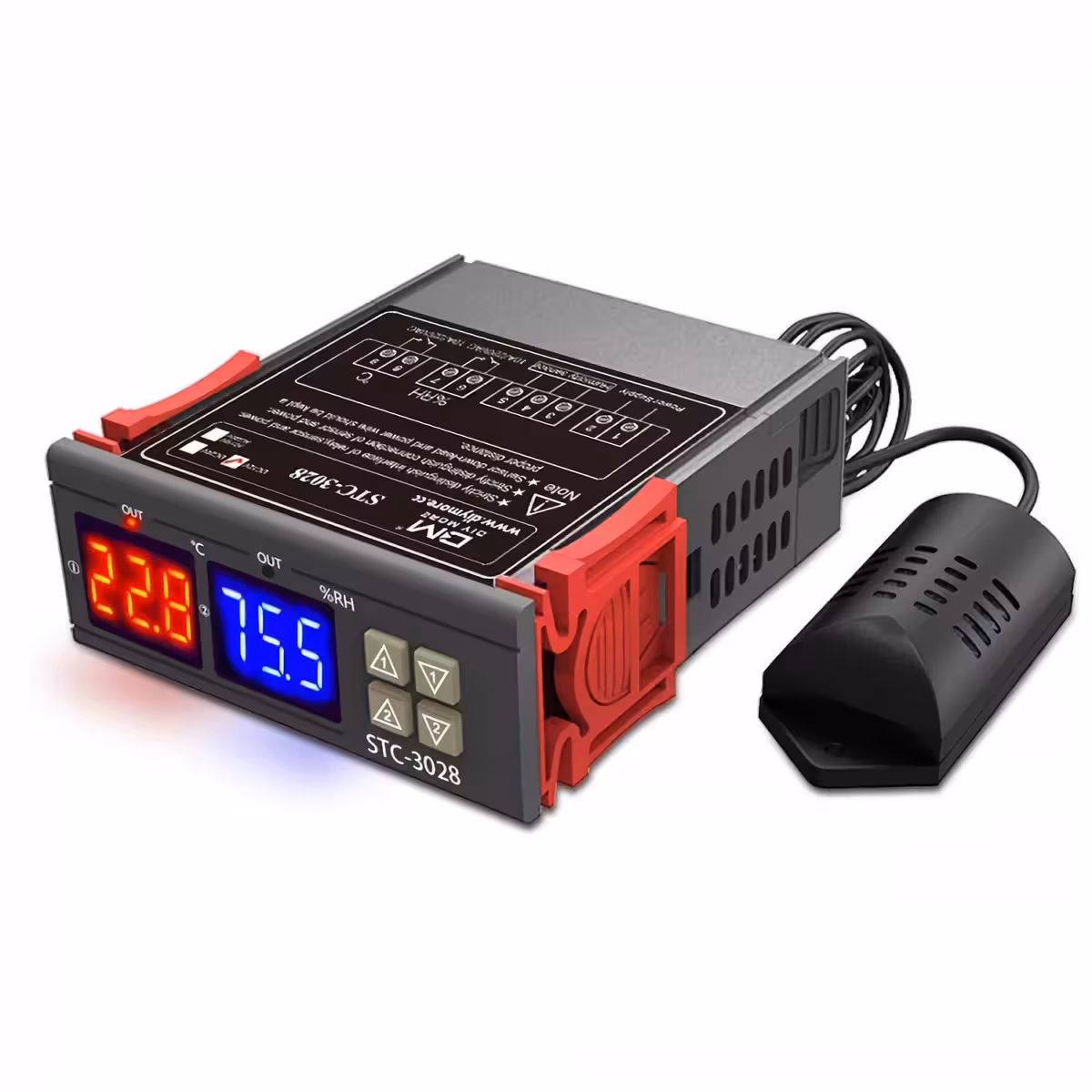

This multifunctional electronic controller STC-3028 allows for the automatic monitoring and regulation of temperature and humidity in various household or industrial applications. Equipped with two digital displays – red for temperature and blue for humidity – and two independent 10A relay outputs, this digital thermostat and hygrostat is a complete and easy-to-configure solution.

Main Features

• Model: STC-3028
• Power Supply Voltage: 220V AC
• Relay Outputs: 2 x 10A (one for temperature, one for humidity)
• Dual Display: red – temperature, blue – humidity
• Independent Control: temperature and humidity can be configured separately
• Humidity Sensor Included

Temperature Setting Instructions

1. Press and hold the up button (no. 1) until the numbers start flashing.
2. Set the minimum temperature using the up/down buttons.
3. Wait for automatic saving.
4. Press and hold the down button (no. 1) until the numbers start flashing.
5. Set the maximum temperature using the up/down buttons.
6. Wait for automatic saving.

Humidity Setting Instructions

1. Press and hold the up button (no. 2) until the numbers start flashing.
2. Set the minimum humidity using the up/down buttons.
3. Wait for automatic saving.
4. Press and hold the down button (no. 2) until the numbers start flashing.
5. Set the maximum humidity using the up/down buttons.
6. Wait for automatic saving.

Temperature / Humidity Value Correction

Press both the “up” and “down” buttons simultaneously to access the value correction menu for the measured values.
