DC-DC Step Up Boost Converter 12V to 24V/36V/48V/60V 1200W 20A

DC-DC Step-Up Converter Module 10V–60V to 12V–80V – Efficient and Adjustable Voltage Boost

This DC-DC step-up converter is the ideal solution for applications requiring a higher output voltage than the power source provides. Designed for high efficiency and stable performance, the module offers essential protections and a wide range of uses in electronics projects, automotive applications, solar systems, and industrial automation.

Technical Specifications

Estimated Output Power

• 12V × 20A = 240W
• 24V × 20A = 480W
• 36V × 20A = 720W
• 48V × 20A = 960W
• 60V × 20A = 1200W

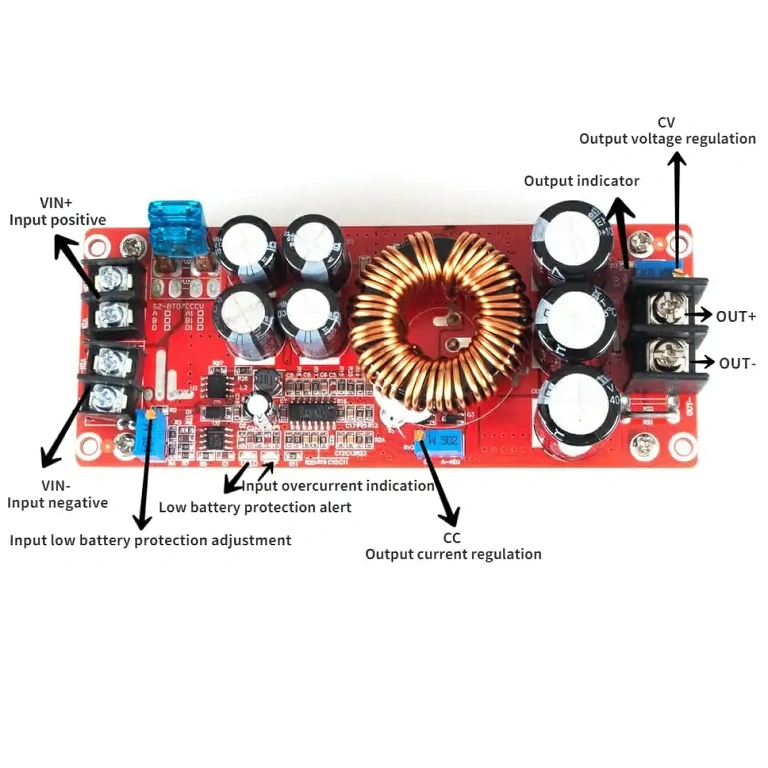

Protections and Safety

• Conversion efficiency: up to 95% (depending on voltage and load)
• Overcurrent protection: yes, automatic limitation to minimum 5A
• Short-circuit protection: yes, with 20A fusible input
• Backload protection: yes, no diode required
• Reverse polarity protection: no (external diode can be added)

Additional Features

• Operating frequency: 150KHz
• Operating temperature: -40°C to +85°C
• Module dimensions: 116 × 52 × 15 mm
• Weight: 300 g

This step-up boost module is ideal for: powering motors, charging batteries, DIY microcontroller projects, solar panels, and any application requiring adjustable voltage and high current.
