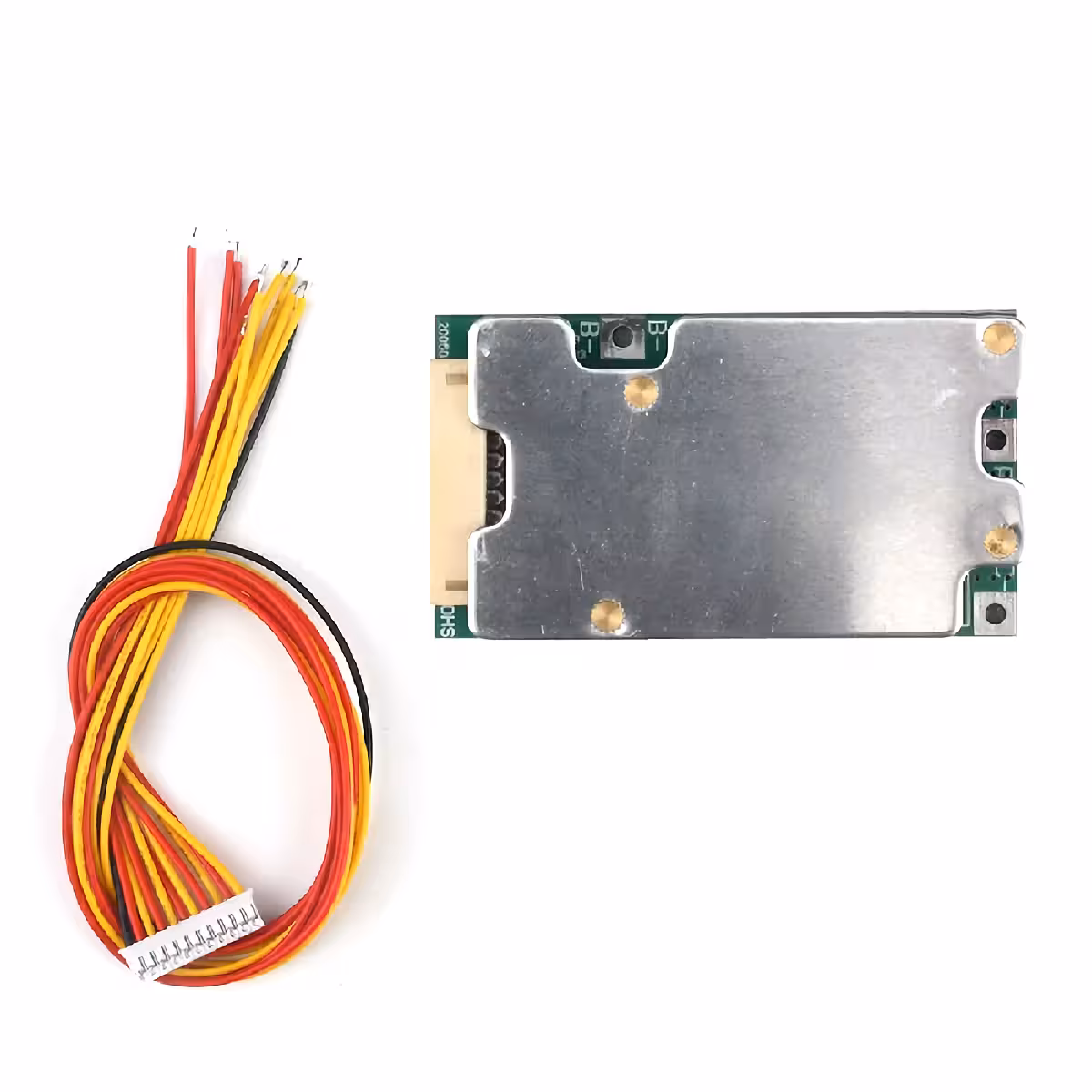

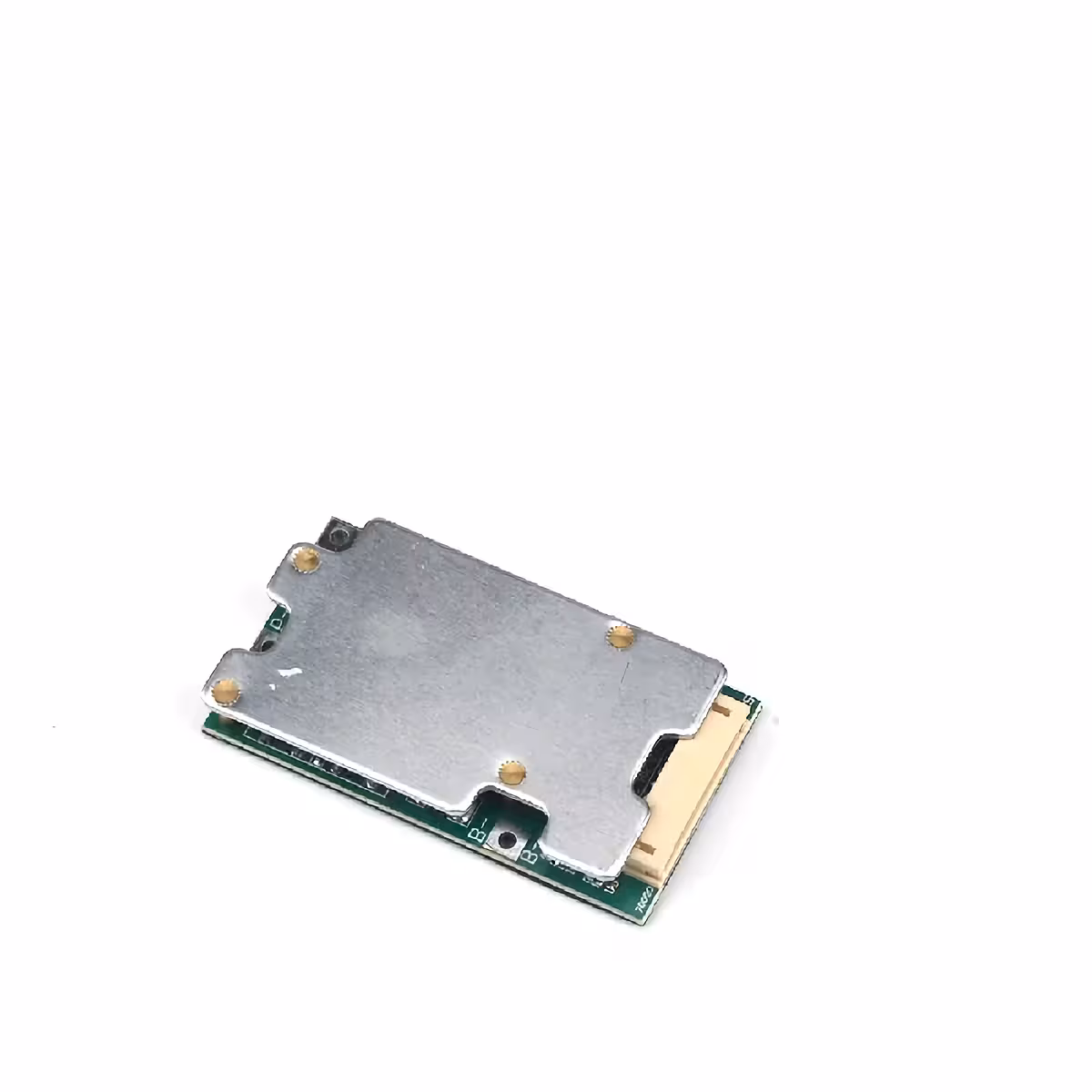

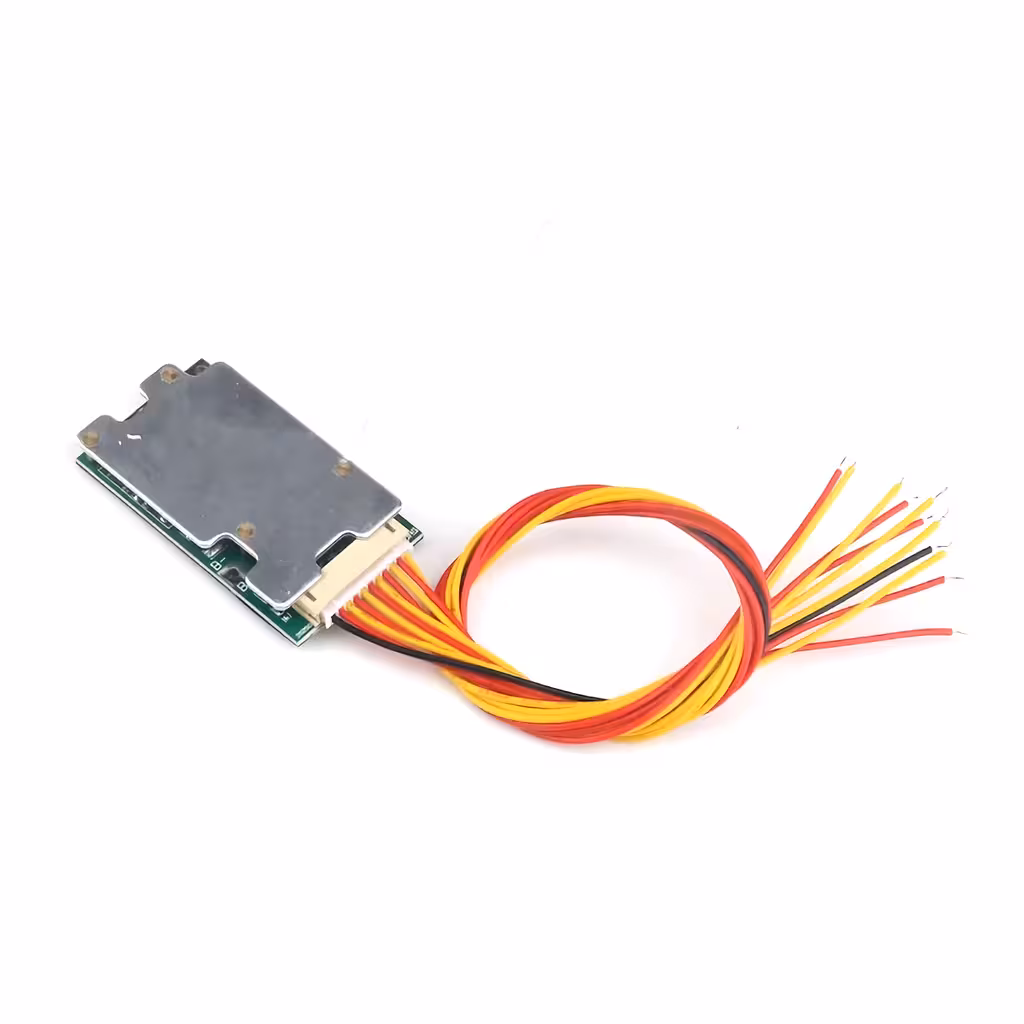

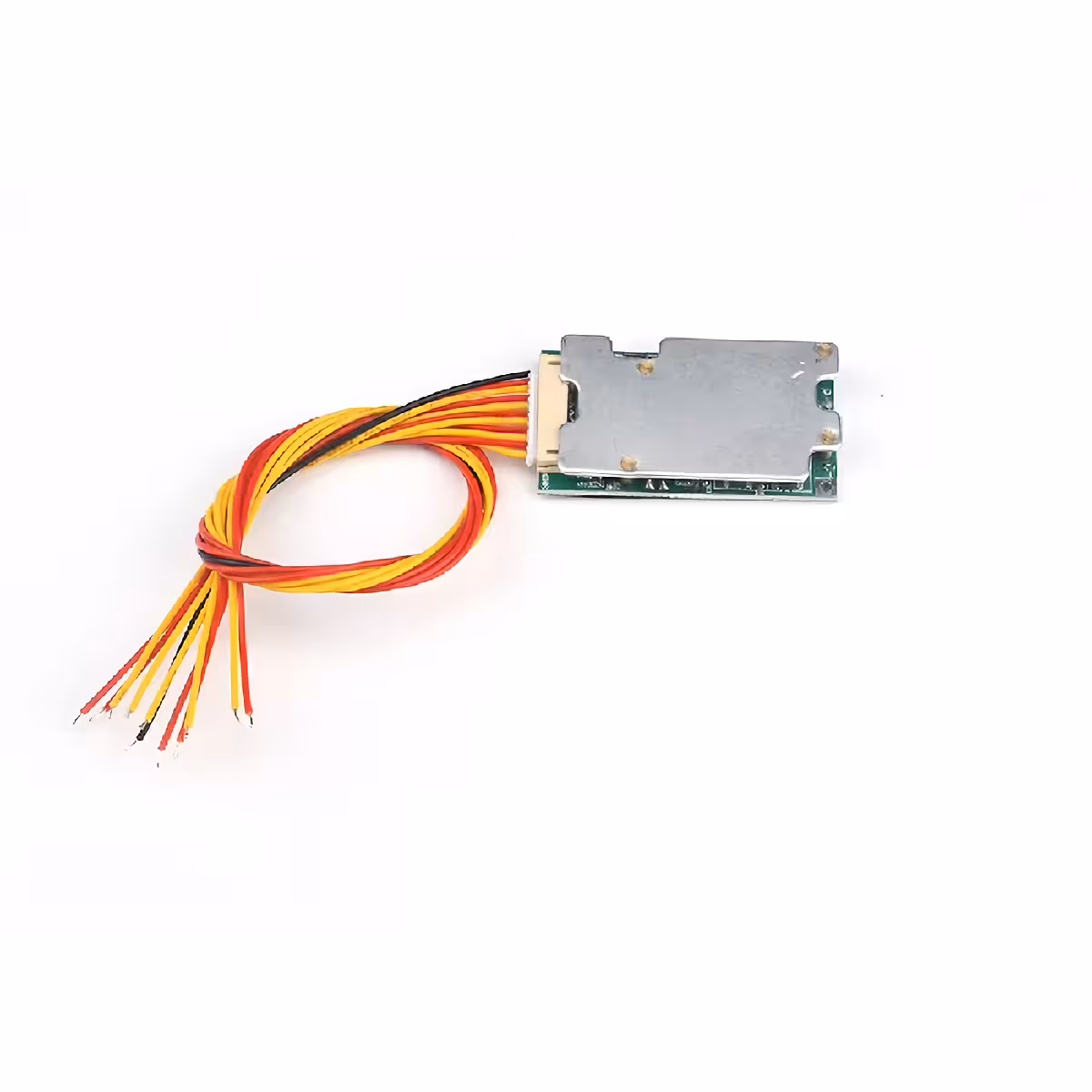

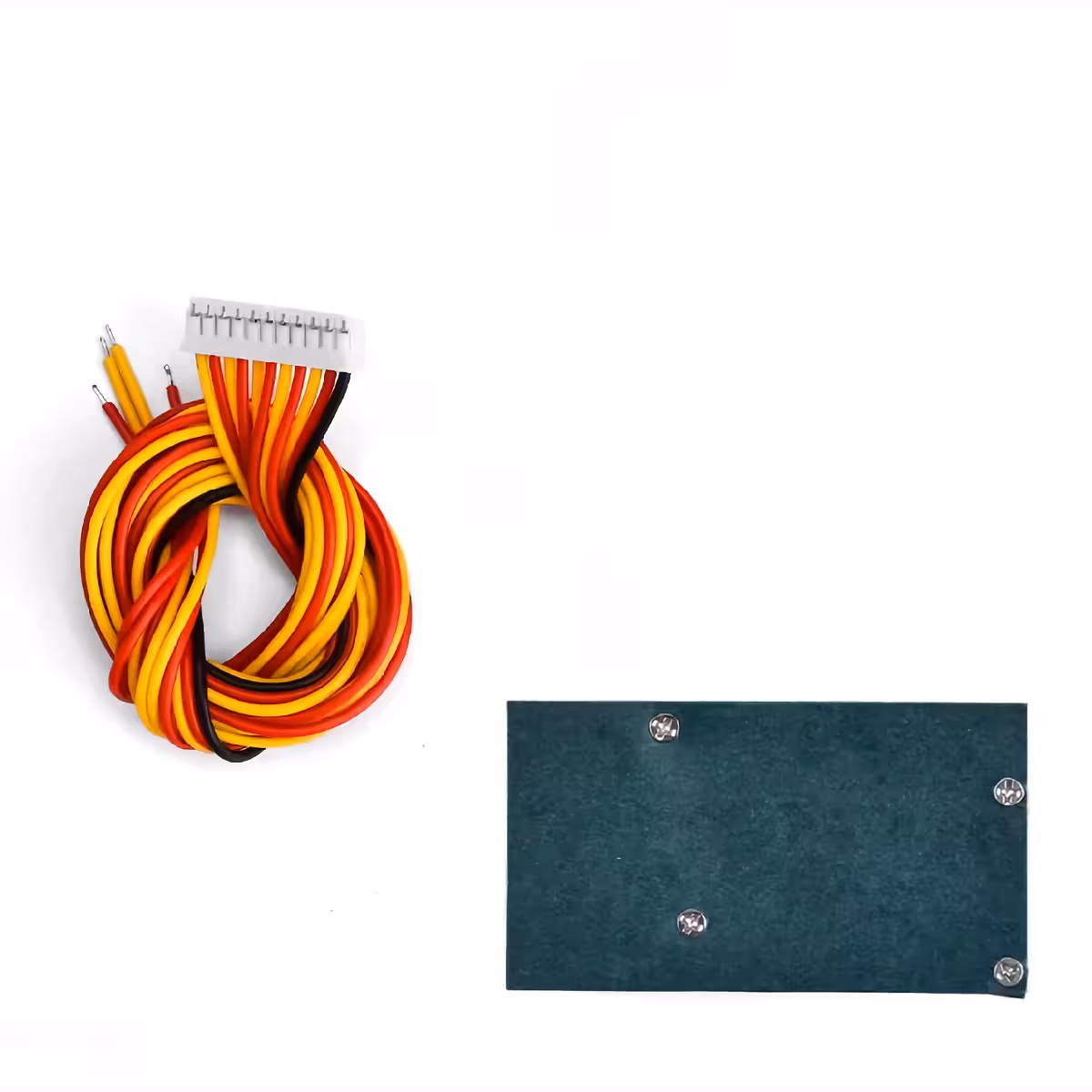

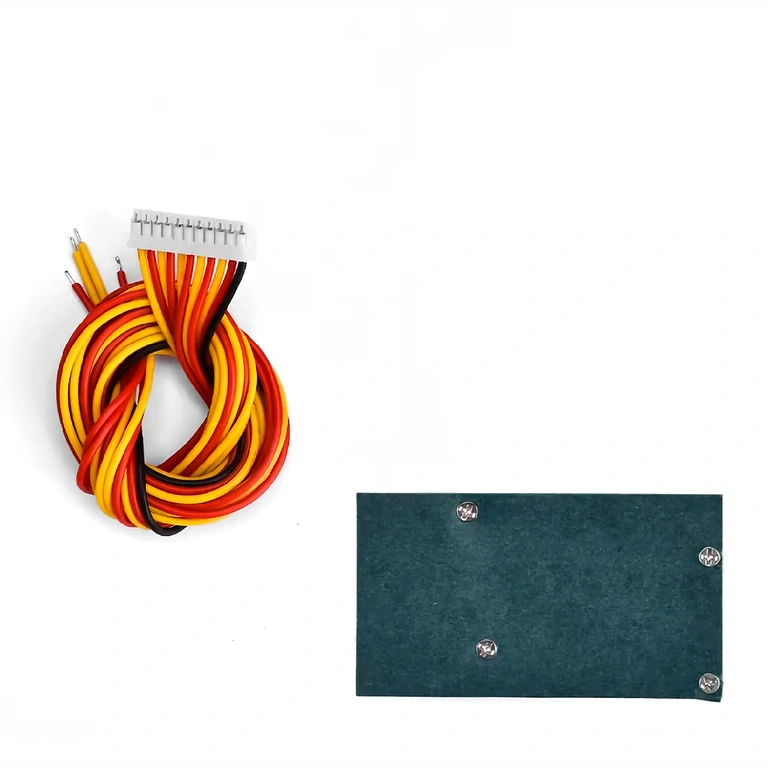

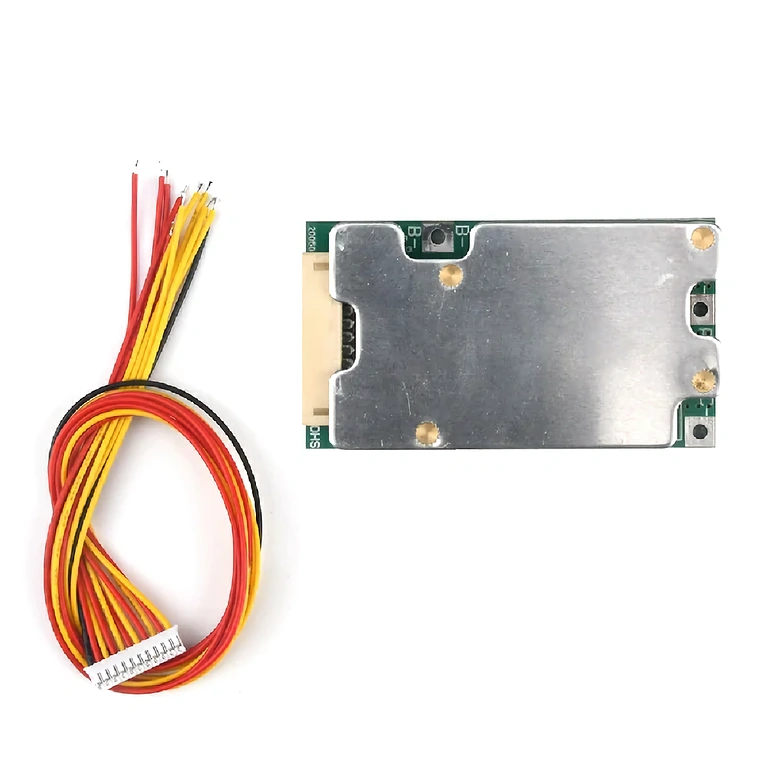

BMS 10S 36V 37V 42V 30A – Lithium-Ion Battery Protection Board
This BMS 10S 36V 37V 42V 30A module is designed to protect lithium-ion batteries against overcharging, overdischarging, and high current. It is ideal for electric vehicles, electric scooters, electric mopeds, and inverters. It provides a perfect balance of safety, performance, and compact dimensions.
Main Features
- Overcharge Protection – prevents battery damage during charging.
- Overdischarge Protection – extends battery life.
- High Current Protection – safeguards the system during intensive use.
- Compact Size – ideal for integration in tight spaces.
- Easy to Use – simple and intuitive connection.
Technical Specifications
| Model | 10S 36V/30A – divided connection |
|---|---|
| Applicable Voltage | 36V, max 1000W |
| Battery Compatibility | 3.7V battery, ternary, cobalt oxide or manganese |
| Built-in Protections |
|
| Operating Current | max 40A |
| Continuous Current | 25A |
| Charging Current | 10A |
| Balanced Charging | Balance voltage: 4.2V |
| Applications | Electric scooters, mopeds, electric vehicles, inverters |

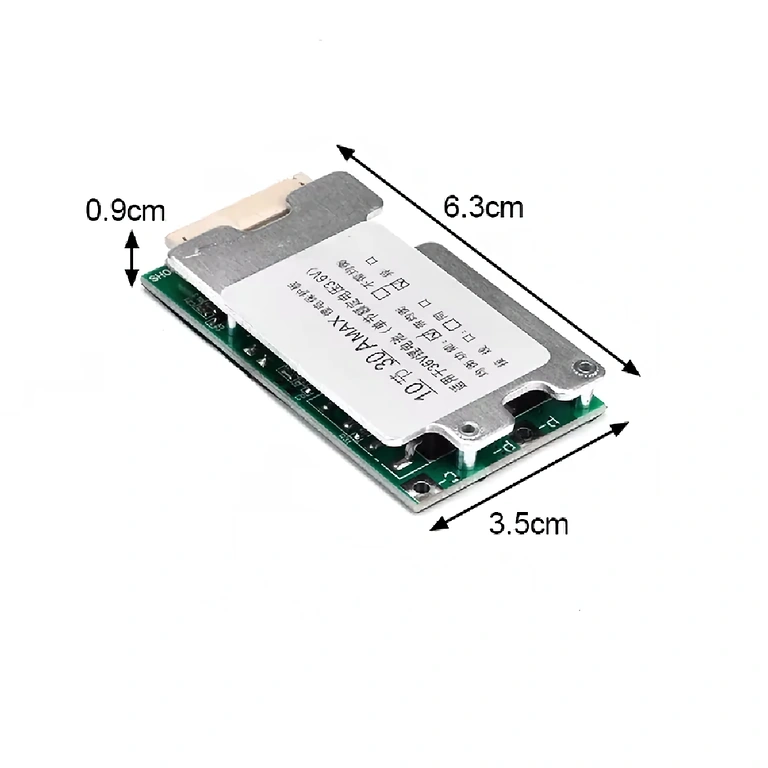

| Dimensions | 64 mm x 35 mm x 9 mm |
| Weight | 60 g |

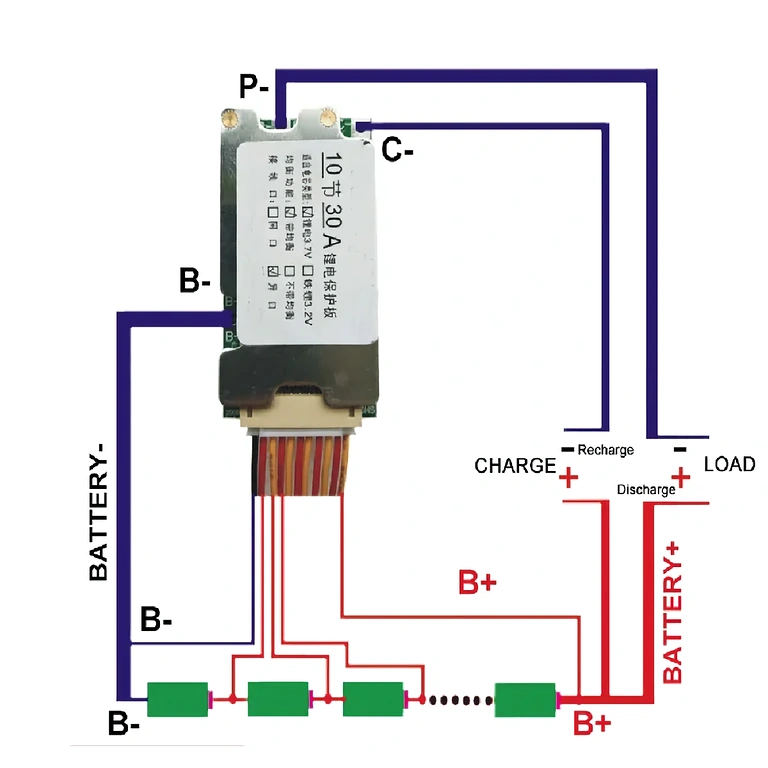

Connection Instructions
- Connecting the bus cable: each battery section must be connected in the correct order of electrical potentials.
- Soldering the B- terminal: securely connect B- to the battery negative terminal.
- Connecting the main cable: insert the plug into the protection board socket.
- Connecting B+ and C-: connect the positive and negative terminals of the charging interface, and properly insulate any remaining wires.
This protection module is essential for lithium-ion battery systems requiring safety and durability. Ideal for mobile electric applications, it provides maximum reliability and full protection.
