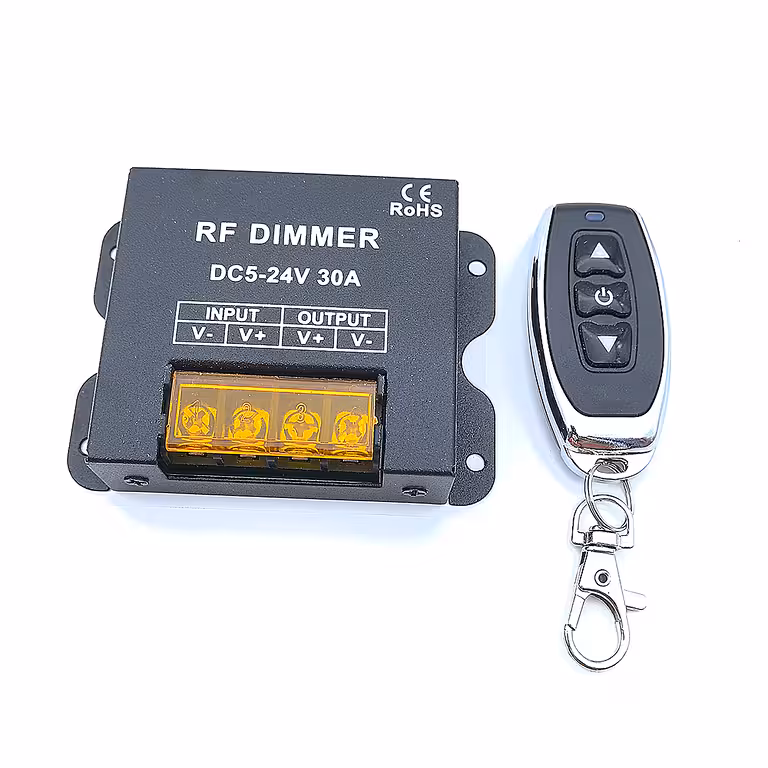

30A LED Dimmer with RF Remote – Total lighting control without compromise
Do you want to adjust your monochrome LED strip lighting without getting off the sofa? Or perhaps you are managing a more ambitious project—dozens of metres of LED strips in a showroom, office, or hallway—and need a controller that won’t buckle under the load? This 30A LED dimmer with RF remote gives you complete control: smooth, flicker-free dimming from 0 to 100% at a range of up to 50 metres.
Note: This product is designed exclusively for single-colour (monochrome) LED strips. It is not compatible with RGB, RGBW, or colour-changing LED strips.
Why choose this model? (Key advantages):
- Supports up to 720W — at 24V, you can connect extensive lighting installations without worrying about overloading the controller.
- Works with standard DC power supplies — compatible with 5V, 12V, and 24V inputs, so you don’t need to replace your existing equipment.
- RF remote works through walls — unlike infrared, the RF signal penetrates doors, furniture, and walls, reaching up to 50 metres.
- Flicker-free PWM dimming — transitions from 0 to 100% are smooth and continuous, eliminating the strobe effect that causes eye strain and reduces LED lifespan.
- Inrush current protection — the internal circuit absorbs power surges during the first few milliseconds, protecting your connected LED strips.
- 5-minute installation — features screw terminals; no soldering or special tools required. Simply connect your power supply and LED strip, and you’re ready to go.
Performance and Technical Details
Control is achieved via Pulse Width Modulation (PWM) on a single constant voltage channel—the gold standard for achieving the smoothest brightness variation for LED strips. The durable ABS casing provides electrical insulation and effective heat dissipation in temperatures ranging from -20°C to +60°C, making it suitable for sheltered semi-outdoor installations as well as indoor use.
The compact 60 × 30 × 12 mm remote features 3 dedicated buttons: power on/off, brightness increase, and brightness decrease. The RF frequency eliminates interference with Wi-Fi or Bluetooth networks, a common issue with cheaper controllers using unstable signals.
Compatible with SMD 5050, SMD 3528, SMD 2835, and any other constant voltage monochrome LED strip. We recommend using a power supply rated at least 20% higher than the total power consumption of your connected strips.
| Parameter | Value / Detail |
|---|---|
| Input Voltage | DC 5V / 12V / 24V |
| Output Channel | 1CH (constant voltage PWM) |
| Maximum Current | 30A |
| Max Power at 12V | ≤ 360W |
| Max Power at 24V | ≤ 720W |
| Control Method | Wireless RF remote, 3 buttons |
| Remote Range | ~50 metres |
| Controller Dimensions | 85 × 61 × 22 mm |
| Remote Dimensions | 60 × 30 × 12 mm |
| Operating Temperature | -20°C ~ +60°C |
| Casing Colour | Black |
| Total Weight | ~126g |
Programming and Usage Instructions
- Connect the power supply to the input terminals of the controller, ensuring correct polarity (+ and -).
- Connect the LED strip to the output terminals, verifying the strip’s polarity before applying power.
- Pairing the remote: Press and hold the power button on the remote for 3 seconds; the indicator LED on the controller will flash once to confirm pairing.
- Adjust brightness using the (+) button to increase and (-) to decrease in progressive steps.
- Power On/Off: The central button on the remote toggles the LED strip state.
- If pairing is lost, disconnect and reconnect the power supply, then repeat step 3.
Package Contents
- 1 × DC 5V–24V 30A Dimmer Controller with protective casing
- 1 × 3-button wireless RF remote
Frequently Asked Questions
Does it work with RGB or RGBW LED strips?
No. This controller manages a single channel and works exclusively with monochrome strips. For RGB or RGBW, you require a dedicated 3 or 4-channel controller.
Can I connect multiple strips in parallel?
Yes, provided the total current does not exceed 30A and the power remains within the 360W (at 12V) or 720W (at 24V) limits.
Does the remote work through walls?
Yes. RF technology does not require line-of-sight, unlike infrared. It functions through walls, doors, and furniture up to approximately 50 metres.
Is the power supply included?
No. You will need a separate DC power supply (5V, 12V, or 24V) rated at least 20% higher than the total consumption of the strips you are connecting.
Can it be installed outdoors?
The controller is not IP-rated for moisture. Please install it in a sheltered area protected from direct rain, precipitation, and condensation.
