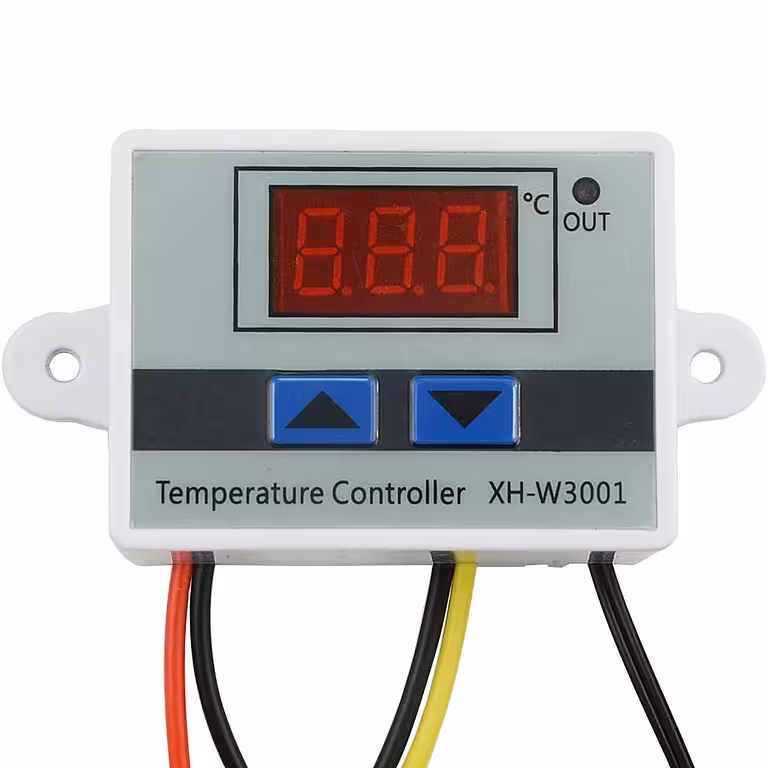

XH-W3001 Digital Thermostat – Precision ±0.1°C Temperature Control for Incubators, Greenhouses, and Brooders
When temperature fluctuations of even a few tenths of a degree can mean the difference between a successful hatch, healthy plants, or the safety of young animals, you need absolute reliability. The XH-W3001 digital thermostat is engineered for applications where precision is non-negotiable. Featuring a real-world accuracy of ±0.1°C, a waterproof sensor, and an operating range of -50°C to 110°C, this compact module delivers professional-grade control in a palm-sized package.
Note: Power the controller via the left-hand wires (red = live, black = neutral) and connect your controlled device via the middle wires (yellow and black). Always verify your connections before connecting to the mains.
Why choose this model? (Key Advantages):
- ±0.1°C Precision — Highly sensitive control, perfect for incubators and nurseries where a 0.5°C variance can be critical.
- -50°C to 110°C Range — A versatile device suitable for both cooling (DIY fridges, cellars) and heating (greenhouses, brooders) without needing extra hardware.
- Waterproof NTC10K Sensor (1m cable) — Can be placed directly into incubator water trays or damp greenhouse soil without requiring additional protection.
- 10A / 1500W Internal Relay — Easily handles most heating lamps, fans, and electrical heating elements used in agricultural and horticultural setups.
- Adjustable Hysteresis — Prevents rapid cycling of your equipment, reducing wear and tear while improving energy efficiency.
- Configurable Heating & Cooling Modes — Switch between functions in seconds via the settings menu—no tools required.
- Compact Design (60 × 45 × 32 mm, 50g) — Fits seamlessly into custom control panels, project boxes, or incubator housings without taking up valuable space.
Performance and Technical Details
At the heart of the XH-W3001 is a dedicated microprocessor that reads the NTC10K sensor signal and triggers the internal relay in real-time with no perceptible lag. The dual LED display shows both the current temperature and your setpoint simultaneously, so you always know your settings are active. The adjustable hysteresis is what sets this apart from basic thermostats: you define exactly how much the temperature can fluctuate before the relay engages, protecting your equipment from short, destructive power cycles.
| Parameter | Value / Detail |
|---|---|
| Model | XH-W3001 |
| Product Type | Digital Electronic Thermostat |
| Power Supply | 220V AC |
| Max Current | 10A |
| Max Power Load | 1500W |
| Temperature Range | -50°C – 110°C |
| Measurement Accuracy | ±0.1°C |
| Sensor Type | NTC10K, waterproof, 1m cable |
| Operating Modes | Heating / Cooling (Configurable) |
| Applications | Incubator, brooder, greenhouse, nursery, boiler, convector, air conditioning, radiant panels |
| Compatibility | Universal (220V AC) |
| Housing Material | ABS Plastic |
| Colour | White |
| Dimensions | 60 × 45 × 32 mm |
| Weight | 50 g |
Programming and Usage Instructions
- Connect the power supply wires (red = live, black = neutral) to the 220V AC mains using the left-hand terminals.
- Connect your controlled device (heating lamp, fan, etc.) to the middle output terminals (yellow and black).
- To set the start temperature: Press and hold the left button (up arrow) until the display flashes, then adjust the value using the arrow buttons.
- To set the stop temperature: Press and hold the right button (down arrow) until the display flashes, then adjust the value using the arrow buttons.
- Heating Mode: The start temperature must be lower than the stop temperature.
- Cooling Mode: The start temperature must be higher than the stop temperature.
- Settings are saved automatically after a few seconds of inactivity—no further confirmation is required.
Package Contents
- 1 × XH-W3001 Digital Thermostat (220V, 10A)
- 1 × Waterproof NTC10K Temperature Sensor (1m cable)
Frequently Asked Questions
Is the XH-W3001 suitable for a DIY egg incubator?
Yes—it is one of the most popular choices for DIY incubators. Its ±0.1°C precision and waterproof sensor make it ideal for maintaining the critical 37–38°C range required for successful hatching.
Can it control cooling as well as heating?
Yes. You can switch modes in the settings in seconds. In cooling mode, the relay activates when the temperature exceeds your setpoint—perfect for fans, fridges, or water coolers.
What happens if I connect a device exceeding 1500W?
The internal relay is rated for a maximum of 10A / 1500W. If your load exceeds this, you must use an external contactor or relay controlled by the XH-W3001 to prevent damage to the controller or a short circuit.
Is the sensor safe for wet environments?
Yes, the included NTC10K sensor is waterproof. You can submerge it in incubator water, place it in damp soil, or use it in high-humidity greenhouse air without affecting its accuracy or lifespan.
Do I need an electrician for installation?
Installation involves connecting to 220V AC mains. If you are familiar with basic electrical wiring, the provided diagram is straightforward. If you are not confident, we strongly recommend consulting a qualified electrician for your safety.
