Self-Adjusting Ferrule Crimping Tool – Professional Square Crimp for Electrical Panels
When you’re working on an electrical panel, a single poorly crimped connection can undo hours of hard work. Standard crimping tools leave too much room for human error—too little pressure and the ferrule slips, too much and you damage the conductor. With this professional crimping set, every cycle finishes exactly when it should: a clean click, a perfect crimp, and zero compromises.
Note: The included terminal pins are insulated tubular ferrules, designed exclusively for stranded electrical conductors. Please verify your conductor cross-section before crimping.
Why choose this model? (Key Benefits):
- Ratchet with automatic release — prevents incomplete or over-crimping; the tool only releases once the optimal pressure is reached, regardless of the ferrule size.
- 4-mandrel square crimp — the preferred standard for industrial panels, providing uniform pressure distribution and superior mechanical strength compared to traditional hexagonal crimping.
- 1200 terminal pins in 8 sizes — ranging from 0.5 mm² to 10 mm², providing everything you need for a full residential or commercial panel installation without needing extra supplies.
- Heat-treated steel jaws — built for intensive, repetitive use without premature wear, even in demanding site conditions.
- Ergonomic non-slip handle — the lightweight design and textured grip reduce hand fatigue during long, repetitive crimping sessions.
- Integrated locking clip — keeps the tool securely closed during transport, preventing accidental opening in your tool bag.
Performance and Specifications

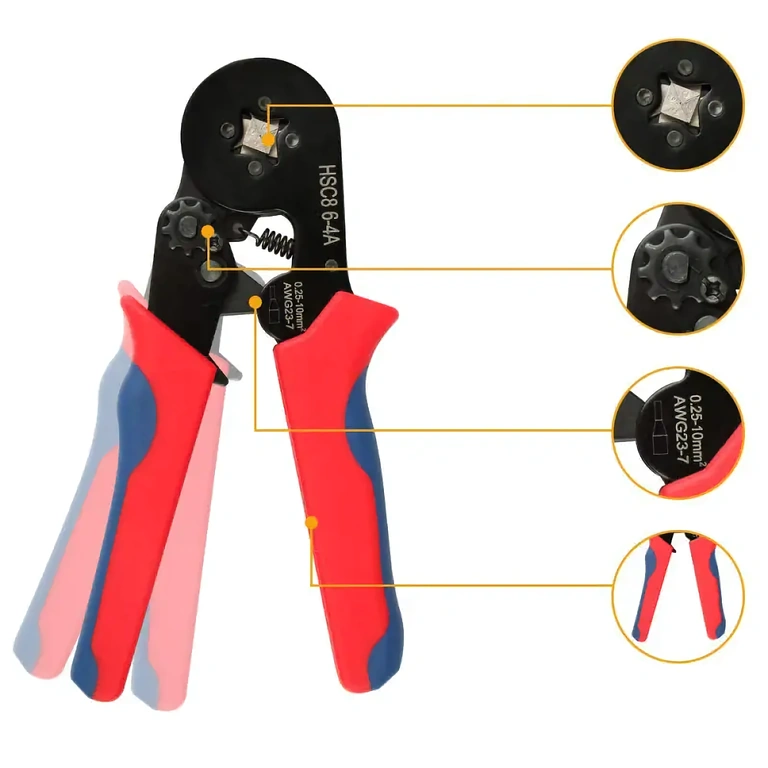

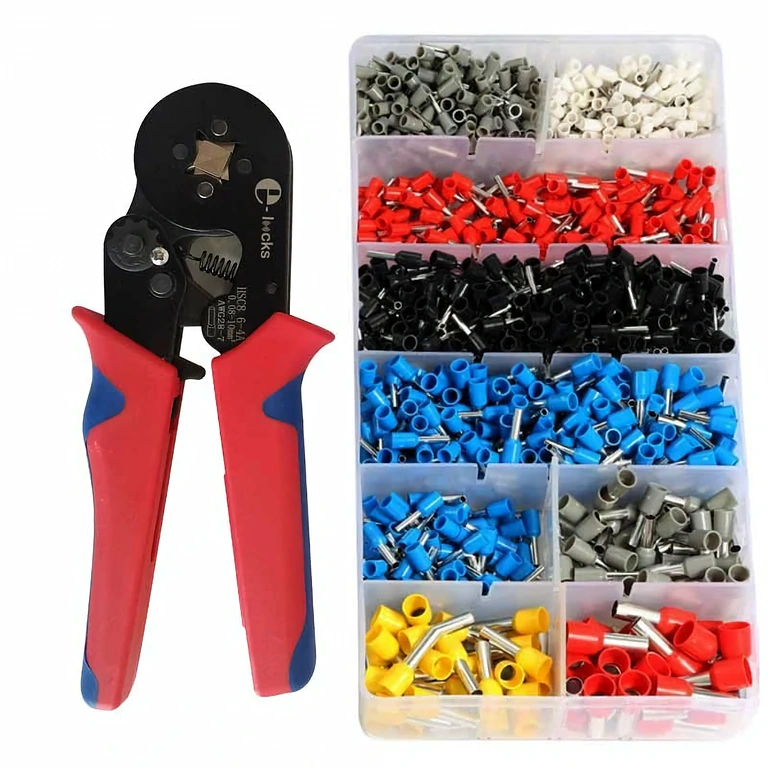

At the heart of this tool is the self-adjusting ratchet and lever mechanism, which automatically calibrates to the size of the inserted ferrule without any manual adjustments. The four-mandrel crimping system creates a uniform square profile, which is highly favoured in industrial installations and automation panels because it eliminates uncompressed contact zones. The heat-treated steel jaws ensure geometric precision, even after thousands of cycles.
| Parameter | Detail |
|---|---|
| Crimping Type | Square – 4-mandrel |
| Mechanism | Self-adjusting ratchet with auto-release |
| Crimping Range | 0.5 – 10 mm² |
| Terminal Compatibility | Insulated tubular ferrules for stranded conductors |
| Handle | Ergonomic, non-slip grip, lightweight |
| Storage Clip | Yes – secure locking |
| Included Terminals | 1200 pieces – 8 sizes: 0.5 / 0.75 / 1.0 / 1.5 / 2.5 / 4.0 / 6.0 / 10.0 mm² |
| Jaw Material | Heat-treated steel |
How to Use
- Wire Preparation: Strip the stranded conductor to the appropriate length to match your chosen ferrule.
- Insert Ferrule: Insert the stripped conductor fully into the appropriately sized tubular terminal pin.
- Positioning: Squeeze the handle to open the jaws and place the ferrule and conductor into the corresponding slot.
- Crimping: Squeeze the handles progressively. The ratchet mechanism will release automatically with an audible click once the optimal force is applied.
- Extraction: Open the jaws and remove the crimped ferrule. Visually inspect the connection to ensure it is uniform and secure.

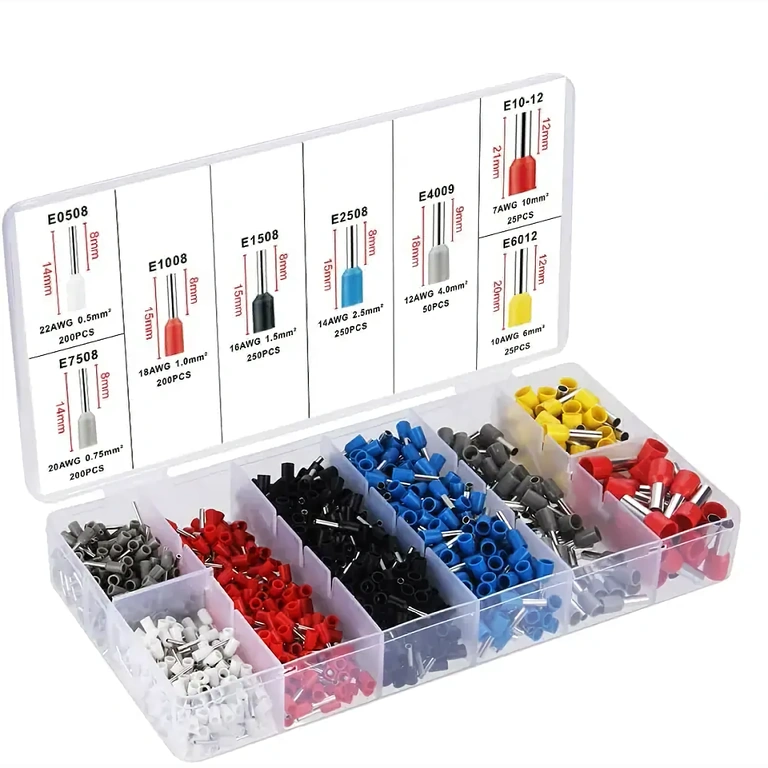

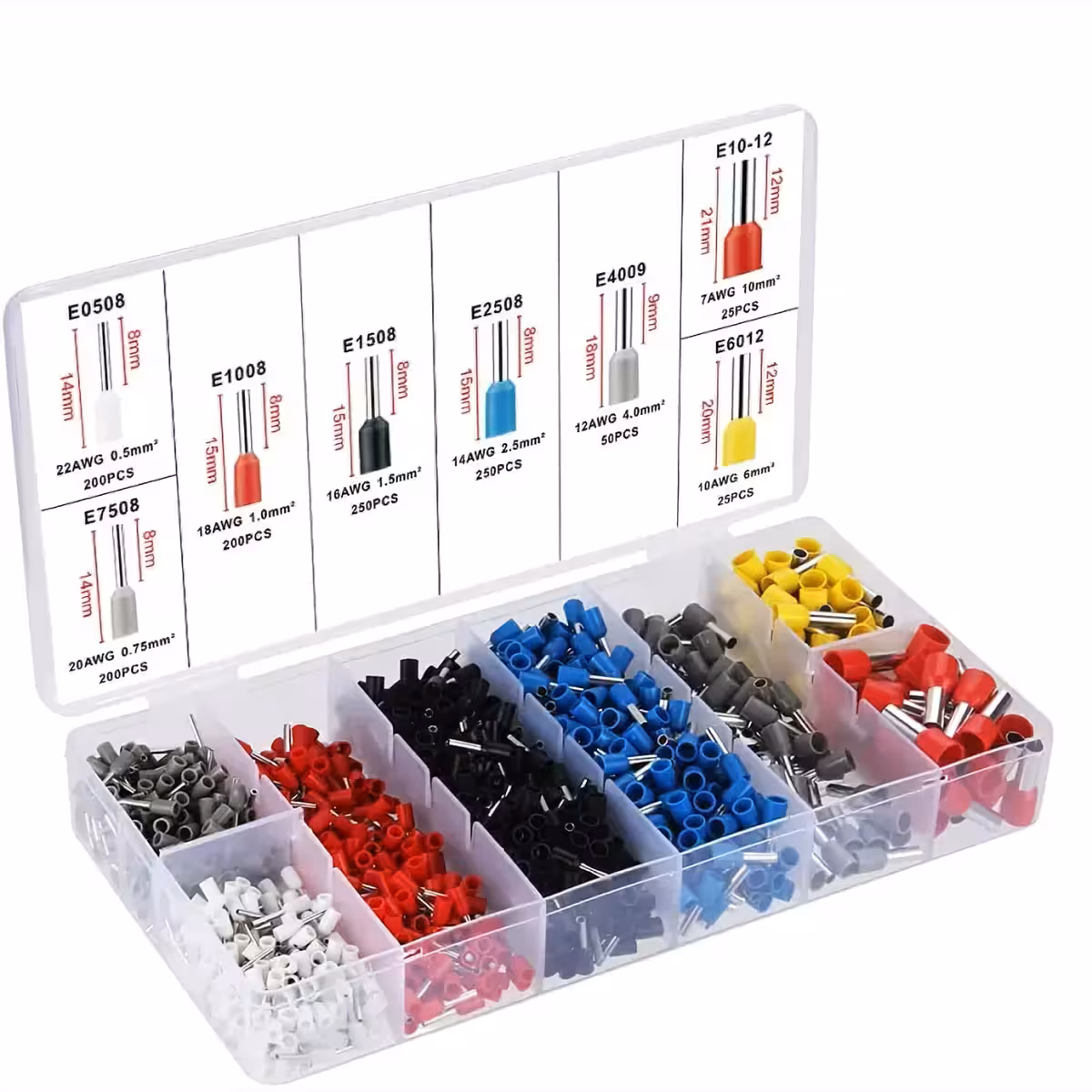

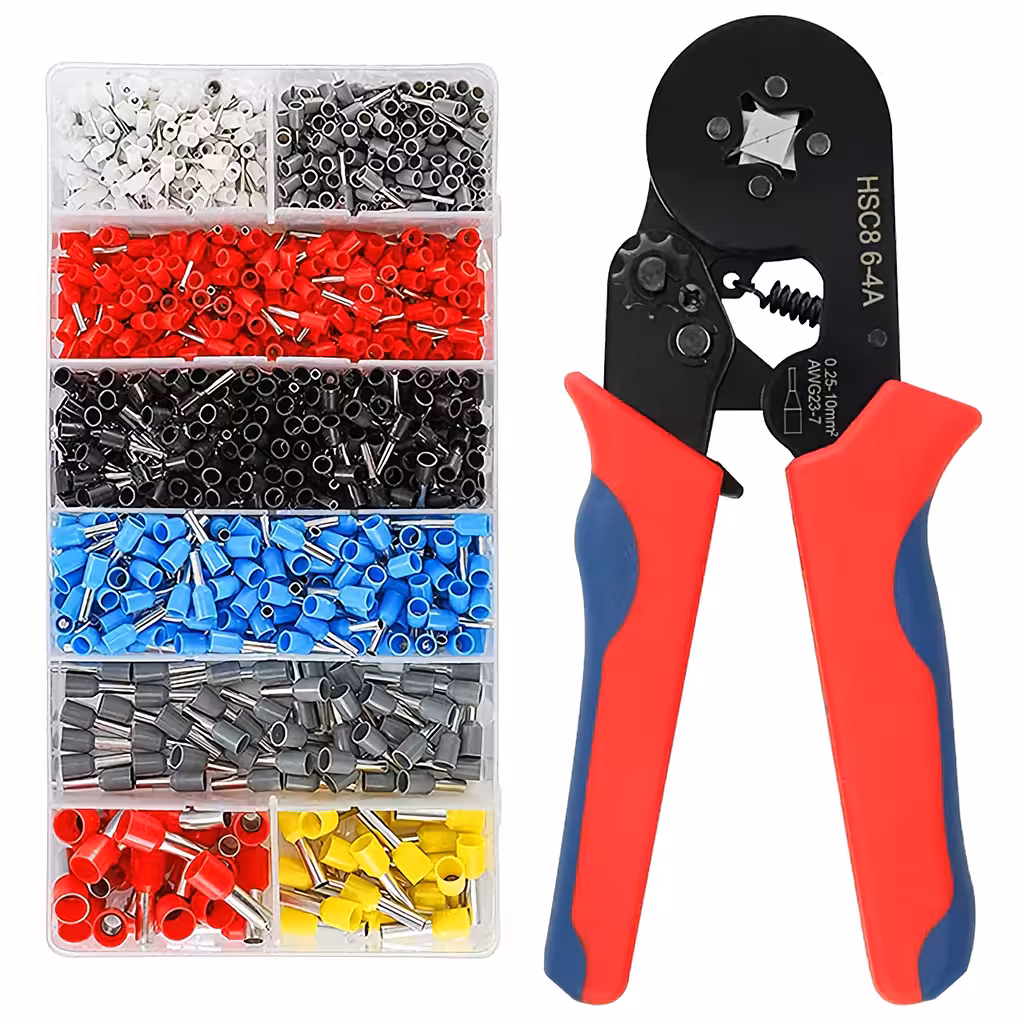

Package Contents
- 1x Professional self-adjusting ferrule crimping tool with ratchet mechanism
- 200x Insulated terminal pins 0.50 mm²
- 200x Insulated terminal pins 0.75 mm²
- 200x Insulated terminal pins 1.00 mm²
- 250x Insulated terminal pins 1.50 mm²
- 250x Insulated terminal pins 2.50 mm²
- 50x Insulated terminal pins 4.00 mm²
- 25x Insulated terminal pins 6.00 mm²
- 25x Insulated terminal pins 10.00 mm²
Frequently Asked Questions
Does the tool work with non-insulated copper ferrules?
Yes, it can be used with non-insulated ferrules, provided the cross-section is between 0.5 and 10 mm². Note that the included kit contains only insulated terminal pins.
What is the practical difference between square and hexagonal crimping?
The 4-mandrel system produces a square shape that distributes pressure evenly across the entire surface of the ferrule. This results in superior mechanical and electrical resistance compared to hexagonal crimping, which is why it is the preferred standard for industrial and automation panels.
Can I crimp solid (single-core) conductors with this tool?
This is not recommended. Both the tool and the included pins are designed specifically for stranded (multi-strand) conductors. Using them on solid conductors may damage the wire or result in an insecure connection.
How do I know when the crimp is finished?
The ratchet mechanism provides a clear audible and tactile click once the required force is reached. The tool cannot be opened before this point, making an incomplete crimp physically impossible.
Is this set suitable for both residential and industrial applications?
Yes. The 0.5–10 mm² range covers control cables, automation, and light power circuits. The square crimp standard makes it ideal for industrial panels as well as residential installations.
