12V/24V ON/OFF Switch – Control your circuits without drilling or professional help
Looking to add a switch to your dashboard, motorcycle frame, or technical cabinet without the hassle of drilling holes? This compact ON/OFF rocker switch is the perfect solution: it mounts in seconds using adhesive and is designed to control low-voltage DC circuits or small household AC appliances. It comes with pre-wired cables and adhesive backing, ready to use straight out of the box.
Note: Maximum continuous current varies by voltage — 7A at 12V, 5A at 24V, and 3A at 36V. The 10A peak rating is intended for short-duration startup intervals only.
Why choose this model? (Key Advantages):

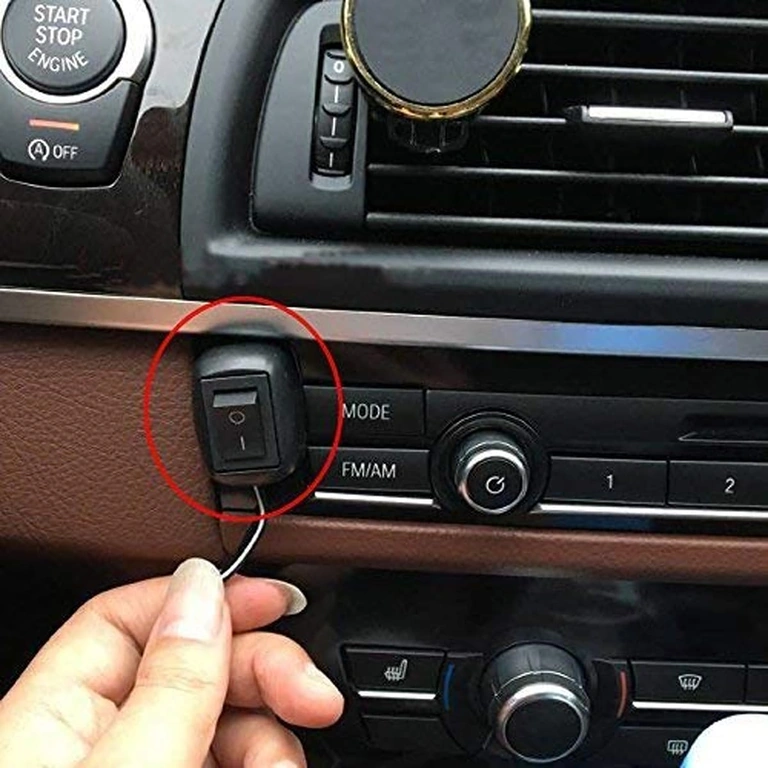

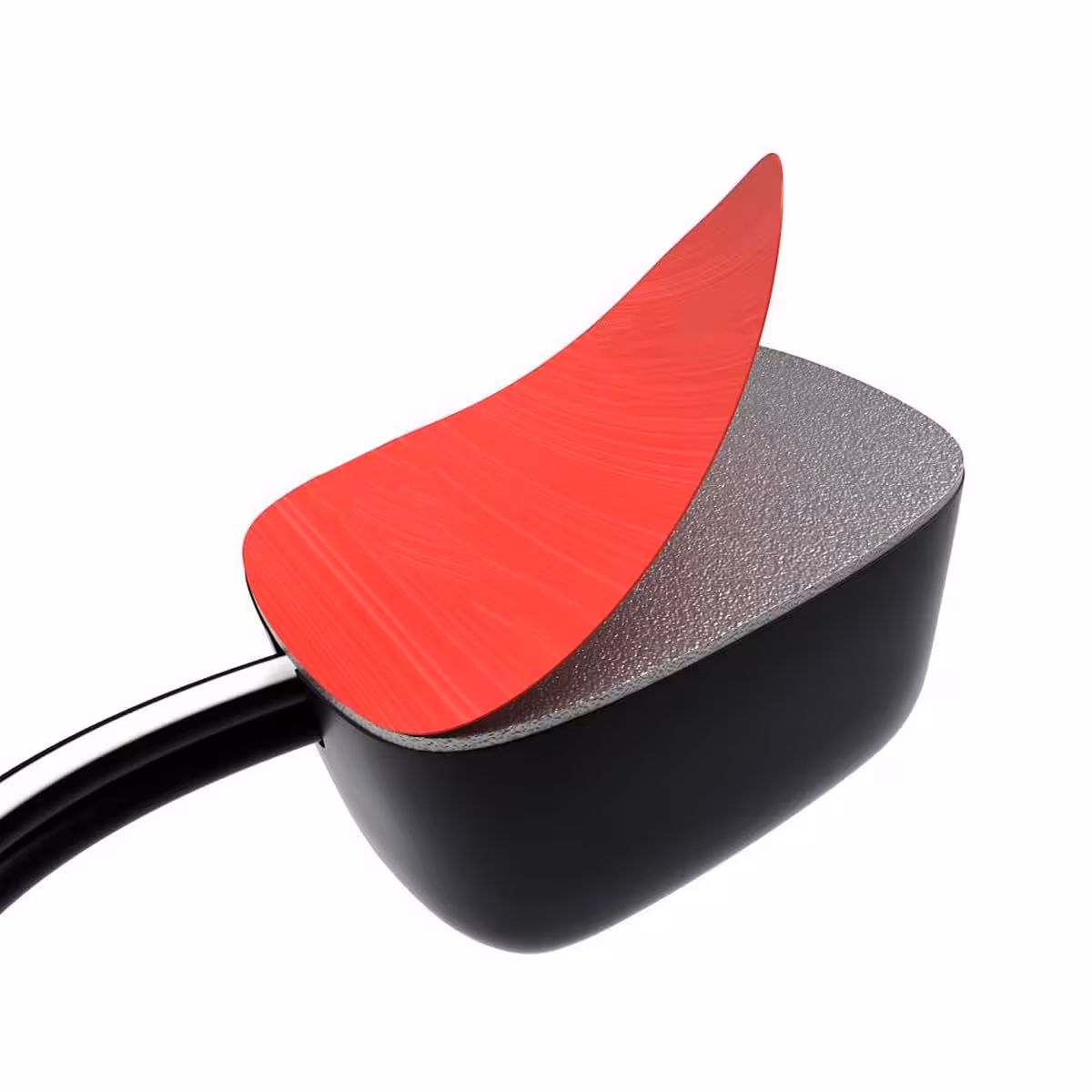

- No-drill installation — The pre-applied double-sided adhesive tape secures the switch firmly to plastic, metal, or acrylic surfaces in under 10 seconds.

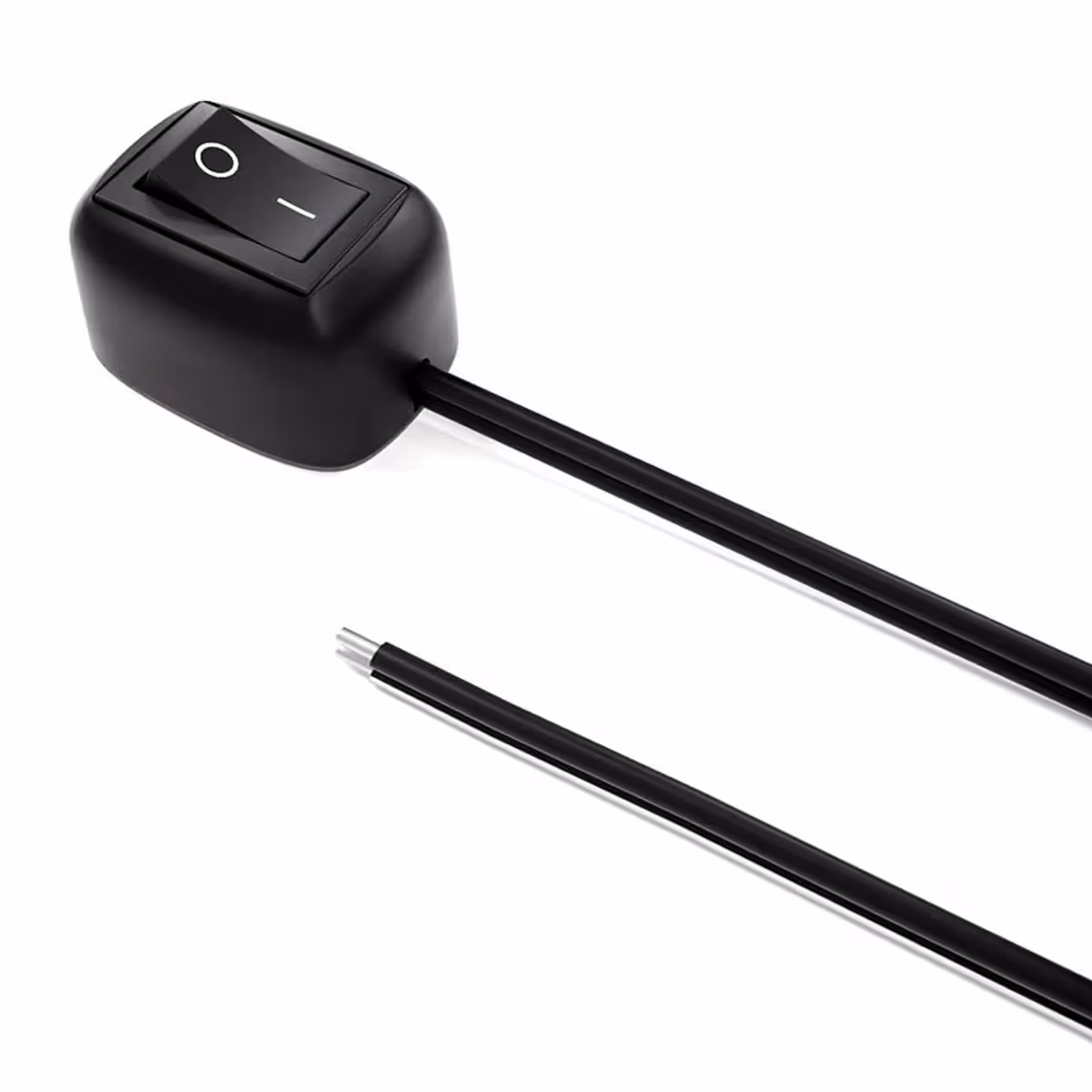

- Versatile DC and AC compatibility — Suitable for 12V/24V automotive, motorcycle, LED, and marine applications, as well as 250V AC / 6A for small household appliances.

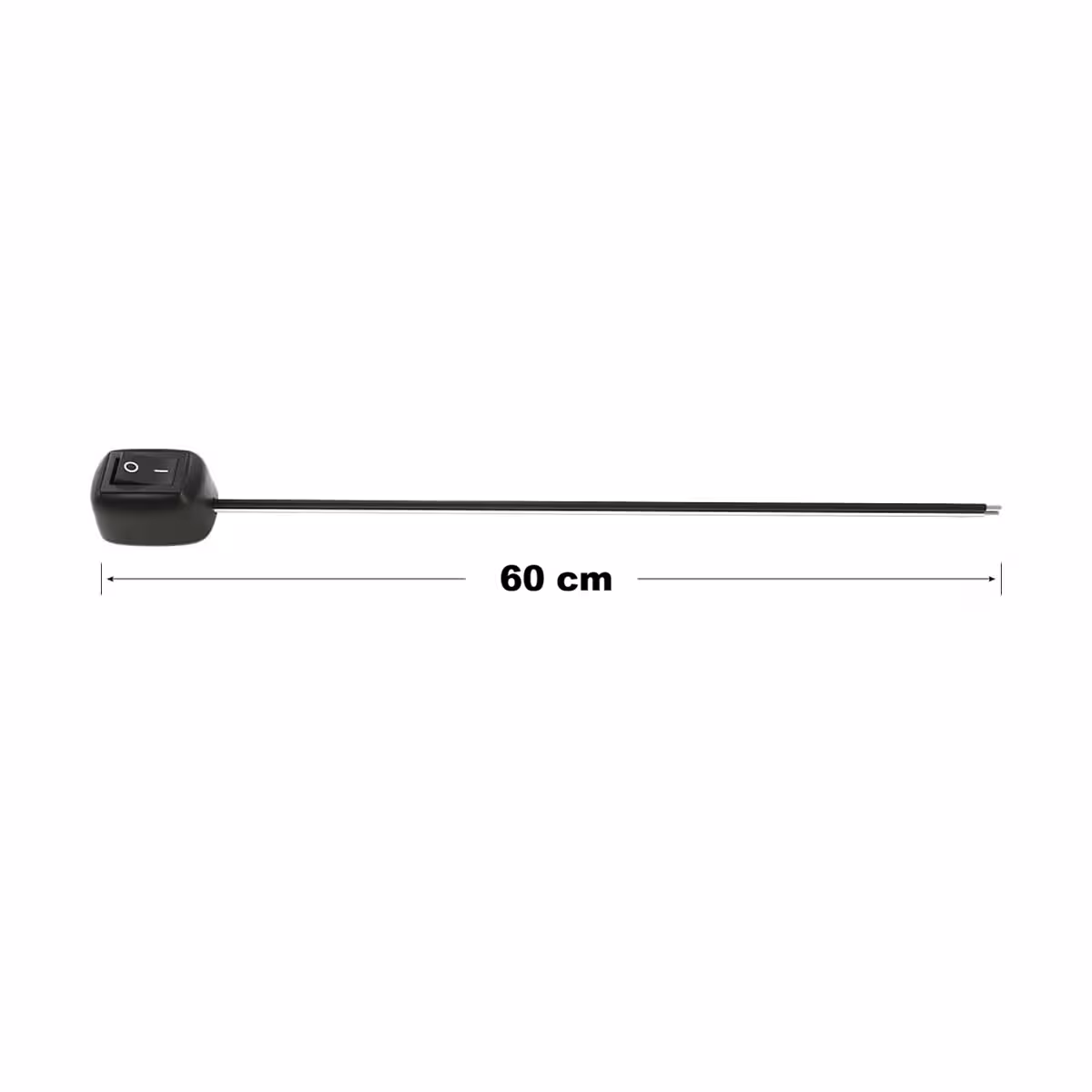

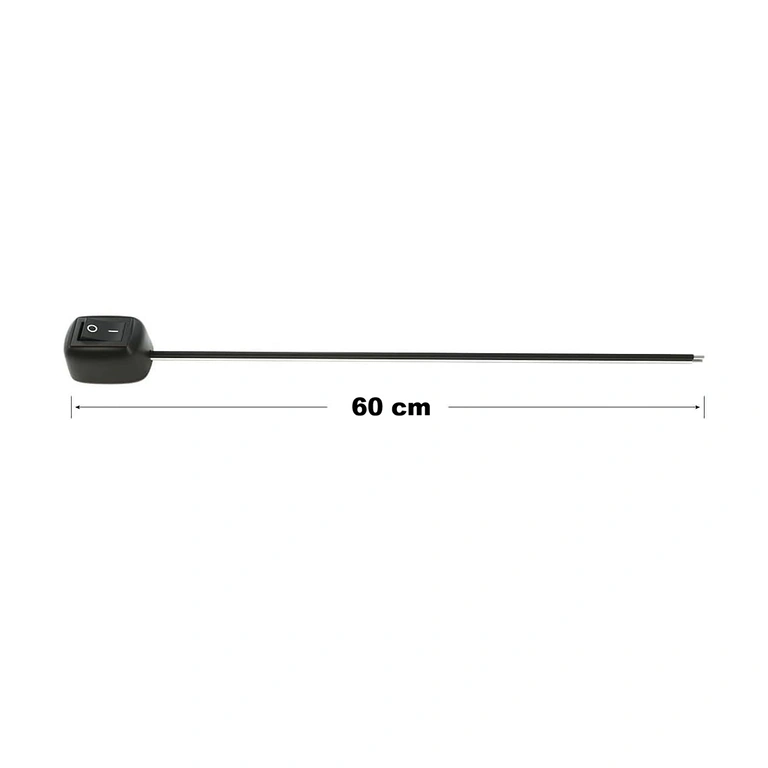

- 60cm AWG18 cable included — Features the correct gauge for 10A peak loads, providing ample length for standard motorcycle or automotive cabin routing.
- Compact 31×24×20 mm housing — Smaller than an AA battery, allowing for discreet integration even in tight spaces.
- Short-throw rocker mechanism — Provides a crisp, tactile click with every press, ensuring clear ON/OFF status even after hundreds of uses.
Performance and Specifications

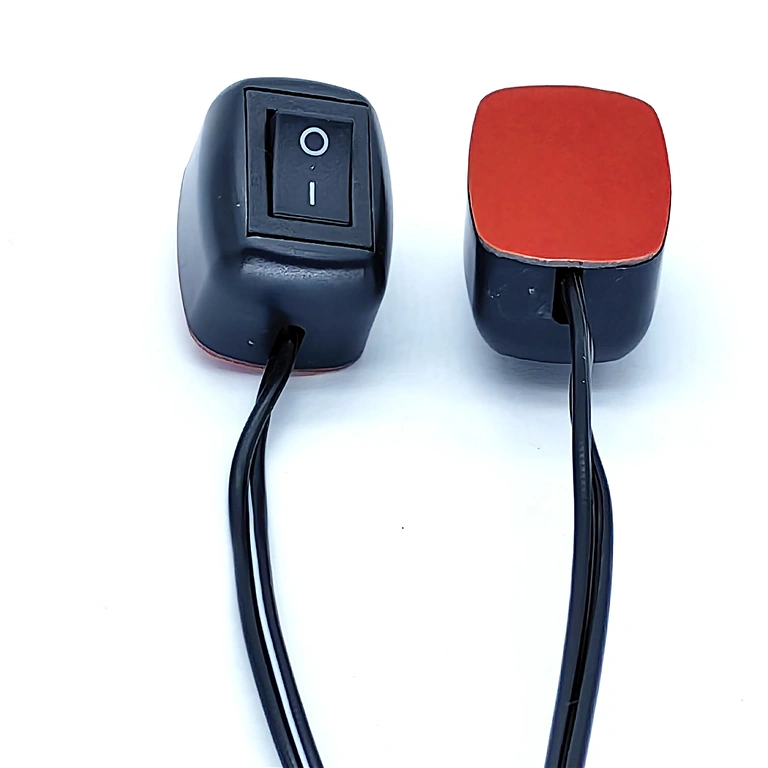

The rocker-style mechanism ensures a stable contact and precise tactile feedback, so you always know whether the circuit is open or closed. The black ABS housing is built to withstand the mechanical wear typical of automotive interiors or semi-exposed electrical installations.
The flexible AWG18 wire supports currents up to 10A during startup, with insulation that bends easily around curves without cracking. The included double-sided tape adheres firmly to smooth surfaces; for environments with extreme temperatures (such as near an engine or in direct sunlight), we recommend supplementing with 3M VHB tape.
Directly compatible with: 12V/24V LED strips, auxiliary automotive headlights and spotlights, motorcycle accessories, 12V fans, USB car chargers, navigation systems, and low-power household AC appliances.
| Parameter | Value / Detail |
|---|---|
| DC Rated Voltage | 12V – 24V (max. 36V) |
| DC Rated Current | 7A / 12V · 5A / 24V · 3A / 36V |
| DC Peak Current | 10A (short duration, at startup) |
| AC Rated Voltage | 250V AC |
| AC Rated Current | 6A |
| Switch Type | Rocker ON/OFF |

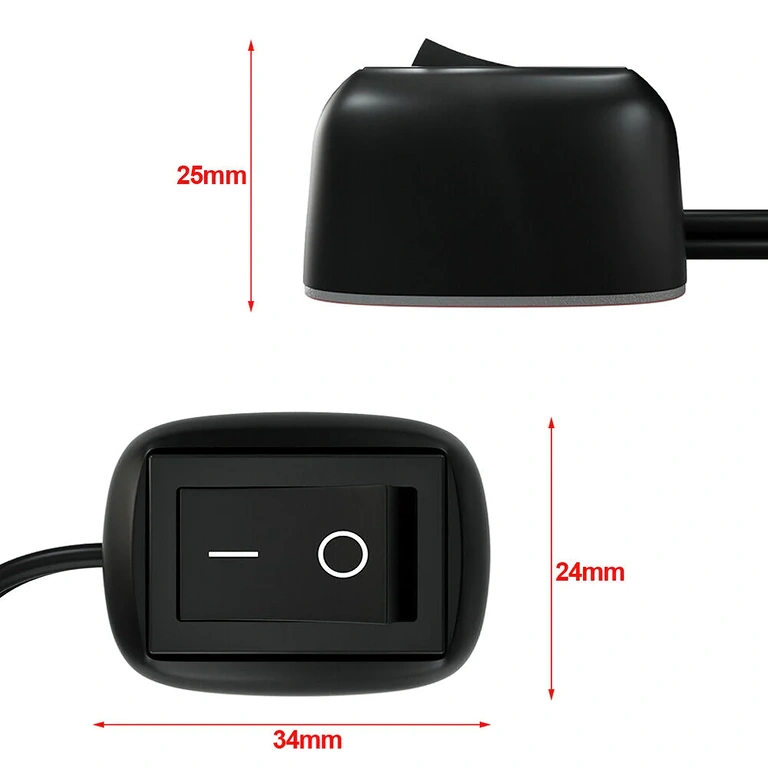

| Housing Dimensions | 31 × 24 × 20 mm |
| Cable Length | 60 cm (AWG18, flexible) |
| Mounting Type | Double-sided adhesive – no drilling |
| Colour | Black |
| Recommended Applications | Automotive, motorcycle, marine, LED, small household appliances |
Package Contents
- 1× Compact ON/OFF switch (31×24×20 mm)
- 1× Pre-wired AWG18 cable, 60 cm length

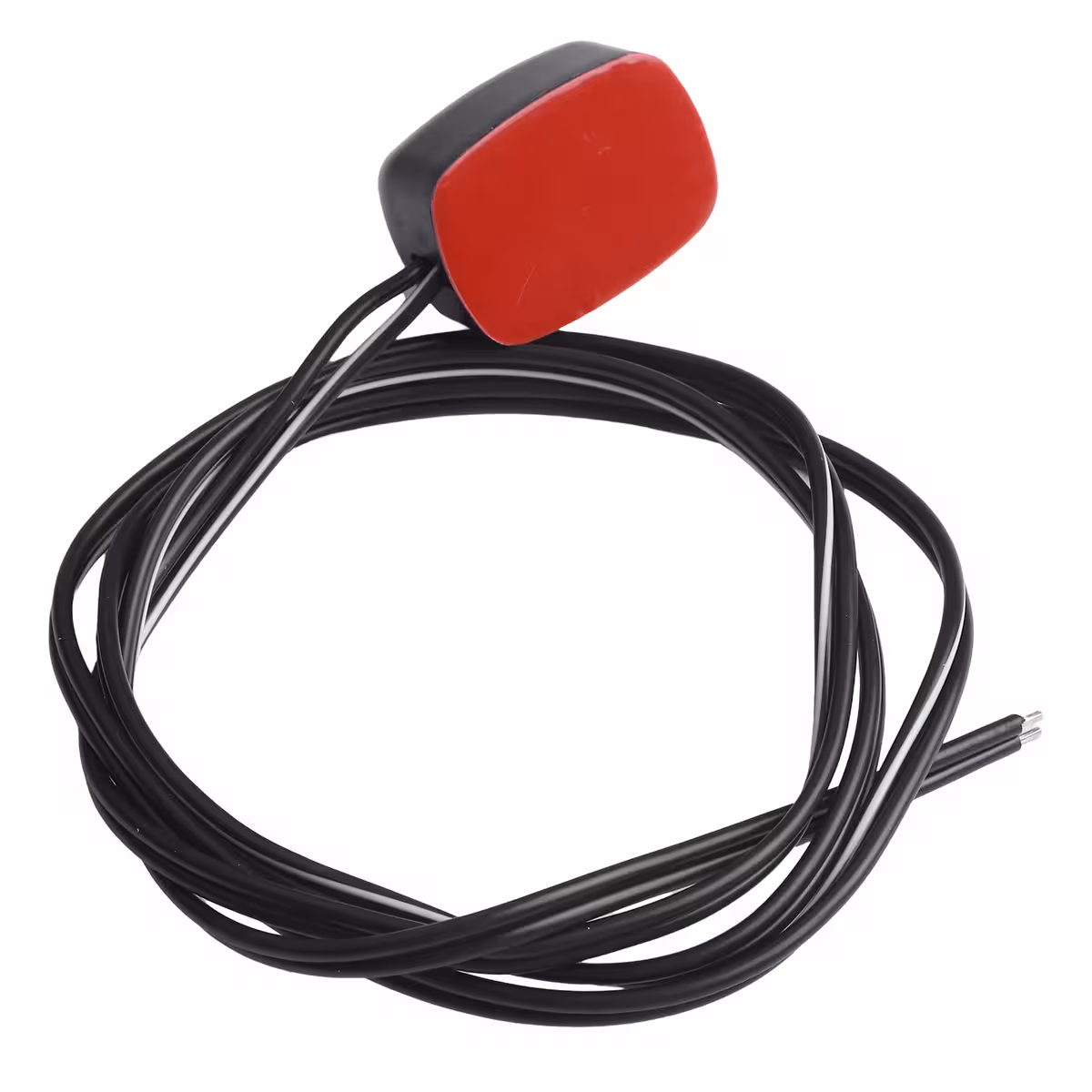

- 1× Double-sided adhesive tape (pre-applied)
Frequently Asked Questions
Can I use this switch for 12V LED strips powered directly from a car battery?
Yes. At 12V DC, it supports 7A continuous current — more than enough for standard LED strips or small-to-medium power automotive accessories.
Does the adhesive tape withstand the heat inside a car?
It is designed to withstand normal cabin temperatures. For areas with direct sun exposure or near the engine, we recommend adding 3M VHB tape for extra security.
Is the 60 cm cable long enough for a motorcycle installation?
In most cases, yes, especially when the power source is located near the handlebars or fuel tank. If you need more length, the AWG18 wire can be easily extended using appropriate connectors.
Does it work on 24V truck or caravan systems?
Yes. At 24V DC, the continuous current rating is 5A — suitable for LEDs, USB ports, and fans on 24V vehicles.
Does it have illumination or a status indicator?
No. This is a simple ON/OFF switch without an LED indicator. The status is verified visually by the position of the rocker.
