2-in-1 Engine Temperature Gauge and Voltmeter – Keep a constant eye on your engine’s vitals
An overheating engine leaves you with very little reaction time. A delay of just a few seconds can lead to catastrophic damage—and a hefty repair bill. With this digital engine temperature gauge and voltmeter, you can monitor two critical parameters simultaneously: coolant temperature and battery voltage. Everything you need to know, displayed clearly on one screen.
Note: The temperature sensor (10 mm diameter, 300 cm cable) is included in the box. Please verify your mounting hole diameter before installation for a perfect fit.
Why choose this model? (Key Benefits):
- Dual-function display — Shows both engine water temperature and battery voltage simultaneously, saving valuable dashboard space.
- Automatic 95°C alarm — Provides a visual warning before your engine reaches the critical danger zone, helping you prevent damage before it happens.
- Universal 9–36V DC compatibility — Works seamlessly on cars, tractors, trucks, ATVs, motorcycles, and agricultural machinery without the need for adapters.
- Extra-long 300 cm sensor cable — Easily reaches from the engine bay to the dashboard, even on large trucks or heavy machinery.
- Integrated sun visor — Ensures the display remains perfectly legible even in direct sunlight.
- DIY-friendly installation — Includes the sensor, wiring, and mounting hardware; you can have it up and running in just 20–30 minutes.
Performance and Specifications
The digital backlit display with integrated sun visor covers a temperature range from -10°C to 110°C—perfect for monitoring everything from cold winter starts to heavy summer workloads in the field. The integrated voltmeter provides real-time data on your battery health and alternator performance, helping you avoid unexpected breakdowns. The 95°C alarm is pre-set to trigger automatically, providing a reliable safety margin for most engine types.
| Feature | Specification |
|---|---|
| Functions | Engine water temperature + Digital voltmeter |
| Temperature Range | -10°C to 110°C |
| Operating Voltage | DC 9V – 36V (12V and 24V compatible) |
| Temperature Alarm | Automatic trigger at 95°C |
| Sensor Diameter | 10 mm |
| Sensor Cable Length | 300 cm |
| Vehicle Compatibility | Cars, tractors, trucks, motorcycles, ATVs, agricultural/industrial machinery |
| Display Type | Digital with integrated sun visor |
| Temperature Unit | Celsius (°C) |
Installation and Setup Guide
- Connect the power cable to your vehicle’s power source (9V–36V DC), ensuring correct polarity: red to positive, black to ground.
- Install the temperature sensor into the engine block or coolant circuit port, ensuring a secure, leak-free seal.
- Plug the sensor cable into the designated input on the gauge.
- Start the vehicle—the temperature and battery voltage will appear on the display immediately.
- The 95°C visual alarm is factory-set and requires no additional configuration.
- Mount the gauge onto your dashboard or a visible surface using the included bracket and screws.

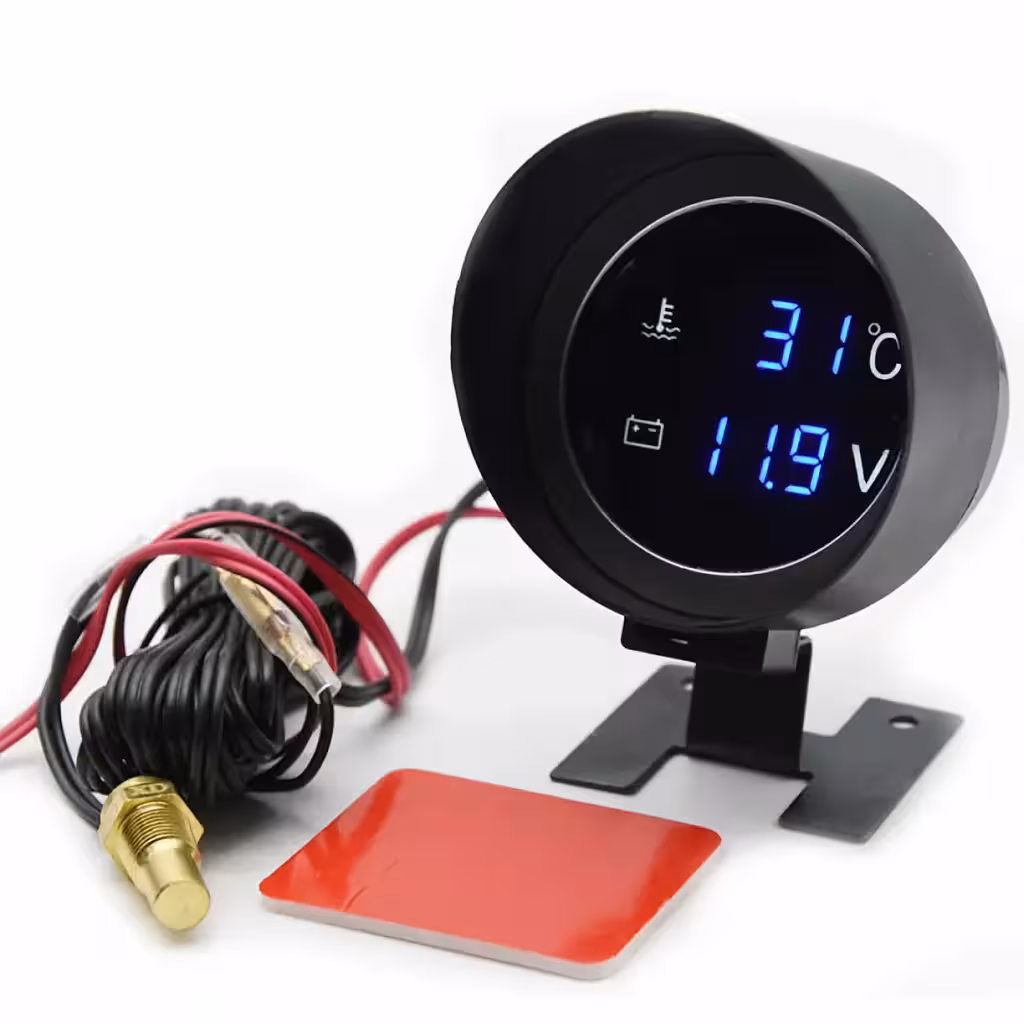

Package Contents
- 1x 2-in-1 Digital engine water temperature gauge and voltmeter
- 1x Temperature sensor (10 mm diameter, 300 cm cable)
- 1x Wiring set and mounting accessories
Frequently Asked Questions
Does it work on both 12V and 24V systems?
Yes. The operating range is 9V–36V DC, making it compatible with cars and motorcycles (12V) as well as trucks, tractors, and heavy machinery (24V) without any modifications.
Is the sensor included or sold separately?
It is included in the box—a 10 mm diameter sensor with a 300 cm cable. You have everything you need to get the gauge working right out of the box.
What happens when the temperature hits 95°C?
The gauge automatically triggers a visual alarm. This gives you enough time to pull over or reduce the engine load before the motor enters the danger zone.
Is the display visible in direct sunlight?
Yes. The integrated sun visor ensures the screen remains easy to read in bright conditions, including when working outdoors in the summer.
Will it work on a truck or large agricultural machine?
Absolutely. The 300 cm sensor cable is designed to bridge the long distance between the engine and the dashboard in larger vehicles, and the 24V power supply is fully supported.
