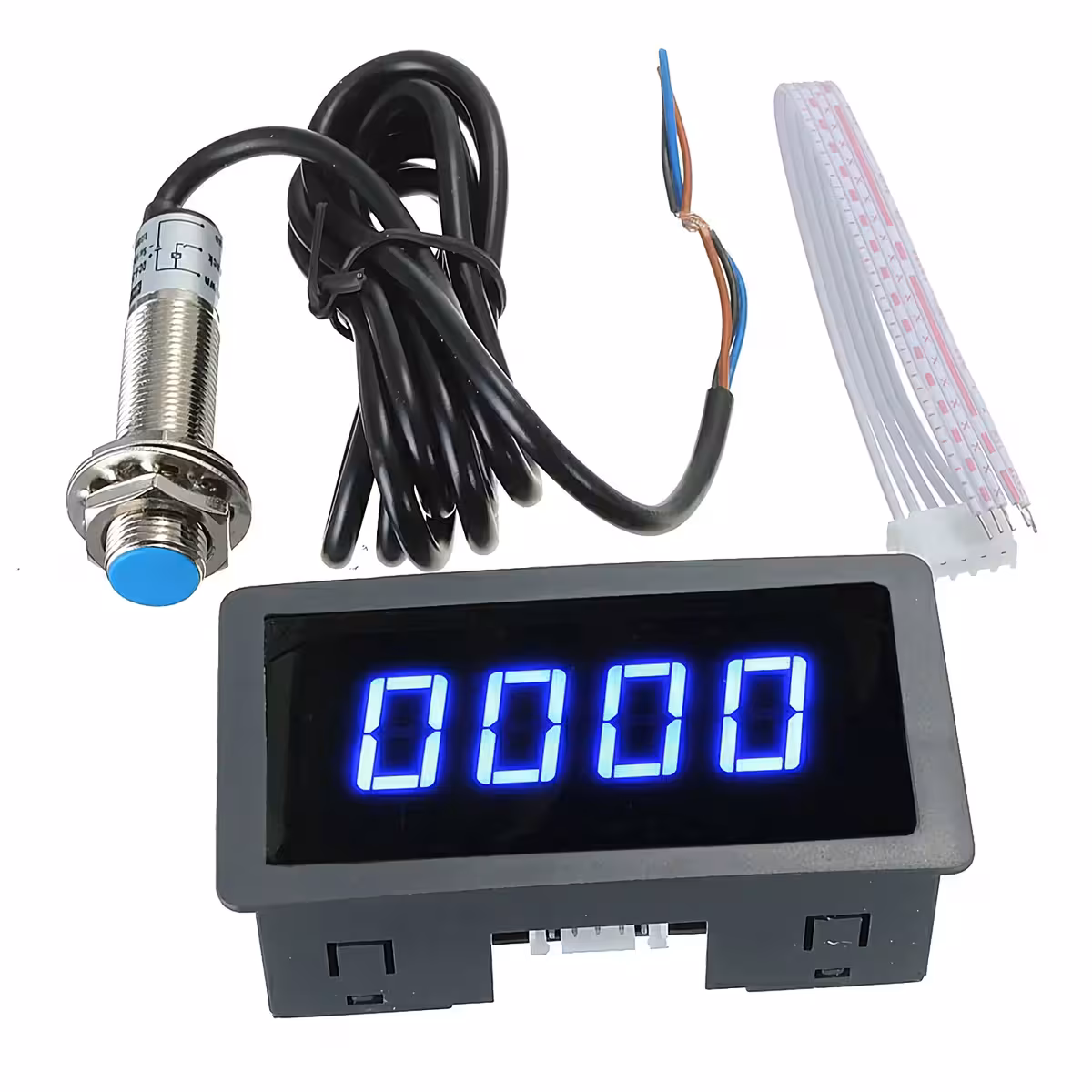

Digital Tachometer with Hall Sensor for Tractor, Combine, Lathe – 12V/24V, LED
This digital tachometer with magnetic sensor is an essential tool for precise monitoring of engine and industrial or agricultural machinery RPM. Compatible with 12V/24V, ideal for applications such as tractors, lathes, combines, or generators, it provides critical real-time information for optimal efficiency and control.
Key Advantages
- Accurate monitoring: Clear LED digital display with fast update rate – over 3 times per second.
- Wide compatibility: Works with tractors, combines, seeders, lathes, engines, or motorized boats.
- RPM control: Ideal for replicating optimal operating conditions of equipment.
- Easy installation: Mounts easily on the flywheel shaft or power coupling shaft.
- Includes magnetic sensor: Hall NPN sensor + magnet for precise and stable detection.
Package Contents
- 1 x LED Digital Tachometer for RPM measurement
- 1 x Hall NPN Magnetic Proximity Sensor
Tachometer Technical Specifications
| Display Mode | Blue LED, 0.56 inch |
|---|---|
| Supply Voltage | DC 8V – 24V |
| Measurement Range | 5 – 9999 RPM |
| Accuracy | ±2 below 5000 RPM, ±3 above 5000 RPM |
| Update Rate | >3 times / second |
| Response Frequency | 100Hz |
| Unit Dimensions | 79 × 42 × 25 mm |
| Installation Dimensions | 76 × 39 mm |
Hall Sensor Specifications
| Detection Type | Magnet (included) |
|---|---|
| Detection Distance | 1 mm – 10 mm |
| Output Current | 20 mA |
| Operating Temperature | -10°C to +60°C |
| Sensor Dimensions | 60 × 10 mm |
| Cable Length | 1 m |
| Included Magnet | 10 × 2 mm |
Recommended Applications
This tachometer is ideal for:
- Monitoring RPM on tractors, agricultural combines, lathes, generators, or industrial machinery.
- Use with variable speed controllers for efficient motor control.
- Applications in agriculture, mechanics, maintenance, industrial equipment, or automotive sectors.
With reliable functionality and easy installation, this RPM indicator is the ideal choice for anyone needing precision and control in monitoring rotational movement.
