RS-550VC DC Motor – Performance for DIY Projects and Industrial Applications
DC motor ideal for electric drills, screwdrivers, RC systems, automotive applications, and ventilation systems.
Designed for performance and durability in small electrical devices and DIY projects.

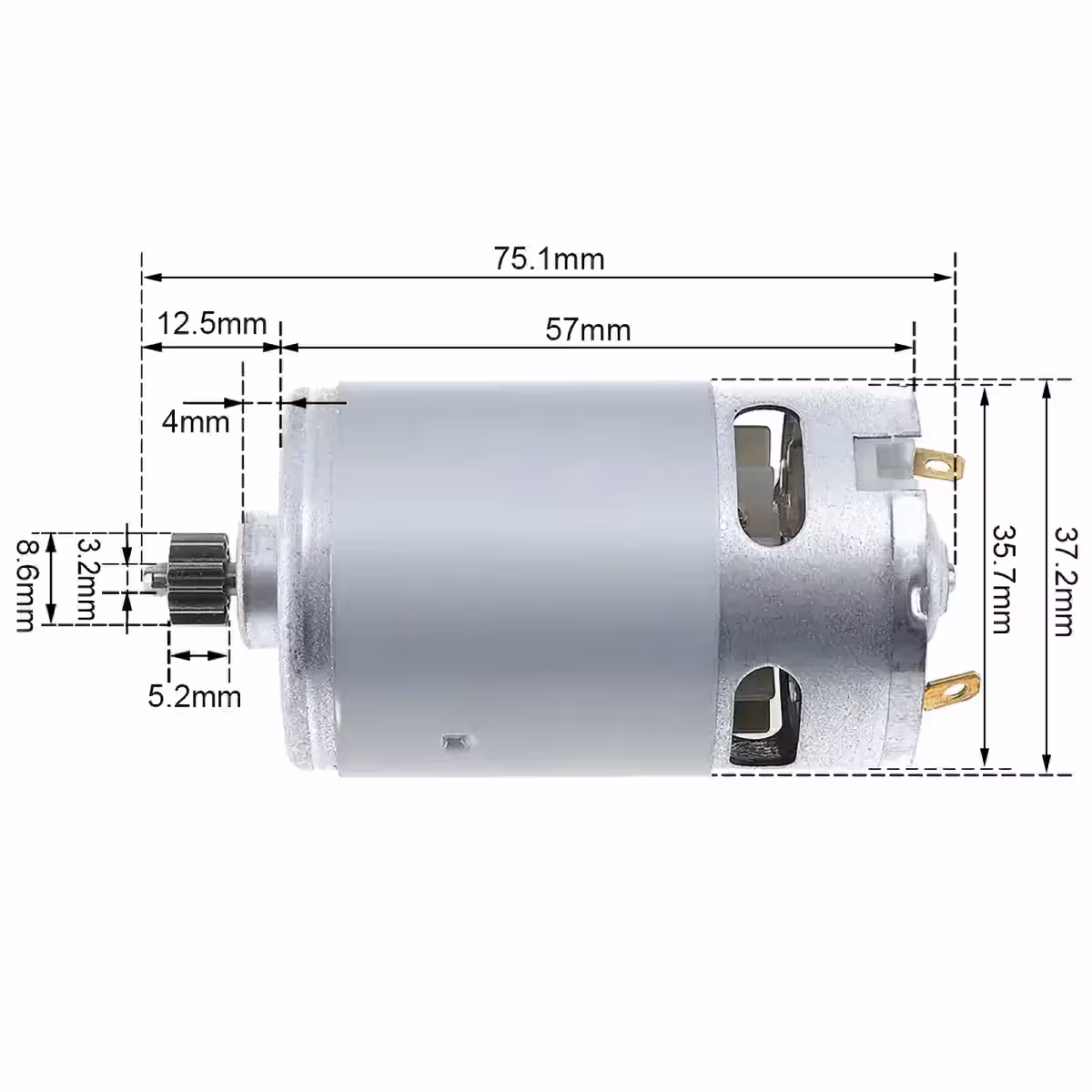

Technical Specifications
| Motor Type | Direct Current (DC) Motor |
|---|---|
| Model | RS-550VC |
| Operating Voltage | 9V – 10.8V – 12V |
| Starting Current | 5.5A |
| Rated Power | 60W |
| Pinion Teeth | 12 teeth |
| Pinion Outer Diameter | 8.6 mm |
| Motor Pinion Thickness | 5.2 mm |
| Motor Length | 75.1 mm |
| Motor Diameter | 37.2 mm |
| Motor Shaft Length | 12.5 mm |
| Motor Shaft Diameter | 3.2 mm |
| Mounting Hole Distance | 25 mm |
| Revolutions per Minute (RPM) | 21,500 – 25,000 |
Recommended Applications
- Electric drills
- Electric screwdrivers
- DIY (do it yourself) projects
- Radio control (RC) systems
- Automotive applications and small automation
- Small industrial ventilation systems
- Low-power industrial equipment
