Tuya WiFi Controller for Blinds and Shutters – Total control via voice, app, or remote
Imagine your shutters closing automatically at sunset or your blinds rising before your alarm even goes off. This isn’t magic—it’s our compact WiFi + RF controller. Designed to be installed discreetly behind your existing wall switch, it connects seamlessly to the Tuya Smart app. If you have a 100-240V AC motor for your roller shutters, blinds, curtains, or awnings, this device will transform it into a smart system in under an hour.
Note: Compatible with 100-240V AC motors up to 16A. Not suitable for DC or battery-powered motors. Please check your motor’s power rating before installation.
Why choose this model? (Key Benefits):
- Dual WiFi + RF Control — If your internet goes down, the RF remote continues to work independently, ensuring you are never locked out of your controls.
- High 16A Capacity — Built to handle powerful motors for large exterior shutters or heavy curtains where standard 10A controllers might fail.
- Tuya Smart / Smart Life Ecosystem — Join one of the world’s most popular smart home platforms. Create schedules, set scenes, and share access with family members from one intuitive app.
- Hands-Free Voice Control — Fully compatible with Amazon Alexa and Google Home, allowing you to adjust your window coverings without lifting a finger.
- Presence Simulation — When you’re away on holiday, use the random scheduling feature to move your shutters, making your home look occupied and deterring intruders.
- Group Control — Manage all the windows in your living room simultaneously with a single command rather than operating them one by one.
- Ultra-Low Standby Consumption — With a standby power draw of just 0.2W, it has a negligible impact on your electricity bill.
Performance and Technical Details

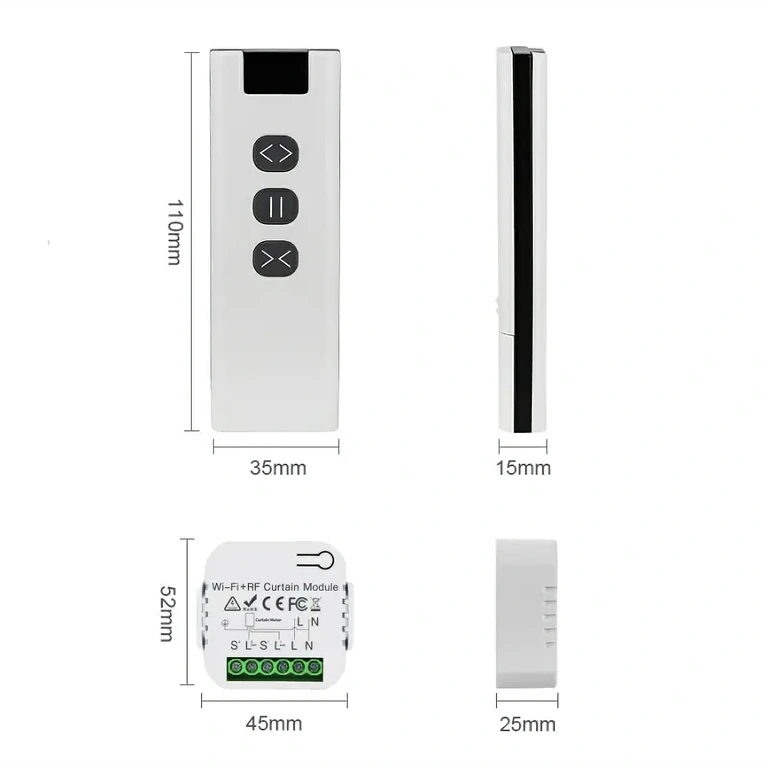

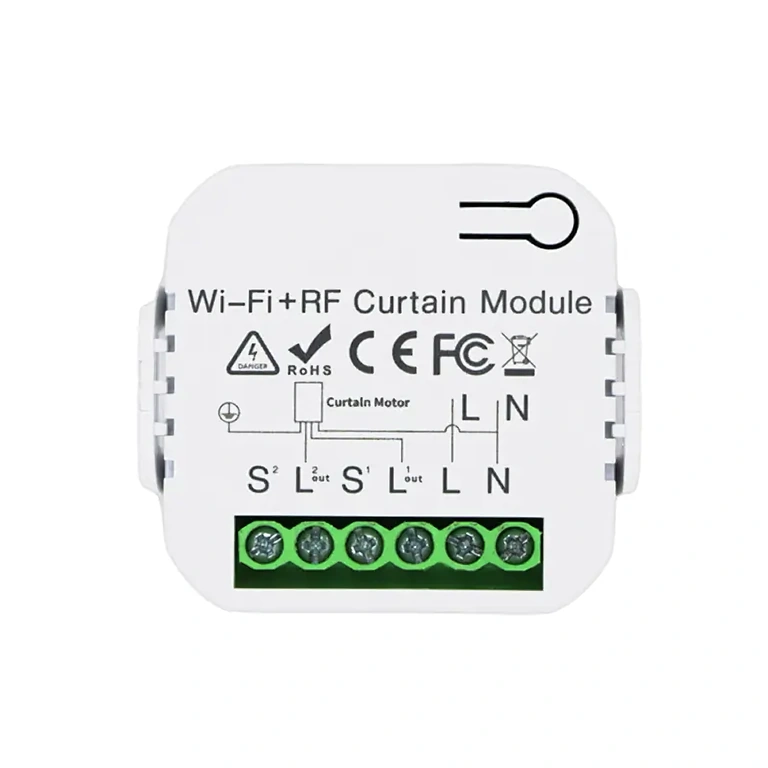

This module features both 2.4GHz WiFi (802.11 b/g/n) and a 433MHz RF receiver, providing two independent communication channels. This means you aren’t solely reliant on your cloud connection; the RF remote sends commands directly to the controller with zero latency. The compact dimensions of 52 x 45 x 25 mm allow for easy installation behind a standard wall switch or inside a shutter housing, while the slim 110 x 35 x 15 mm remote comes with a wall mount, looking just like a standard light switch.
| Feature | Specification |
|---|---|
| Rated Voltage | 100V – 240V AC |
| Max Load Capacity | 16 A |
| Standby Consumption | 0.2 W |
| WiFi Connectivity | 2.4GHz – 802.11 b/g/n |
| Remote Frequency | RF 433 MHz |
| Compatible App | Tuya Smart / Smart Life |
| Voice Assistant Support | Amazon Alexa, Google Home |
| Operating Systems | Android / iOS |
| Operating Temperature | -20°C ~ +55°C |
| Controller Dimensions | 52 x 45 x 25 mm |
| Remote Dimensions | 110 x 35 x 15 mm |
| Applications | Shutters, blinds, curtains, drapes, awnings |
Setup and Programming Guide
- Download the Tuya Smart or Smart Life app (Android / iOS) and register your account.

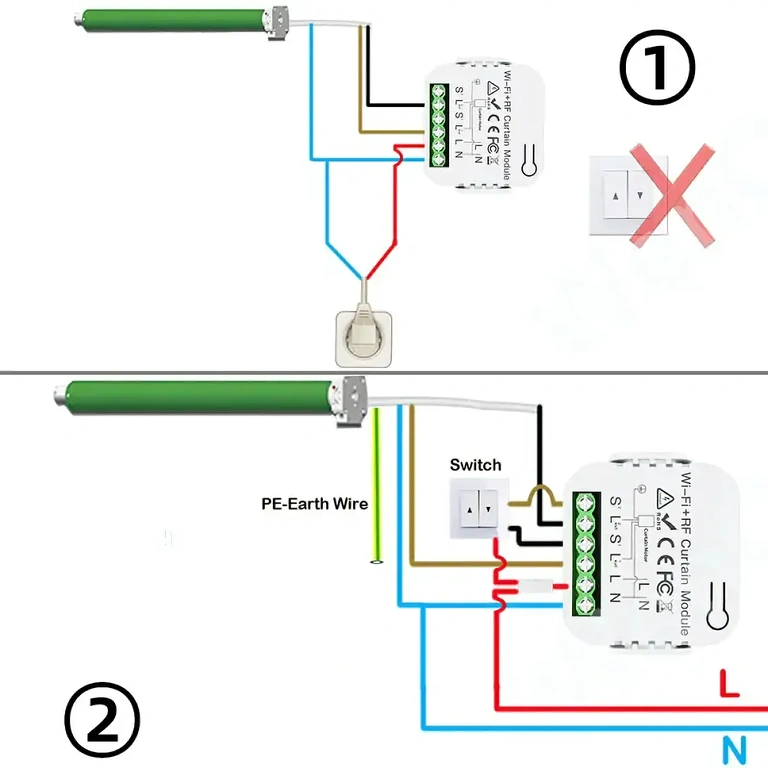

- Wire the controller to your motor according to the manual—L (Live), N (Neutral), and the Up/Down/Stop control wires.
- Enter pairing mode by holding the button on the module for approximately 5 seconds until the LED flashes rapidly.
- In the app, select Add Device → Electrical → Curtain/Shutter and follow the on-screen instructions to connect to your WiFi.
- Calibrate the travel limits (open/close) directly within the device settings in the app.
- Create groups for multiple shutters and set automations based on time, sunrise/sunset, or triggers from other smart sensors.

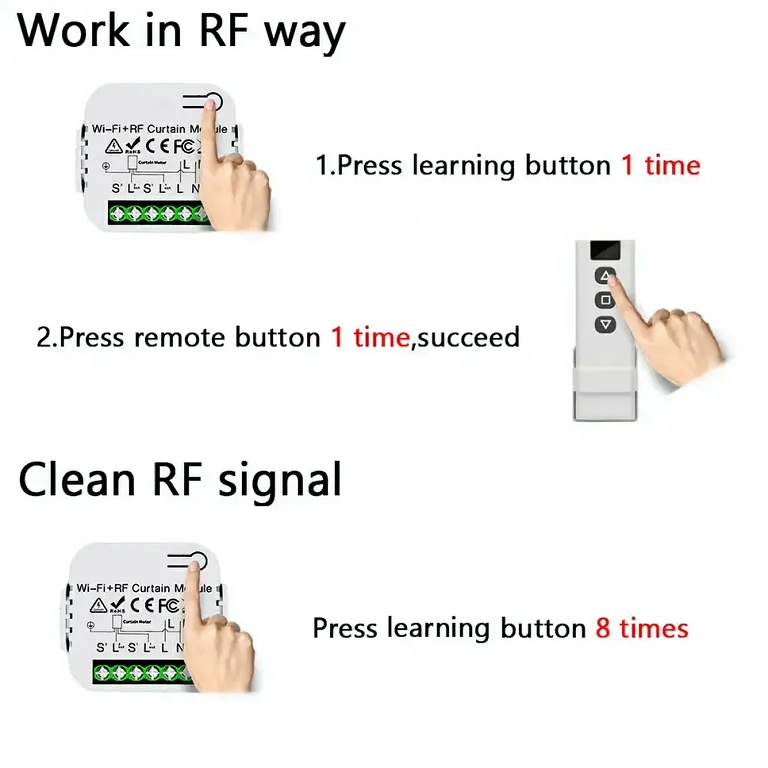

- Pair the RF remote using the pairing button in the app or as instructed in the manual.
Package Contents

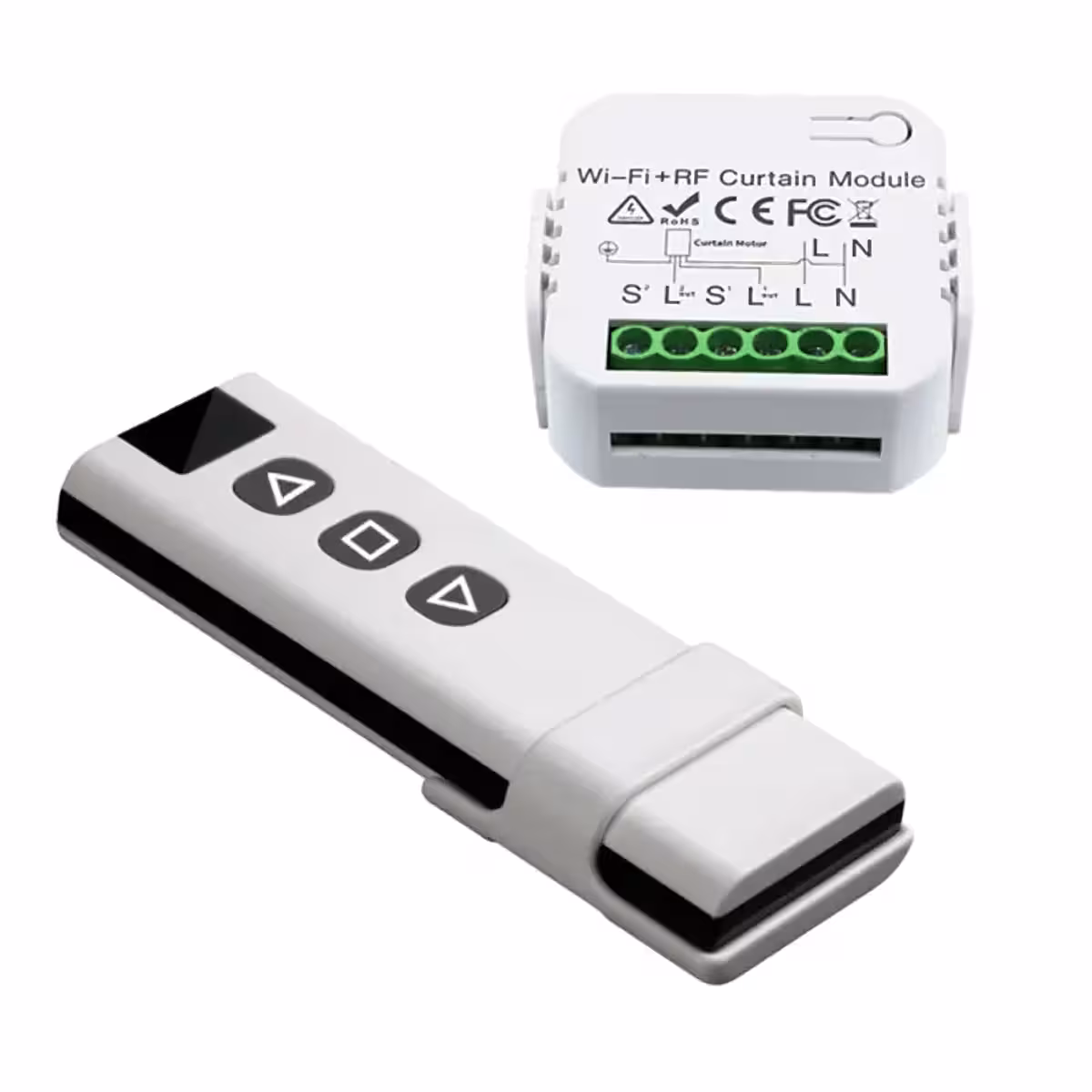

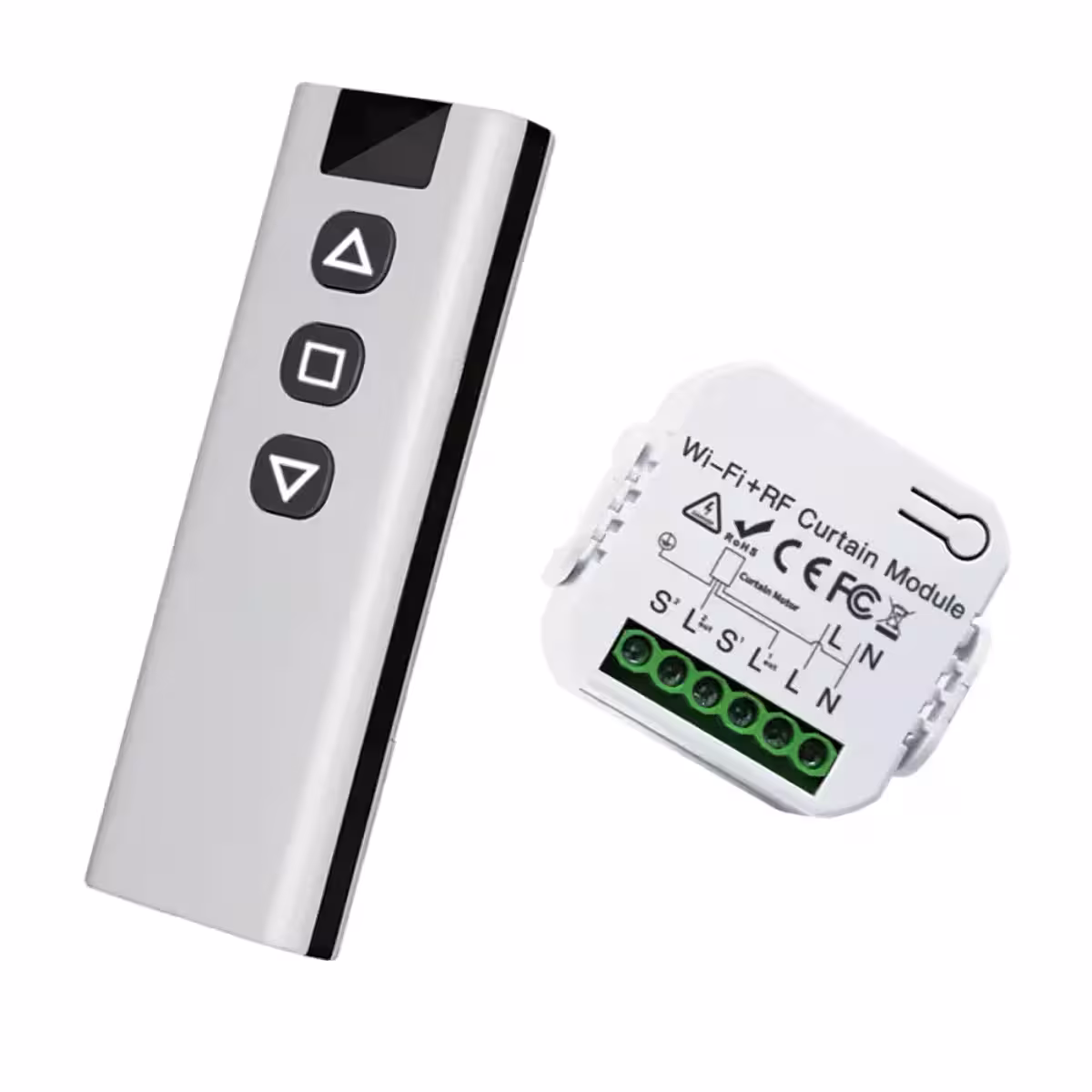

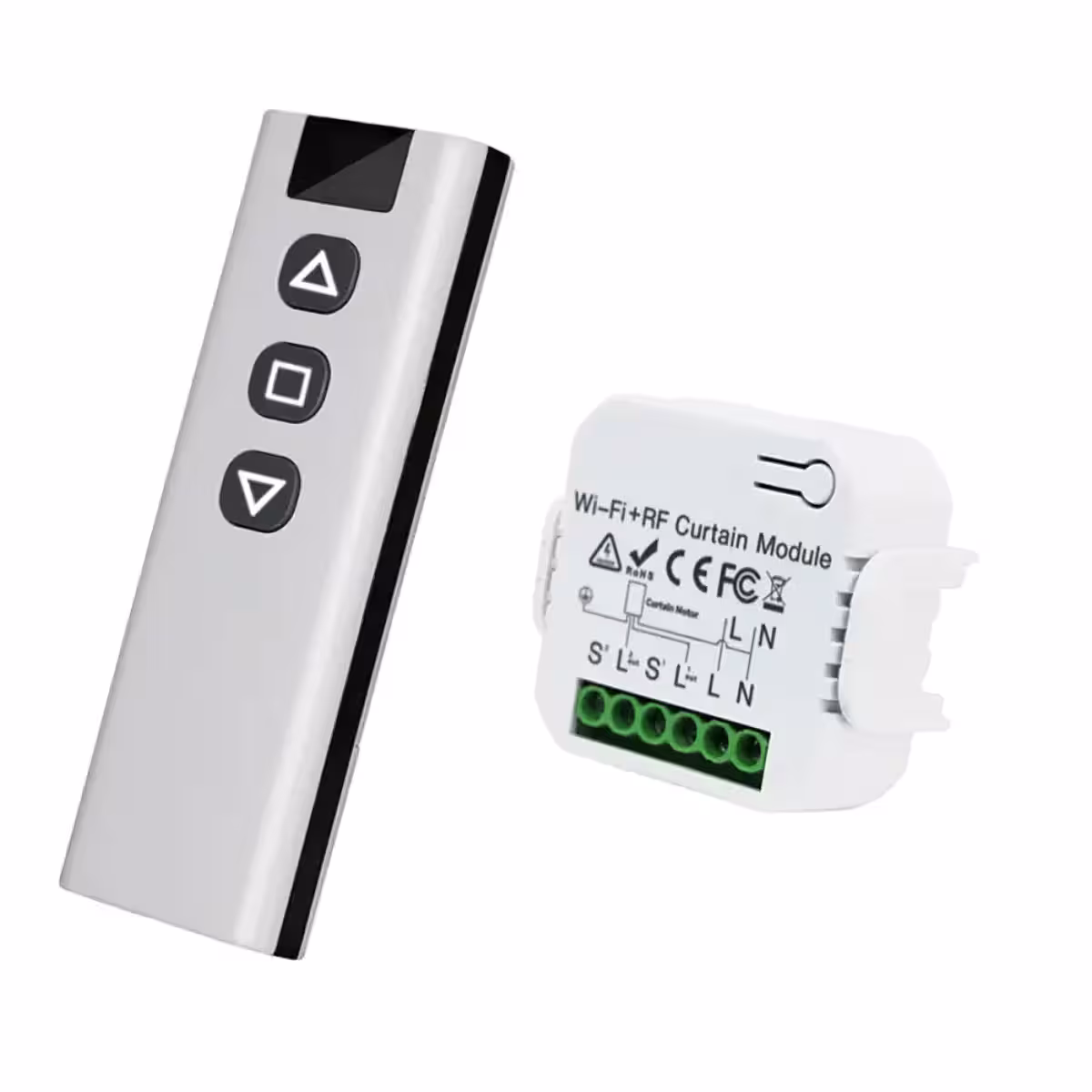

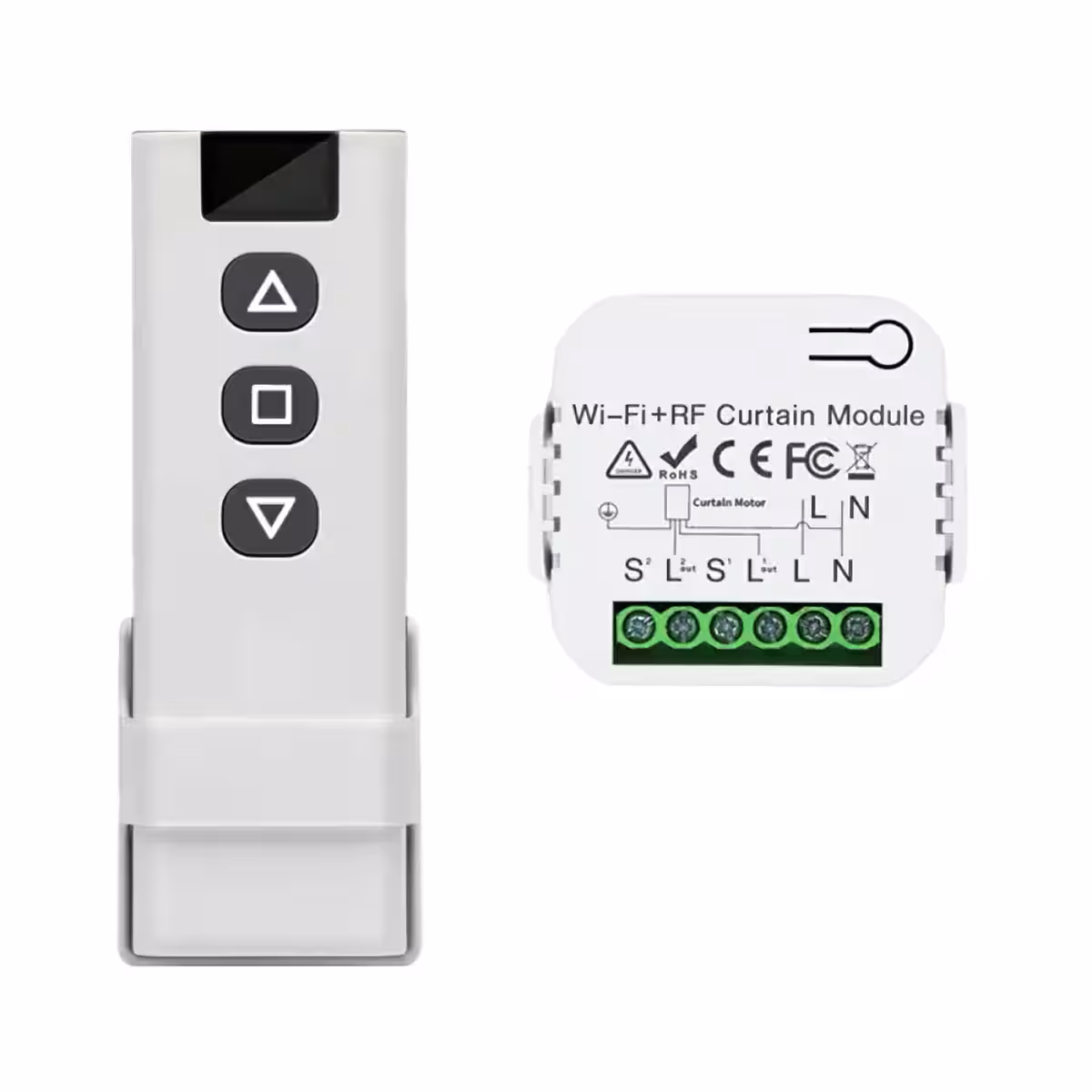

- 1 x WiFi + RF Controller for blinds, shutters, and curtains

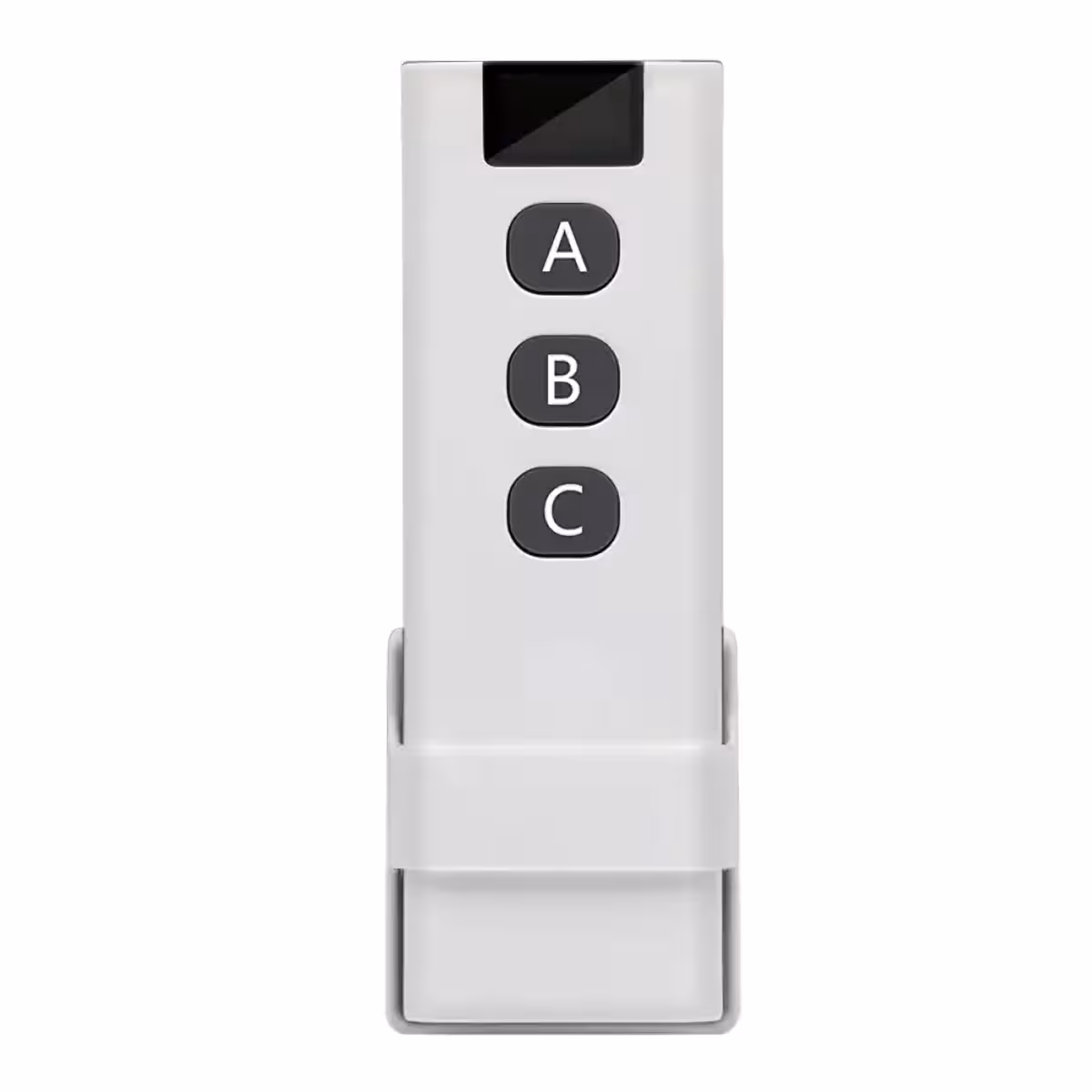

- 1 x RF Remote Control
- 1 x Wall-mount bracket for the remote
Frequently Asked Questions
Does it work without internet?
Yes. The RF remote communicates directly with the controller, bypassing the need for WiFi or the app. If your router goes offline, the remote remains fully functional.
Is it compatible with my motor?
It works with any 100-240V AC motor that does not exceed 16A. It is not compatible with DC or battery-operated motors. Check your motor’s label—if it specifies AC and the current is 16A or less, it is compatible.
Can I control multiple shutters at once?
Yes. Within the Tuya Smart app, you can create a group for all your devices and operate them simultaneously with a single tap or voice command. You can organize them by room or zone.
Can I integrate this with other smart devices?
Absolutely. Through the Tuya platform, you can create complex scenes—for example, having your shutters close automatically when you turn on the air conditioning or when a light sensor detects direct sunlight.
