24V 3A Slim Power Supply – Stabilised voltage for LED strips and automation without compromise
Have you noticed your LED strips flickering or losing brightness after just a few months? This is almost always caused by a poor-quality power supply. An unstable or low-grade 24V DC power source can slowly damage your connected equipment. This unit is different. It delivers clean, constant 24V power regardless of the load—up to 3A and 72W.
Why choose this model? (Key Benefits):
- Stabilised 24V DC output — voltage remains steady under load, ensuring your LED strips don’t flicker and sensors don’t reset unexpectedly.

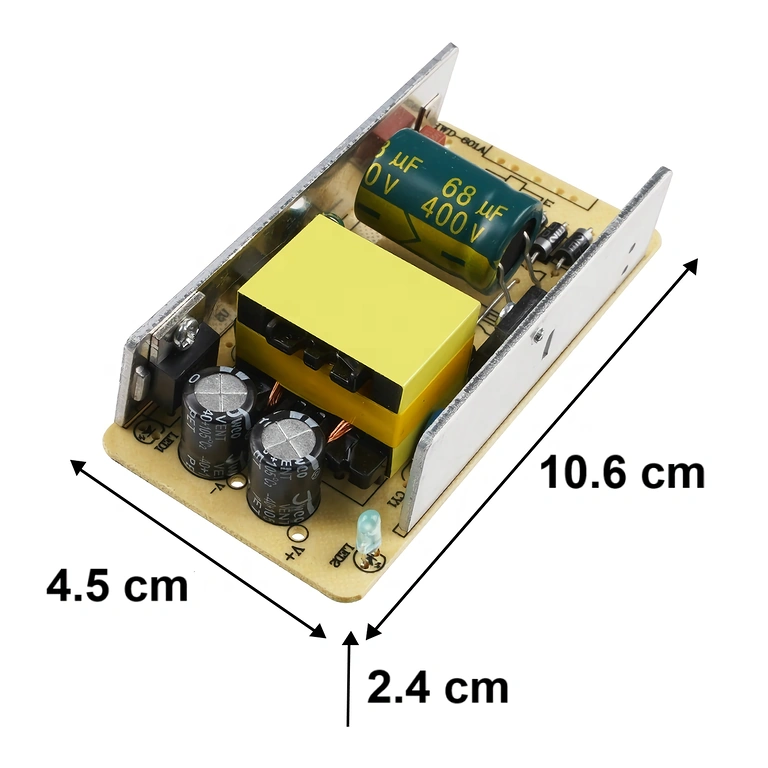

- Slim, space-saving design — fits easily into aluminium profiles, electrical cabinets, or behind furniture without taking up unnecessary space.
- Triple integrated protection — automatically shuts down in the event of a short circuit, overload, or overvoltage, and resets itself once the issue is resolved.
- Universal AC 100–240V input — works globally without an adapter, compatible with both 230V (Europe) and 110V (USA, Japan) grids.
- High-efficiency SMPS technology — runs cooler than traditional linear power supplies, resulting in a longer lifespan during continuous operation.
Details and Performance

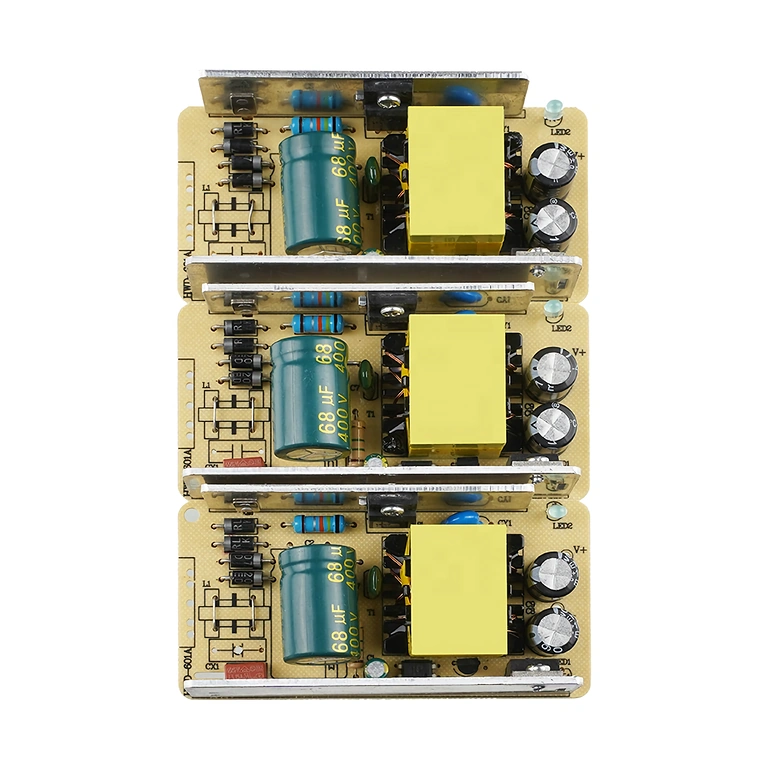

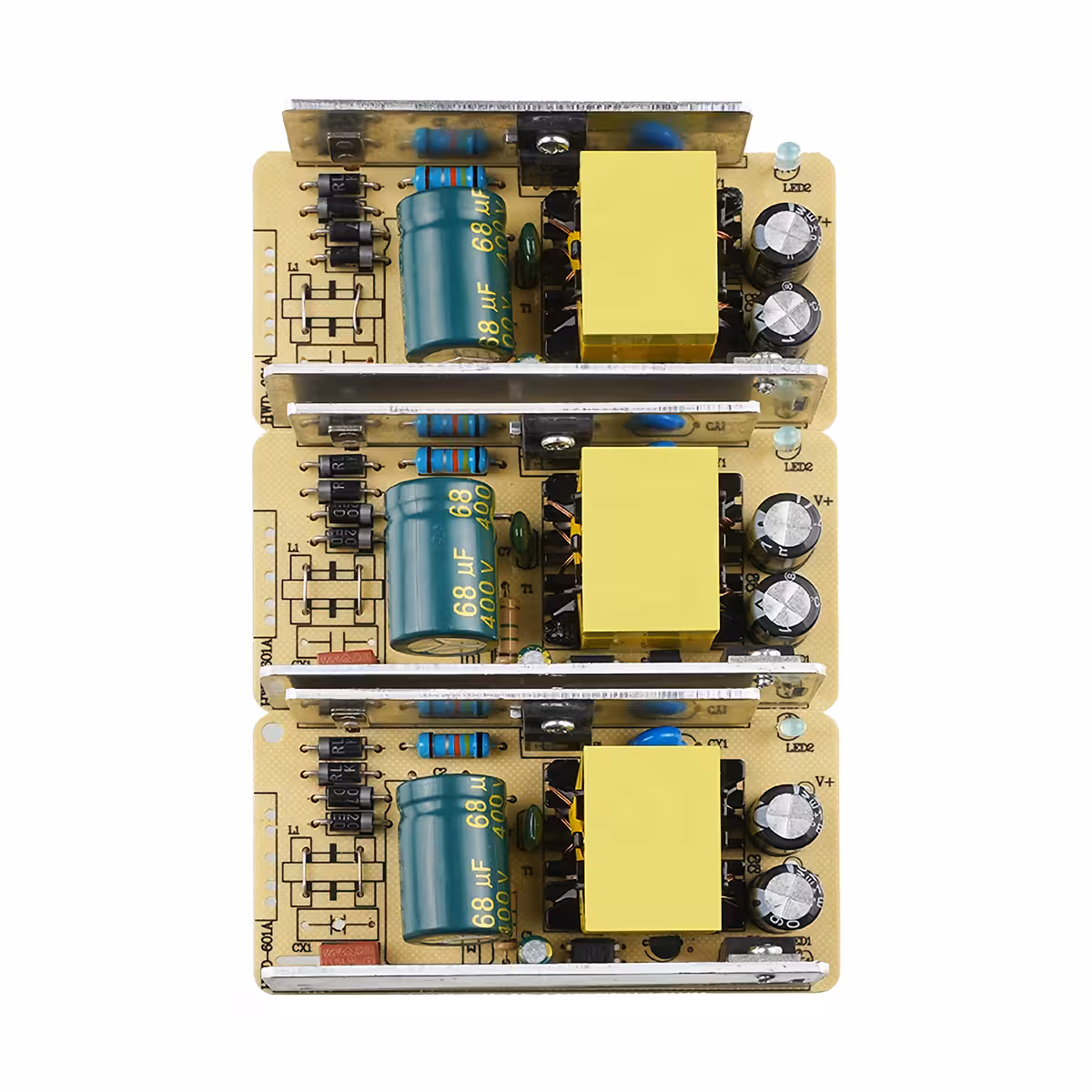

The switched-mode (SMPS) topology sets this unit apart from linear power supplies: it offers lower thermal losses, a compact form factor, and superior output voltage stability even under variable loads. The 24V DC / 3A output comfortably handles LED installations of up to 72W — enough for 5–7 metres of medium-power LED strip or an automation system with multiple sensors. The integrated protection circuits are more than just a spec-sheet tick box; they prevent real damage to your equipment in accidental situations without requiring manual intervention to reset.
| Feature | Specification |
|---|---|
| Power Supply Type | Switched-mode (SMPS), stabilised |
| Input Voltage | AC 100–240V, 50/60Hz |
| Output Voltage | 24V DC stabilised |
| Max Output Current | 3A |
| Rated Power | 60W – 72W |
| Design | Slim, compact |
| Integrated Protections | Overload, short circuit, overvoltage |
| Main Applications | 24V LED strips, automation, PLC, DC equipment |
Package Contents
- 1 x 24V 3A Slim Stabilised Power Supply (60W–72W)
Frequently Asked Questions
How many metres of LED strip can I power with this unit?
It depends on the power consumption per metre of your strip. For a 14W/m strip, you can power approximately 4–5 metres. For a 9.6W/m strip, you can reach up to 7 metres. Calculate the total power draw and ensure you stay under 72W — ideally under 57W (80% of capacity) for safe, long-term operation.
Can I connect multiple LED strips in parallel?
Yes. You can connect as many strips as you like in parallel, provided the sum of their power consumption does not exceed 72W. They will all receive the same stable 24V regardless of the number of strips.
What happens if there is a short circuit?
The power supply will automatically shut down in a fraction of a second to prevent damage to your equipment. Once you have resolved the cause of the short circuit, the power supply will automatically return to normal operation—no manual reset required.
Does it work for automation systems or PLCs?
Yes. The 24V DC standard is used in over 80% of industrial equipment, including PLCs, sensors, relays, and controllers. As long as the total consumption remains under 3A, this power supply is perfectly suitable.
Does it work on 110V grids without an adapter?
Yes. The universal AC 100–240V input means you can use it directly in any country without needing an additional transformer or adapter.
