50A 1200V Single-Phase Bridge Rectifier – Reliable AC-DC Conversion with Integrated Heatsink for Industrial Applications
Need high-current AC-DC conversion without thermal compromises? This 50A 1200V single-phase bridge rectifier is engineered for the job. It delivers stable direct current, handles continuous loads with ease, and resists overheating even under intensive use. Built specifically for demanding industrial environments, not just occasional hobbyist projects.
Note: This product is intended for users with technical expertise in electronics and electrical engineering. Always verify circuit compatibility before installation.
Why choose this bridge rectifier? (Key Advantages):
- 50A Rated Current — Handles continuous heavy-duty loads without degradation, perfect for industrial chargers and high-power supply units.
- 1200V Peak Reverse Voltage — Provides a safety margin over 5x higher than standard 230V mains, protecting your components from transient voltage spikes.
- 4-Diode Graetz Bridge Configuration — Ensures full-wave rectification, significantly reducing ripple compared to half-wave alternatives.
- Integrated Heatsink — Maintains junction temperature within safe limits without the need for external cooling under standard operating conditions, extending component lifespan.
- 230V and 400V AC Compatible — Designed to function seamlessly within standard single-phase electrical networks across the EU and Ireland.
Performance and Technical Details
This unit operates on the full-wave rectification principle, converting both halves of the AC voltage cycle into direct current. The result is a much smoother DC signal with lower ripple and higher efficiency than single-diode rectifiers.
The 1200V peak reverse voltage rating is a critical feature; in industrial installations, transient voltage spikes can easily exceed standard mains levels. This generous margin protects the component where others might fail. The integrated heatsink rounds out the design, dissipating heat effectively without requiring additional accessories for normal operation.
| Parameter | Value / Detail |
|---|---|
| Product Type | Bridge Rectifier / Diode Bridge |
| Configuration | Single-phase, 4-diode (Graetz bridge) |
| Rated Current | 50A |
| Peak Reverse Voltage | 1200V |
| Cooling Type | Integrated heatsink |
| Primary Function | AC to DC rectification |
| Rectification Type | Full-wave |
| Application Range | Industrial, power supplies, converters, battery chargers |
Package Contents

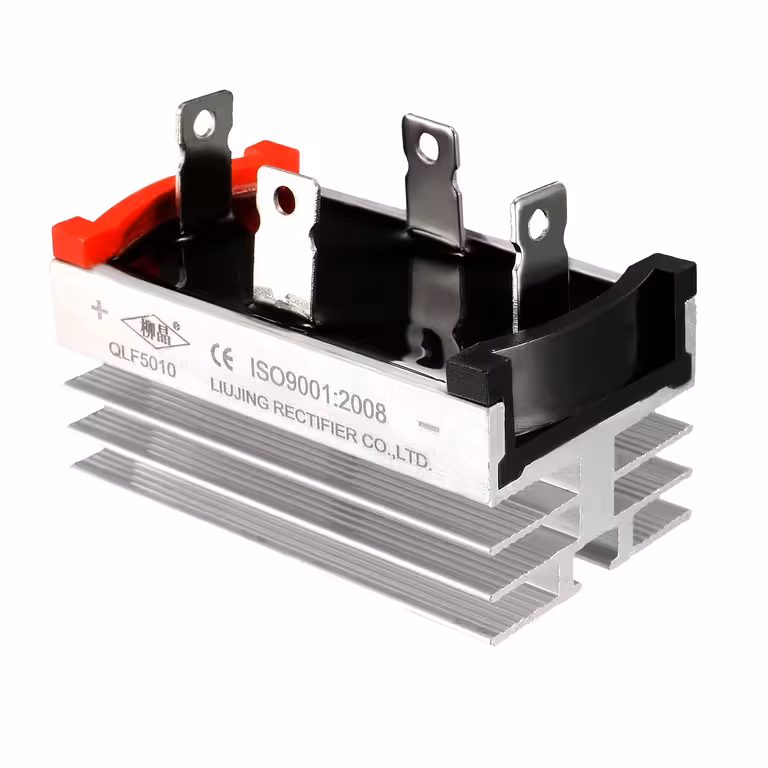

- 1 x 50A 1200V Single-Phase Bridge Rectifier with integrated heatsink
Frequently Asked Questions
What does a bridge rectifier do, and why are there 4 diodes?
It converts alternating current (AC) from the mains into usable direct current (DC) for electronic circuits. The 4-diode Graetz bridge configuration allows the circuit to utilise both halves of the AC signal, resulting in a more stable and efficient DC output.
Do I need extra cooling beyond the integrated heatsink?
Under normal operating conditions, the integrated heatsink is sufficient. If you are operating near the 50A limit or in high ambient temperatures (above 40°C), ensure adequate airflow or mount the component in a ventilated enclosure.
Is this suitable for three-phase applications?
No. This rectifier is designed exclusively for single-phase circuits. For three-phase applications, you require a three-phase bridge rectifier with 6 diodes.
Is it suitable for industrial battery chargers?
Yes. The 50A rating and the thermal stability provided by the integrated heatsink make it a popular choice for industrial battery chargers, adjustable power supplies, and high-power AC-DC converters.
Does it work with 400V three-phase (phase-to-neutral)?
The rectifier supports reverse voltages up to 1200V, making it compatible with 230V single-phase and 400V single-phase (phase-to-phase) setups. It cannot be connected directly to a three-phase supply; that requires a different configuration.
