Bidirectional 2×1/1×2 Stereo Audio Switcher – Instant source switching with zero signal loss
Do you have two audio sources but only one pair of speakers? Or perhaps you have one source and want to send audio to both your headphones and amplifier simultaneously? Stop fumbling with cables every time you want to switch. This bidirectional stereo audio switcher is the perfect solution—just one click, and you’re done.
Note: This device works exclusively with passive analogue audio signals. It does not require external power and does not amplify the signal.
Why choose this model? (Key Benefits):
- Bidirectional 2×1 / 1×2 switching — Instantly select between two sources for one output OR distribute one source to two outputs without ever unplugging a cable.
- Dedicated Mute button — Silence your audio instantly without disconnecting anything; ideal for answering calls or quick breaks.
- True Plug & Play — No drivers, no external power, and no setup required; it works the second you plug it in.
- Pure, uncoloured signal — The passive design ensures zero background noise and zero distortion in your audio chain.
- Extensive RCA + 3.5mm Jack compatibility — Included adapters make it compatible with TVs, HiFi amplifiers, and systems with RCA outputs.
- Protects your device ports — Reduce wear and tear on your PC, phone, or console ports by centralising your connections.
Performance and Details

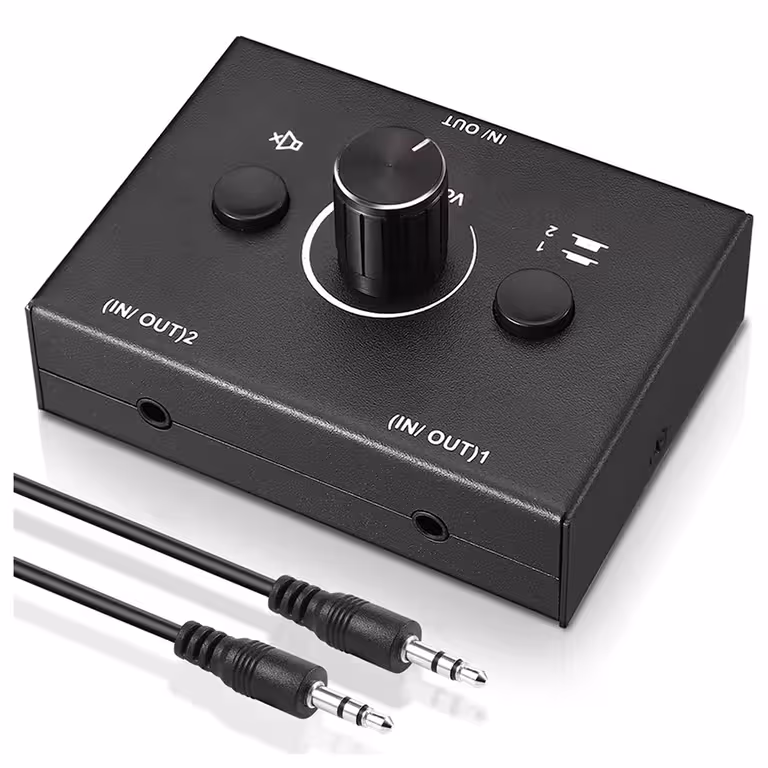

The switcher features three 3.5mm stereo jacks (TRS, 3-pole) and comes with 3.5mm Jack to RCA adapters included in the box. In 2-In-1-Out mode, two sources—such as a PC and a phone—are routed alternatively through a single active output, selectable via the 1/2 switch. In 1-In-2-Out mode, a single source transmits audio simultaneously to two independent destinations without any compromise in signal level. The premium matte black ABS housing takes up minimal desk space and is built to withstand daily use.
| Parameter | Value / Detail |
|---|---|
| Type | Passive bidirectional audio switcher 2×1 / 1×2 |
| Main Connectors | 3 × 3.5mm stereo jack (3-pole / TRS) |
| Extended Connectors | RCA (via included adapters) |
| Operating Modes | 2-In-1-Out / 1-In-2-Out |
| Mute Function | Yes – dedicated button |
| External Power | Not required |
| Signal Type | Analogue stereo audio |
| Colour / Finish | Matte black |
| Size | Compact – desktop design |
| Compatibility | PC, laptop, mobile phone, headphones, active speakers, console, MP3/MP4, amplifier, HiFi system, TV |
Package Contents
- 1 × 3.5mm bidirectional stereo audio switcher (2×1 / 1×2)
- 1 × 3.5mm male-to-male audio cable
- 2 × 3.5mm Jack to RCA adapters
- 1 × 3.5mm audio splitter
Frequently Asked Questions
Can I use this switcher with passive speakers (without an integrated amplifier)?
No. This device is designed for analogue line-level signals (headphone or line-out level). It is not compatible with high-level signals from power amplifiers connected to passive speakers.
Do both outputs work simultaneously in 1-In-2-Out mode?
Yes. A single source distributes the signal to both outputs at the same time—for example, to active speakers and headphones—without needing any additional switching.
Is it compatible with smartphones that have a 3.5mm jack?
Yes, provided the phone uses a standard 3-pole (TRS) stereo 3.5mm jack. It is not compatible with TRRS (4-pole) jacks designed for combined microphone headsets.
Can I connect a TV with RCA output to active speakers with a 3.5mm jack?
Yes. Using the included RCA to 3.5mm jack adapters, you can connect any source with an RCA output directly to active speakers or headphones with a 3.5mm input.
Does passive switching affect sound quality?
No. The signal passes directly through mechanical contacts without any amplification or processing. The original fidelity of the source remains completely intact.
