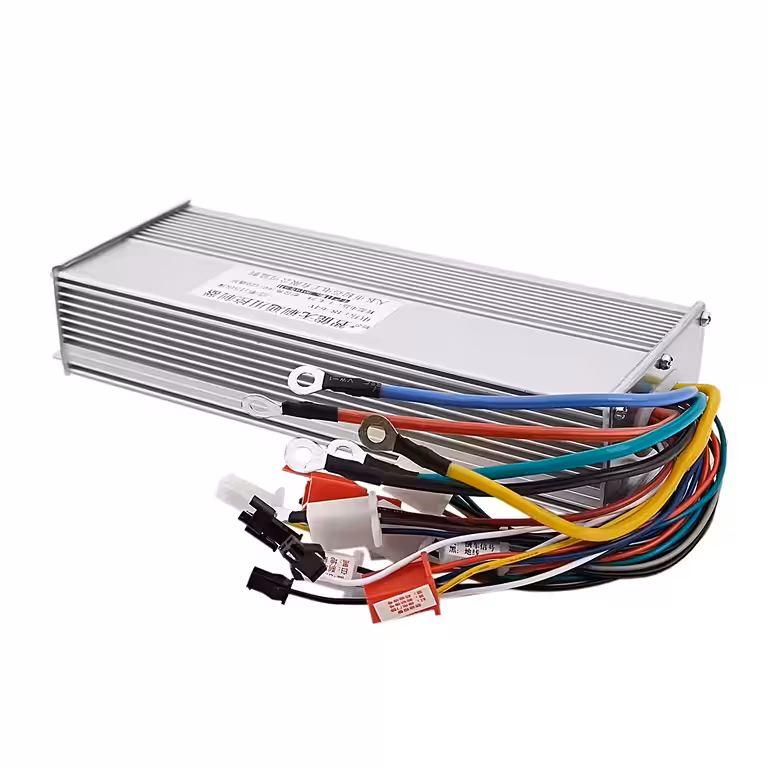

48V–60V, 1000W–1500W Brushless Controller – The difference between a sluggish scooter and a high-performance machine
Have you upgraded your battery and motor, yet your vehicle still feels sluggish or unresponsive? The culprit is often the controller. A subpar controller acts as a bottleneck, limiting your entire system regardless of how high-quality your other components are. This brushless motor controller is engineered for riders who refuse to compromise: it offers multi-voltage compatibility, comprehensive safety protections, and a rugged casing designed to withstand intense heat.
Note: This controller is exclusively compatible with brushless motors equipped with Hall sensors. Please verify your motor specifications before purchase.
Why choose this controller? (Key Advantages):
- Native Multi-Voltage: 48V / 52V / 60V — Compatible with the most common battery packs on the market, including Lithium-ion and LiFePO4, with no need for adapters or modifications.
- 40A Peak Current — Provides the power needed to tackle 15–20% inclines without the system cutting out or triggering safety shutdowns.
- 5 Integrated Protections — Built-in safeguards against overload, short circuits, overvoltage, undervoltage, and overheating. You get total protection as standard.
- Anodised Aluminium Housing — Acts as a passive heat sink, dissipating heat efficiently without the need for noisy, failure-prone cooling fans.
- Pre-wired Connectors — Includes dedicated connections for the motor, Hall sensors, regenerative braking, throttle, and LCD display. Everything is ready for a seamless installation.
- Wide Operating Temperature — Reliable performance from -20°C to +50°C, whether you’re riding in the depths of winter or through a sweltering summer commute.
Performance and Technical Details
Speed regulation is managed via advanced PWM (Pulse Width Modulation) technology, which delivers power in precise, smooth pulses rather than jerky bursts. The result is a seamless start, reduced mechanical stress on the motor, and improved ride quality. The Hall sensors monitor rotor position in real-time, ensuring the motor delivers optimal torque and efficiency at any speed.
The anodised aluminium casing isn’t just for looks; it serves as a high-performance passive radiator, drawing heat away from internal components without any moving parts. Weighing in at just 0.8 kg, it adds minimal weight to your vehicle. The regenerative braking connector allows you to recover energy during deceleration, extending your range during urban riding.
| Parameter | Specification |
|---|---|
| Supply Voltage | 48V / 52V / 60V |
| Rated Power | 1000W – 1500W |
| Peak Current | 40A |
| Compatible Motor Type | Brushless with Hall sensors |
| Operating Temperature | -20°C to +50°C |
| Integrated Protections | Overload, short circuit, overvoltage, undervoltage, high temperature |
| Included Connectors | Power, motor, Hall, regenerative brake, throttle, display |
| Housing Material | Anodised aluminium |
| Dimensions (L x W x H) | 225 mm x 80 mm x 40 mm |
| Weight | 0.8 kg |
Installation and Setup Guide
- Connect the power cables from the battery, ensuring correct polarity: red = positive, black = negative.
- Connect the motor phase cables (yellow, green, blue) to the corresponding controller outputs.
- Connect the Hall sensors via the dedicated connector—5 wires: VCC, GND, and 3 position signals.
- Connect the throttle and LCD display (if applicable) to the connectors marked in the included technical diagram.
- Connect the regenerative brake cable to enable energy recovery during braking.
- Perform an initial test at low voltage to verify the motor rotation direction before full-power operation.
Package Contents
- 1x 48V / 52V / 60V, 1000W–1500W, 40A Brushless Controller
- Pre-wired connectors (power, motor, Hall, throttle, regenerative brake, display)
- Technical wiring diagram
Frequently Asked Questions
Is this compatible with any brushless motor?
It is compatible with brushless motors equipped with Hall sensors, operating at 48V, 52V, or 60V. For optimal performance, the motor’s rated power should be between 1000W and 1500W.
Can I use a 52V Lithium-ion battery?
Yes. The controller natively supports 48V, 52V, and 60V systems, including Lithium-ion and LiFePO4 packs within this range, with no modifications required.
Does it protect the battery from deep discharge?
Yes. The undervoltage protection feature cuts power before the battery drops below a critical level, significantly extending the lifespan of your battery cells.
Do I need an external programmer for configuration?
The controller comes pre-configured and is ready to use immediately upon connection. If you wish to adjust advanced parameters such as current limits or maximum speed, please refer to the included technical manual for details on external programming compatibility.
