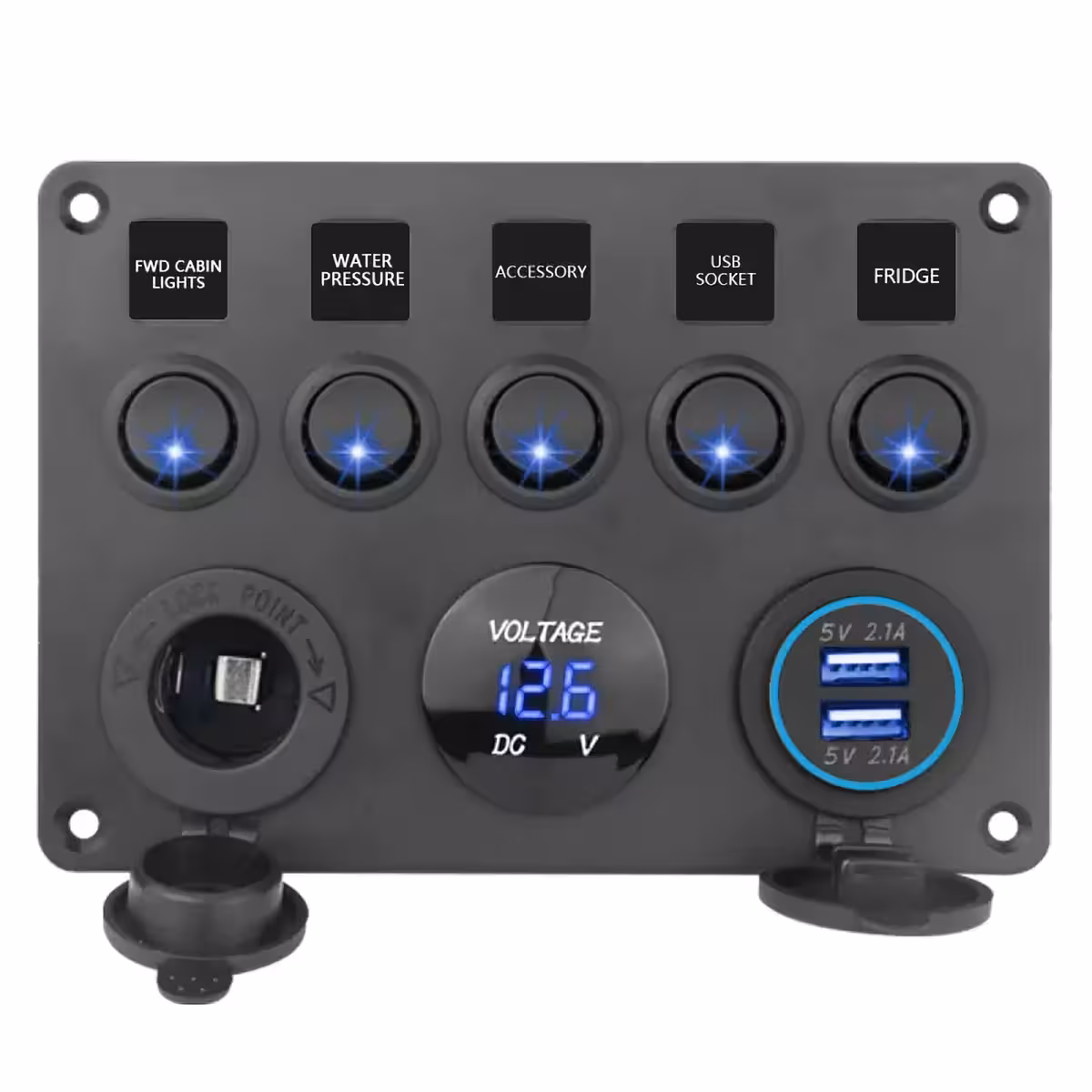

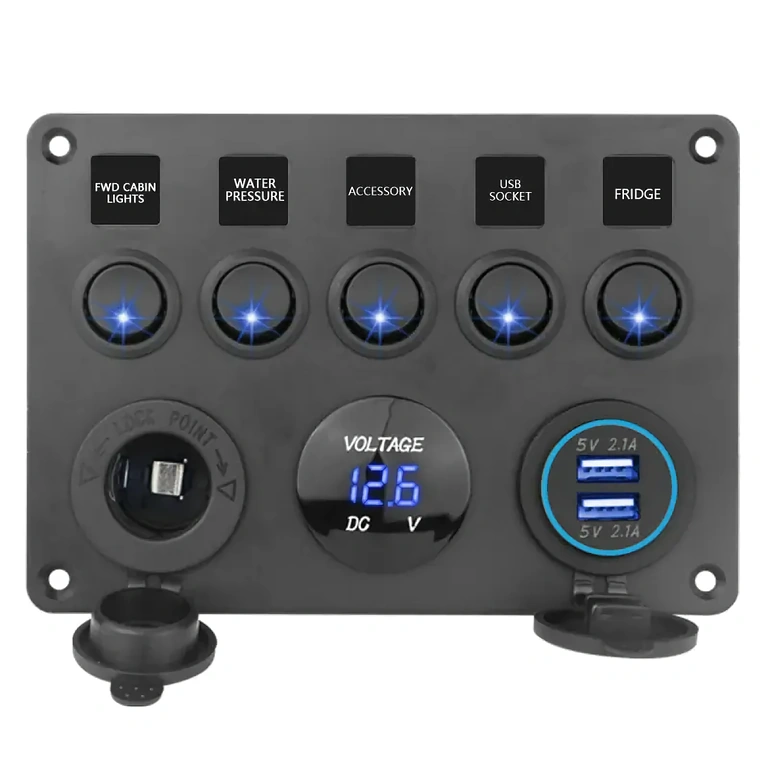

Take full control of your vehicle accessories with this all-in-one 5-gang IP65 switch panel
Tired of messy wiring, improvised sockets, and guessing how much battery life you have left? This compact, all-in-one switch panel centralises 5 independent circuits, battery monitoring, and USB charging into a single, professional-grade module. It is designed for a straightforward installation, no professional electrician required.
Note: Designed exclusively for DC 12V or 24V systems. Not compatible with AC mains power.
Why choose this panel? (Key Benefits):

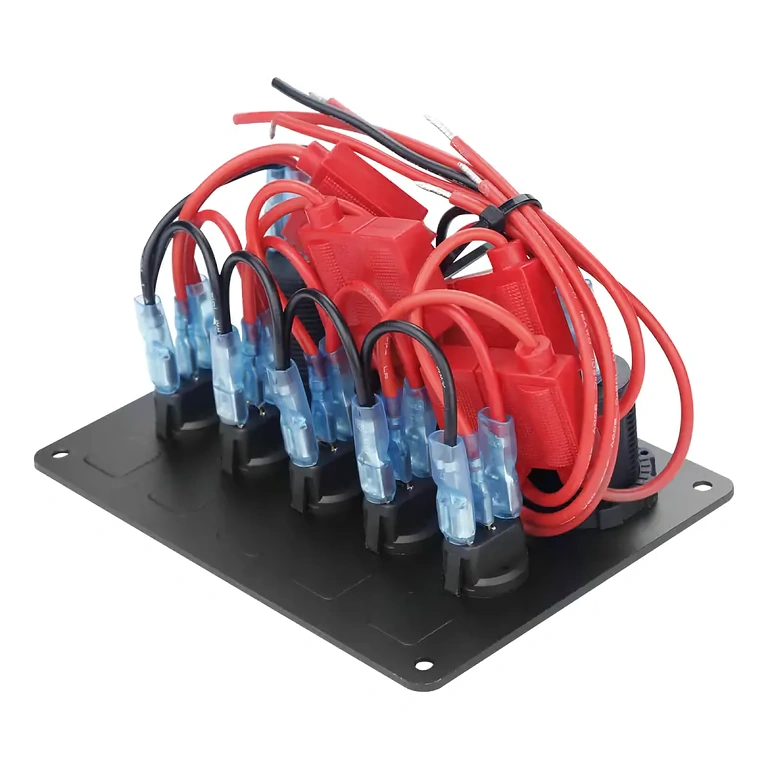

- Certified IP65 Protection — Includes waterproof gaskets; resistant to water jets from any direction, making it ideal for boats, ATVs, or campervans exposed to the elements.
- 5 Individual 15A Fuses — Each circuit is protected separately, ensuring that a short circuit in one accessory won’t affect the rest of your system.
- Integrated LED Digital Voltmeter — Monitor your battery voltage in real-time without needing a separate multimeter. Compatible with both 12V and 24V systems.
- Dual 5V / 2.1A USB Ports — Charge your phone and tablet simultaneously without needing extra adapters.
- 120W Cigarette Lighter Socket — Powerful enough for mini-fridges, air pumps, or any portable device up to 10A.
- Pre-wired Design — Connect directly to your battery and accessories in under 30 minutes with no special tools needed.
- 45 Functional Labels — Customise each switch with included stickers (e.g., lights, fan, pump, inverter) so you always know exactly what you are controlling.
Performance and Build Quality
The housing, crafted from reinforced ABS and aluminium plate, is as durable as it is stylish. The aluminium helps dissipate heat generated by circuits under load, extending the lifespan of internal components. With an operating temperature range of -25°C to +80°C, it is built to handle everything from freezing mountain winters to the sweltering heat of a truck cabin in August.

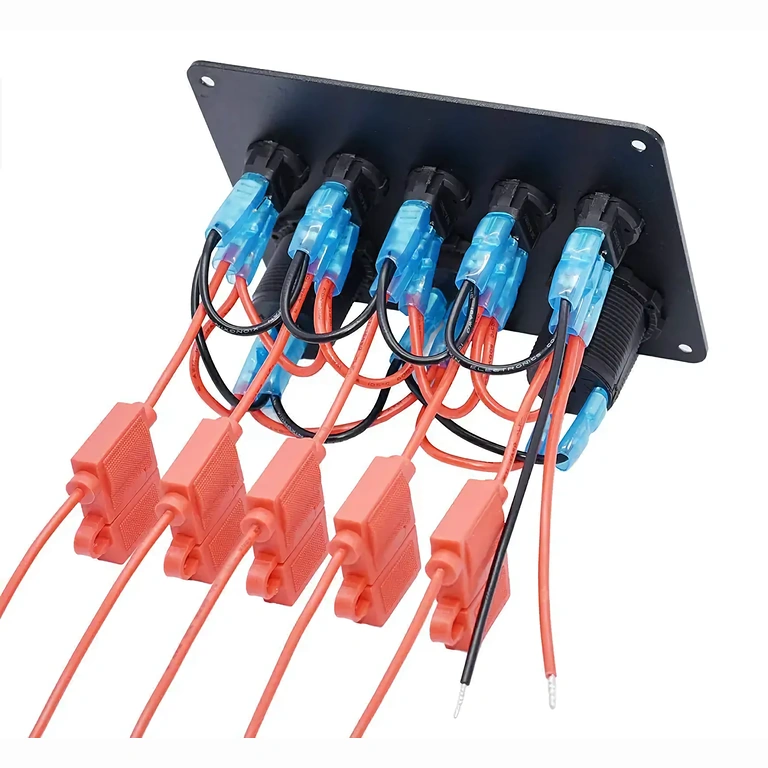

The 5 rocker switches with blue LED indicators provide instant visual confirmation of each circuit’s status. With a total power capacity of 240W, you can run multiple accessories at once without overloading your vehicle’s electrical system.
Integrated protections against short circuits, overloads, and overvoltage work automatically, ensuring the panel protects itself and your equipment before any issues arise.
| Parameter | Value / Detail |
|---|---|
| Housing Material | ABS + Aluminium plate |
| Colour | Black |
| Input Voltage | DC 12V / 24V |
| Total Max Power | 240W |
| Cigarette Socket Power | 120W |
| Individual Fuse Rating | 15A per switch |
| USB Output | 2 ports, 5V / 2.1A total |
| Voltmeter | Digital LED, 12V / 24V |
| Switch LED | Built-in blue light |
| Protection Rating | IP65 (Water and dust resistant) |
| Operating Temperature | -25°C to +80°C |

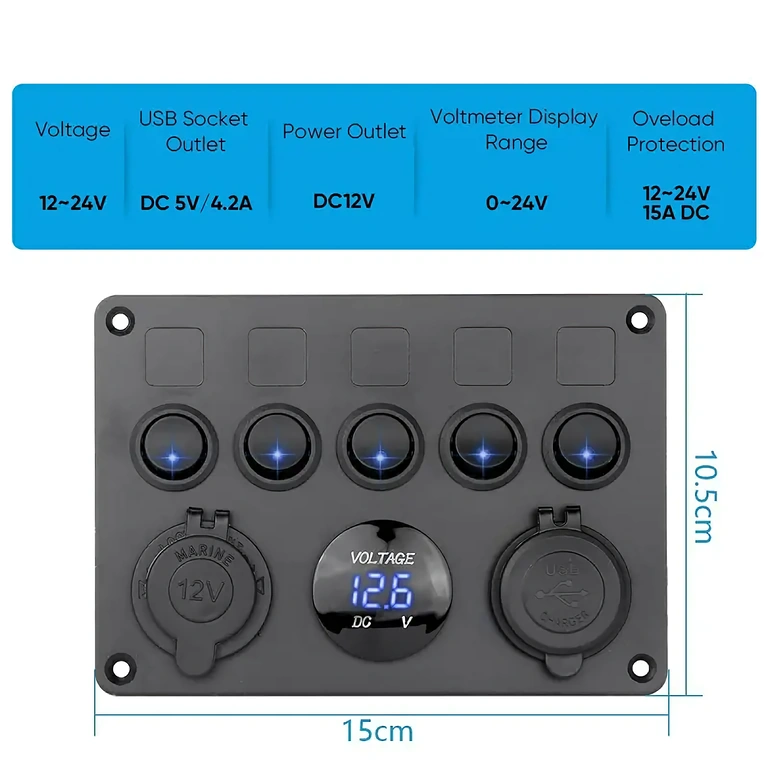

| Dimensions | 10.5 × 15 × 9 cm |
| Weight | 480g |
| Integrated Protections | Short circuit, overload, overvoltage |
| Vehicle Compatibility | Car, campervan, boat, motorcycle, ATV, truck, tractor, machinery |
What’s in the Box
- 1x 5-Gang ON/OFF switch panel with blue LED
- 1x Integrated digital LED voltmeter (12V/24V)
- 1x Cigarette lighter socket (120W)
- 1x Dual USB charger (5V / 2.1A)
- Pre-wired cables for direct connection
- Waterproof gaskets (IP65 certified)
- Mounting screws
- Set of 45 functional labels for button identification
Frequently Asked Questions
Does it work with both 12V and 24V systems?
Yes. The switch panel is natively compatible with both DC standards: 12V for cars, boats, and ATVs, and 24V for trucks, buses, and tractors. The voltmeter will accurately display the voltage in both cases without any additional configuration.
Can I connect LED spotlights or an air compressor?
Yes, provided that each individual circuit does not exceed 15A and the total power consumption remains under 240W. For equipment with high inrush current (like compressors or inverters), please check the peak current in the manufacturer’s specifications before connecting.
Does IP65 mean it is waterproof or just splash-proof?
IP65 certification means total protection against dust and resistance to water jets from any direction—so it is perfect for rain, sea spray, or low-pressure hose cleaning. It is not intended for submersion or prolonged underwater use.
Is installation difficult if I am not an electrician?

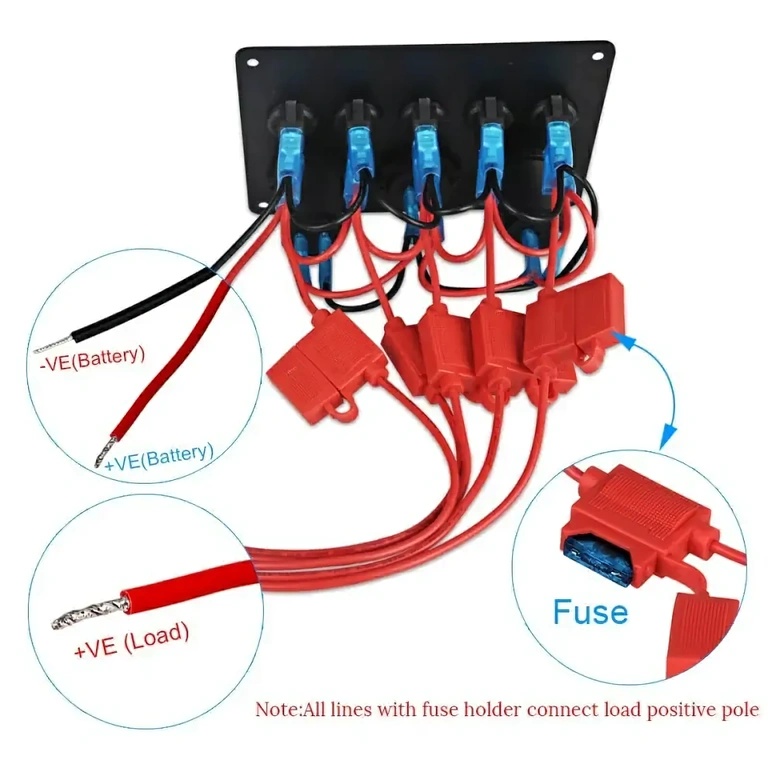

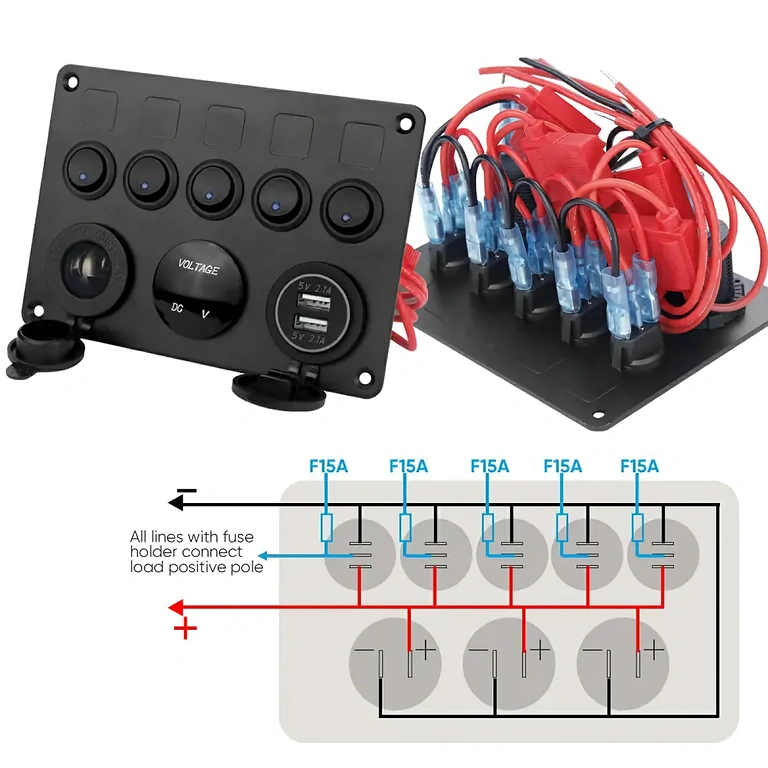

Not at all. The wires are pre-connected and colour-coded. Simply connect the red wire (positive) to your power source, the black wire to the ground (chassis), and the output wires to the accessories you wish to control. Most users complete the installation in 20–30 minutes.
Can I label the buttons myself?
Yes. The package includes 45 pre-printed stickers with icons for the most common accessories: lights, fans, pumps, inverters, and more. Apply them directly to the panel for quick, clear identification.
