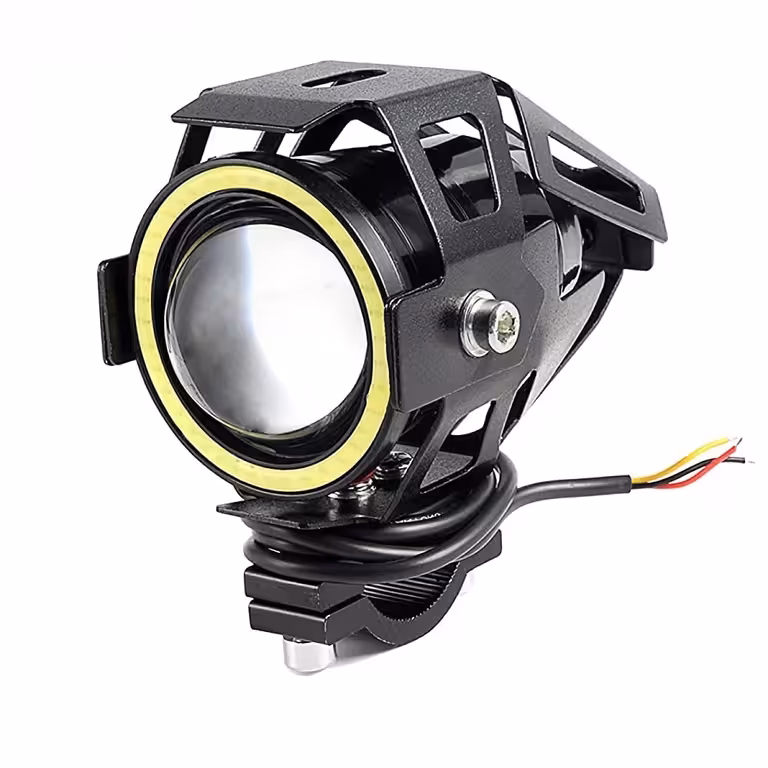

U7 Angel Eyes LED Spotlight – 3000 Lumens & IP68 Rating for Motorcycles, ATVs, and Off-Road
When you’re riding on unlit roads, at high speeds, or in challenging weather, a dim headlight isn’t just an inconvenience—it’s a safety risk. The U7 Angel Eyes LED spotlight delivers 200 metres of crystal-clear visibility while drawing only 15W of power. It is compatible with any vehicle running between 12V and 85V, requiring no complex modifications to your electrical system.
Note: The price is for 1 unit. To receive a complete set, please add two units to your basket.
Why choose the U7 Angel Eyes LED Spotlight? (Key Benefits):
- 200-metre illumination range — spot hazards well in advance, giving you plenty of time to react.
- 12V–85V DC compatibility — mounts directly onto motorcycles, ATVs, electric scooters, or off-road vehicles without the need for an extra relay.
- 3-in-1 lighting modes — switch between high beam, low beam, and strobe depending on your riding conditions.
- Independently controlled Angel Eyes ring — connect the yellow wire separately to use the ring as a daytime running light or for a stylish visual effect without activating the main LED.
- IP68 certified — rain, mud, or river crossings: this spotlight is built to keep going where standard headlights fail.
- 80,000+ hour lifespan — if used for 8 hours a day, this light would last over 27 years without needing a replacement.
- Aluminium housing with active heat dissipation — ensures stable performance in temperatures ranging from -40°C to +80°C, even during long off-road sessions.
Performance and Specifications
The high-intensity CREE chip inside the U7 unit consumes only 15W of real power while producing a massive 3000 lumens at a colour temperature of 6000K–7000K. This cool white light provides precise road detail without causing visual fatigue. The polycarbonate lens focuses the beam efficiently, minimising light spill.
The 12V–85V DC voltage range makes it compatible with almost any vehicle without needing an intermediate transformer or relay. The stainless steel bracket and aluminium housing provide mechanical rigidity and excellent corrosion resistance, even after seasons of heavy use in harsh conditions.
Installation Tip: For Enduro motorcycles or ATVs prone to high vibration, we recommend placing a rubber washer between the bracket and the crash bar to protect both the spotlight and the electrical connections over the long term.
| Parameter | Value / Detail |
|---|---|
| Theoretical Power | 125W |
| Actual Power Consumption | 15W |
| Luminous Flux | 3000 lumens |
| Colour Temperature | 6000K – 7000K (cool white) |
| Lighting Modes | High beam, low beam, strobe (flash) |
| Illumination Range | Up to 200 metres |
| Operating Voltage | 12V – 85V DC |
| Waterproof Rating | IP68 (water and dust resistant) |
| LED Lifespan | Over 80,000 hours |
| Operating Temperature | -40°C to +80°C |
| Product Dimensions | 12.6 × 8.3 × 9.5 cm |
| Cable Length | 90 cm |
| Weight | 500 grams |
| Materials | Aluminium housing, polycarbonate lens, stainless steel bracket |
| Wiring Colours | Black = Negative, Red = Positive (Main LED), Yellow = Positive (Angel Eyes) |
Installation and Wiring Guide
- Identify the wires: Black = Ground (negative), Red = Main LED power (beams), Yellow = Angel Eyes ring power.
- Connect the black wire to the negative terminal of the battery or the vehicle chassis.
- Connect the red wire to your high/low beam switch or directly to a positive terminal for continuous use.
- Connect the yellow wire to a separate positive source (e.g., ignition or a dedicated switch) to activate the Angel Eyes ring independently.
- For the strobe (flash) function: connect the red wire to an intermittent relay or flash switch, depending on your vehicle’s wiring configuration.
- Final Check: Test every function before final mounting. Secure all connections with electrical tape or waterproof connectors.
Package Contents
- 1 × U7 Angel Eyes LED Spotlight
- 1 × Stainless steel mounting bracket with fixing screws
- 1 × 3-wire connection cable (90 cm length)
Frequently Asked Questions
Is it compatible with my 12V motorcycle?
Yes. It works with any voltage between 12V and 85V DC, making it perfect for motorcycles, ATVs, electric scooters, and off-road vehicles without needing electrical system modifications.
Can I use it as a main headlight, or is it just an auxiliary light?
It can be used as either a main headlight or as an auxiliary fog light, depending on how you choose to mount and wire it.
Can the Angel Eyes ring be turned on separately from the main LED?
Yes. The yellow wire controls the Angel Eyes ring exclusively, allowing you to turn it on independently without activating the main LED (red wire).
Does it withstand heavy rain and mud?
Yes, the IP68 rating ensures complete protection against dust and water, including temporary submersion. It performs reliably in all weather conditions.
Does the price include two units?
No, the price is for a single unit. To get a pair, please add two units to your basket.
What should I do if I’m mounting it on a high-vibration ATV or Enduro bike?
Place a rubber element between the bracket and the crash bar. This will absorb shocks and protect both the housing and the electrical connections over time.
