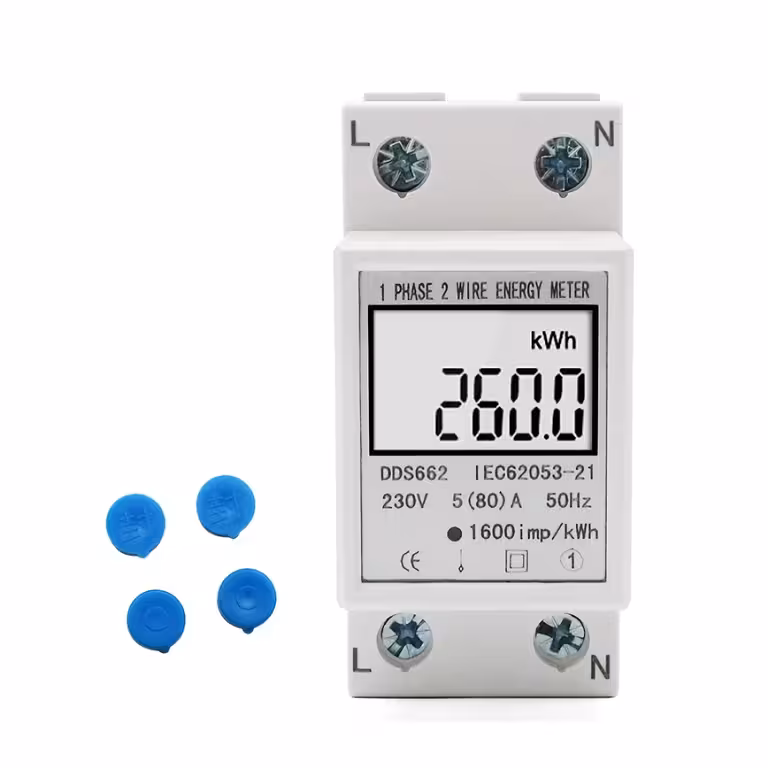

Single-Phase DIN Rail Electricity Meter — Take control of your energy consumption
Ever wonder where your electricity is actually going? With this single-phase DIN rail electricity meter installed directly in your consumer unit, you can monitor your voltage, current, power, and total kWh consumption in real-time. It provides the precise data you need to make informed decisions about your energy usage and avoid unexpected bill surprises.
Note: This meter does not feature a reset button, ensuring data integrity and preventing accidental or intentional tampering with your consumption records.
Why choose this model? (Key Benefits):
- Backlit LCD Display — Easily read all your parameters at a glance, even in dimly lit fuse boxes or low-light environments.
- Quick 35mm DIN Rail Mounting — Designed for standard consumer units, it snaps into place in minutes without the need for complex tools.
- 6-in-1 Monitoring — Track kWh, voltage, current, frequency, active power, and power factor simultaneously on one clear screen.
- High Capacity (80A) — Supports continuous loads up to 17,000W, making it suitable for everything from residential apartments to small workshops.
- Tamper-Proof Data — With no reset button, your recorded consumption data remains secure and permanent.
- Electromagnetic Interference Resistance — Integrated SMT circuits maintain Grade 1 accuracy, even in environments with high electrical noise.
- Wide Operating Temperature — Rated for -20°C to +50°C, making it ideal for outdoor enclosures or unheated utility areas.
Performance and Reliability
Grade 1 accuracy is guaranteed by advanced SMT integrated circuits that filter out interference, ensuring precise measurements regardless of grid fluctuations. With 4KV AC isolation and 6KV impulse protection, your equipment and installation are safeguarded against power surges. A built-in red pulse LED provides a visual confirmation that the unit is operating correctly without needing a multimeter.
| Parameter | Specification |
|---|---|
| Type | Single-phase DIN rail |
| Accuracy | Grade 1 |
| Reference Voltage | 220V / 230V, 50/60Hz |
| Reference Current | 5(80)A |
| Maximum Power | 17,000W |
| Display | Backlit digital LCD |
| Displayed Parameters | kWh, Voltage (V), Current (A), Frequency (Hz), Power (W), Power Factor |
| Mounting Type | 35 mm DIN Rail (DIN EN50022) |
| Width per Pole | 17.5 mm (DIN43880) |
| Wiring Method | Top INPUT & Bottom OUTPUT / Bottom INPUT & Top OUTPUT |
| Insulation Properties | 1 min 4KV (AC voltage); 1.2/50µs 6KV (impulse) |
| Pulse Signal | Red LED |
| Operating Temperature | -20°C ~ +50°C |
| Housing Material | ABS Plastic |
| Dimensions | 78.3 mm × 65.1 mm × 36.2 mm |
| Weight | 127.8 g |
Package Contents
- 1 × Single-phase DIN rail electricity meter with LCD display
Frequently Asked Questions
Can I reset the meter to zero?
No. There is no reset button. The recorded consumption is stored permanently, which ensures long-term accuracy and data integrity for your records.
Will it fit my consumer unit?
Yes, if your board uses a standard 35mm DIN rail. It is a compact unit occupying only 17.5mm (the width of a single pole).
Is it compatible with standard electrical grids?
Yes. It is calibrated for 220V/230V at 50Hz, which is the standard single-phase grid configuration across Europe.
What is the maximum current capacity?
It supports 80A in continuous operation, allowing for a load of up to 17,000W, which comfortably covers most homes and small commercial spaces.
