Wireless Ceiling Fan and Light Remote Control – 2 Independent Circuits, No Rewiring Needed
Ever found yourself lying in bed, wishing you could turn off the fan or light without having to get up? This wireless remote control kit is the perfect solution. It allows you to manage two separate circuits from a single device, with a reliable signal range of up to 30 metres.
Note: AAA batteries for the remote are not included. The receiver is designed to be installed within your existing junction box or electrical housing.
Why choose this model? (Key Benefits):
- 2 Completely Independent Circuits — Control your fan and lighting separately or simultaneously from one remote, with no interference between them.
- 4-Stage Timer (1 / 2 / 4 / 8 hours) — Set the fan to turn off automatically while you sleep, helping you save energy throughout the night.
- 3 Speed Settings (Low / Medium / High) — Easily adjust the airflow to match your room’s temperature rather than just simple on/off control.
- 30-Metre Range — Provides a stable signal that works through standard interior walls for seamless control.
- 1000W Total Load — Safely supports both a ceiling fan and a lighting circuit simultaneously without overheating.
- Wall Mount Included — Quick and easy installation; keep your remote within reach by your bed or sofa without needing to drill holes.
- Wide Compatibility — Suitable for use with ceiling and wall-mounted fans, extractor hoods, heaters, and 220V ambient lighting systems.
Performance and Specifications
The receiver operates at 110V / 220V, 50–60 Hz, making it fully compatible with standard European electrical grids without the need for additional adapters. The casing is rated for operating temperatures up to 80°C, ensuring durability even in well-ventilated areas or near heat sources. The ergonomic ABS remote is compact (13.6 x 5 x 1.8 cm), designed to fit comfortably in your hand.
| Parameter | Value / Detail |
|---|---|
| Rated Voltage | 110V / 220V |
| Total Power Load | 1000W |
| Frequency | 50Hz – 60Hz |
| Number of Circuits | 2 (1 Fan + 1 Light) |
| Speed Settings | 3 (Low, Medium, High) |
| Timer | 1 / 2 / 4 / 8 hours |
| Wireless Range | Up to 30 metres |
| Remote Battery Type | AAA (not included) |
| Remote Material | ABS |
| Remote Dimensions | 13.6 x 5 x 1.8 cm |
| Receiver Dimensions | 11.6 x 5.3 x 2.7 cm |
| Operating Temperature | Up to 80°C |
| Wall Mount | Included, no drilling required |
Programming and Usage Instructions
- Connect the receiver to the 220V power supply, ensuring you follow the polarity indicated in the manual.
- Insert AAA batteries into the remote, paying attention to the (+/-) polarity markings.
- Press the pairing button on the receiver, then confirm the connection using the remote.
- Select your desired circuit — fan or light — using the dedicated buttons.
- Choose your preferred speed setting (Low / Medium / High) for the fan circuit.
- Set the timer by pressing the corresponding button: 1h, 2h, 4h, or 8h — the device will switch off automatically once the time elapses.
- Attach the wall mount in your preferred location and place the remote inside to keep it handy.

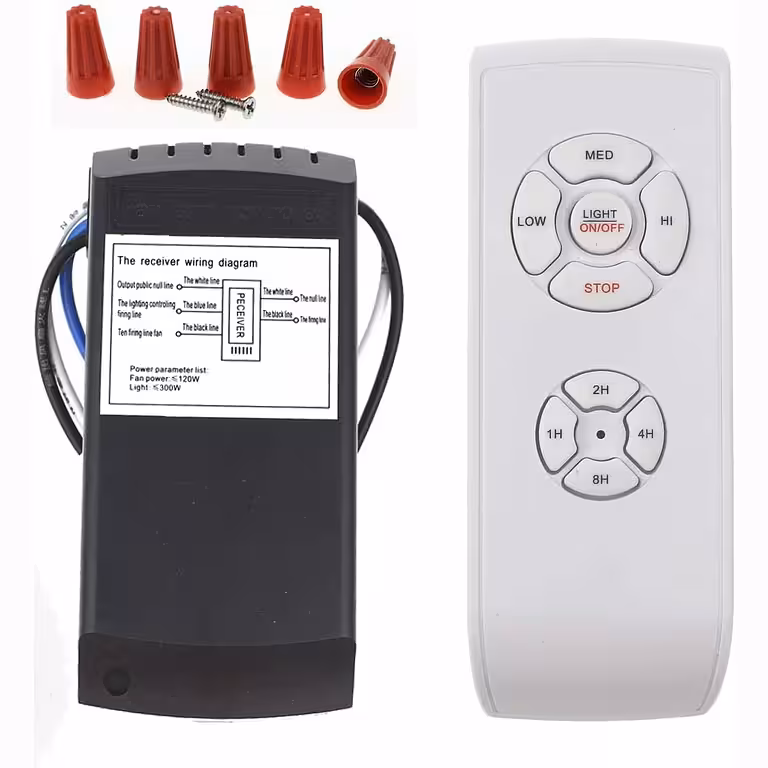

Package Contents
- 1 x 220V Wireless Receiver (2 circuits)
- 1 x ABS Remote Control with dedicated buttons
- 1 x Wall mount for the remote
Frequently Asked Questions
Is this compatible with any ceiling fan?
Yes, it works with most 220V ceiling and wall fans, provided the total load does not exceed 1000W.
Can I control the light and fan at the same time?
Yes. The two circuits are independent and can be activated or deactivated separately or simultaneously using the same remote.
Does the timer work on both circuits?
Yes, the timer (1 / 2 / 4 / 8 hours) can be set individually for each circuit, allowing the fan and light to have different switch-off times.
Can the receiver be mounted in an electrical box?
Yes, its compact size (11.6 x 5.3 x 2.7 cm) allows for installation in standard junction boxes or electrical enclosures. We recommend installation by a qualified electrician.
