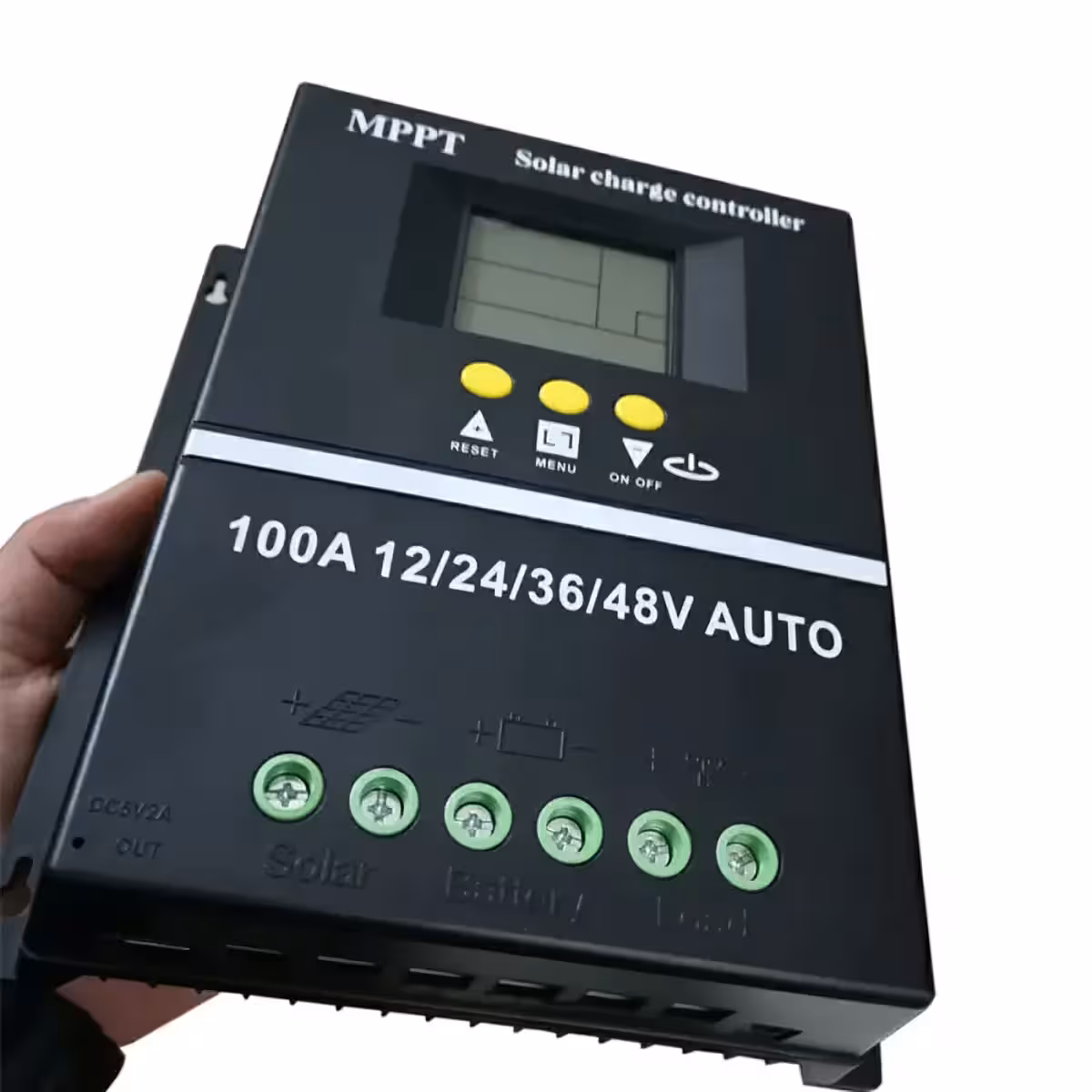

SY48100A 100A MPPT Solar Charge Controller – Up to 30% more energy than PWM for any off-grid system
If your solar panels are producing more power than your battery is receiving, it’s not a panel issue—it’s a controller limitation. The SY48100A extracts up to 99.5% of available energy, even during overcast conditions. It supports 12V, 24V, 36V, and 48V systems with automatic voltage detection, requiring no manual configuration.
Note: Always connect the battery before the solar panels. The controller automatically detects system voltage upon initial startup.
Why choose the SY48100A 100A MPPT Controller? (Key Benefits):
- Up to 99.5% MPPT Efficiency — Outperforms standard PWM controllers by 20–30% in real-world conditions.

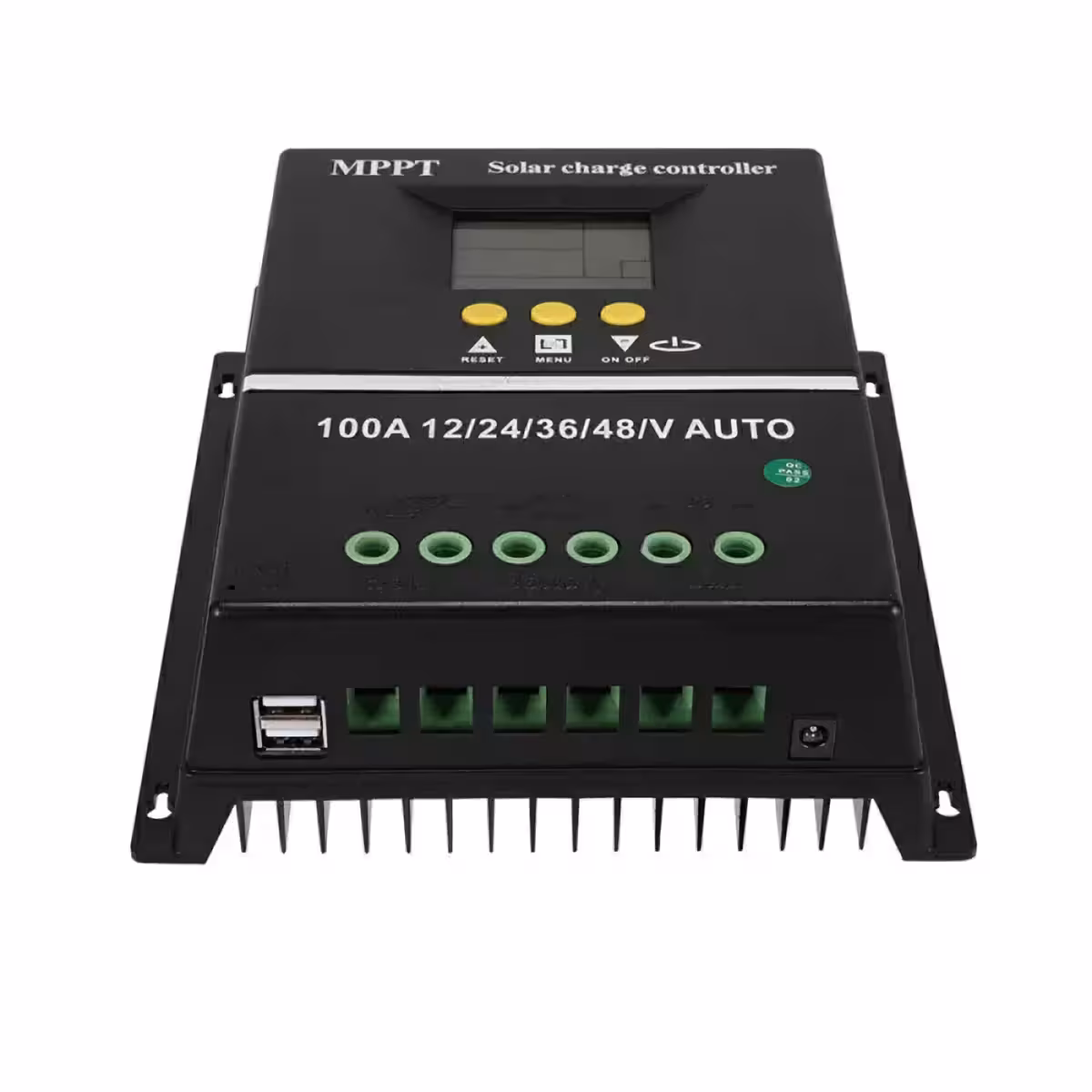

- Multi-Voltage Auto-Detection — Automatically identifies your system voltage (12V, 24V, 36V, or 48V) with no manual setup required.
- Universal Battery Compatibility — Supports Lead-acid, GEL, AGM, Lithium-ion, and LiFePO4 batteries, with dedicated charging profiles selectable via the menu.
- 4800W Capacity at 48V — Scalable for large installations, from off-grid cabins to agricultural or industrial setups.
- 7 Programmable Operating Modes — Includes automatic dusk-to-dawn lighting control, perfect for solar street lights or remote sites.

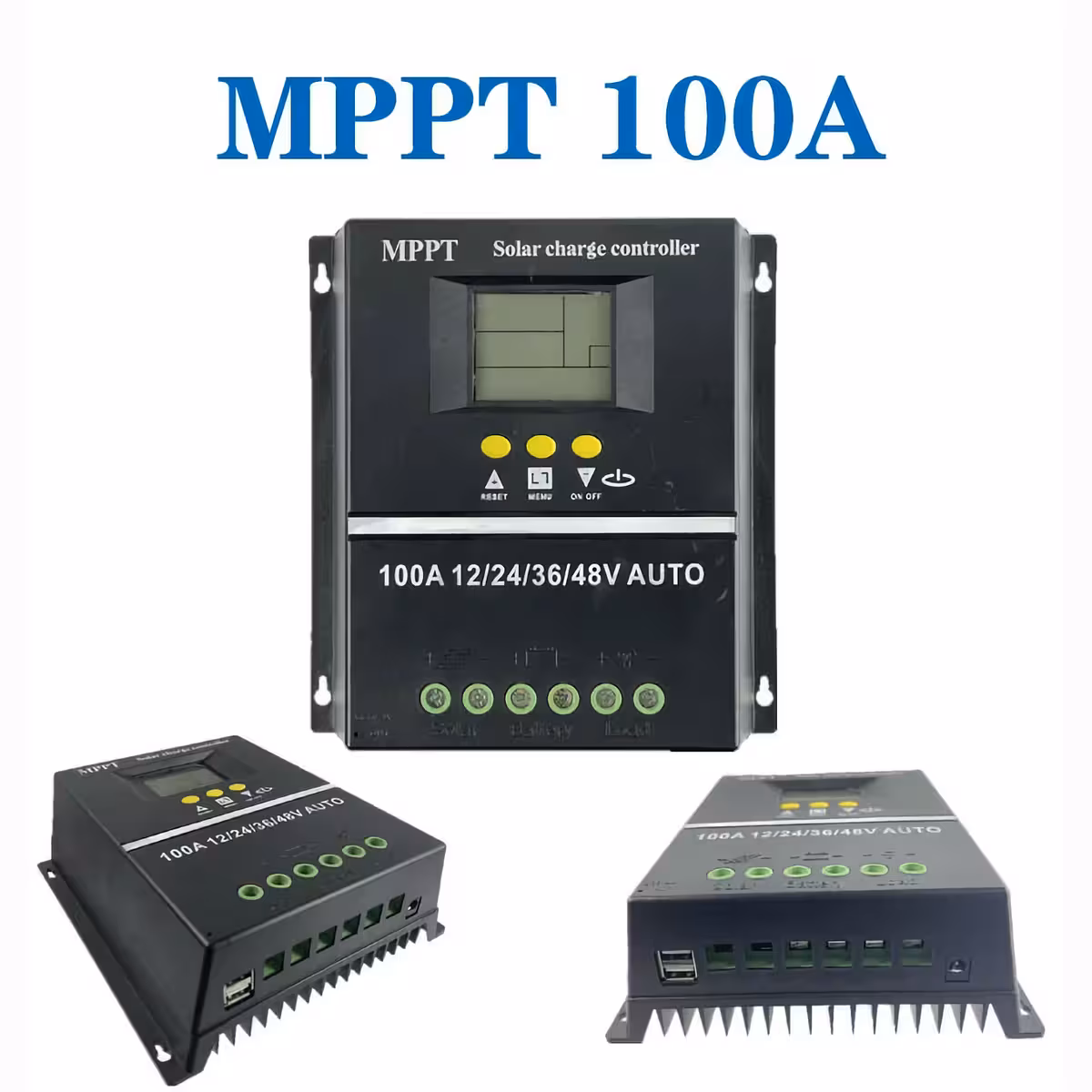

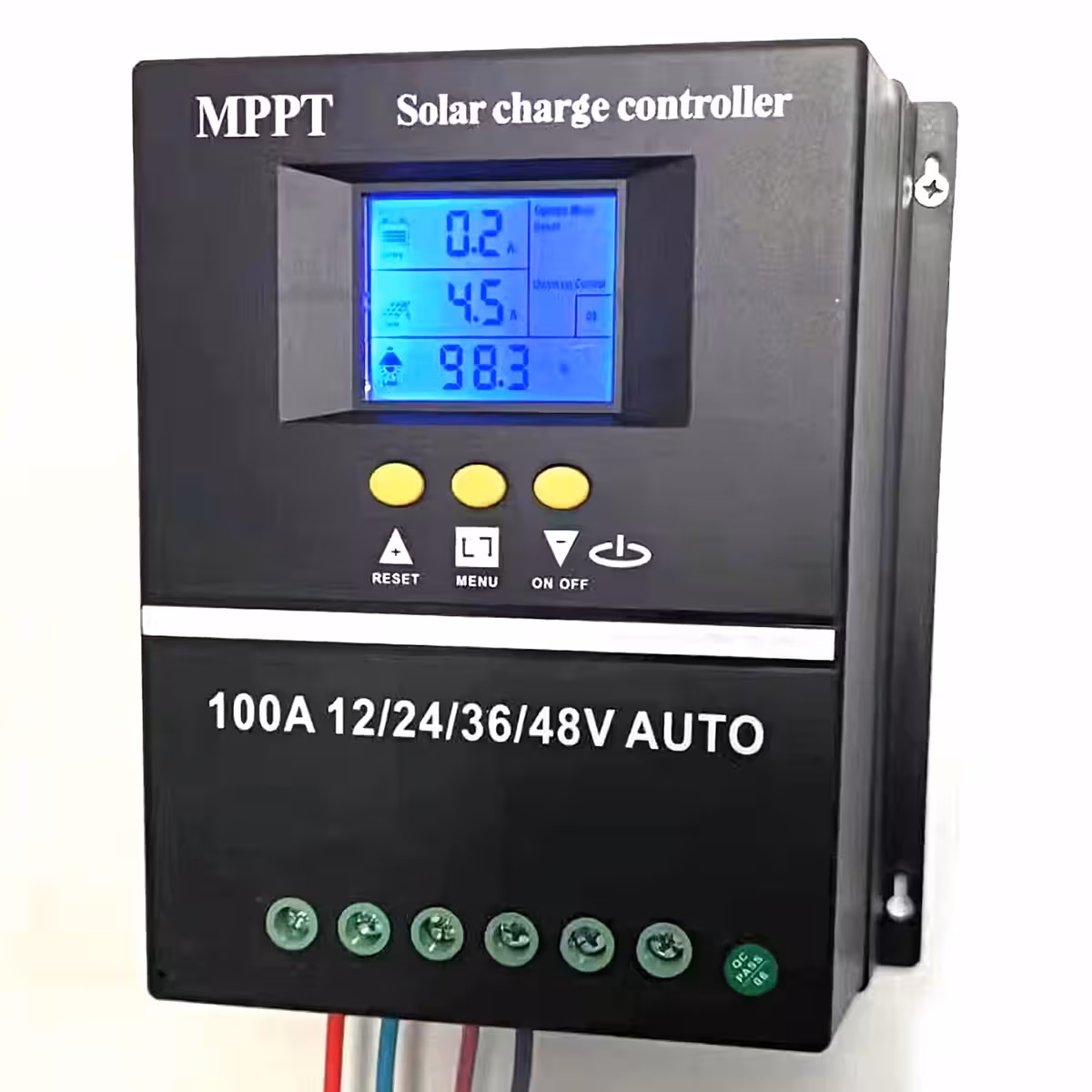

- Backlit LCD Display — View voltage, current, and battery status at a glance; no Bluetooth or external apps required.
- Dual 5V USB Ports — Charge your phone or tablet directly from the controller without needing an extra inverter.
- Comprehensive Integrated Protection — Features built-in safeguards against overvoltage, short-circuits, overheating, over-discharge, and reverse polarity.
Performance and Technical Details
The MPPT (Maximum Power Point Tracking) algorithm continuously adjusts input impedance to keep your panels at their peak power point, even during early mornings or cloudy weather. The result is faster, more complete battery charging compared to PWM solutions of the same capacity.
With a maximum current of 100A and support for panel voltages between 15V and 98V (depending on configuration), this controller is ideal for everything from single-panel setups to complex arrays connected in series or parallel.
The 7 operating modes cover a wide range of scenarios: standard charging, automatic night-time load control, programmable timers, universal mode, manual control, and a test mode for rapid installation verification.
| Parameter | Value / Detail |
|---|---|
| Model | SY48100A |
| Technology | MPPT (Maximum Power Point Tracking) |
| Max Charging Current | 100A |
| Supported Battery Voltages | 12V / 24V / 36V / 48V (Auto-detect) |
| MPPT Efficiency | Up to 99.5% |
| Compatible Battery Types | Lead-acid, GEL, AGM, Lithium-ion, LiFePO4 |

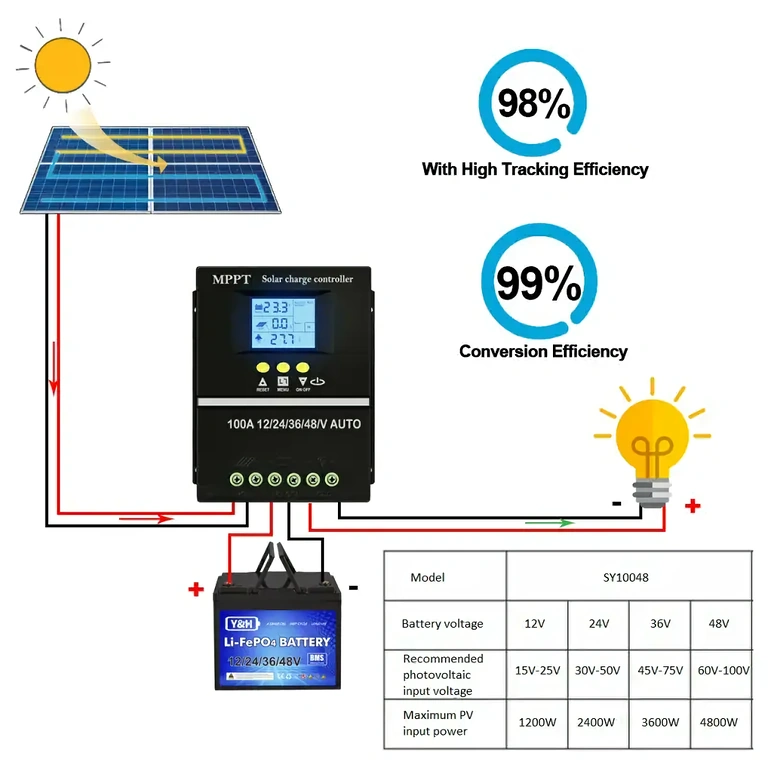

| Max Panel Power – 12V Battery | 1200W (15–28V panel) |
| Max Panel Power – 24V Battery | 2400W (30–55V panel) |
| Max Panel Power – 36V Battery | 3600W (45–68V panel) |
| Max Panel Power – 48V Battery | 4800W (60–98V panel) |
| USB Ports | 2 x 5V USB |
| Display | Backlit LCD Screen |
| Operating Modes | 7 Programmable modes |
| Integrated Protections | Overvoltage, short-circuit, overheating, over-discharge, reverse polarity |
| User Parameters | Configurable and saved in internal memory |
| Recommended Applications | Off-grid, street lighting, residential and industrial systems |
Programming and Usage Instructions
- Connect the battery first — The controller will initialize and automatically detect the system voltage (12V, 24V, 36V, or 48V). Select your battery type from the menu.
- Select the operating mode using the onboard buttons — navigate through the 7 available modes and confirm your selection.
- Configure custom parameters — Set charging/discharging voltages and timer durations, then save the settings to internal memory.
- Connect the solar panel to the PV terminals — the controller will automatically enter MPPT mode and display real-time data on the LCD.
- Connect the DC load to the dedicated terminals, activate the output via the menu, and monitor voltage, current, and battery status on the screen.
- Use the test mode for quick installation checks — this mode features reduced switching times, making it ideal for commissioning.
Package Contents
- 1 x SY48100A 100A MPPT Solar Controller
Frequently Asked Questions
Do I need to set the system voltage manually?
No. The controller automatically detects the battery voltage (12V, 24V, 36V, or 48V) upon the first connection. Simply ensure the battery is connected before the solar panels.
Which battery types are compatible?
It works with Lead-acid (flooded), GEL, AGM, Lithium-ion, and LiFePO4. Simply select the battery type in the menu, and the controller will apply the correct charging profile.
What is the maximum panel wattage I can connect?
It depends on your system voltage: 1200W for 12V, 2400W for 24V, 3600W for 36V, and 4800W for 48V. Ensure the panel voltage remains within the specified range for your configuration.
Is this suitable for a complete off-grid system?
Yes. It manages solar charging, controls DC loads, and allows for automatic scheduling or timers—everything you need for a reliable off-grid power system.
What do the 7 operating modes do?
The modes cover various scenarios: standard charging, automatic night-time lighting control, timers, universal mode, manual control, on/off scheduling, and test mode. For street lighting, use ‘light control’ mode; for off-grid cabins with continuous consumption, ‘universal’ mode is recommended.
Is there protection against incorrect wiring?
Yes, the controller features reverse polarity protection. However, always follow the recommended sequence: battery → solar panel → load, to ensure a safe installation.
