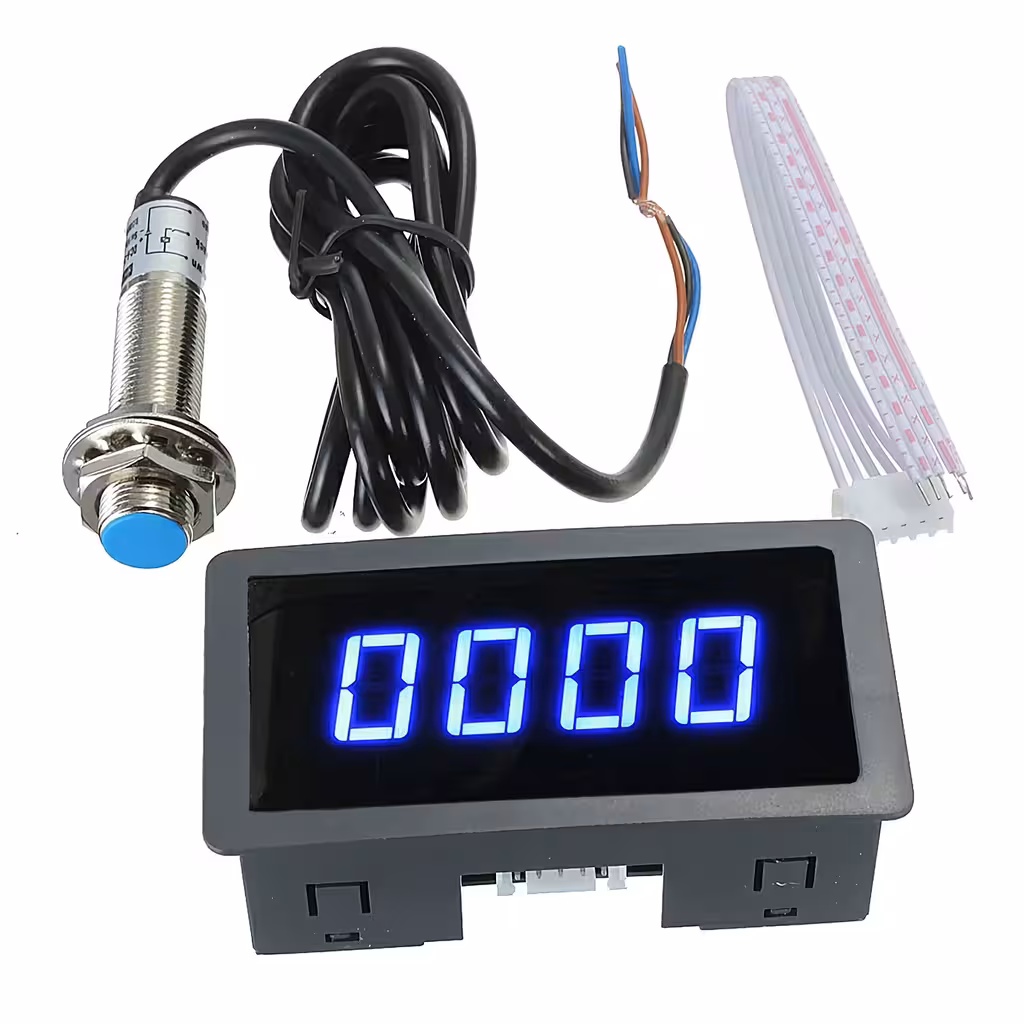

Digital Tachometer with NPN Hall Sensor – Accurate RPM monitoring for tractors, combines, and lathes with easy installation
When you’re working with heavy machinery, guessing your engine speed leads to inefficient performance and unnecessary wear. Without a clear RPM reading, adjustments are just guesswork. This digital LED tachometer with an NPN Hall sensor provides real-time monitoring of your shaft speed, offering high precision of ±2 RPM at speeds under 5000 RPM.
Note: The package includes the tachometer, NPN Hall sensor, and a 10×2 mm magnet. Everything you need for a complete installation is included in the box.
Why choose this model? (Key Advantages):

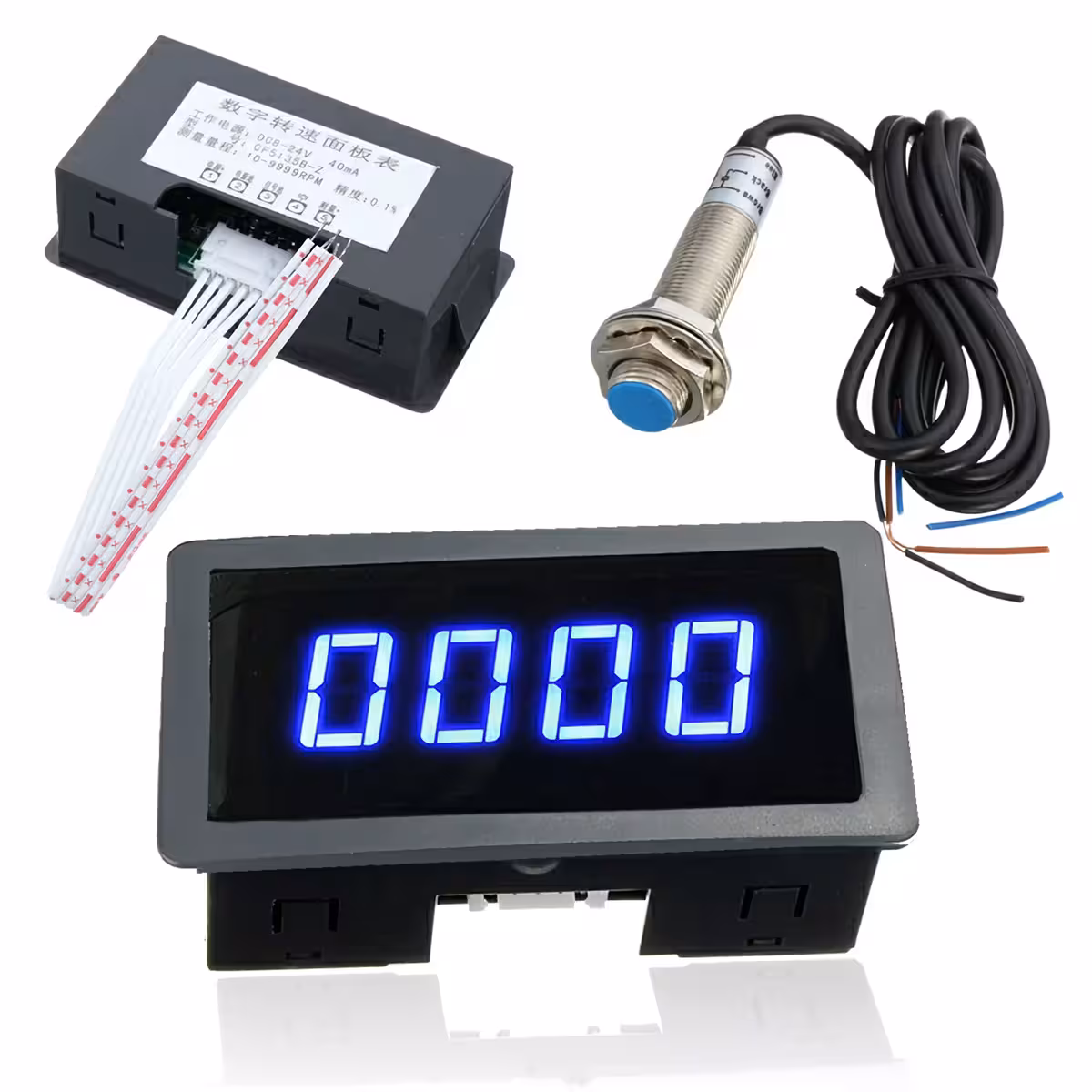

- High-visibility blue LED display — 0.56-inch digits that remain clear even in direct sunlight or bright workshop environments, not just indoors.
- Rapid refresh rate — Updates more than 3 times per second, providing real-time data rather than a delayed average, which is essential when adjusting throttle or monitoring engine load.
- Dual voltage compatibility (12V/24V) — One unit works seamlessly on both 12V tractors and 24V heavy-duty combines without the need for additional adapters.
- High precision — ±2 RPM accuracy below 5000 RPM. At the standard 540 RPM PTO speed, the maximum error is only 2 rotations per minute, ensuring reliable mechanical adjustments.
- Non-contact sensing — The magnet mounts to the shaft while the sensor remains stationary at a 1–10 mm distance. This eliminates friction and prevents wear on your equipment.
- Standard 76×39 mm cutout — Designed to fit most existing dashboard panels without requiring custom modifications to your console.
Performance and Specifications
At the core of this tachometer is a digital LED module with 0.56-inch blue digits and a 100 Hz response frequency, allowing it to track rapid speed fluctuations without visible lag. The 5–9999 RPM range makes it versatile enough for everything from slow-moving PTO shafts to high-speed electric motors.
The NPN Hall sensor detects the magnet mounted on the shaft without physical contact, at a distance of 1 to 10 mm. The included 1-metre cable provides ample length for various mounting configurations, and the –10°C to +60°C operating temperature ensures reliable performance in both cold field conditions and hot, unventilated workshops.
| Parameter | Value / Detail |
|---|---|
| Display Mode | Blue LED, 0.56-inch digits |
| Supply Voltage | DC 8V – 24V (12V and 24V compatible) |
| Measurement Range | 5 – 9999 RPM |
| Accuracy | ±2 RPM under 5000 RPM / ±3 RPM over 5000 RPM |
| Refresh Rate | >3 times / second |
| Response Frequency | 100 Hz |

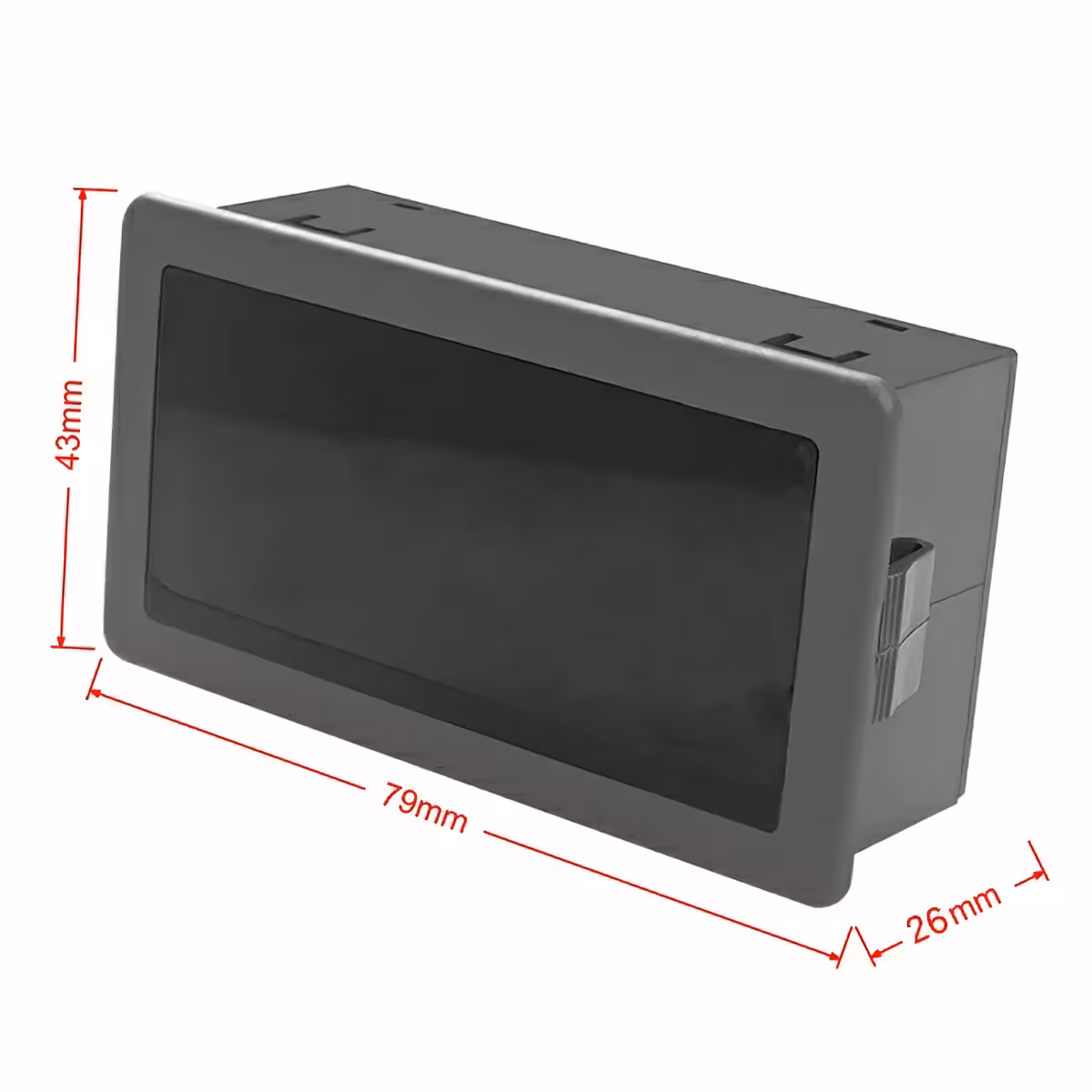

| Unit Dimensions | 79 × 42 × 25 mm |
| Panel Cutout | 76 × 39 mm |
| Sensor Type | NPN Hall with magnetic detection |
| Detection Distance | 1 mm – 10 mm |
| Sensor Output Current | 20 mA |
| Operating Temperature | –10°C to +60°C |

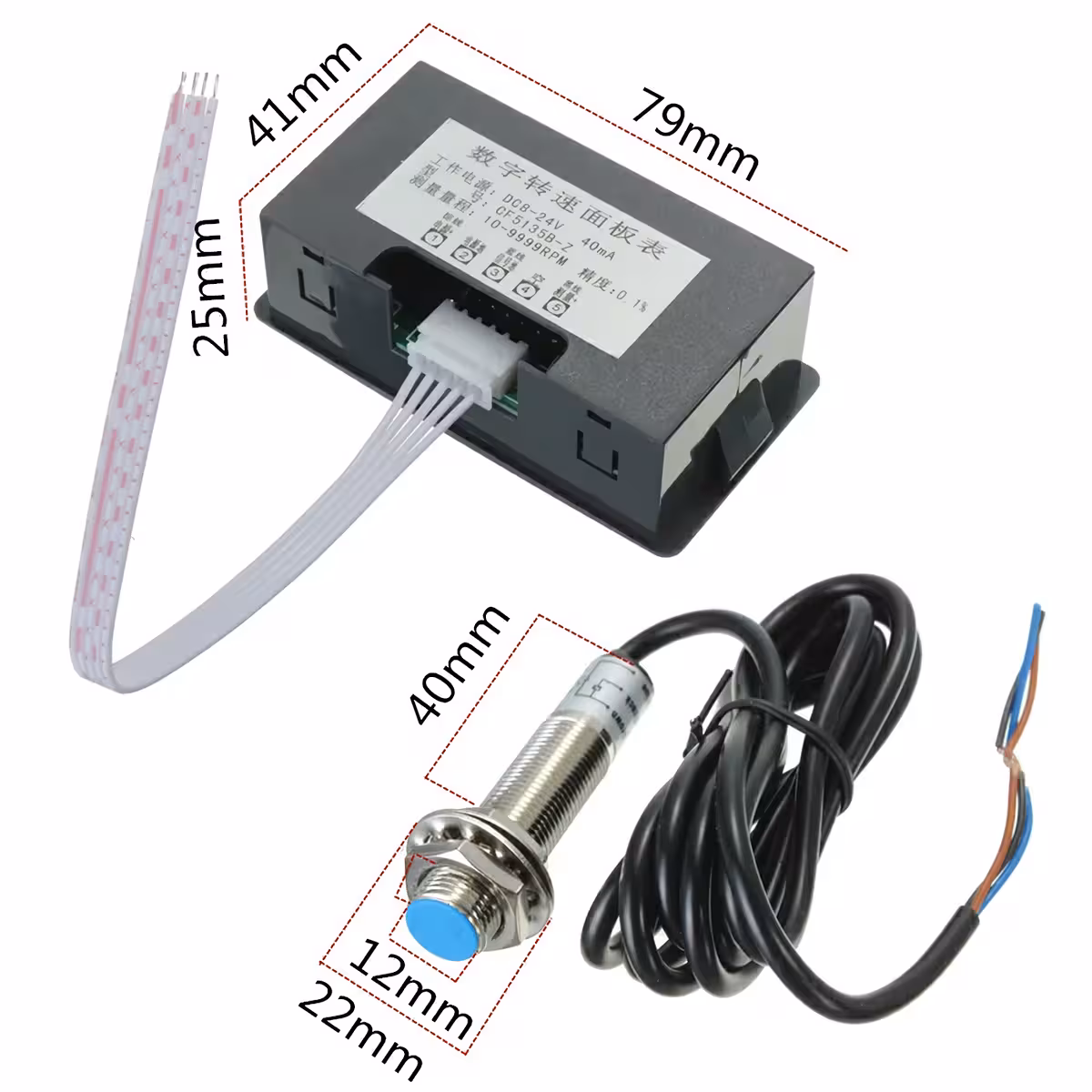

| Sensor Dimensions | 60 × 10 mm, 1 m cable |
| Magnet Included | 10 × 2 mm |
Installation and Programming
- Mount the magnet (10×2 mm) onto the rotating shaft—such as a PTO shaft, motor shaft, or flywheel—using epoxy adhesive or a mechanical clamp.
- Fix the NPN Hall sensor to a static surface, maintaining a 1–10 mm distance from the magnet. A distance of 3–5 mm is recommended for optimal stability.

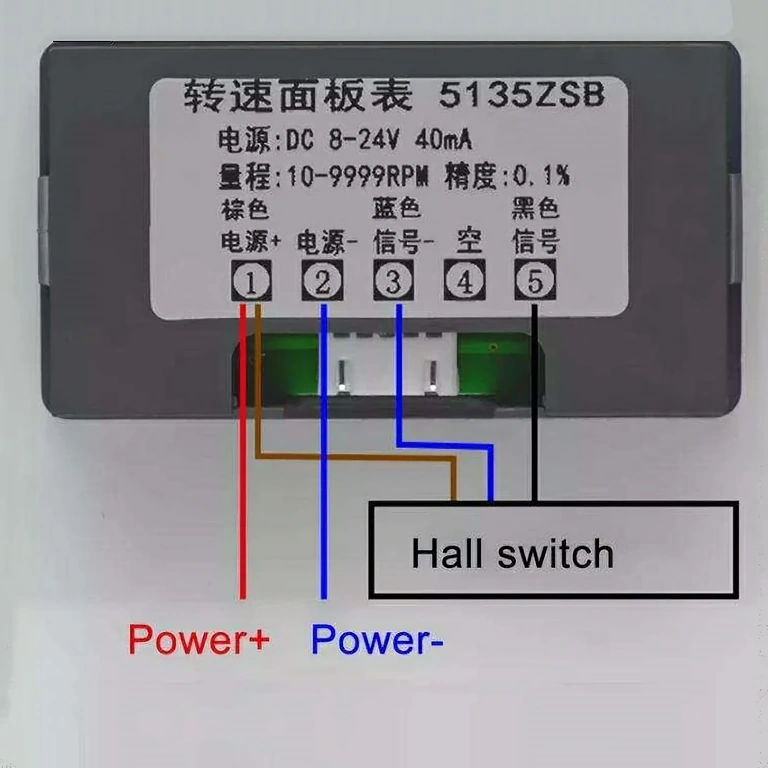

- Wire the tachometer: Connect the red wire to (+) DC 8V–24V, the black wire to ground (–), and the yellow/signal wire to the sensor output.
- Wire the Hall sensor: Connect the brown wire to (+) power, the blue wire to ground (–), and the black wire to the tachometer signal input.
- Power on the system — the LED display will activate and begin showing RPM as soon as the magnet passes the sensor.
- Calibration (if required): If your equipment uses multiple magnets on a single shaft, adjust the pulse-per-rotation setting to match your specific mechanical configuration.
Package Contents

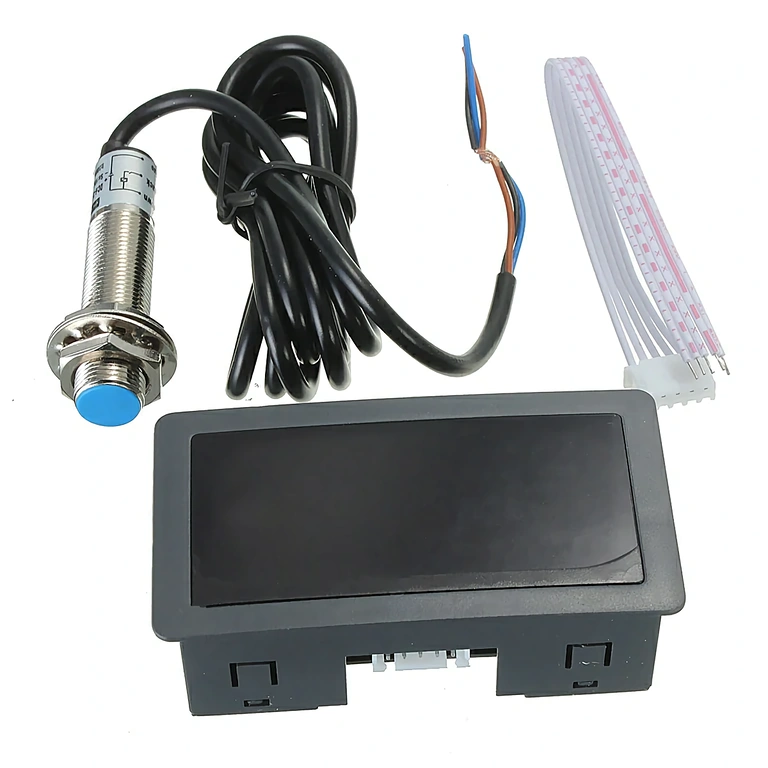

- 1 x Digital LED Tachometer (79×42×25 mm)
- 1 x NPN Hall Sensor (60×10 mm, 1 m cable)
- 1 x Magnet (10×2 mm)
Frequently Asked Questions
Does this work on 24V tractors as well as 12V systems?
Yes. The tachometer accepts any voltage between DC 8V and 24V, making it compatible with both 12V tractors and 24V heavy machinery without any modifications.
Do I need to purchase the sensor or magnet separately?
No. The kit includes the NPN Hall sensor and the 10×2 mm magnet. Everything required for installation is included in the box.
How accurate is it at 540 RPM, the standard PTO speed?
At speeds under 5000 RPM, the accuracy is ±2 RPM. At 540 RPM, the maximum error is only 2 rotations per minute, which is more than sufficient for precise PTO monitoring and adjustment.
Can this be used on lathes or compressors, not just agricultural machinery?
Yes, it is suitable for any equipment with a rotating shaft and an RPM range between 5 and 9999, including lathes, milling machines, electric motors, compressors, generators, and marine engines.
