4-Channel 220V RF Receiver – Control four lighting circuits from one remote, without leaving your sofa
Do you have multiple chandeliers, lamps, or spotlights in a room and want to control them individually without constantly walking to the wall switch? A 4-channel independent RF receiver is the perfect solution. Simply install it, pair it once, and you’re ready to go—each circuit responds instantly to your remote.
Note: This device has an IP20 rating and is designed exclusively for indoor use, away from moisture and excessive dust.
Why choose this model? (Key Benefits):
- 4 Fully Independent Channels — Control each circuit separately: the central chandelier, ambient lamps, or spotlights—each has its own dedicated button.
- High Power Capacity — Supports up to 1000W halogen or 200W LED per channel, with a total capacity of 4000W. Connect multiple bulbs per circuit with complete peace of mind.
- Stable 30m RF Signal — The 433.92 MHz frequency penetrates drywall and standard partition walls, allowing you to control lights even from an adjacent room.
- Master ON/OFF Buttons — Switch all 4 circuits on or off simultaneously with a single button—perfect for when you’re heading out the door.
- Quick 10-15 Minute Installation — Fits directly into ceiling roses or electrical junction boxes without requiring complex wiring modifications.
- Universal Bulb Compatibility — Works with halogen, LED, incandescent, and fluorescent bulbs, regardless of the brand or model.
Performance and Specifications

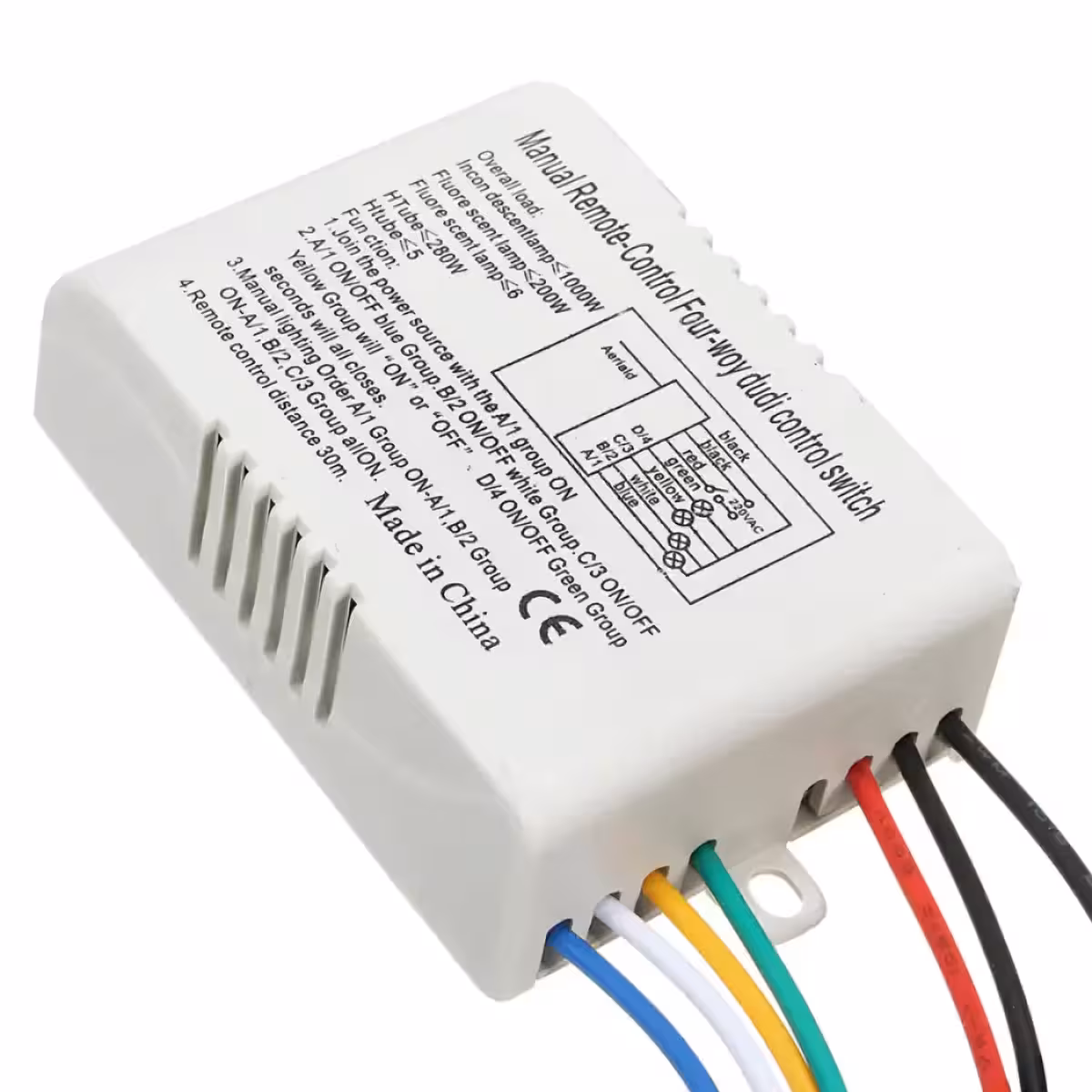

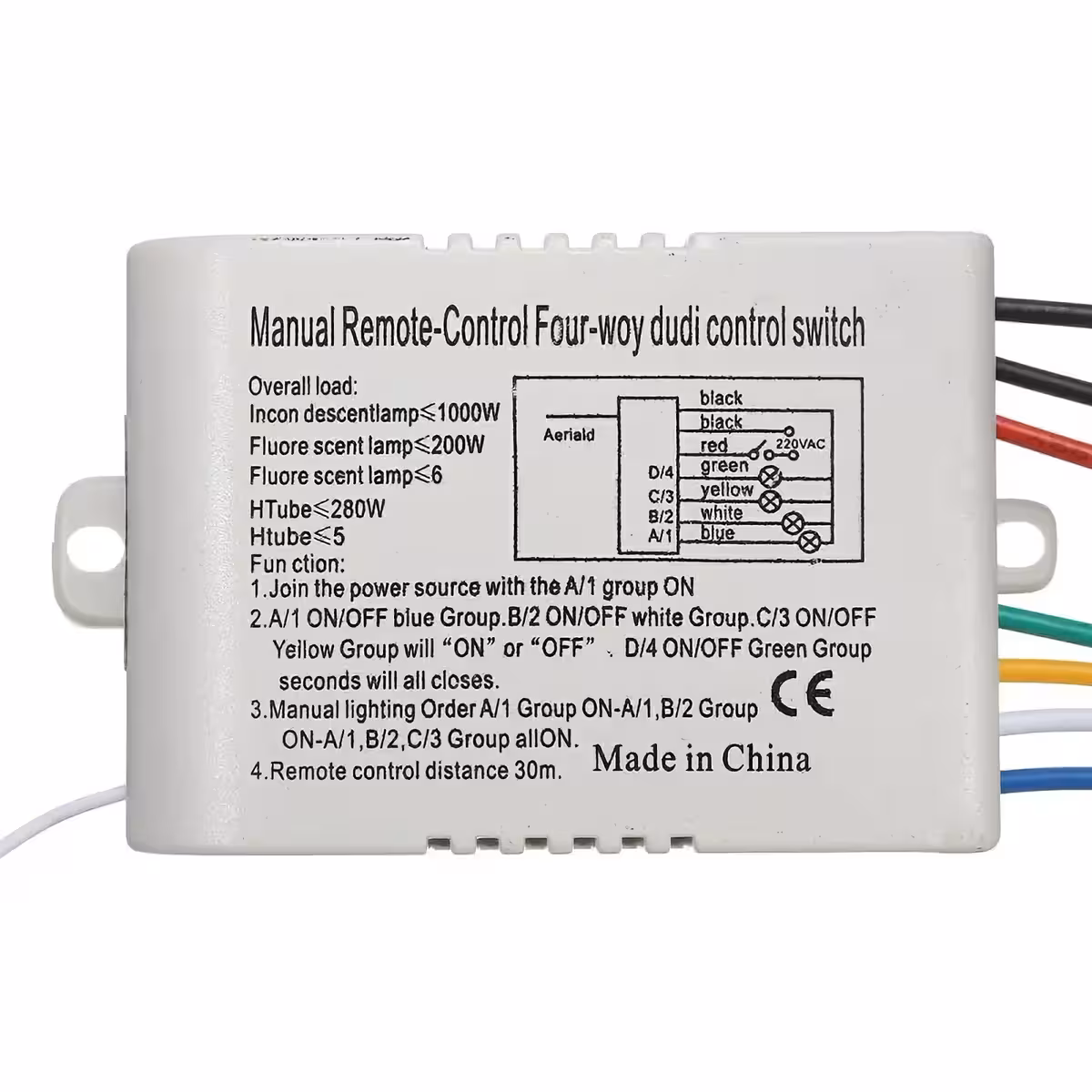

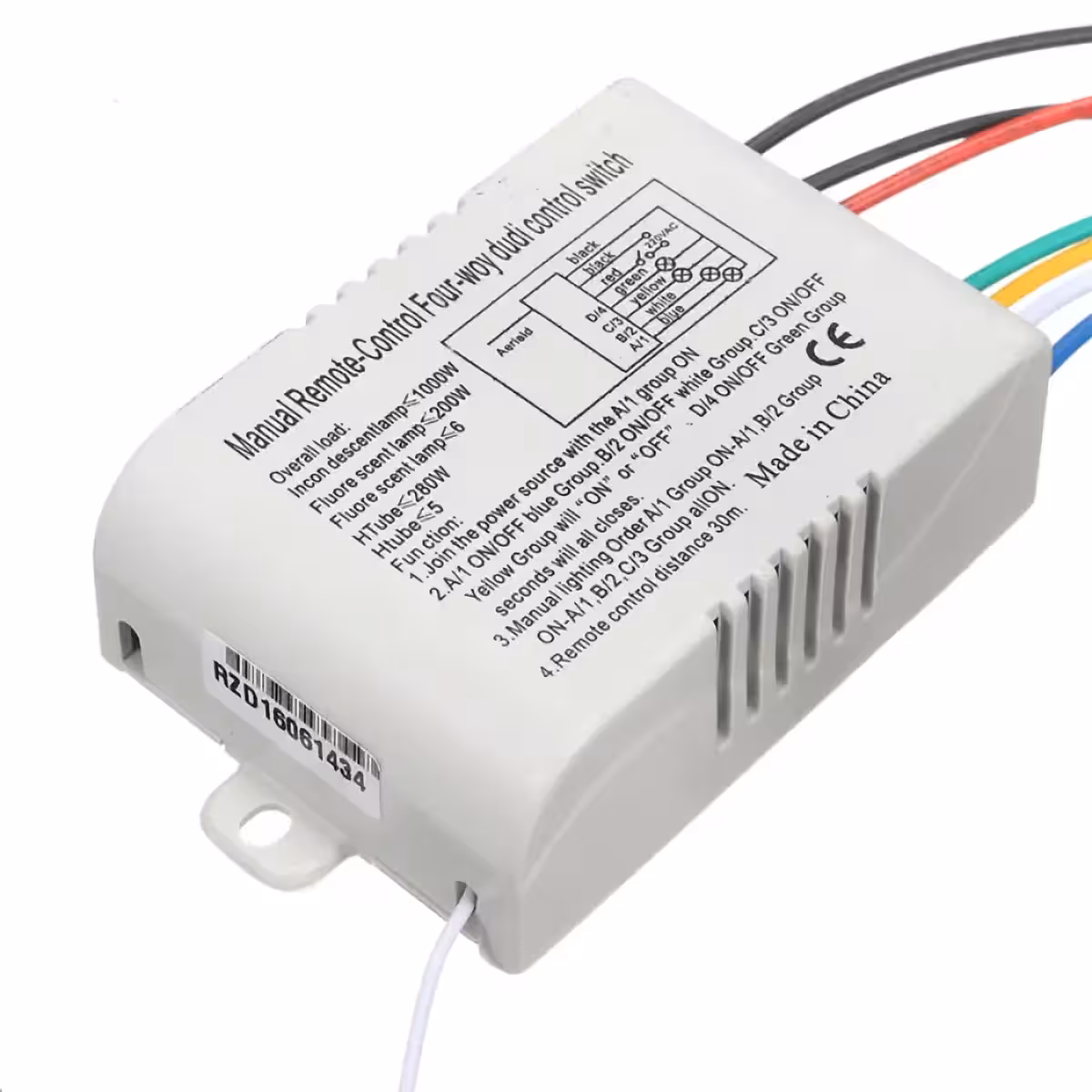

The receiver features 4 independent relays, each managing a distinct circuit, ensuring that a command on channel 1 has no impact on channels 2, 3, or 4. The 433.92 MHz RF remote offers excellent signal penetration through standard building materials, with an effective range of 15-20 metres indoors and up to 30 metres in open spaces. The receiver operates on standard 220-240V AC, 50-60Hz mains power, requiring no additional transformers or adapters.
| Parameter | Value / Detail |
|---|---|
| Number of channels | 4 independent channels |
| Supply voltage | 220-240V AC, 50-60Hz |
| Max load per channel – Halogen | 1000W |
| Max load per channel – LED | 200W |
| Total maximum power | 4000W (halogen) / 800W (LED) |
| Remote frequency | 433.92 MHz (RF) |
| Remote range | Up to 30 metres (open space) |
| Operating temperature | Max. 85°C |
| Ingress protection | IP20 (dry indoor use only) |
| Receiver dimensions | 90 x 46 x 23 mm (L x W x H) |
| Master control | 2 buttons for simultaneous ON/OFF of all channels |
Package Contents

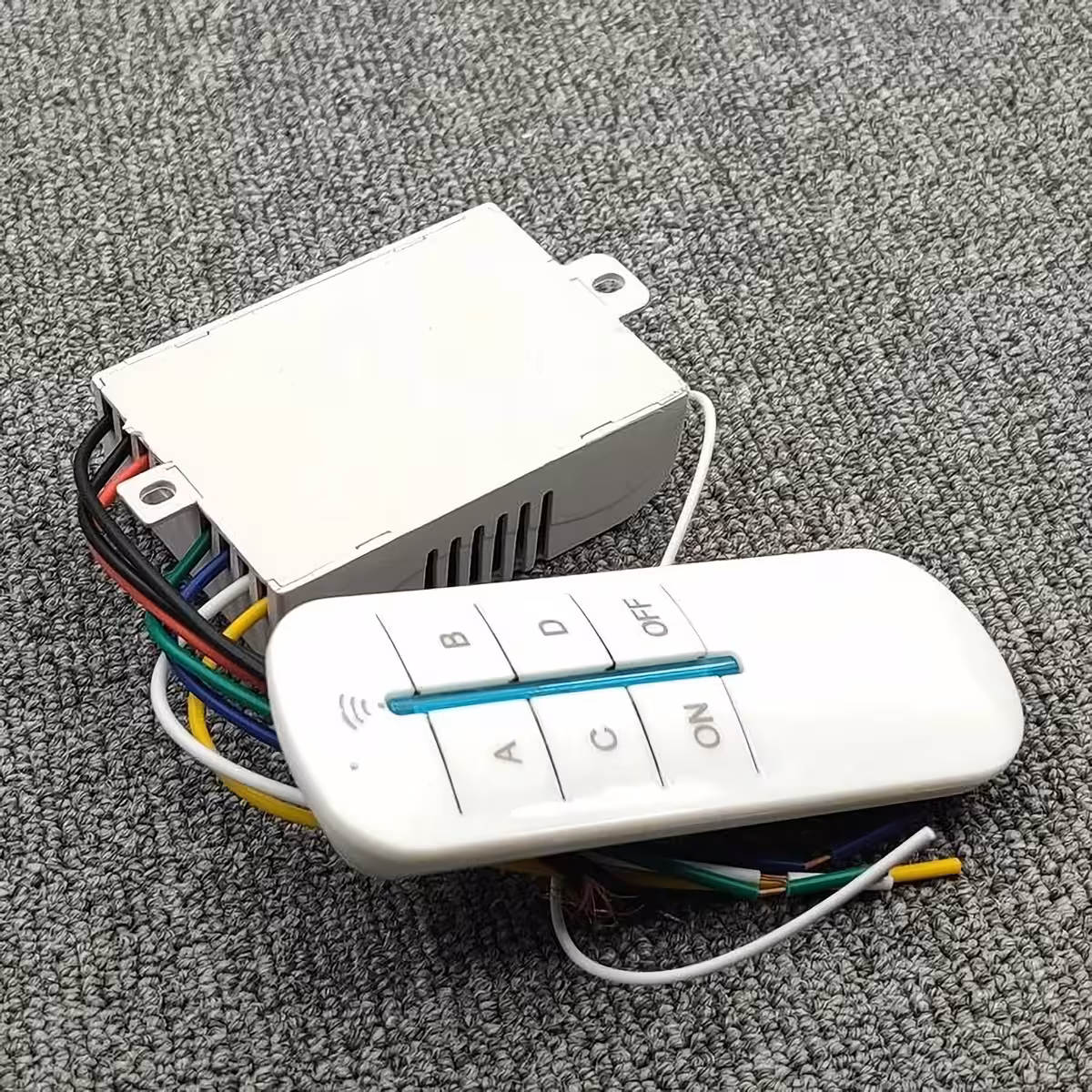

- 1x 4-Channel 220V RF Switch Receiver

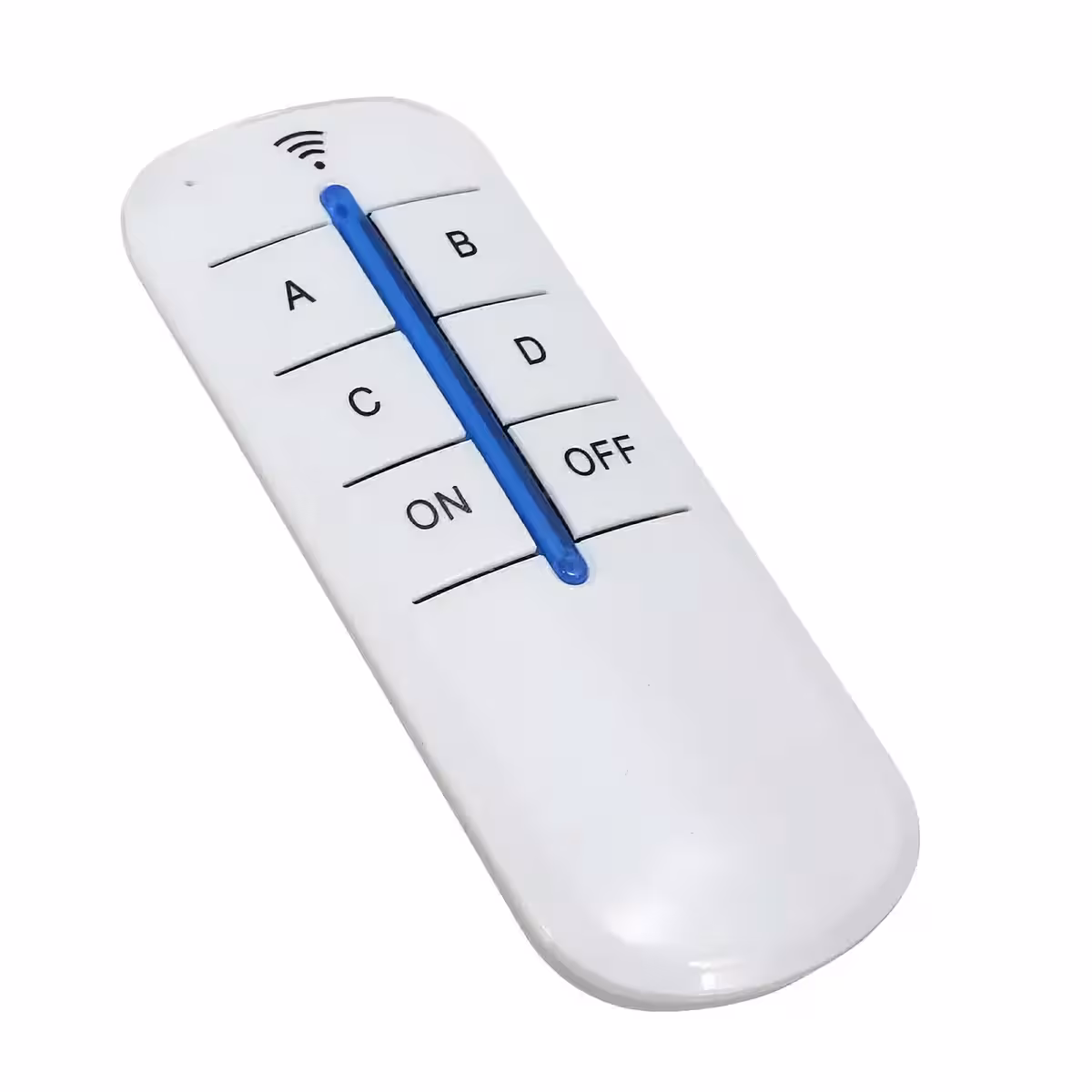

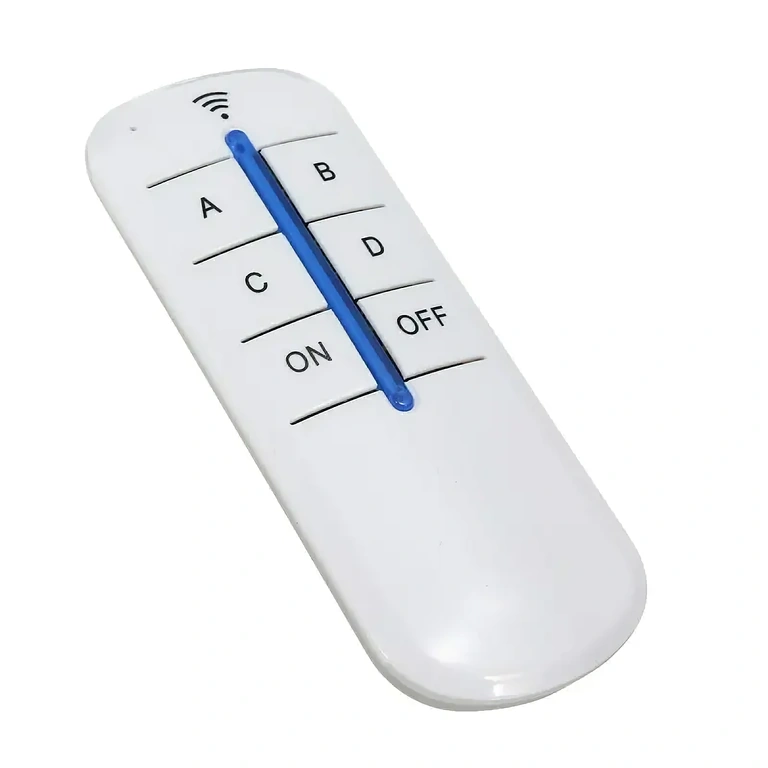

- 1x 433.92 MHz RF Remote Control (individual channel buttons + master ON/OFF buttons)
Frequently Asked Questions
Does it work with low-wattage LED bulbs (under 10W)?
Yes, the receiver is compatible with LEDs of any wattage. For bulbs under 5W, we recommend a quick test before final installation, as some very low-power sources may flicker depending on their internal driver.
Where should the receiver be installed?
It fits easily into a ceiling rose, an electrical junction box, or any accessible point on the 220V circuit, provided it is kept away from moisture. Its compact 90x46x23 mm size makes it easy to conceal.
Can I control each channel separately without affecting the others?
Absolutely. Each channel has its own dedicated button on the remote and its own relay in the receiver. Switching on channel 2 leaves channels 1, 3, and 4 exactly as they were.
How well does the remote work through walls?
Through drywall or partition walls, the effective range is typically 15-20 metres. Through reinforced concrete or thick brick walls, the range may be reduced. In open spaces, it reaches up to 30 metres.
